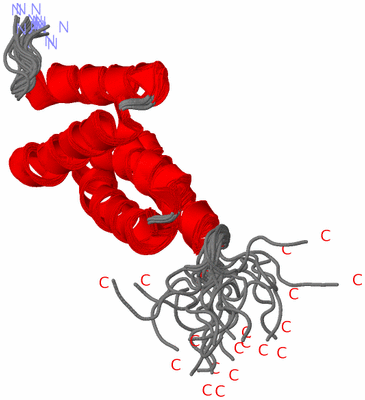

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION NMR STRUCTURE OF TETRATRICOPEPTIDE REPEAT DOMAIN PROTEIN SRU_0103 FROM SALINIBACTER RUBER, NORTHEAST STRUCTURAL GENOMICS CONSORTIUM (NESG) TARGET SRR115C

Authors :  G. Liu, P. Rossi, D. Wang, C. Nwosu, L. Owens, R. Xiao, J. Liu, M. C. Baran, G. Swapna, T. B. Acton, B. Rost, G. T. Montelione, Northeast Structural Genomics Consortium (Nesg)
Date :  29 Dec 08  (Deposition) - 20 Jan 09  (Release) - 20 Jan 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Tetratricopeptide Repeat, Tpr, Gft Nmr, Rdc, Nesg, Structural Genomics, Psi-2, Protein Structure Initiative, Northeast Structural Genomics Consortium, Unknown Function, Nucleotide-Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. Liu, G. T. Montelione
Solution Nmr Structure Of Tetratricopeptide Repeat Domain Protein Sru_0103 From Salinibacter Ruber, Northeast Structural Genomics Consortium (Nesg) Target Srr115C
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TETRATRICOPEPTIDE REPEAT DOMAIN PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET 21-23C
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: SRU_0103
    Organism Scientific: SALINIBACTER RUBER DSM 13855
    Organism Taxid: 309807

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2KCV)

(-) Sites  (0, 0)

(no "Site" information available for 2KCV)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2KCV)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2KCV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2KCV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2KCV)

(-) Exons   (0, 0)

(no "Exon" information available for 2KCV)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:99
 aligned with Q2S6C5_SALRD | Q2S6C5 from UniProtKB/TrEMBL  Length:150

    Alignment length:99
                                                                                                                        150
                                    65        75        85        95       105       115       125       135       145    |
         Q2S6C5_SALRD    56 EDPEDPFTRYALAQEHLKHDNASRALALFEELVETDPDYVGTYYHLGKLYERLDRTDDAIDTYAQGIEVAREEGTQKDLSELQDAKLKAEGVGFD----   -
               SCOP domains --------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -----TPR_2-2kcvA01 A:6-39              TPR_8-2kcvA02 A:40-73             -------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 2kcv A   1 EDPEDPFTRYALAQEHLKHDNASRALALFEELVETDPDYVGTYYHLGKLYERLDRTDDAIDTYAQGIEVAREEGTQKDLSELQDAKLKAEGLEHHHHHH  99
                                    10        20        30        40        50        60        70        80        90
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2KCV)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2KCV)

(-) Pfam Domains  (2, 2)

NMR Structure
(-)
Clan: TPR (230)

(-) Gene Ontology  (0, 0)

NMR Structure(hide GO term definitions)
    (no "Gene Ontology" information available for 2KCV)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2kcv)

  Sites
(no "Sites" information available for 2kcv)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2kcv)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2kcv
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q2S6C5_SALRD | Q2S6C5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q2S6C5_SALRD | Q2S6C5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q2S6C5_SALRD | Q2S6C5: 2kcl 3ma5

(-) Related Entries Specified in the PDB File

2kcl NMR STRUCTURE REFINED WITHOUT RDC CONSTRAINTS RELATED ID: 16084 RELATED DB: BMRB NMR CHEMICAL SHIFTS RELATED ID: SRR115C RELATED DB: TARGETDB
