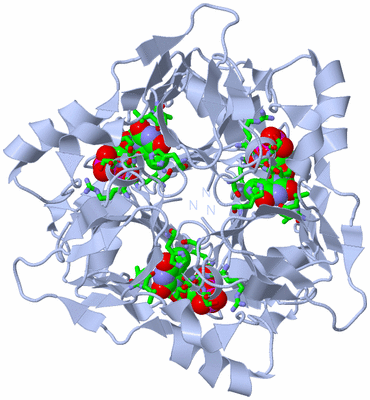

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A E138A ESCHERICHIA COLI DCTP DEAMINASE MUTANT ENZYME IN COMPLEX WITH DTTP

Authors :  E. Johansson, M. Thymark, J. H. Bynck, M. Fanoe, S. Larsen, M. Willemoes
Date :  05 Sep 06  (Deposition) - 07 Aug 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (3x)
Biol. Unit 2:  B  (3x)
Keywords :  Nucleotide Metabolism, Trimer, Hydrolase, Dctp Deaminase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. Johansson, M. Thymark, J. H. Bynck, M. Fanoe, S. Larsen, M. Willemoes
Regulation Of Dctp Deaminase From Escherichia Coli By Nonallosteric Dttp Binding To An Inactive Form Of The Enzyme
Febs J. V. 274 4188 2007
PubMed-ID: 17651436  |  Reference-DOI: 10.1111/J.1742-4658.2007.05945.X

(-) Compounds

Molecule 1 - DEOXYCYTIDINE TRIPHOSPHATE DEAMINASE
    Chains: A, B
    EC Number: 3.5.4.13
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: DCTP DEAMINASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (3x): A
Biological Unit 2 (3x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric Unit (3, 3)
No.NameCountTypeFull Name
1MG1Ligand/IonMAGNESIUM ION
2TTP1Ligand/IonTHYMIDINE-5'-TRIPHOSPHATE
3TYD1Ligand/IonTHYMIDINE-5'-DIPHOSPHATE
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION
2TTP-1Ligand/IonTHYMIDINE-5'-TRIPHOSPHATE
3TYD3Ligand/IonTHYMIDINE-5'-DIPHOSPHATE
Biological Unit 2 (1, 3)
No.NameCountTypeFull Name
1MG-1Ligand/IonMAGNESIUM ION
2TTP3Ligand/IonTHYMIDINE-5'-TRIPHOSPHATE
3TYD-1Ligand/IonTHYMIDINE-5'-DIPHOSPHATE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:110 , SER A:111 , SER A:112 , ARG A:115 , HIS A:121 , ALA A:124 , ARG A:126 , ASP A:128 , ILE A:135 , VAL A:136 , TYR A:171BINDING SITE FOR RESIDUE TYD A 194
2AC2SOFTWAREASP B:34 , ARG B:110 , SER B:111 , SER B:112 , ARG B:115 , HIS B:121 , ALA B:124 , HIS B:125 , ARG B:126 , ASP B:128 , ILE B:135 , VAL B:136 , MG B:195BINDING SITE FOR RESIDUE TTP B 194
3AC3SOFTWAREGLY B:109 , ARG B:126 , ALA B:157 , TTP B:194BINDING SITE FOR RESIDUE MG B 195

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2J4Q)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Asn A:20 -Pro A:21
2Asn B:20 -Pro B:21

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2J4Q)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2J4Q)

(-) Exons   (0, 0)

(no "Exon" information available for 2J4Q)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:174
 aligned with DCD_ECOLI | P28248 from UniProtKB/Swiss-Prot  Length:193

    Alignment length:174
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
            DCD_ECOLI     1 MRLCDRDIEAWLDEGRLSINPRPPVERINGATVDVRLGNKFRTFRGHTAAFIDLSGPKDEVSAALDRVMSDEIVLDEGEAFYLHPGELALAVTLESVTLPADLVGWLDGRSSLARLGLMVHVTAHRIDPGWSGCIVLEFYNSGKLPLALRPGMLIGALSFEPLSGPAVRPYNRR 174
               SCOP domains d2j4qa_ A: Deoxycytidine triphosphate deaminase (dCTP deaminase)                                                                                                               SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...hhhhhhhhhhh...eee...hhh.ee..eeeee...ee...hhhhh.......hhhhhhhhhhhhh...ee......eee....eeeee...eee....eeeeee.hhhhhh..eee.....ee....ee..eeeeee.....eee....eeeeeeeee............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2j4q A   1 MRLCDRDIEAWLDEGRLSINPRPPVERINGATVDVRLGNKFRTFRGHTAAFIDLSGPKDEVSAALDRVMSDEIVLDEGEAFYLHPGELALAVTLESVTLPADLVGWLDGRSSLARLGLMVHVTAHRIDPGWSGCIVLAFYNSGKLPLALRPGMLIGALSFEPLSGPAVRPYNRR 174
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170


Chain B from PDB  Type:PROTEIN  Length:171
 aligned with DCD_ECOLI | P28248 from UniProtKB/Swiss-Prot  Length:193

    Alignment length:171
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
            DCD_ECOLI     1 MRLCDRDIEAWLDEGRLSINPRPPVERINGATVDVRLGNKFRTFRGHTAAFIDLSGPKDEVSAALDRVMSDEIVLDEGEAFYLHPGELALAVTLESVTLPADLVGWLDGRSSLARLGLMVHVTAHRIDPGWSGCIVLEFYNSGKLPLALRPGMLIGALSFEPLSGPAVRPY 171
               SCOP domains d2j4qb_ B: Deoxycytidine triphosphate deaminase (dCTP deaminase)                                                                                                            SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhh...eee...hhh.ee..eeeee........hhhhh.......hhhhhhhh................eee....eeeee...eee....eeeeeeehhhhhh..eee.....ee....ee..eeeeee.....eee....eeeeeeeee......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2j4q B   1 MRLCDRDIEAWLDEGRLSINPRPPVERINGATVDVRLGNKFRTFRGHTAAFIDLSGPKDEVSAALDRVMSDEIVLDEGEAFYLHPGELALAVTLESVTLPADLVGWLDGRSSLARLGLMVHVTAHRIDPGWSGCIVLAFYNSGKLPLALRPGMLIGALSFEPLSGPAVRPY 171
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2J4Q)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2J4Q)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (DCD_ECOLI | P28248)
molecular function
    GO:0008829    dCTP deaminase activity    Catalysis of the reaction: dCTP + H2O = dUTP + NH3.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
biological process
    GO:0006226    dUMP biosynthetic process    The chemical reactions and pathways resulting in the formation of dUMP, deoxyuridine monophosphate (2'-deoxyuridine 5'-phosphate).
    GO:0006229    dUTP biosynthetic process    The chemical reactions and pathways resulting in the formation of dUTP, deoxyuridine (5'-)triphosphate.
    GO:0046080    dUTP metabolic process    The chemical reactions and pathways involving dUTP, deoxyuridine (5'-)triphosphate.
    GO:0015949    nucleobase-containing small molecule interconversion    The chemical reactions and pathways by which a nucleobase, nucleoside or nucleotide small molecule is synthesized from another nucleobase, nucleoside or nucleotide small molecule.
    GO:0009117    nucleotide metabolic process    The chemical reactions and pathways involving a nucleotide, a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic nucleotides (nucleoside cyclic phosphates).
    GO:0009220    pyrimidine ribonucleotide biosynthetic process    The chemical reactions and pathways resulting in the formation of a pyrimidine ribonucleotide, a compound consisting of nucleoside (a pyrimidine base linked to a ribose sugar) esterified with a phosphate group at either the 3' or 5'-hydroxyl group of the sugar.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TTP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    TYD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn A:20 - Pro A:21   [ RasMol ]
    Asn B:20 - Pro B:21   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2j4q
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  DCD_ECOLI | P28248
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.5.4.13
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  DCD_ECOLI | P28248
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        DCD_ECOLI | P28248: 1xs1 1xs4 1xs6 2j4h 2v9x

(-) Related Entries Specified in the PDB File

1xs1 DCTP DEAMINASE FROM ESCHERICHIA COLI IN COMPLEX WITH DUTP
1xs4 DCTP DEAMINASE FROM ESCHERICHIA COLI- E138A MUTANT ENZYMEIN COMPLEX WITH DCTP
1xs6 DCTP DEAMINASE FROM ESCHERICHIA COLI. E138A MUTANT ENZYMEIN COMPLEX WITH DUTP
2j4h CRYSTAL STRUCTURE OF A H121A ESCHERICHIA COLI DCTP DEAMINASE MUTANT ENZYME
