2ITM - JenaLib

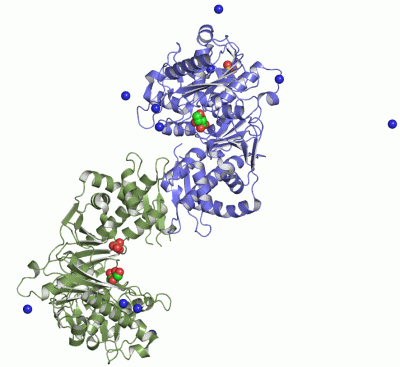

Asym./Biol. Unit - manually (Jmol Viewer)

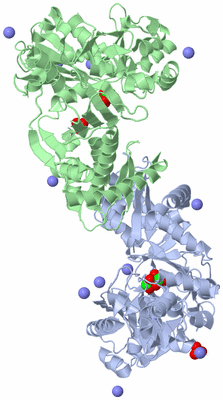

Asym./Biol. Unit (Jmol Viewer)

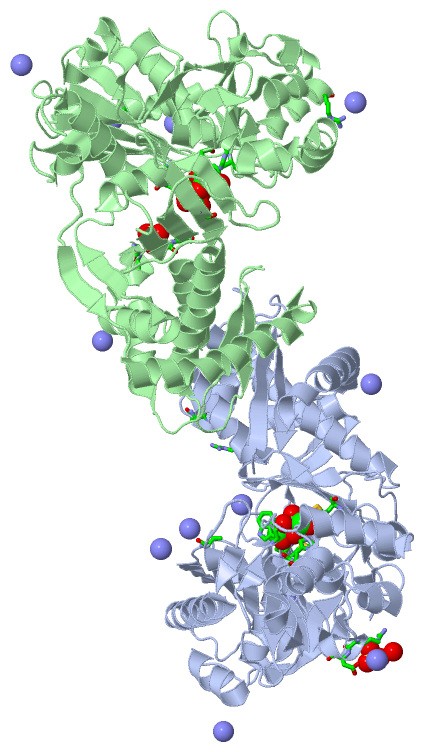

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF THE E. COLI XYLULOSE KINASE COMPLEXED WITH XYLULOSE

Authors :   E. Di Luccio, J. Voegtli, D. K. Wilson

Date :   19 Oct 06 (Deposition) - 14 Nov 06 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.10

Chains :   Asym./Biol. Unit : A,B

Keywords :   Xylulokinase, Xylulose, Kinase, Atpase, Fggy Kinase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   E. Di Luccio, B. Petschacher, J. Voegtli, H. T. Chou, H. Stahlberg, B. Nidetzky, D. K. Wilson
Structural And Kinetic Studies Of Induced Fit In Xylulose Kinase From Escherichia Coli.
J. Mol. Biol. V. 365 783 2007
PubMed-ID: 17123542 | Reference-DOI: 10.1016/J.JMB.2006.10.068
(for further references see the PDB file header)

Molecule 1 - XYLULOSE KINASE
	Chains	:	A, B
	EC Number	:	2.7.1.17
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PTYB2
	Expression System Strain	:	BL21*
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	XYLB
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562
	Synonym	:	XYLULOKINASE

		1	2
Asymmetric/Biological Unit	:	A	B

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (3, 16)

No.	Name	Count	Type	Full Name
1	NH4	12	Ligand/Ion	AMMONIUM ION
2	SO4	2	Ligand/Ion	SULFATE ION
3	XUL	2	Ligand/Ion	D-XYLULOSE

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	MET A:77 , HIS A:78 , TRP A:96 , ASP A:233 , ASN A:234 , MET A:288	BINDING SITE FOR RESIDUE XUL A 4930
2	AC2	SOFTWARE	MET B:77 , HIS B:78 , TRP B:96 , ASP B:233 , ASN B:234 , MET B:288 , HOH B:5058 , HOH B:5113 , HOH B:5116	BINDING SITE FOR RESIDUE XUL B 4931
3	AC3	SOFTWARE	GLY B:254 , THR B:255 , GLY B:394 , GLY B:395	BINDING SITE FOR RESIDUE SO4 B 4932
4	AC4	SOFTWARE	ARG A:196 , HOH A:5150	BINDING SITE FOR RESIDUE SO4 A 4931
5	AC5	SOFTWARE	ARG B:137	BINDING SITE FOR RESIDUE NH4 B 4933
6	AC6	SOFTWARE	ASN A:309 , VAL A:310 , ARG A:398 , ARG B:54	BINDING SITE FOR RESIDUE NH4 B 4935
7	AC7	SOFTWARE	ASP A:197	BINDING SITE FOR RESIDUE NH4 A 4935
8	AC8	SOFTWARE	VAL A:33	BINDING SITE FOR RESIDUE NH4 A 4938

(no "SS Bond" information available for 2ITM)

(no "Cis Peptide Bond" information available for 2ITM)

(no "SAP(SNP)/Variant" information available for 2ITM)

Asymmetric/Biological Unit (2, 4)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	FGGY_KINASES_1	PS00933	FGGY family of carbohydrate kinases signature 1.	XYLB_ECOLI	126-138	2	A:126-138 B:126-138
2	FGGY_KINASES_2	PS00445	FGGY family of carbohydrate kinases signature 2.	XYLB_ECOLI	347-367	2	A:347-367 B:347-367

(no "Exon" information available for 2ITM)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:476
 aligned with XYLB_ECOLI | P09099 from UniProtKB/Swiss-Prot  Length:484

    Alignment length:484
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480
           XYLB_ECOLI     1 MYIGIDLGTSGVKVILLNEQGEVVAAQTEKLTVSRPHPLWSEQDPEQWWQATDRAMKALGDQHSLQDVKALGIAGQMHGATLLDAQQRVLRPAILWNDGRCAQECTLLEARVPQSRVITGNLMMPGFTAPKLLWVQRHEPEIFRQIDKVLLPKDYLRLRMTGEFASDMSDAAGTMWLDVAKRDWSDVMLQACDLSRDQMPALYEGSEITGALLPEVAKAWGMATVPVVAGGGDNAAGAVGVGMVDANQAMLSLGTSGVYFAVSEGFLSKPESAVHSFCHALPQRWHLMSVMLSAASCLDWAAKLTGLSNVPALIAAAQQADESAEPVWFLPYLSGERTPHNNPQAKGVFFGLTHQHGPNELARAVLEGVGYALADGMDVVHACGIKPQSVTLIGGGARSEYWRQMLADISGQQLDYRTGGDVGPALGAARLAQIAANPEKSLIELLPQLPLEQSHLPDAQRYAAYQPRRETFRRLYQQLLPLMA 484
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...eeeeeee.....eeeeeeee...........eehhhhhhhhhhhhhhhhhhhh......eeeeee.....eee.........ee......hhhhhhhhhhhh.hhhhhhh......hhhhhhhhhhhhhhhhhh...eeehhhhhhhhhhhh..eeehhhhhh...ee....eehhhhhhh...hhhhh.eee....eeee.hhhhhhhh.....eee..eehhhhhhhhhh......eeeee...eeeeee............eeee......eeeeeee.hhhhhhhhhhhhh...hhhhhhhhhhhh.......eeeeee.--------..eeeeee......hhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeehhhhhhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhh...hhhhhh....eeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------FGGY_KINASES_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------FGGY_KINASES_2       --------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2itm A   1 MYIGIDLGTSGVKVILLNEQGEVVAAQTEKLTVSRPHPLWSEQDPEQWWQATDRAMKALGDQHSLQDVKALGIAGQMHGATLLDAQQRVLRPAILWNDGRCAQECTLLEARVPQSRVITGNLMMPGFTAPKLLWVQRHEPEIFRQIDKVLLPKDYLRLRMTGEFASDMSDAAGTMWLDVAKRDWSDVMLQACDLSRDQMPALYEGSEITGALLPEVAKAWGMATVPVVAGGGDNAAGAVGVGMVDANQAMLSLGTSGVYFAVSEGFLSKPESAVHSFCHALPQRWHLMSVMLSAASCLDWAAKLTGLSNVPALIAAAQQADESAEPVWFLPYLS--------PQAKGVFFGLTHQHGPNELARAVLEGVGYALADGMDVVHACGIKPQSVTLIGGGARSEYWRQMLADISGQQLDYRTGGDVGPALGAARLAQIAANPEKSLIELLPQLPLEQSHLPDAQRYAAYQPRRETFRRLYQQLLPLMA 484
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330   |     -  |    350       360       370       380       390       400       410       420       430       440       450       460       470       480
                                                                                                                                                                                                                                                                                                                                                                       334      343

Chain B from PDB  Type:PROTEIN  Length:475
 aligned with XYLB_ECOLI | P09099 from UniProtKB/Swiss-Prot  Length:484

    Alignment length:484
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480
           XYLB_ECOLI     1 MYIGIDLGTSGVKVILLNEQGEVVAAQTEKLTVSRPHPLWSEQDPEQWWQATDRAMKALGDQHSLQDVKALGIAGQMHGATLLDAQQRVLRPAILWNDGRCAQECTLLEARVPQSRVITGNLMMPGFTAPKLLWVQRHEPEIFRQIDKVLLPKDYLRLRMTGEFASDMSDAAGTMWLDVAKRDWSDVMLQACDLSRDQMPALYEGSEITGALLPEVAKAWGMATVPVVAGGGDNAAGAVGVGMVDANQAMLSLGTSGVYFAVSEGFLSKPESAVHSFCHALPQRWHLMSVMLSAASCLDWAAKLTGLSNVPALIAAAQQADESAEPVWFLPYLSGERTPHNNPQAKGVFFGLTHQHGPNELARAVLEGVGYALADGMDVVHACGIKPQSVTLIGGGARSEYWRQMLADISGQQLDYRTGGDVGPALGAARLAQIAANPEKSLIELLPQLPLEQSHLPDAQRYAAYQPRRETFRRLYQQLLPLMA 484
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...eeeeeee.....eeeeeeee...........eehhhhhhhhhhhhhhhhhh........eeeeee.....eee.........ee......hhhhhhhhhhhh.hhhhhhh......hhhhhhhhhhhhhhhhhh...eeehhhhhhhhhhhh..eeehhhhhhhh.ee....eehhhhhhhh..hhhhh.eee....eeee.hhhhhhhhh....eee..eehhhhhhhhhh......eeee.....eeeeee...........eeee......eeeeee..hhhhhhhhhhhhh...hhhhhhhhhhhh.......eeeee..---------..eeeee......hhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeehhhhhhhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhh....hhhhh.....eeeee..hhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------------------------------------------------------------------------------------------------------------------------FGGY_KINASES_----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------FGGY_KINASES_2       --------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2itm B   1 MYIGIDLGTSGVKVILLNEQGEVVAAQTEKLTVSRPHPLWSEQDPEQWWQATDRAMKALGDQHSLQDVKALGIAGQMHGATLLDAQQRVLRPAILWNDGRCAQECTLLEARVPQSRVITGNLMMPGFTAPKLLWVQRHEPEIFRQIDKVLLPKDYLRLRMTGEFASDMSDAAGTMWLDVAKRDWSDVMLQACDLSRDQMPALYEGSEITGALLPEVAKAWGMATVPVVAGGGDNAAGAVGVGMVDANQAMLSLGTSGVYFAVSEGFLSKPESAVHSFCHALPQRWHLMSVMLSAASCLDWAAKLTGLSNVPALIAAAQQADESAEPVWFLPYLS---------QAKGVFFGLTHQHGPNELARAVLEGVGYALADGMDVVHACGIKPQSVTLIGGGARSEYWRQMLADISGQQLDYRTGGDVGPALGAARLAQIAANPEKSLIELLPQLPLEQSHLPDAQRYAAYQPRRETFRRLYQQLLPLMA 484
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330   |     -   |   350       360       370       380       390       400       410       420       430       440       450       460       470       480
                                                                                                                                                                                                                                                                                                                                                                       334       344

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 2ITM)

(no "CATH Domain" information available for 2ITM)

(no "Pfam Domain" information available for 2ITM)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B (XYLB_ECOLI | P09099)

molecular function
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0016301	kinase activity	Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0016773	phosphotransferase activity, alcohol group as acceptor	Catalysis of the transfer of a phosphorus-containing group from one compound (donor) to an alcohol group (acceptor).
	GO:0016740	transferase activity	Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
	GO:0004856	xylulokinase activity	Catalysis of the reaction: D-xylulose + ATP = D-xylulose 5-phosphate + ADP + 2 H(+).
biological process
	GO:0042843	D-xylose catabolic process	The chemical reactions and pathways resulting in the breakdown of D-xylose, a naturally occurring plant polysaccharide.
	GO:0042732	D-xylose metabolic process	The chemical reactions and pathways involving D-xylose, a naturally occurring plant polysaccharide.
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:0046835	carbohydrate phosphorylation	The process of introducing a phosphate group into a carbohydrate, any organic compound based on the general formula Cx(H2O)y.
	GO:0016310	phosphorylation	The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
	GO:0005998	xylulose catabolic process	The chemical reactions and pathways resulting in the breakdown of xylulose, the ketopentose threo-2-pentulose.
	GO:0005997	xylulose metabolic process	The chemical reactions and pathways involving xylulose, the ketopentose threo-2-pentulose.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric/Biological Unit
