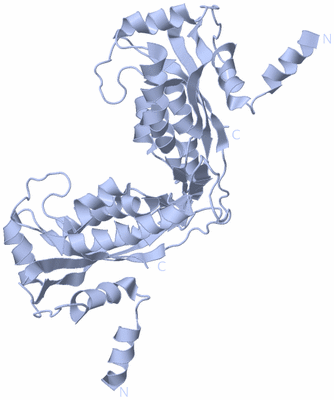

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

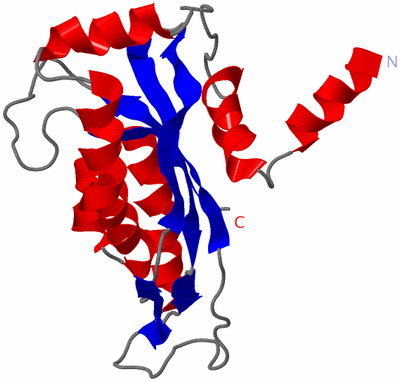

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF YEAST TIM44

Authors :  R. Josyula, B. Sha
Date :  06 Feb 06  (Deposition) - 06 Feb 07  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.20
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Mitochondrial Translocase, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  R. Josyula, Z. Jin, Z. Fu, B. Sha
Crystal Structure Of Yeast Mitochondrial Peripheral Membrane Protein Tim44P C-Terminal Domain.
J. Mol. Biol. V. 359 798 2006
PubMed-ID: 16647716  |  Reference-DOI: 10.1016/J.JMB.2006.04.020
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - IMPORT INNER MEMBRANE TRANSLOCASE SUBUNIT TIM44
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI BL21
    Expression System StrainBL-21
    Expression System Taxid511693
    Expression System VectorPET28(B)+
    FragmentC- TERMINAL DOMAIN, RESIDUES 245-425
    GeneTIM44
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE
    Organism Taxid4932
    SynonymMITOCHONDRIAL PROTEIN IMPORT PROTEIN 1

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit A
Biological Unit 1 (2x)A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2FXT)

(-) Sites  (0, 0)

(no "Site" information available for 2FXT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2FXT)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2FXT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2FXT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2FXT)

(-) Exons   (1, 1)

Asymmetric Unit (1, 1)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YIL022W1YIL022W.1IX:311163-3124581296TIM44_YEAST1-4314311A:234-425192

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:192
 aligned with TIM44_YEAST | Q01852 from UniProtKB/Swiss-Prot  Length:431

    Alignment length:192
                                   243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423
          TIM44_YEAST   234 SIQSLKNKLWDESENPLIVVMRKITNKVGGFFAETESSRVYSQFKLMDPTFSNESFTRHLREYIVPEILEAYVKGDVKVLKKWFSEAPFNVYAAQQKIFKEQDVYADGRILDIRGVEIVSAKLLAPQDIPVLVVGCRAQEINLYRKKKTGEIAAGDEANILMSSYAMVFTRDPEQIDDDETEGWKILEFVRG 425
               SCOP domains d2fxta1 A:234-425 Translocase of inner mitochondrial membrane TIMM44 (TIM44), C-terminal domain                                                                                                  SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhh...hhhhhhhhhhhh..........hhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh.ee..eee...eeeeeeeeeee....eeeeeeeeee.eee..ee................eeeeeeee..............eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
               Transcript 1 Exon 1.1  PDB: A:234-425 UniProt: 1-431 [INCOMPLETE]                                                                                                                                             Transcript 1
                 2fxt A 234 SIQSLKNKLWDESENPLIVVMRKITNKVGGFFAETESSRVYSQFKLMDPTFSNESFTRHLREYIVPEILEAYVKGDVKVLKKWFSEAPFNVYAAQQKIFKEQDVYADGRILDIRGVEIVSAKLLAPQDIPVLVVGCRAQEINLYRKKKTGEIAAGDEANILMSSYAMVFTRDPEQIDDDETEGWKILEFVRG 425
                                   243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2FXT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2FXT)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A   (TIM44_YEAST | Q01852)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0051087    chaperone binding    Interacting selectively and non-covalently with a chaperone protein, a class of proteins that bind to nascent or unfolded polypeptides and ensure correct folding or transport.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0030674    protein binding, bridging    The binding activity of a molecule that brings together two or more protein molecules, or a protein and another macromolecule or complex, through a selective, non-covalent, often stoichiometric interaction, permitting those molecules to function in a coordinated way.
biological process
    GO:0030150    protein import into mitochondrial matrix    The import of proteins across the outer and inner mitochondrial membranes into the matrix. Unfolded proteins enter the mitochondrial matrix with a chaperone protein; the information required to target the precursor protein from the cytosol to the mitochondrial matrix is contained within its N-terminal matrix-targeting sequence. Translocation of precursors to the matrix occurs at the rare sites where the outer and inner membranes are close together.
    GO:0006626    protein targeting to mitochondrion    The process of directing proteins towards and into the mitochondrion, usually mediated by mitochondrial proteins that recognize signals contained within the imported protein.
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005743    mitochondrial inner membrane    The inner, i.e. lumen-facing, lipid bilayer of the mitochondrial envelope. It is highly folded to form cristae.
    GO:0005739    mitochondrion    A semiautonomous, self replicating organelle that occurs in varying numbers, shapes, and sizes in the cytoplasm of virtually all eukaryotic cells. It is notably the site of tissue respiration.
    GO:0001405    presequence translocase-associated import motor    Protein complex located on the matrix side of the mitochondrial inner membrane and associated with the presequence translocase complex; hydrolyzes ATP to provide the force to drive import of proteins into the mitochondrial matrix.
