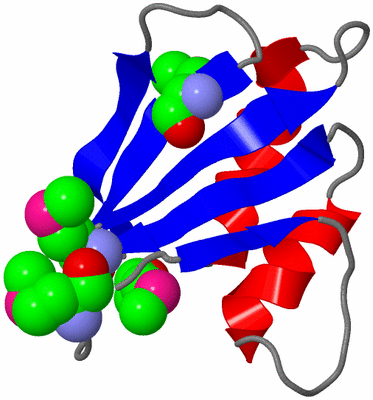

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  X-RAY CRYSTAL STRUCTURE OF PROTEIN SAV1430 FROM STAPHYLOCOCCUS AUREUS. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET ZR18.

Authors :  F. Forouhar, Y. Chen, S. Jayaraman, H. Janjua, R. Xiao, T. B. Acton, G. T. Montelione, L. Tong, J. F. Hunt, Northeast Structural Genomics Consortium (Nesg)
Date :  19 Dec 05  (Deposition) - 27 Dec 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.51
Chains :  Asym./Biol. Unit :  A
Keywords :  Alpha-Beta Protein. , Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Nesg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Forouhar, Y. Chen, S. Jayaraman, H. Janjua, R. Xiao, T. B. Acton, G. T. Montelione, L. Tong, J. F. Hunt, Northeast Structural Genomics Consortium (Nesg)
Crystal Structure Of The Hypothetical Protein Sav1430 From Staphylococcus Aureus, Northeast Structural Genomics Zr18.
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SAV1430
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21
    Expression System Strain: BL21(DE3)+MAGIC
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: STAPHYLOCOCCUS AUREUS SUBSP. AUREUS MU50
    Organism Taxid: 158878
    Strain: SUBSP. AUREUS MU50

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2FFM)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2FFM)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2FFM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2FFM)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2FFM)

(-) Exons   (0, 0)

(no "Exon" information available for 2FFM)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:83
 aligned with A0A0H3JRL4_S | A0A0H3JRL4 from UniProtKB/TrEMBL  Length:83

    Alignment length:83
                                    10        20        30        40        50        60        70        80
          A0A0H3JRL4_S    1 MKIISISETPNHNTMKITLSESREGMTSDTYTKVDDSQPAFINDILKVEGVKSIFHVMDFISVDKENDANWETVLPKVEAVFE 83
               SCOP domains d2ffma_ A: automated matches                                                        SCOP domains
               CATH domains -2ffmA00 A:2-83 Hypothetical protein SAV1430                                        CATH domains
               Pfam domains ----------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee.....eeeeee.........eee.......hhhhhhhhh...eeeeeee..eeeeee....hhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------- Transcript
                  2ffm A  1 mKIISISETPNHNTmKITLSESREGmTSDTYTKVDDSQPAFINDILKVEGVKSIFHVmDFISVDKENDANWETVLPKVEAVFE 83
                            |       10    |   20     |  30        40        50       |60        70        80
                            |            15-MSE     26-MSE                          58-MSE
                            1-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2FFM)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2FFM)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2ffm)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ffm)


(-) Still Images

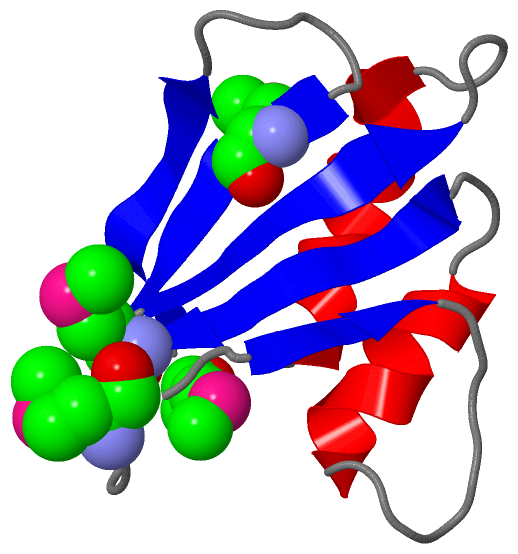

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2ffm
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  A0A0H3JRL4_S | A0A0H3JRL4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  A0A0H3JRL4_S | A0A0H3JRL4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        A0A0H3JRL4_S | A0A0H3JRL4: 2m6q 2m8w

(-) Related Entries Specified in the PDB File

zr18
