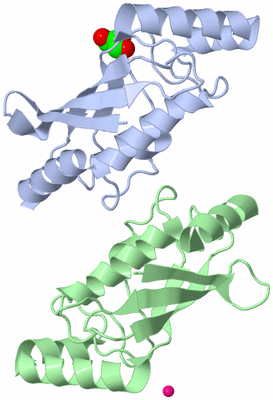

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

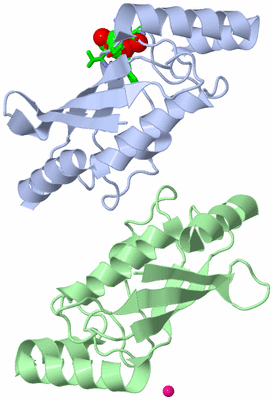

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  TOXOPLASMA GONDII UBIQUITIN CONJUGATING ENZYME TGTWINSCAN_2721- E2 DOMAIN

Authors :  A. Dong, J. Lew, Y. Zhao, M. Melone, Z. Alam, I. Kozieradski, G. Wasney, M M. Sundstrom, J. Weigelt, A. M. Edwards, C. H. Arrowsmith, A. Bochkare T. Hills, Structural Genomics Consortium (Sgc)
Date :  24 Nov 05  (Deposition) - 27 Dec 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.11
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Ubiquitin Conjugating Tgtwinscan_2721, Structural Genomics, Structural Genomics Consortium, Sgc, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Vedadi, J. Lew, J. Artz, M. Amani, Y. Zhao, A. Dong, G. A. Wasney, M. Gao, T. Hills, S. Brokx, W. Qiu, S. Sharma, A. Diassiti, Z. Alam, M. Melone, A. Mulichak, A. Wernimont, J. Bray, P. Loppnau, O. Plotnikova, K. Newberry, E. Sundararajan, S. Houston, J. Walker, W. Tempel, A. Bochkarev, I. Kozieradzki, A. Edwards, C. Arrowsmith, D. Roos, K. Kain, R. Hui
Genome-Scale Protein Expression And Structural Biology Of Plasmodium Falciparum And Related Apicomplexan Organisms.
Mol. Biochem. Parasitol. V. 151 100 2007
PubMed-ID: 17125854  |  Reference-DOI: 10.1016/J.MOLBIOPARA.2006.10.011

(-) Compounds

Molecule 1 - TGTWINSCAN_2721 - E2 DOMAIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: P28-LIC-THROMBIN DERIVED FROM SOURCE 9 PET28
    Expression System Strain: BL21 CODON PLUS RIL
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: TOXOPLASMA GONDII
    Organism Taxid: 5811

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2UNX1Ligand/IonUNKNOWN ATOM OR ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPHE A:113 , VAL A:114 , THR A:115 , LYS A:116 , GLN A:125 , THR A:126 , GLY A:127 , HOH A:3016BINDING SITE FOR RESIDUE GOL A 3002

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2F4Z)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Tyr A:104 -Pro A:105
2Tyr B:104 -Pro B:105

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2F4Z)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2F4Z)

(-) Exons   (0, 0)

(no "Exon" information available for 2F4Z)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:145

               SCOP domains d2f4za1 A:32-192 Hypothetical protein Tgtwinscan_2721, E2 domain                                                                                  SCOP domains
               CATH domains 2f4zA00 A:32-192 Ubiquitin Conjugating Enzyme                                                                                                     CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhh.eeeeee..eeeeeeeeee..........eeeeeee..........eeee.................hhhhh.......hhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2f4z A  32 REQARLLKELADIQQLGVSAQIVGGDIHRWRGFIAGPLGTPYEGGHFTLDIVIPPDYPYNPPKMKFVTKIWHPNISSQTGAICLDILKHEWSPALTIRTALLSIQAMLADPVPTDPQDAEVAKMMIENHPLFVQTAKLWTETFAK 192
                                    41     || 67        77        87        97       107       117       127       137       147       157       167       177       187
                                          47|
                                           64


Chain B from PDB  Type:PROTEIN  Length:143

               SCOP domains d2f4zb_ B: Hypothetical protein Tgtwinscan_2721, E2 domain                                                                                      SCOP domains
               CATH domains 2f4zB00 B:33-192 Ubiquitin Conjugating Enzyme                                                                                                   CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhh.eeeee......eeeeeee..........eeeeeee..........eeee.................hhhhh.......hhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2f4z B  33 EQARLLKELADIQQGVSAQIVGGDIHRWRGFIAGPLGTPYEGGHFTLDIVIPPDYPYNPPKMKFVTKIWHPNISSQTGAICLDILKHEWSPALTIRTALLSIQAMLADPVPTDPQDAEVAKMMIENHPLFVQTAKLWTETFAK 192
                                    42   ||   69        79        89        99       109       119       129       139       149       159       169       179       189
                                        46|
                                         64
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2F4Z)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2F4Z)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    UNX  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Tyr A:104 - Pro A:105   [ RasMol ]
    Tyr B:104 - Pro B:105   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

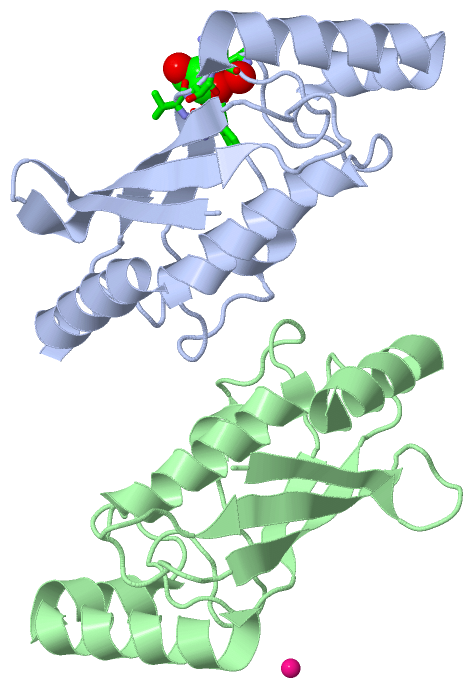

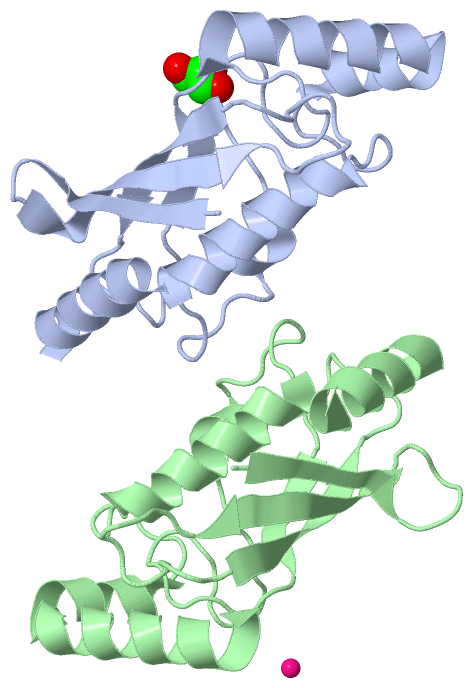

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
