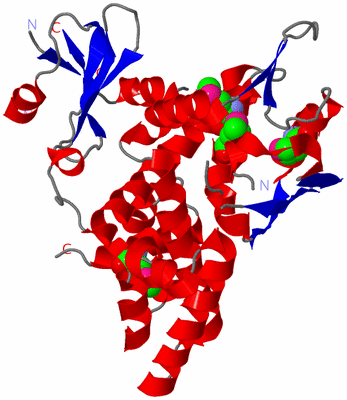

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF DEINOCOCCUS RADIODURANS TOPOISOMERASE IB

Authors :  A. Patel, S. Shuman, A. Mondragon
Date :  23 Nov 05  (Deposition) - 27 Dec 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.75
Chains :  Asym./Biol. Unit :  A
Keywords :  Topoisomerase Ib, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. Patel, S. Shuman, A. Mondragon
Crystal Structure Of A Bacterial Type Ib Dna Topoisomerase Reveals A Preassembled Active Site In The Absence Of Dna.
J. Biol. Chem. V. 281 6030 2006
PubMed-ID: 16368685  |  Reference-DOI: 10.1074/JBC.M512332200

(-) Compounds

Molecule 1 - TYPE I TOPOISOMERASE, PUTATIVE
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET3C
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: TOPIB
    Organism Scientific: DEINOCOCCUS RADIODURANS
    Organism Taxid: 1299

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 4)

Asymmetric/Biological Unit (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2F4Q)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2F4Q)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Gly A:200 -Pro A:201
2Gly A:231 -Pro A:232

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2F4Q)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2F4Q)

(-) Exons   (0, 0)

(no "Exon" information available for 2F4Q)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:309
 aligned with Q9RWH8_DEIRA | Q9RWH8 from UniProtKB/TrEMBL  Length:346

    Alignment length:336
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331
         Q9RWH8_DEIRA     2 PSRTELLAEEYLRREGHDPQKFRYVHPDGTPYTDADGLARIARLAVPPAYQDVYVSPDAENELQAFGRDAAGRLQYRYHPDFVQAGALKKWQRLTRFAGALPTLKVATTADLRASGLPPRKVMALMTRLLHVARFRVGSDIYARQHKTYGLSTLRQRHVVVDGNTVTFRFKGKHGVSQHKATSDRTLAANMQKLLDLPGPWLFQTVDAGGGERRRIHSTELNAYLREVIGPFTAKDFRTWGGTLLAAEYLAQQGTESSERQAKKVLVDCVKFVADDLGNTPAVTRGSYICPVIFDRYLDGKVLDDYEPRTERQEAELEGLTRSEGALKRMLESERT 337
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhh..eee.---..ee.--------------hhhhhhh......eeeee.......eeeeee.....eeeee.hhhh.....hhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhh...----------..hhhhhhhh.eeee..eeeeeee.hhh.eeeeeeehhhhhhhhhhhhh.......eee......eee.hhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh..hhhhhhhhh..hhhhhh..hhhhhhh....hhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2f4q A   2 PSRTELLAEEYLRRE---PQKFR--------------LARIARLAVPPAYQDVYVSPDAENELQAFGRDAAGRLQYRYHPDFVQAGALKKWQRLTRFAGALPTLKVATTADLRASGLPPRKVmALmTRLLHVARFRV----------TYGLSTLRQRHVVVDGNTVTFRFKGKHGVSQHKATSDRTLAANmQKLLDLPGPWLFQTVDAGGGERRRIHSTELNAYLREVIGPFTAKDFRTWGGTLLAAEYLAQQGTESSERQAKKVLVDCVKFVADDLGNTPAVTRGSYICPVIFDRYLDGKVLDDYEPRTERQEAELEGLTRSEGALKRmLESERT 337
                                    11    |   21  |      -       |41        51        61        71        81        91       101       111       121  |  | 131      |  -       151       161       171       181       191|      201       211       221       231       241       251       261       271       281       291       301       311       321       331
                                         16  20  24             39                                                                                  124-MSE       138        149                                        192-MSE                                                                                                                                    331-MSE
                                                                                                                                                       127-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2F4Q)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2F4Q)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2F4Q)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q9RWH8_DEIRA | Q9RWH8)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003917    DNA topoisomerase type I activity    Catalysis of a DNA topological transformation by transiently cleaving one DNA strand at a time to allow passage of another strand; changes the linking number by +1 per catalytic cycle.
    GO:0003918    DNA topoisomerase type II (ATP-hydrolyzing) activity    Catalysis of a DNA topological transformation by transiently cleaving a pair of complementary DNA strands to form a gate through which a second double-stranded DNA segment is passed, after which the severed strands in the first DNA segment are rejoined; product release is coupled to ATP binding and hydrolysis; changes the linking number in multiples of 2.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
biological process
    GO:0006265    DNA topological change    The process in which a transformation is induced in the topological structure of a double-stranded DNA helix, resulting in a change in linking number.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2f4q)

  Cis Peptide Bonds
    Gly A:200 - Pro A:201   [ RasMol ]
    Gly A:231 - Pro A:232   [ RasMol ]


(-) Still Images

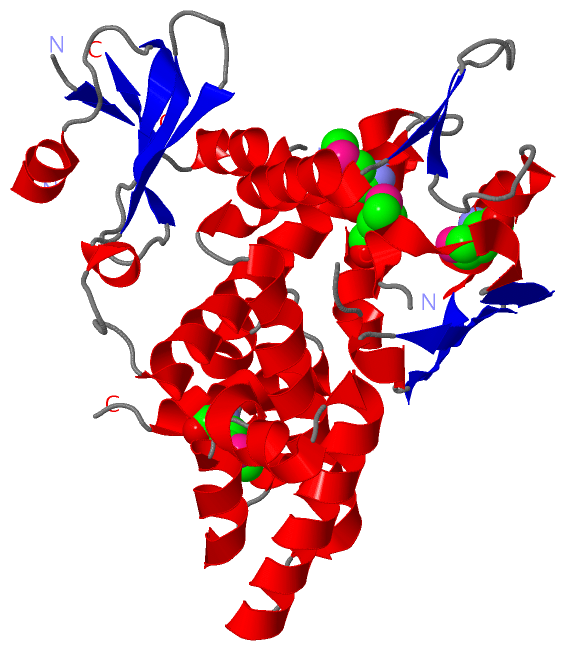

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2f4q
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9RWH8_DEIRA | Q9RWH8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9RWH8_DEIRA | Q9RWH8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
