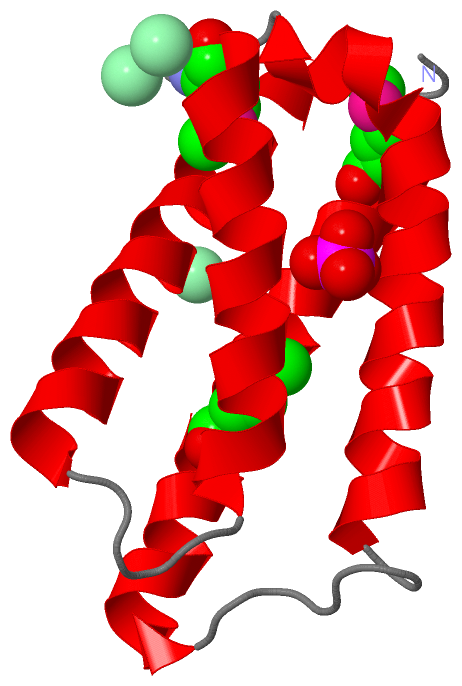

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

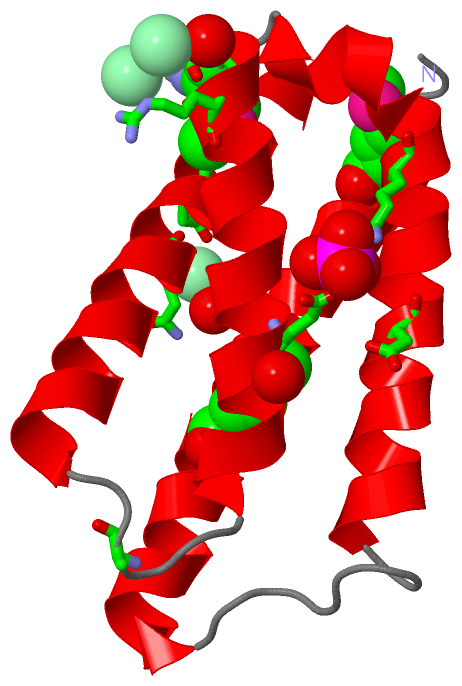

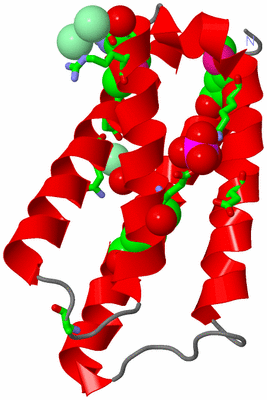

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

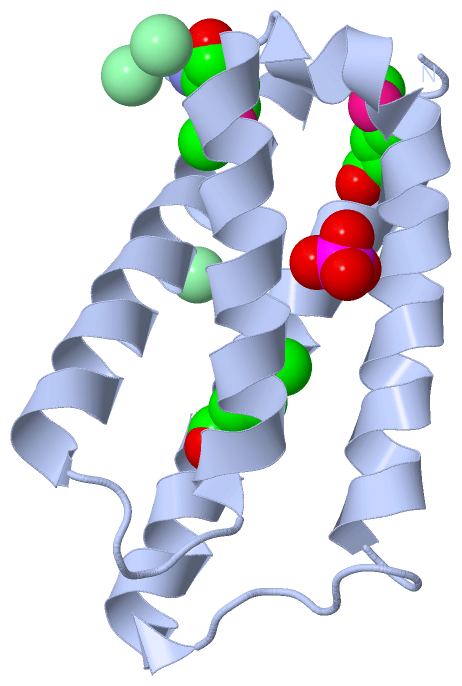

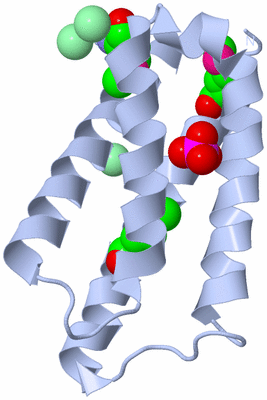

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

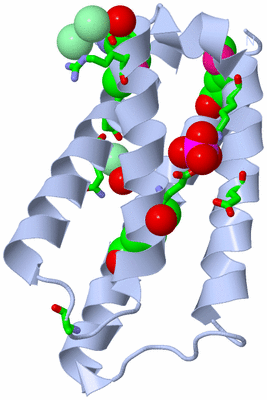

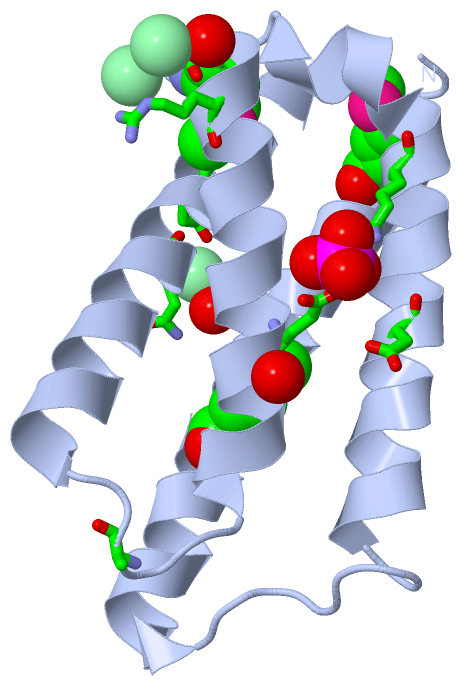

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

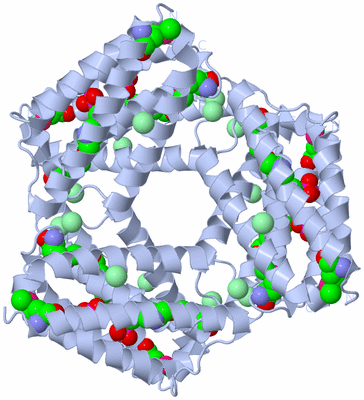

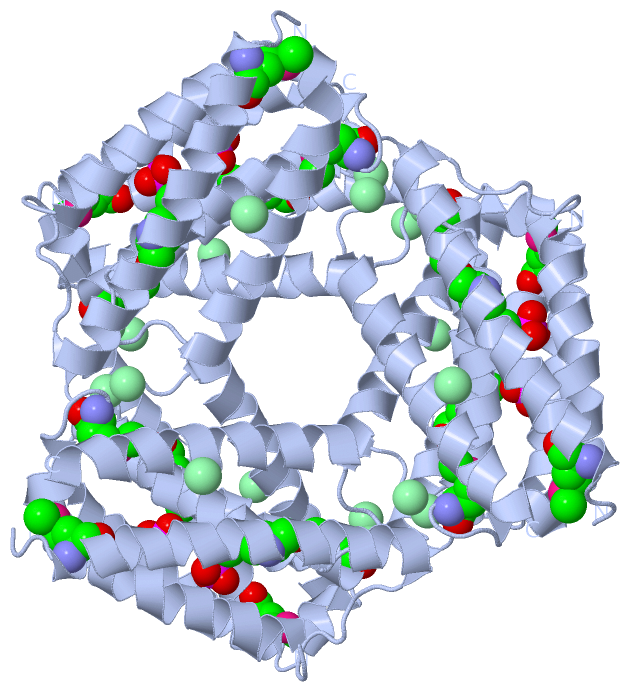

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A BACTERIAL DOMAIN OF UNKNOWN FUNCTION FROM DUF1798 FAMILY (MW1337) FROM STAPHYLOCOCCUS AUREUS SUBSP. AUREUS AT 2.25 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  27 Oct 05  (Deposition) - 08 Nov 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.25
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (6x)
Keywords :  Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi-2, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Kozbial, Q. Xu, H. J. Chiu, D. Mcmullan, S. S. Krishna, M. D. Miller, P. Abdubek, C. Acosta, T. Astakhova, H. L. Axelrod, D. Carlton, T. Clayton, M. Deller, L. Duan, Y. Elias, M. A. Elsliger, J. Feuerhelm, S. K. Grzechnik, J. Hale, G. W. Han, L. Jaroszewski, K. K. Jin, H. E. Klock, M. W. Knuth, E. Koesema, A. Kumar, D. Marciano, A. T. Morse, K. D. Murphy, E. Nigoghossian, L. Okach, S. Oommachen, R. Reyes, C. L. Rife, G. Spraggon, C. V. Trout, H. Van Den Bedem, D. Weekes, A. White, G. Wolf, C. Zubieta, K. O. Hodgson, J. Wooley, A. M. Deacon, A. Godzik, S. A. Lesley, I. A. Wilson
Crystal Structures Of Mw1337R And Lin2004: Representatives Of A Novel Protein Family That Adopt A Four-Helical Bundle Fold.
Proteins V. 71 1589 2008
PubMed-ID: 18324683  |  Reference-DOI: 10.1002/PROT.22020

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: NP_646154.1
    Organism Scientific: STAPHYLOCOCCUS AUREUS SUBSP. AUREUS
    Organism Taxid: 196620
    Strain: MW2

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (6x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 7)

Asymmetric Unit (3, 7)
No.NameCountTypeFull Name
1CL3Ligand/IonCHLORIDE ION
2MSE3Mod. Amino AcidSELENOMETHIONINE
3PO41Ligand/IonPHOSPHATE ION
Biological Unit 1 (2, 4)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE3Mod. Amino AcidSELENOMETHIONINE
3PO41Ligand/IonPHOSPHATE ION
Biological Unit 2 (2, 24)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2MSE18Mod. Amino AcidSELENOMETHIONINE
3PO46Ligand/IonPHOSPHATE ION

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:43 , LYS A:50 , GLU A:75 , HOH A:143BINDING SITE FOR RESIDUE PO4 A 117
2AC2SOFTWAREASN A:63 , ARG A:65 , CL A:119BINDING SITE FOR RESIDUE CL A 118
3AC3SOFTWAREARG A:85 , CL A:118 , HOH A:124BINDING SITE FOR RESIDUE CL A 119
4AC4SOFTWAREGLN A:99 , GLN A:103 , HOH A:162BINDING SITE FOR RESIDUE CL A 120

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2ETS)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2ETS)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2ETS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2ETS)

(-) Exons   (0, 0)

(no "Exon" information available for 2ETS)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:115
 aligned with A0A0H3JWF6_S | A0A0H3JWF6 from UniProtKB/TrEMBL  Length:116

    Alignment length:115
                                 1
                                 |   5        15        25        35        45        55        65        75        85        95       105
         A0A0H3JWF6_S     - -----MNDLVESLIYEVNNMQQNFENVKSQQQDHDFYQTVKPYTEHIDSMLNEIKLHREFIIEVPYMNSRKFELLIANIEQLSVECHFKRTSRKLFIEKLKSVQYDLQNILDGVT 110
               SCOP domains -----d2etsa1 A:1-110 Hypothetical protein MW1337                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------- Transcript
                 2ets A  -4 HHHHHmNDLVESLIYEVNNmQQNFENVKSQQQDHDFYQTVKPYTEHIDSILNEIKLHREFIIEVPYmNSRKFELLIANIEQLSVECHFKRTSRKLFIEKLKSVQYDLQNILDGVT 110
                                 |   5        15        25        35        45        55      | 65        75        85        95       105
                                 1-MSE        15-MSE                                         62-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2ETS)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2ETS)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2ETS)
