2D3R - JenaLib

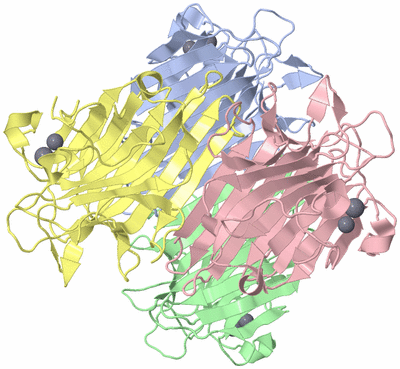

Asym./Biol. Unit (Jmol Viewer)

Asym./Biol. Unit - sites (Jmol Viewer)

Title :   CRATYLIA FOLIBUNDA SEED LECTIN AT ACIDIC PH

Authors :   F. G. Del Sol, B. S. Cavada, J. J. Calvete

Date :   30 Sep 05 (Deposition) - 10 Nov 05 (Release) - 12 Jan 10 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.90

Chains :   Asym./Biol. Unit : A,B,C,D

Keywords :   Lectin Plant, Sugar Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. G. Del Sol, B. S. Cavada, J. J. Calvete
Crystal Structures Of Cratylia Floribunda Seed Lectin At Acidic And Basic Phs. Insights Into The Structural Basis Of The Ph-Dependent Dimer-Tetramer Transition.
J. Struct. Biol. V. 158 1 2007
PubMed-ID: 17251039 | Reference-DOI: 10.1016/J.JSB.2006.08.014
(for further references see the PDB file header)

Molecule 1 - LECTIN ALPHA CHAIN
	Chains	:	A, B, C, D
	Organism Scientific	:	CRATYLIA ARGENTEA
	Organism Taxid	:	83131

		1	2	3	4

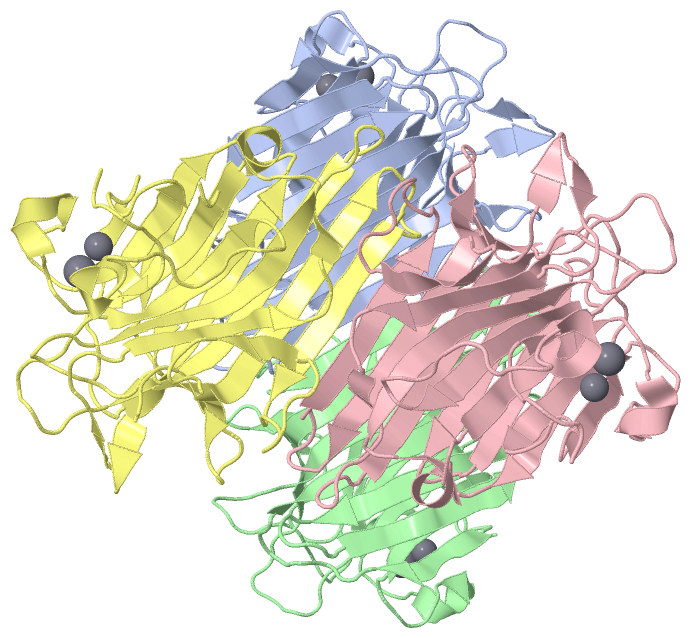

Asymmetric/Biological Unit	:	A	B	C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (2, 8)

No.	Name	Count	Type	Full Name
1	CA	4	Ligand/Ion	CALCIUM ION
2	MN	4	Ligand/Ion	MANGANESE (II) ION

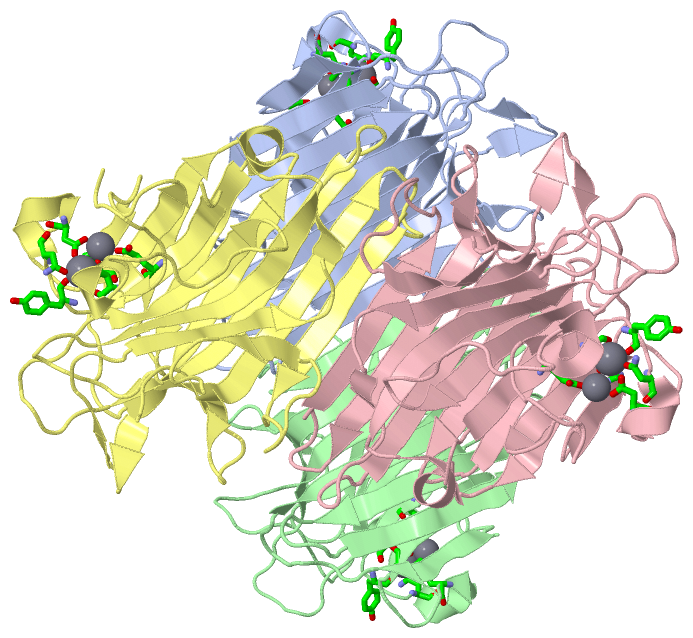

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ASP A:10 , TYR A:12 , ASN A:14 , ASP A:19	BINDING SITE FOR RESIDUE CA A 237
2	AC2	SOFTWARE	GLU A:8 , ASP A:10 , ASP A:19 , HIS A:24 , SER A:34	BINDING SITE FOR RESIDUE MN A 238
3	AC3	SOFTWARE	ASP D:10 , TYR D:12 , ASN D:14 , ASP D:19	BINDING SITE FOR RESIDUE CA D 239
4	AC4	SOFTWARE	GLU D:8 , ASP D:10 , ASP D:19 , HIS D:24	BINDING SITE FOR RESIDUE MN D 240
5	AC5	SOFTWARE	ASP B:10 , TYR B:12 , ASN B:14 , ASP B:19	BINDING SITE FOR RESIDUE CA B 241
6	AC6	SOFTWARE	GLU B:8 , ASP B:10 , ASP B:19 , HIS B:24	BINDING SITE FOR RESIDUE MN B 242
7	AC7	SOFTWARE	ASP C:10 , TYR C:12 , ASN C:14 , ASP C:19	BINDING SITE FOR RESIDUE CA C 243
8	AC8	SOFTWARE	GLU C:8 , ASP C:10 , ASP C:19 , HIS C:24	BINDING SITE FOR RESIDUE MN C 244

(no "SS Bond" information available for 2D3R)

Asymmetric/Biological Unit

No.	Residues
1	Ala A:206	-	Asp A:207
2	Ala B:206	-	Asp B:207
3	Ala C:206	-	Asp C:207
4	Gly D:69	-	Gly D:70
5	Gly D:70	-	Ser D:71
6	Ala D:206	-	Asp D:207

(no "SAP(SNP)/Variant" information available for 2D3R)

Asymmetric/Biological Unit (2, 8)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	LECTIN_LEGUME_BETA	PS00307	Legume lectins beta-chain signature.	LECA_CRAAG	5-11	4	A:5-11 B:5-11 C:5-11 D:5-11
2	LECTIN_LEGUME_ALPHA	PS00308	Legume lectins alpha-chain signature.	LECA_CRAAG	85-94	4	A:85-94 B:85-94 C:85-94 D:85-94

(no "Exon" information available for 2D3R)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:236
 aligned with LECA_CRAAG | P81517 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           LECA_CRAAG     1 ADTIVAVELDTYPNTDIGDPNYQHIGINIKSIRSKATTRWNVQDGKVGTAHISYNSVAKRLSAIVSYPGGSSATVSYDVDLNNILPEWVRVGLSASTGLYKETNTILSWSFTSKLKTNSTADAQSLHFTFNQFSQNPKDLILQGDASTDSDGNLQLTRVSNGSPQSNSVGRALYYAPVHVWDKSAVVASFDATFTFLIKSTDSDIADGIAWFIANTDSSIPHGSGGRLLGLFPDAN 236
               SCOP domains d2d3ra_ A: automated matches                                                                                                                                                                                                                 SCOP domains
               CATH domains 2d3rA00 A:1-236  [code=2.60.120.200, no name defined]                                                                                                                                                                                        CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee...hhhhh.....eeeeee......eeee.......eeeeeeeee....eeeeeee.....eeeeeee.hhhhhh..eeeeeeeee........eeeeeeeeeeee.......eeeeeee.........eeeee..ee.....ee...ee..ee....eeeeee...ee.......eeeeeeeeeee..........eeeeeeee..................... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----LECTIN_-------------------------------------------------------------------------LECTIN_LEG---------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2d3r A   1 ADTIVAVELDTYPNTDIGDPNYQHIGINIKSIRSKATTRWNVQDGKVGTAHISYNSVAKRLSAIVSYPGGSSATVSYDVDLNNILPEWVRVGLSASTGLYKETNTILSWSFTSKLKTNSTADAQSLHFTFNQFSQNPKDLILQGDASTDSDGNLQLTRVSNGSPQSNSVGRALYYAPVHVWDKSAVVASFDATFTFLIKSTDSDIADGIAFFIANTDSSIPHGSGGRLLGLFPDAN 236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain B from PDB  Type:PROTEIN  Length:236
 aligned with LECA_CRAAG | P81517 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           LECA_CRAAG     1 ADTIVAVELDTYPNTDIGDPNYQHIGINIKSIRSKATTRWNVQDGKVGTAHISYNSVAKRLSAIVSYPGGSSATVSYDVDLNNILPEWVRVGLSASTGLYKETNTILSWSFTSKLKTNSTADAQSLHFTFNQFSQNPKDLILQGDASTDSDGNLQLTRVSNGSPQSNSVGRALYYAPVHVWDKSAVVASFDATFTFLIKSTDSDIADGIAWFIANTDSSIPHGSGGRLLGLFPDAN 236
               SCOP domains d2d3rb_ B: automated matches                                                                                                                                                                                                                 SCOP domains
               CATH domains 2d3rB00 B:1-236  [code=2.60.120.200, no name defined]                                                                                                                                                                                        CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeee...hhhhh.....eeeeee......eeee.......eeeeeeeee....eeeeeee.....eeeeeee.hhhhh...eeeeeeeee........eeeeeeeeeeee.......eeeeeee.........eeeee..ee.....ee.............eeeeee...ee.......eeeeeeeeeee..........eeeeeee..........hhhhh....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----LECTIN_-------------------------------------------------------------------------LECTIN_LEG---------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2d3r B   1 ADTIVAVELDTYPNTDIGDPNYQHIGINIKSIRSKATTRWNVQDGKVGTAHISYNSVAKRLSAIVSYPGGSSATVSYDVDLNNILPEWVRVGLSASTGLYKETNTILSWSFTSKLKTNSTADAQSLHFTFNQFSQNPKDLILQGDASTDSDGNLQLTRVSNGSPQSNSVGRALYYAPVHVWDKSAVVASFDATFTFLIKSTDSDIADGIAFFIANTDSSIPHGSGGRLLGLFPDAN 236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain C from PDB  Type:PROTEIN  Length:236
 aligned with LECA_CRAAG | P81517 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           LECA_CRAAG     1 ADTIVAVELDTYPNTDIGDPNYQHIGINIKSIRSKATTRWNVQDGKVGTAHISYNSVAKRLSAIVSYPGGSSATVSYDVDLNNILPEWVRVGLSASTGLYKETNTILSWSFTSKLKTNSTADAQSLHFTFNQFSQNPKDLILQGDASTDSDGNLQLTRVSNGSPQSNSVGRALYYAPVHVWDKSAVVASFDATFTFLIKSTDSDIADGIAWFIANTDSSIPHGSGGRLLGLFPDAN 236
               SCOP domains d2d3rc_ C: automated matches                                                                                                                                                                                                                 SCOP domains
               CATH domains 2d3rC00 C:1-236  [code=2.60.120.200, no name defined]                                                                                                                                                                                        CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee...hhhhh.....eeeeee......eeee.......eeeeeeeee....eeeeeee.....eeeeeee.hhhhhh..eeeeeeeee........eeeeeeeeeeee.......eeeeeee.........eeeee..ee.....ee...ee..ee....eeeeee...ee.......eeeeeeeeeee..........eeeeeee..........hhhhh....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----LECTIN_-------------------------------------------------------------------------LECTIN_LEG---------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2d3r C   1 ADTIVAVELDTYPNTDIGDPNYQHIGINIKSIRSKATTRWNVQDGKVGTAHISYNSVAKRLSAIVSYPGGSSATVSYDVDLNNILPEWVRVGLSASTGLYKETNTILSWSFTSKLKTNSTADAQSLHFTFNQFSQNPKDLILQGDASTDSDGNLQLTRVSNGSPQSNSVGRALYYAPVHVWDKSAVVASFDATFTFLIKSTDSDIADGIAFFIANTDSSIPHGSGGRLLGLFPDAN 236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Chain D from PDB  Type:PROTEIN  Length:236
 aligned with LECA_CRAAG | P81517 from UniProtKB/Swiss-Prot  Length:236

    Alignment length:236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           LECA_CRAAG     1 ADTIVAVELDTYPNTDIGDPNYQHIGINIKSIRSKATTRWNVQDGKVGTAHISYNSVAKRLSAIVSYPGGSSATVSYDVDLNNILPEWVRVGLSASTGLYKETNTILSWSFTSKLKTNSTADAQSLHFTFNQFSQNPKDLILQGDASTDSDGNLQLTRVSNGSPQSNSVGRALYYAPVHVWDKSAVVASFDATFTFLIKSTDSDIADGIAWFIANTDSSIPHGSGGRLLGLFPDAN 236
               SCOP domains d2d3rd_ D: automated matches                                                                                                                                                                                                                 SCOP domains
               CATH domains 2d3rD00 D:1-236  [code=2.60.120.200, no name defined]                                                                                                                                                                                        CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee...hhhhh.....eeeeee.......eee......eeeeeeeeee....eeeeeee.....eeeeeee.hhhhh...eeeeeeeee........eeeeeeeeeeee.......eeeeeee.........eee....ee.....ee...ee..ee....eeeeee...ee.......eeeeeeeeeeee.........eeeeeee..........hhhhh....... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----LECTIN_-------------------------------------------------------------------------LECTIN_LEG---------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2d3r D   1 ADTIVAVELDTYPNTDIGDPNYQHIGINIKSIRSKATTRWNVQDGKVGTAHISYNSVAKRLSAIVSYPGGSSATVSYDVDLNNILPEWVRVGLSASTGLYKETNTILSWSFTSKLKTNSTADAQSLHFTFNQFSQNPKDLILQGDASTDSDGNLQLTRVSNGSPQSNSVGRALYYAPVHVWDKSAVVASFDATFTFLIKSTDSDIADGIAFFIANTDSSIPHGSGGRLLGLFPDAN 236
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric/Biological Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: Concanavalin A-like lectins/glucanases (797)

Superfamily: Concanavalin A-like lectins/glucanases (797)

Family: Legume lectins (238)

Protein domain: automated matches (63)

Cratylia argentea [TaxId: 83131] (2)

1a	d2d3ra_	A:
1b	d2d3rb_	B:
1c	d2d3rc_	C:
1d	d2d3rd_	D:

Asymmetric/Biological Unit

Classes(

)

Architectures( (-)

)

Topologies( (-)

)

Homologous Superfamilies( (-)

)

Organisms( (-)

)

Class: Mainly Beta (13760)

Architecture: Sandwich (5577)

Topology: Jelly Rolls (1293)

Homologous Superfamily: [code=2.60.120.200, no name defined] (421)

Cratylia argentea. Organism_taxid: 83131 (2)

1a	2d3rA00	A:1-236
1b	2d3rB00	B:1-236
1c	2d3rC00	C:1-236
1d	2d3rD00	D:1-236

(no "Pfam Domain" information available for 2D3R)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D (LECA_CRAAG | P81517)

molecular function
	GO:0030246	carbohydrate binding	Interacting selectively and non-covalently with any carbohydrate, which includes monosaccharides, oligosaccharides and polysaccharides as well as substances derived from monosaccharides by reduction of the carbonyl group (alditols), by oxidation of one or more hydroxy groups to afford the corresponding aldehydes, ketones, or carboxylic acids, or by replacement of one or more hydroxy group(s) by a hydrogen atom. Cyclitols are generally not regarded as carbohydrates.
	GO:0005537	mannose binding	Interacting selectively and non-covalently with mannose, a monosaccharide hexose, stereoisomeric with glucose, that occurs naturally only in polymerized forms called mannans.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
biological process
	GO:0008150	biological_process	Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
	GO:0005575	cellular_component	The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		CA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ala A:206 - Asp A:207	[ RasMol ]
		Ala B:206 - Asp B:207	[ RasMol ]
		Ala C:206 - Asp C:207	[ RasMol ]
		Ala D:206 - Asp D:207	[ RasMol ]
		Gly D:69 - Gly D:70	[ RasMol ]
		Gly D:70 - Ser D:71	[ RasMol ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2d3r
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	LECA_CRAAG \| P81517
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	LECA_CRAAG \| P81517
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	LECA_CRAAG \| P81517	:	2d3p

2d3p	CRATYLIA FLORIBUNDA SEED LECTIN AT BASIC PH

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 8)

Sites (8, 8)

SS Bonds (0, 0)

Cis Peptide Bonds (6, 6)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (2, 8)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (1, 4)

Pfam Domains (0, 0)

Gene Ontology (5, 5)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
