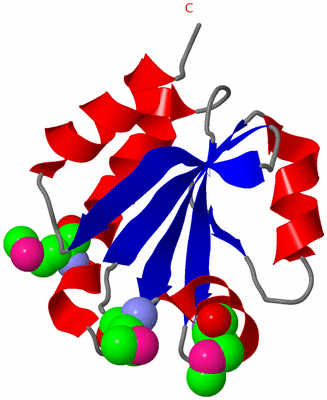

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THERMUS THERMOPHILUS THIOREDOXIN

Authors :  H. Yanai, S. Yokoyama, S. Kuramitsu, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  04 Jun 05  (Deposition) - 04 Dec 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym./Biol. Unit :  A
Keywords :  Trx, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Electron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Yanai, S. Yokoyama, S. Kuramitsu
Crystal Structure Of A Reduced Thioredoxin From Thermus Thermophilus Hb8
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - THIOREDOXIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Strain: B834(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 274

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric/Biological Unit (1, 3)
No.NameCountTypeFull Name
1MSE3Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2CVK)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2CVK)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ile A:74 -Pro A:75

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2CVK)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2CVK)

(-) Exons   (0, 0)

(no "Exon" information available for 2CVK)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:105
 aligned with Q72HU9_THET2 | Q72HU9 from UniProtKB/TrEMBL  Length:110

    Alignment length:105
                                    12        22        32        42        52        62        72        82        92       102
         Q72HU9_THET2     3 KPIEVTDQNFDETLGQHPLVLVDFWAEWCAPCRMIAPILEEIAKEYEGKLLVAKLDVDENPKTAMRYRVMSIPTVILFKDGQPVEVLVGAQPKRNYQAKIEKHLP 107
               SCOP domains d2cvka_ A: automated matches                                                                              SCOP domains
               CATH domains 2cvkA00 A:3-107 Glutaredoxin                                                                              CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..ee....hhhhhhhhh.eeeeeee...hhhhhhhhhhhhhhhhhh....eeeeee...hhhhhhhhh.....eeeeee..eeeeeee...hhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------- Transcript
                 2cvk A   3 KPIEVTDQNFDETLGQHPLVLVDFWAEWCAPCRmIAPILEEIAKEYEGKLLVAKLDVDENPKTAmRYRVmSIPTVILFKDGQPVEVLVGAQPKRNYQAKIEKHLP 107
                                    12        22        32   |    42        52        62    |   72        82        92       102
                                                            36-MSE                         67-MSE|
                                                                                                72-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2CVK)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Q72HU9_THET2 | Q72HU9)
molecular function
    GO:0015035    protein disulfide oxidoreductase activity    Catalysis of the reaction: a protein with reduced sulfide groups = a protein with oxidized disulfide bonds.
biological process
    GO:0045454    cell redox homeostasis    Any process that maintains the redox environment of a cell or compartment within a cell.
    GO:0006662    glycerol ether metabolic process    The chemical reactions and pathways involving glycerol ethers, any anhydride formed between two organic hydroxy compounds, one of which is glycerol.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005623    cell    The basic structural and functional unit of all organisms. Includes the plasma membrane and any external encapsulating structures such as the cell wall and cell envelope.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2cvk)

  Cis Peptide Bonds
    Ile A:74 - Pro A:75   [ RasMol ]


(-) Still Images

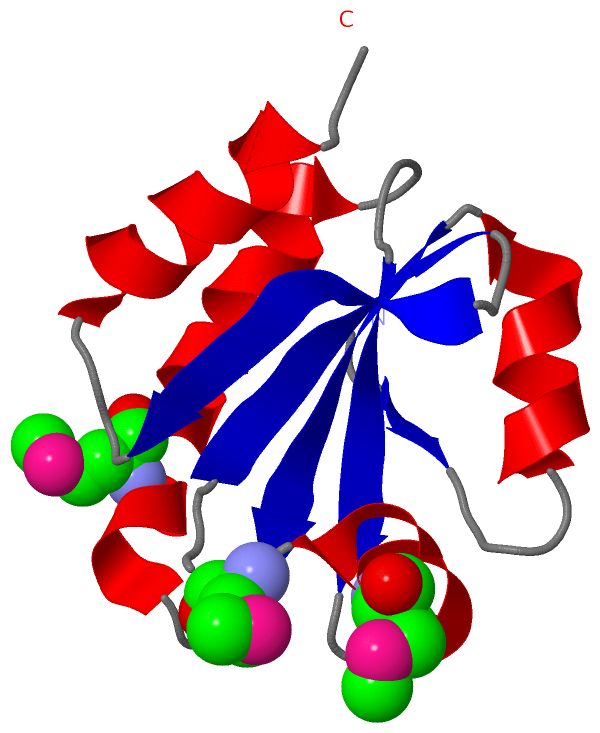

Jmol
