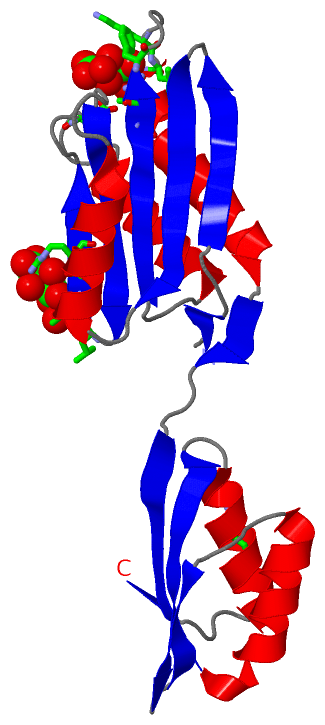

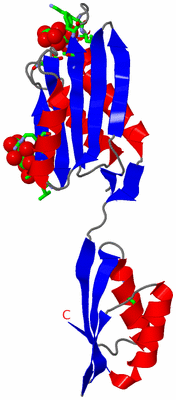

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A CONSERVED HYPOTHETICAL PROTEIN TT1547 FROM THERMUS THERMOPHILUS HB8

Authors :  H. Iino, S. Yokoyama, S. Kuramitsu, Riken Structural Genomics/Prot Initiative (Rsgi)
Date :  02 Jun 05  (Deposition) - 02 Dec 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Cog1739, Upf0029, Structural Genomics, Riken Structural Genomics/Proteomics Initiative, Rsgi, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Iino, S. Yokoyama, S. Kuramitsu
Crystal Structure Of A Conserved Hypothetical Protein Tt154 From Thermus Thermophilus Hb8
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN TTHA1053
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11A
    Expression System Strain: B834(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMUS THERMOPHILUS
    Organism Taxid: 300852
    Strain: HB8
    Synonym: CONSERVED HYPOTHETICAL PROTEIN TT1547

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1TLA2Ligand/IonL(+)-TARTARIC ACID

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:65 , ARG A:92 , PHE A:94 , LYS A:98 , LEU A:99 , GLY A:100 , LEU A:104 , ARG A:178 , HOH A:339BINDING SITE FOR RESIDUE TLA A 192
2AC2SOFTWARELEU A:56 , LEU A:57 , TYR A:58 , ARG A:59 , HOH A:310BINDING SITE FOR RESIDUE TLA A 193

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2CVE)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2CVE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2CVE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2CVE)

(-) Exons   (0, 0)

(no "Exon" information available for 2CVE)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:190
 aligned with Q5SJF5_THET8 | Q5SJF5 from UniProtKB/TrEMBL  Length:191

    Alignment length:190
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
         Q5SJF5_THET8     2 SLTLADKVVYEEEIQKSRFIAKAAPVASEEEALAFLAENREPEATHNGHAYKIGLLYRFSDDGEPSGTAGRPILHAIEAQGLDRVAVLVVRYFGGVKLGAGGLVRAYGGVAAEALRRAPKVPLVERVGLAFLVPFAEVGRVYALLEARALKAEETYTPEGVRFALLLPKPEREGFLRALLDATRGQVALE 191
               SCOP domains d2cvea1 A:2-124 Hypothetical protein TTHA1053, N-terminal domain                                                           d2cvea2 A:125-191 Hypothetical protein TTHA1053, C-terminal domain  SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee...eeeeeee..eeeeeeeee..hhhhhhhhhhhhh.....eeeeeeee..eeeee........hhhhhhhhhhhh....eeeeeeee.....hhhhhhhhhhhhhhhhhhhhh.eee...eeeeeeeehhhhhhhhhhhhhhh....eeeee..eeeeeeeee..hhhhhhhhhhhhh....ee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2cve A   2 SLTLADKVVYEEEIQKSRFIAKAAPVASEEEALAFLAENREPEATHNGHAYKIGLLYRFSDDGEPSGTAGRPILHAIEAQGLDRVAVLVVRYFGGVKLGAGGLVRAYGGVAAEALRRAPKVPLVERVGLAFLVPFAEVGRVYALLEARALKAEETYTPEGVRFALLLPKPEREGFLRALLDATRGQVALE 191
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2CVE)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2CVE)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2CVE)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    TLA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2cve)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
