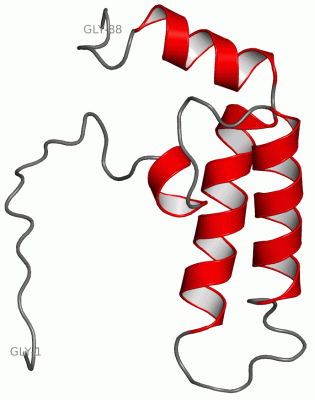

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

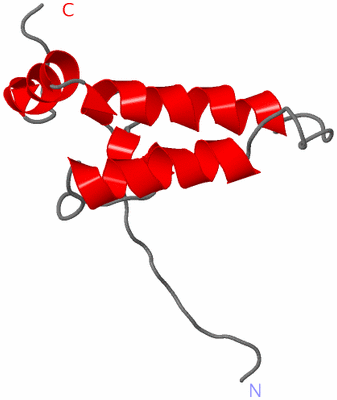

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

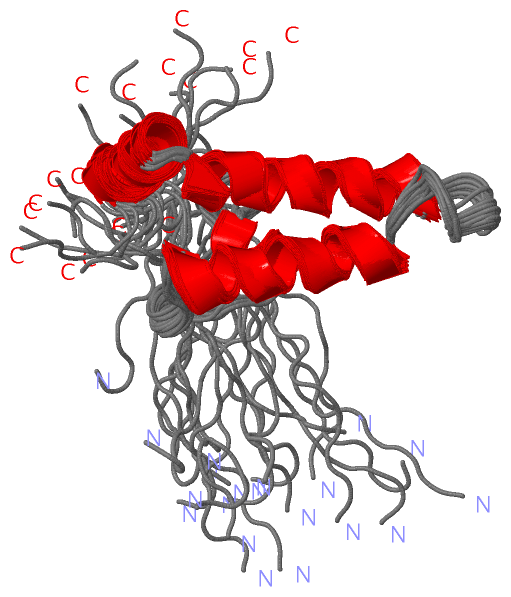

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE J DOMAIN OF THE PSEUDO DNAJ PROTEIN, MOUSE HYPOTHETICAL MKIAA0962

Authors :  S. Ohnishi, T. Kigawa, M. Sato, S. Koshiba, M. Inoue, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  26 May 05  (Deposition) - 26 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Dnaj-Like Domain, Structural Genomics, Molecular Chaperone, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Ohnishi, T. Kigawa, M. Sato, S. Koshiba, M. Inoue, S. Yokoyama
Solution Structure Of The J Domain Of The Pseudo Dnaj Protein, Mouse Hypothetical Mkiaa0962
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MKIAA0962 PROTEIN
    Chains: A
    Engineered: YES
    Expression System Plasmid: P040712-13
    Expression System Vector Type: PLASMID
    Fragment: J DOMAIN (DNAJ N-TERMINAL DOMAIN)
    Gene: 4732437J24RIK
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2CUG)

(-) Sites  (0, 0)

(no "Site" information available for 2CUG)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2CUG)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2CUG)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2CUG)

(-) PROSITE Motifs  (2, 2)

NMR Structure (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1DNAJ_2PS50076 dnaJ domain profile.DJC16_MOUSE29-93  1A:18-82
2DNAJ_1PS00636 Nt-dnaJ domain signature.DJC16_MOUSE70-89  1A:59-78

(-) Exons   (0, 0)

(no "Exon" information available for 2CUG)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:88
 aligned with DJC16_MOUSE | Q80TN4 from UniProtKB/Swiss-Prot  Length:772

    Alignment length:97
                                    13        23        33        43        53        63        73        83        93
          DJC16_MOUSE     4 KRLGVSWRFLMVLVLILQSLSALDFDPYRVLGVSRTASQADIKKAYKKLAREWHPDKNKDPGAEDRFIQISKAYEILSNEEKRTNYDHYGDAGENQG 100
               SCOP domains d2cuga_         A: automated matches                                                              SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......--------...........hhhhh.......hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhh.hhhhhhhhhh.-...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -------------------------DNAJ_2  PDB: A:18-82 UniProt: 29-93                              ------- PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------DNAJ_1  PDB: A:59-78----------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------- Transcript
                 2cug A   1 GSSGSSG--------ILQSLSALDFDPYRVLGVSRTASQADIKKAYKKLAREWHPDKNKDPGAEDRFIQISKAYEILSNEEKRTNYDHYG-SGPSSG  88
                                  |  -     |  12        22        32        42        52        62        72        82 |
                                  7        8                                                                        82 |
                                                                                                                      83
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2CUG)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2CUG)

(-) Gene Ontology  (6, 6)

NMR Structure(hide GO term definitions)
Chain A   (DJC16_MOUSE | Q80TN4)
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
    GO:0045454    cell redox homeostasis    Any process that maintains the redox environment of a cell or compartment within a cell.
cellular component
    GO:0005623    cell    The basic structural and functional unit of all organisms. Includes the plasma membrane and any external encapsulating structures such as the cell wall and cell envelope.
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2cug)

  Sites
(no "Sites" information available for 2cug)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2cug)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

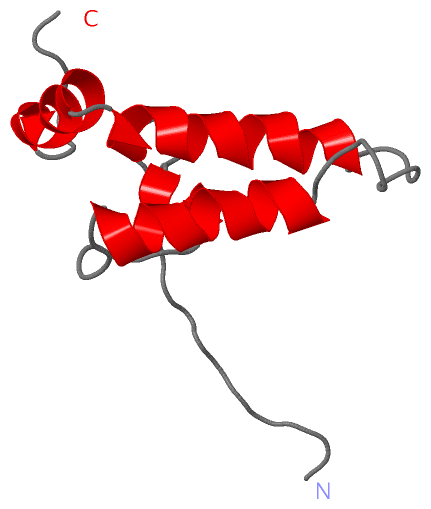

[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
