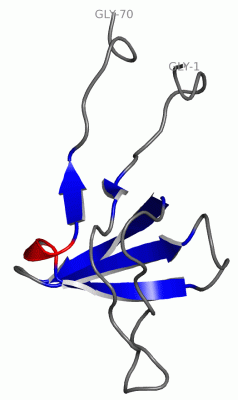

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

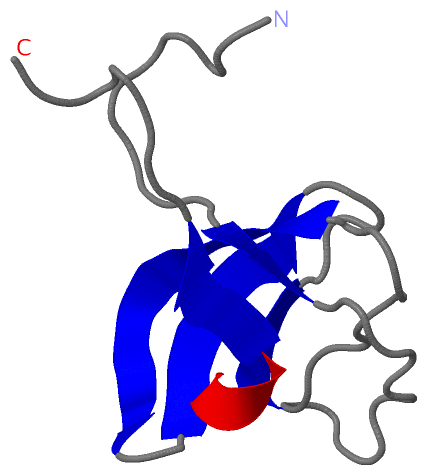

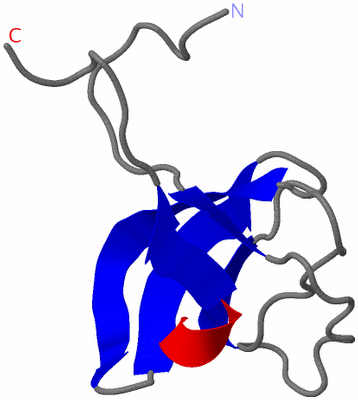

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

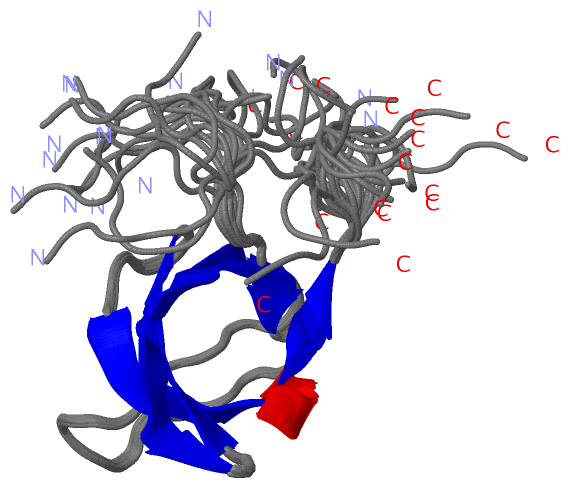

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE SH3 DOMAIN OF THE MOUSE HYPOTHETICAL PROTEIN SH3RF2

Authors :  S. Ohnishi, T. Kigawa, S. Koshiba, M. Inoue, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  26 May 05  (Deposition) - 26 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Sh3 Domain, Structural Genomics, Ring Finger 2 Containing Protein, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Ohnishi, T. Kigawa, S. Koshiba, M. Inoue, S. Yokoyama
Solution Structure Of The Sh3 Domain Of The Mouse Hypothetical Protein Sh3Rf2
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - SH3 DOMAIN CONTAINING RING FINGER 2
    Chains: A
    Engineered: YES
    Expression System Plasmid: P040802-07
    Expression System Vector Type: PLASMID
    Fragment: SH3 DOMAIN
    Gene: SH3RF2
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE SYSTEM
    Synonym: HYPOTHETICAL SH3RF2 PROTEIN

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2CUC)

(-) Sites  (0, 0)

(no "Site" information available for 2CUC)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2CUC)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2CUC)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2CUC)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SH3PS50002 Src homology 3 (SH3) domain profile.SH3R2_MOUSE125-184
187-252
382-443		  1-
-
A:6-64

(-) Exons   (0, 0)

(no "Exon" information available for 2CUC)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:70
 aligned with SH3R2_MOUSE | Q8BZT2 from UniProtKB/Swiss-Prot  Length:735

    Alignment length:148
                                   373       383       393       403       413       423       433       443       453       463       473       483       493       503
          SH3R2_MOUSE   364 ASPGHSTAMVSVPSSQQHLSNNMFVALHTYSAHRPEELDLQKGEGIRVLGKYQDGWLKGLSLLTGRTGIFPSDYVIPVFSSTARKTSSFPDSRSPTVCTTWALSTSSVSSQGSFAEGDPRQSGPFKSVFVPTAVVNPSRSTPGPGSSG 511
               SCOP domains d2cuc              a_ A: automated matches                                                                                                           SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....--------------....ee...................eeeeeeeee..eeeeee.....eeeeehhheee..---------------------------------------------------------------..-... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------SH3  PDB: A:6-64 UniProt: 382-443                             -------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2cuc A   1 GSSGS--------------SGNMFVALHTYSAHRPEELDLQKGEGIRVLGKYQDGWLKGLSLLTGRTGIFPSDYVIPVS---------------------------------------------------------------GP-SSG  70
                                |    -         6        16        26        36        46        56        |-         -         -         -         -         -         -  || |
                                5              6                                                         65                                                              66| |
                                                                                                                                                                          67 |
                                                                                                                                                                            68
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2CUC)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2CUC)

(-) Gene Ontology  (9, 9)

NMR Structure(hide GO term definitions)
Chain A   (SH3R2_MOUSE | Q8BZT2)
molecular function
    GO:0016874    ligase activity    Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0019902    phosphatase binding    Interacting selectively and non-covalently with any phosphatase.
    GO:0008157    protein phosphatase 1 binding    Interacting selectively and non-covalently with the enzyme protein phosphatase 1.
    GO:0004864    protein phosphatase inhibitor activity    Stops, prevents or reduces the activity of a protein phosphatase, an enzyme that hydrolyzes phosphate groups from phosphorylated proteins.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0010923    negative regulation of phosphatase activity    Any process that decreases the rate or frequency of phosphatase activity. Phosphatases catalyze the hydrolysis of phosphoric monoesters, releasing inorganic phosphate.
    GO:0016567    protein ubiquitination    The process in which one or more ubiquitin groups are added to a protein.
cellular component
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
