(-)NMR Structure - model 1
(-)NMR Structure - all models
collapse expand < >

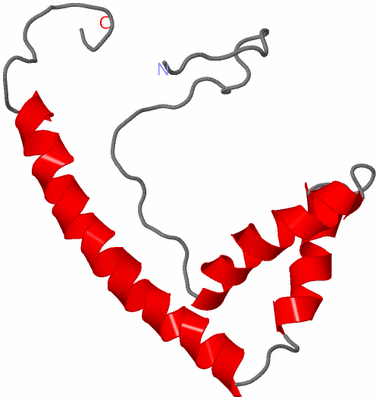

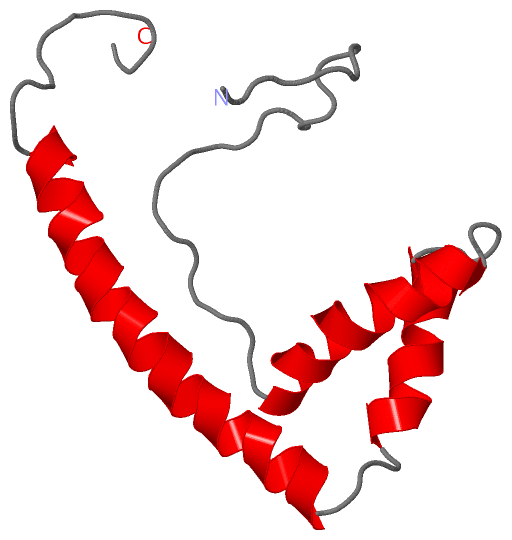

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

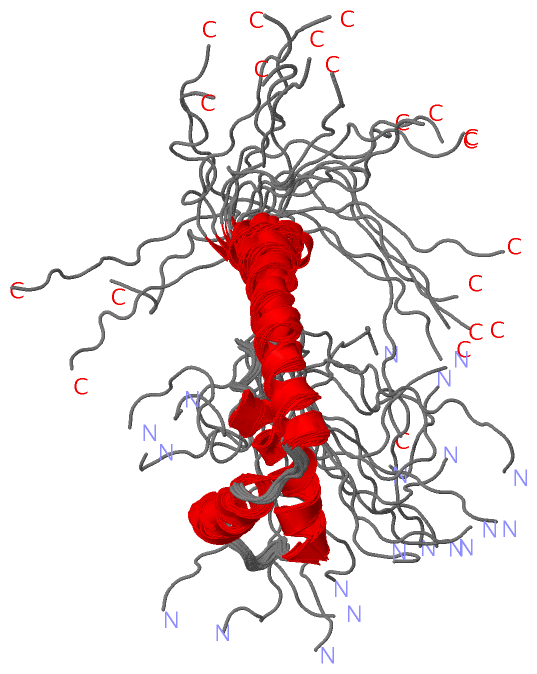

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE HMG_BOX DOMAIN OF THYMUS HIGH MOBILITY GROUP BOX PROTEIN TOX FROM MOUSE

Authors :  H. Li, K. Saito, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama, Riken Structural Genomics/Proteomics Initiative (Rsgi)
Date :  17 May 05  (Deposition) - 17 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Tox Protein, Hmg Box Domain, Structural Genomics, Nppsfa, National Project On Protein Structural And Functional Analyses, Riken Structural Genomics/Proteomics Initiative, Rsgi, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Li, K. Saito, S. Koshiba, M. Inoue, T. Kigawa, S. Yokoyama
Solution Structure Of The Hmg_box Domain Of Thymus High Mobility Group Box Protein Tox From Mouse
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - THYMUS HIGH MOBILITY GROUP BOX PROTEIN TOX
    Chains: A
    Engineered: YES
    Expression System Plasmid: P040719-05
    Expression System Vector Type: PLASMID
    Fragment: HMG BOX
    Gene: TOX
    Organism Common: HOUSE MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Other Details: CELL-FREE PROTEIN SYNTHESIS

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2CO9)

(-) Sites  (0, 0)

(no "Site" information available for 2CO9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2CO9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2CO9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2CO9)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1HMG_BOX_2PS50118 HMG boxes A and B DNA-binding domains profile.TOX_MOUSE261-329  1A:18-86

(-) Exons   (0, 0)

(no "Exon" information available for 2CO9)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:102
 aligned with TOX_MOUSE | Q66JW3 from UniProtKB/Swiss-Prot  Length:526

    Alignment length:157
                                   218       228       238       248       258       268       278       288       298       308       318       328       338       348       358
            TOX_MOUSE   209 GSKSATPSPSSSVHEDECEDASKINGGEKRPASDMGKKPKTPKKKKKKDPNEPQKPVSAYALFFRDTQAAIKGQNPNATFGEVSKIVASMWDGLGEEQKQVYKKKTEAAKKEYLKQLAAYRASLVSKSYTDPVDVKTSQPPQLVNSKPSVFHGPSQA 365
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..-----....------------------------...------..............hhhhhhhhhhhhhhhh.....hhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......--------------------...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------HMG_BOX_2  PDB: A:18-86 UniProt: 261-329                             ------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2co9 A   1 GS-----SGSS------------------------GKK------KKKKDPNEPQKPVSAYALFFRDTQAAIKGQNPNATFGEVSKIVASMWDGLGEEQKQVYKKKTEAAKKEYLKQLAAYRASLVSKSYTD--------------------SGPSSG 102
                             |     | 5|        -         -     | | -    |   15        25        35        45        55        65        75        85        95|        -         - |
                             2     3  6                        7 9     10                                                                                    96                   97
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2CO9)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2CO9)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2CO9)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (TOX_MOUSE | Q66JW3)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
cellular component
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
