2BZ1 - JenaLib

Title :   CRYSTAL STRUCTURE OF APO E. COLI GTP CYCLOHYDROLASE II

Authors :   J. Ren, M. Kotaka, M. Lockyer, H. K. Lamb, A. R. Hawkins, D. K. Stammers

Date :   09 Aug 05 (Deposition) - 19 Aug 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.54

Chains :   Asym. Unit : A
Biol. Unit 1: A  (2x)

Keywords :   Riboflavin Biosynthesis, Gtp Cyclohydrolase Ii, Catalytic Zinc, Hydrolase, Magnesium (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. Ren, M. Kotaka, M. Lockyer, H. K. Lamb, A. R. Hawkins, D. K. Stammers
Gtp Cyclohydrolase Ii Structure And Mechanism.
J. Biol. Chem. V. 280 36912 2005
PubMed-ID: 16115872 | Reference-DOI: 10.1074/JBC.M507725200

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (5, 9)

Sites (6, 6)

Asymmetric Unit (6, 6)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	CYS A:54 , CYS A:65 , CYS A:67 , HOH A:2191	BINDING SITE FOR RESIDUE ZN A1174
2	AC2	SOFTWARE	ARG A:94 , TYR A:105 , GLN A:108 , HOH A:2137 , HOH A:2191 , HOH A:2192 , HOH A:2193 , HOH A:2194	BINDING SITE FOR RESIDUE SO4 A1175
3	AC3	SOFTWARE	ARG A:128 , LYS A:154 , TAU A:1179 , HOH A:2081 , HOH A:2195	BINDING SITE FOR RESIDUE SO4 A1176
4	AC4	SOFTWARE	PRO A:152 , ARG A:168 , HOH A:2198	BINDING SITE FOR RESIDUE SO4 A1177
5	AC5	SOFTWARE	ARG A:49 , GLN A:70 , THR A:149 , ASN A:150 , LYS A:154 , SO4 A:1176 , HOH A:2079 , HOH A:2203	BINDING SITE FOR RESIDUE TAU A1179
6	AC6	SOFTWARE	GLY A:57 , ASP A:58 , ALA A:59 , LEU A:60 , PHE A:61 , HOH A:2090 , HOH A:2105 , HOH A:2199 , HOH A:2200	BINDING SITE FOR RESIDUE GOL A1178

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:174
 aligned with RIBA_ECOLI | P0A7I7 from UniProtKB/Swiss-Prot  Length:196

    Alignment length:174
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170
           RIBA_ECOLI     1 MQLKRVAEAKLPTPWGDFLMVGFEELATGHDHVALVYGDISGHTPVLARVHSECLTGDALFSLRCDCGFQLEAALTQIAEEGRGILLYHRQEGRNIGLLNKIRAYALQDQGYDTVEANHQLGFAADERDFTLCADMFKLLGVNEVRLLTNNPKKVEILTEAGINIVERVPLIVG 174
               SCOP domains d2bz1a_ A: GTP cyclohydrolase II, RibA                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeeeeeeee..eeeeeeeeee.....eeeeeee........eeeeeee.hhhhhh......hhhhhhhhhhhhhhhhh.eeeeee.hhhhhhhhhhhhhhhhhhhh..hhhhhhhhh........hhhhhhhhhhh....eeee..hhhhhhhhhhh...eeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2bz1 A   1 mQLKRVAEAKLPTPWGDFLmVGFEELATGHDHVALVYGDISGHTPVLARVHSECLTGDALFSLRCDCGFQLEAALTQIAEEGRGILLYHRQEGRNIGLLNKIRAYALQDQGYDTVEANHQLGFAADERDFTLCADmFKLLGVNEVRLLTNNPKKVEILTEAGINIVERVPLIVG 174
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130     | 140       150       160       170
                            |                 20-MSE                                                                                                             136-MSE
                            1-MSE

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Classification and Annotation

SCOP Domains (1, 1)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (8, 8)

Asymmetric Unit(hide GO term definitions)

Chain A (RIBA_ECOLI | P0A7I7)

molecular function
	GO:0005525	GTP binding	Interacting selectively and non-covalently with GTP, guanosine triphosphate.
	GO:0003935	GTP cyclohydrolase II activity	Catalysis of the reaction: GTP + 3 H(2)O = 2,5-diamino-6-hydroxy-4-(5-phosphoribosylamino)-pyrimidine + diphosphate + formate + 3 H(+).
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0009231	riboflavin biosynthetic process	The chemical reactions and pathways resulting in the formation of riboflavin (vitamin B2), the precursor for the coenzymes flavin mononucleotide (FMN) and flavin adenine dinucleotide (FAD).

Visualization

Interactive Views

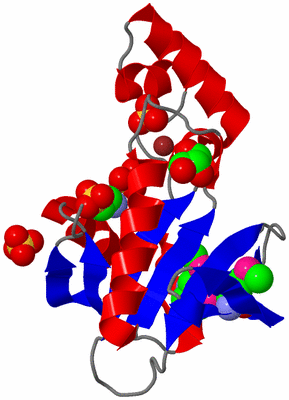

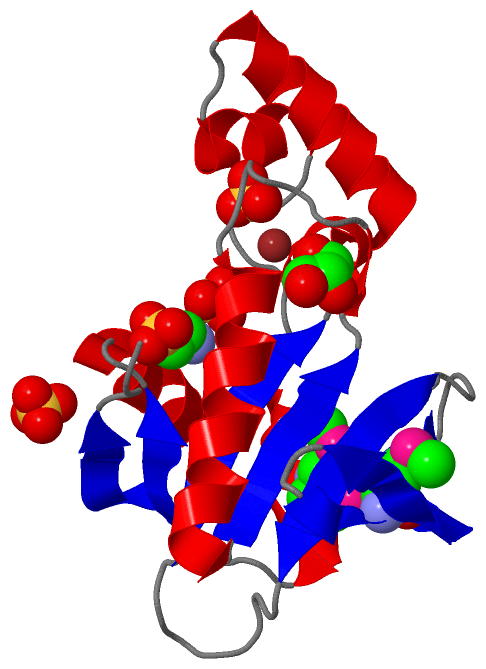

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		MSE	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		SO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		TAU	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

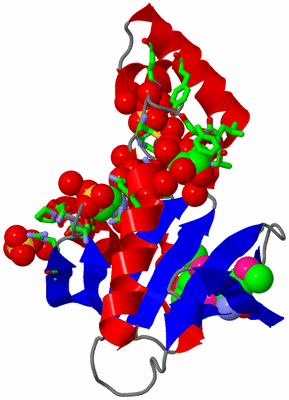

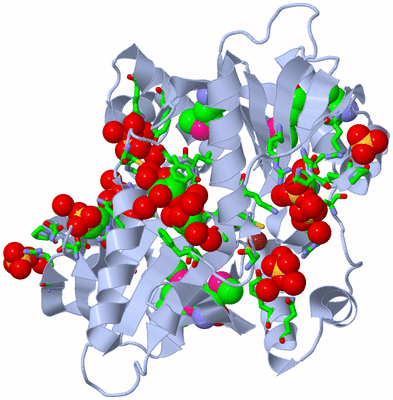

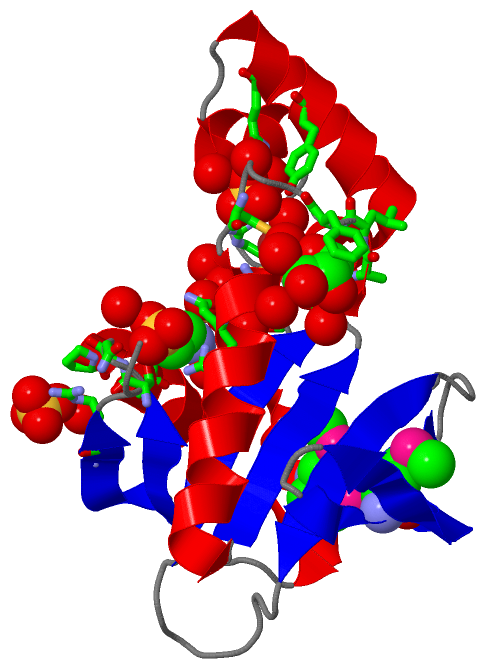

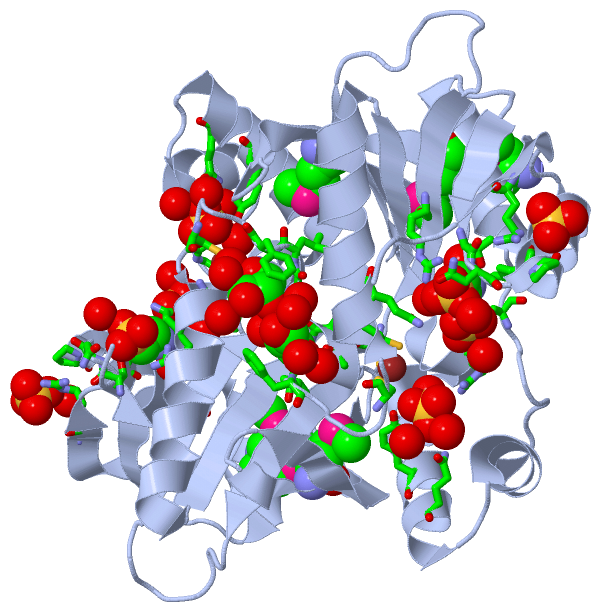

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2bz1)

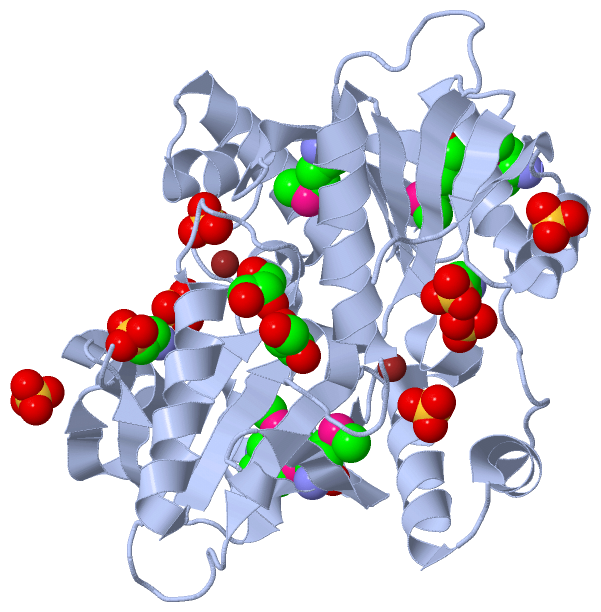

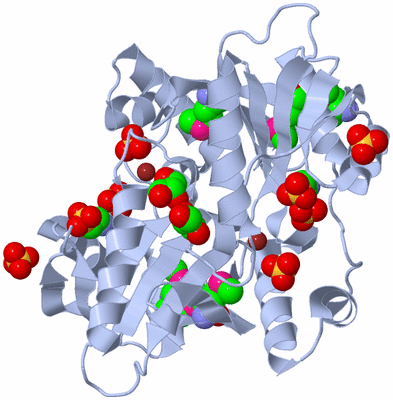

Biological Unit
	Complete Structure
		Biological Unit 1	[ Jena3D ]

Still Images

Databases and Analysis Tools

Databases

Access by PDB/NDB ID
	2bz1
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RIBA_ECOLI \| P0A7I7
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.5.4.25
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Analysis Tools

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RIBA_ECOLI \| P0A7I7
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
