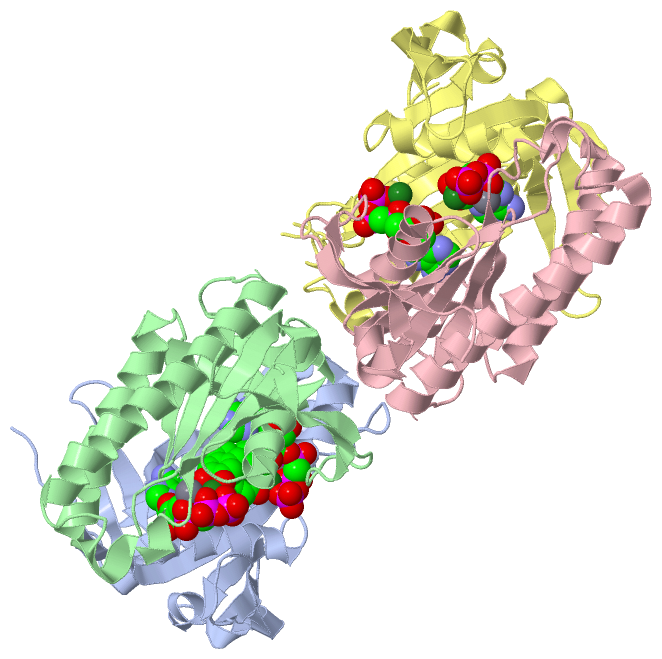

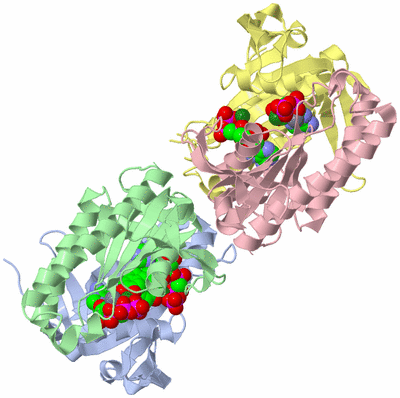

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

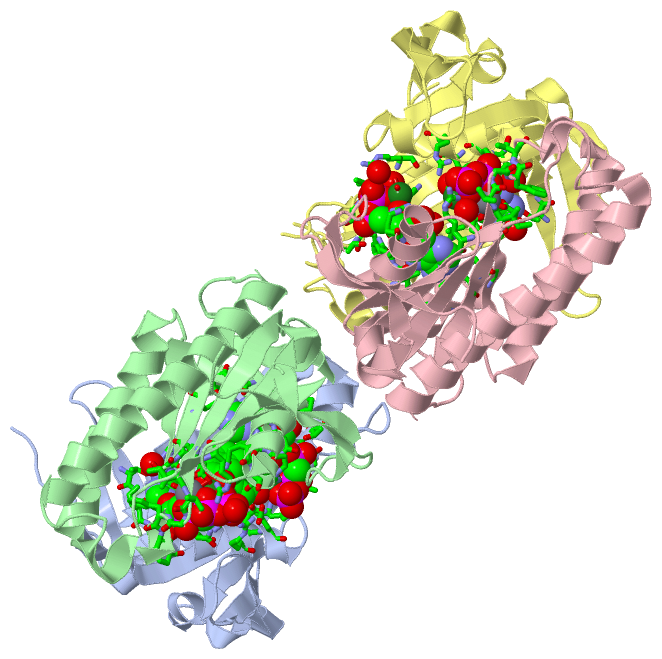

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

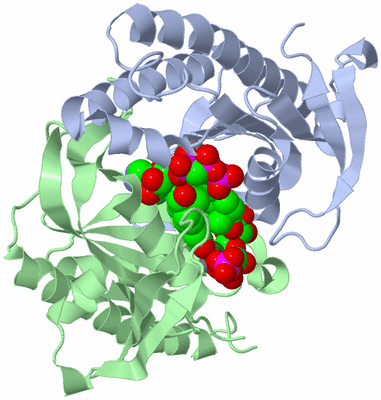

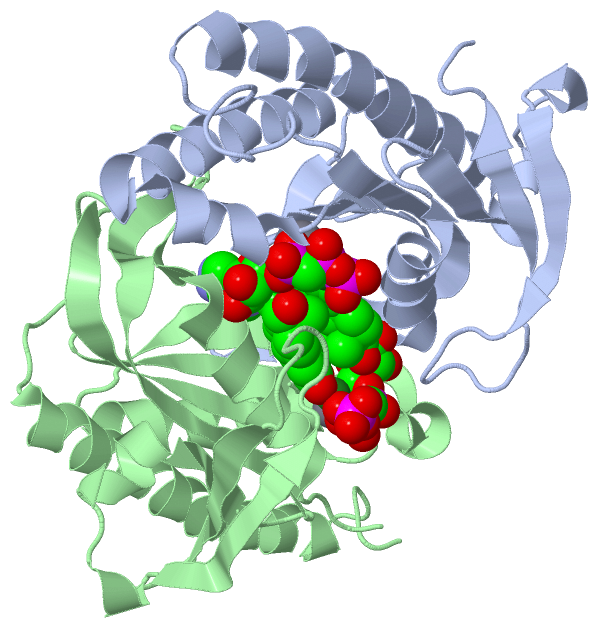

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

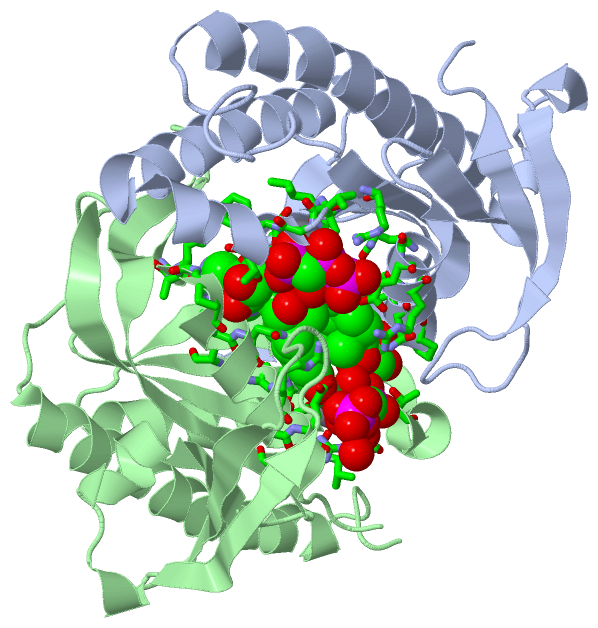

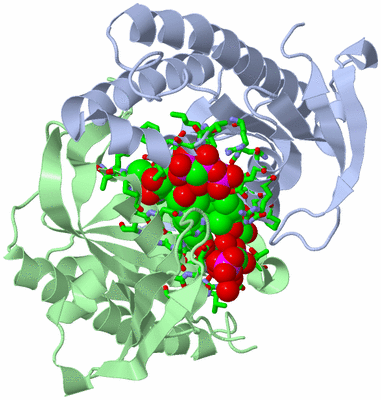

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

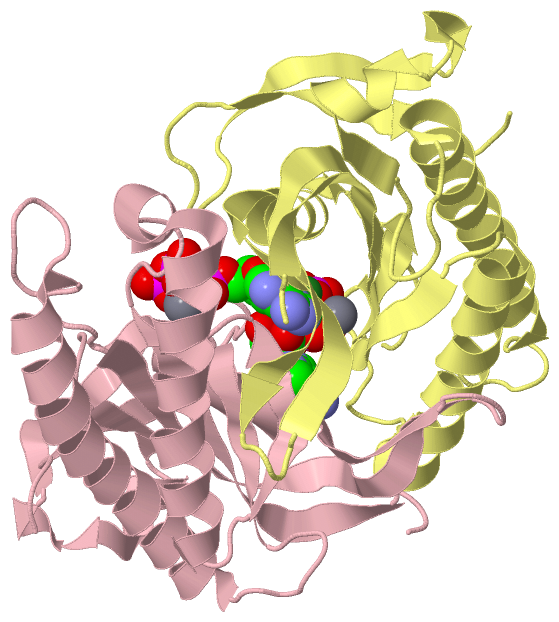

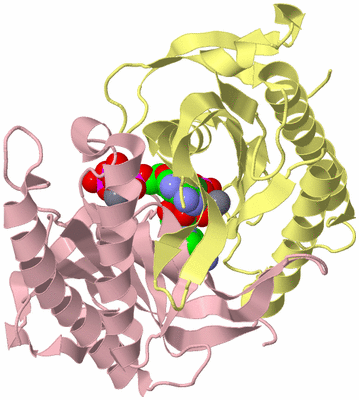

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  A NOVEL MECHANISM FOR ADENYLYL CYCLASE INHIBITION FROM THE CRYSTAL STRUCTURE OF ITS COMPLEX WITH CATECHOL ESTROGEN

Authors :  C. Steegborn, T. N. Litvin, K. C. Hess, A. B. Capper, R. Taussig, J. Buck, L. R. Levin, H. Wu
Date :  12 Jul 05  (Deposition) - 20 Jul 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Lyase, Adenylyl Cyclase, Camp Signaling, Catechol Estrogen, Inhibitor Complex, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Steegborn, T. N. Litvin, K. C. Hess, A. B. Capper, R. Taussig, J. Buck, L. R. Levin, H. Wu
A Novel Mechanism For Adenylyl Cyclase Inhibition From The Crystal Structure Of Its Complex With Catechol Estrogen
J. Biol. Chem. V. 280 31754 2005
PubMed-ID: 16002394  |  Reference-DOI: 10.1074/JBC.M507144200

(-) Compounds

Molecule 1 - ADENYLATE CYCLASE
    Chains: A, B, C, D
    EC Number: 4.6.1.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector: PET
    Fragment: CATALYTIC DOMAIN, RESIDUES 1005-1199
    Organism Scientific: SPIRULINA PLATENSIS
    Organism Taxid: 118562
    Synonym: SOLUBLE ADENYLYL CYCLASE CYAC

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 14)

Asymmetric Unit (4, 14)
No.NameCountTypeFull Name
1APC4Ligand/IonDIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER
2CA4Ligand/IonCALCIUM ION
3ECS2Ligand/Ion2,3,17BETA-TRIHYDROXY-1,3,5(10)-ESTRATRIENE
4MG4Ligand/IonMAGNESIUM ION
Biological Unit 1 (2, 4)
No.NameCountTypeFull Name
1APC2Ligand/IonDIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER
2CA-1Ligand/IonCALCIUM ION
3ECS2Ligand/Ion2,3,17BETA-TRIHYDROXY-1,3,5(10)-ESTRATRIENE
4MG-1Ligand/IonMAGNESIUM ION
Biological Unit 2 (1, 2)
No.NameCountTypeFull Name
1APC2Ligand/IonDIPHOSPHOMETHYLPHOSPHONIC ACID ADENOSYL ESTER
2CA-1Ligand/IonCALCIUM ION
3ECS-1Ligand/Ion2,3,17BETA-TRIHYDROXY-1,3,5(10)-ESTRATRIENE
4MG-1Ligand/IonMAGNESIUM ION

(-) Sites  (14, 14)

Asymmetric Unit (14, 14)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASP A:1017 , APC A:2200 , CA A:2202 , ECS A:2203 , HOH B:2036BINDING SITE FOR RESIDUE MG A2201
02AC2SOFTWAREASP A:1017 , ILE A:1018 , ASP A:1061 , APC A:2200 , MG A:2201BINDING SITE FOR RESIDUE CA A2202
03AC3SOFTWAREHOH A:2047 , ASP B:1017 , APC B:2200 , CA B:2202 , ECS B:2203BINDING SITE FOR RESIDUE MG B2201
04AC4SOFTWAREASP B:1017 , ILE B:1018 , ASP B:1061 , APC B:2200 , MG B:2201BINDING SITE FOR RESIDUE CA B2202
05AC5SOFTWAREASP C:1017 , HOH C:2017 , HOH C:2018 , APC C:2200BINDING SITE FOR RESIDUE MG C2201
06AC6SOFTWAREASP C:1017 , ILE C:1018 , ASP C:1061 , APC C:2200BINDING SITE FOR RESIDUE CA C2202
07AC7SOFTWAREASP D:1017 , HOH D:2016 , HOH D:2022 , APC D:2200BINDING SITE FOR RESIDUE MG D2201
08AC8SOFTWAREASP D:1017 , ILE D:1018 , ASP D:1061 , APC D:2200BINDING SITE FOR RESIDUE CA D2202
09AC9SOFTWAREASP A:1017 , ILE A:1018 , VAL A:1019 , GLY A:1020 , PHE A:1021 , THR A:1022 , VAL A:1059 , GLY A:1060 , ASP A:1061 , ARG A:1117 , GLU A:1153 , MG A:2201 , CA A:2202 , ECS A:2203 , MET B:1064 , THR B:1139 , ALA B:1140 , ILE B:1141 , GLY B:1142 , PRO B:1143 , VAL B:1145 , ASN B:1146 , ECS B:2203BINDING SITE FOR RESIDUE APC A2200
10BC1SOFTWAREASP A:1017 , VAL A:1059 , ASN A:1146 , ALA A:1149 , ARG A:1150 , GLN A:1152 , GLU A:1153 , HOH A:2017 , HOH A:2047 , APC A:2200 , MG A:2201 , APC B:2200 , ECS B:2203BINDING SITE FOR RESIDUE ECS A2203
11BC2SOFTWARELYS A:1057 , MET A:1064 , THR A:1139 , ALA A:1140 , ILE A:1141 , GLY A:1142 , PRO A:1143 , VAL A:1145 , ASN A:1146 , HOH A:2047 , ECS A:2203 , ASP B:1017 , ILE B:1018 , VAL B:1019 , GLY B:1020 , PHE B:1021 , THR B:1022 , GLY B:1060 , ASP B:1061 , ARG B:1117 , HOH B:2034 , HOH B:2035 , MG B:2201 , CA B:2202 , ECS B:2203BINDING SITE FOR RESIDUE APC B2200
12BC3SOFTWAREVAL A:1059 , APC A:2200 , ECS A:2203 , ASP B:1017 , VAL B:1059 , ALA B:1062 , ASN B:1146 , ALA B:1149 , ARG B:1150 , GLN B:1152 , GLU B:1153 , HOH B:2036 , APC B:2200 , MG B:2201BINDING SITE FOR RESIDUE ECS B2203
13BC4SOFTWAREASP C:1017 , ILE C:1018 , VAL C:1019 , GLY C:1020 , PHE C:1021 , THR C:1022 , VAL C:1059 , GLY C:1060 , ASP C:1061 , ARG C:1117 , HOH C:2018 , HOH C:2030 , HOH C:2031 , HOH C:2032 , MG C:2201 , CA C:2202 , LYS D:1057 , MET D:1064 , THR D:1139 , ALA D:1140 , VAL D:1145 , ASN D:1146 , ALA D:1149 , ARG D:1150BINDING SITE FOR RESIDUE APC C2200
14BC5SOFTWARELYS C:1057 , MET C:1064 , THR C:1139 , ALA C:1140 , VAL C:1145 , ASN C:1146 , ARG C:1150 , ASP D:1017 , ILE D:1018 , VAL D:1019 , GLY D:1020 , PHE D:1021 , THR D:1022 , VAL D:1059 , GLY D:1060 , ASP D:1061 , ARG D:1117 , HOH D:2012 , HOH D:2022 , HOH D:2023 , HOH D:2024 , MG D:2201 , CA D:2202BINDING SITE FOR RESIDUE APC D2200

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BW7)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Ala A:1069 -Pro A:1070
2Ala B:1069 -Pro B:1070
3Ala C:1069 -Pro C:1070
4Ala D:1069 -Pro D:1070

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BW7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BW7)

(-) Exons   (0, 0)

(no "Exon" information available for 2BW7)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:198
 aligned with O32393_ARTPT | O32393 from UniProtKB/TrEMBL  Length:1202

    Alignment length:198
                                  1011      1021      1031      1041      1051      1061      1071      1081      1091      1101      1111      1121      1131      1141      1151      1161      1171      1181      1191
        O32393_ARTPT   1002 LDLRPEPRLITILFSDIVGFTRMSNALQSQGVAELLNEYLGEMTRAVFENQGTVDKFVGDAIMALYGAPEEMSPSEQVRRAIATARQMLVALEKLNQGWQERGLVGRNEVPPVRFRCGIHQGMAVVGLFGSQERSDFTAIGPSVNIAARLQEATAPNSIMVSAMVAQYVPDEEIIKREFLELKGIDEPVMTCVINPNM 1199
               SCOP domains d2bw7a_ A: automated matches                                                                                                                                                                           SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....eeeeeeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeee..eeeeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.............eeeeeeeeeeeeeeee....eeeeeehhhhhhhhhhhhhh....eeeehhhhh..hhh.eeeeeee........eeeeee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                2bw7 A 1002 SHMRPEPRLITILFSDIVGFTRMSNALQSQGVAELLNEYLGEMTRAVFENQGTVDKFVGDAIMALYGAPEEMSPSEQVRRAIATARQMLVALEKLNQGWQERGLVGRNEVPPVRFRCGIHQGMAVVGLFGSQERSDFTAIGPSVNIAARLQEATAPNSIMVSAMVAQYVPDEEIIKREFLELKGIDEPVMTCVINPNM 1199
                                  1011      1021      1031      1041      1051      1061      1071      1081      1091      1101      1111      1121      1131      1141      1151      1161      1171      1181      1191


Chain B from PDB  Type:PROTEIN  Length:193
 aligned with O32393_ARTPT | O32393 from UniProtKB/TrEMBL  Length:1202

    Alignment length:196
                                  1013      1023      1033      1043      1053      1063      1073      1083      1093      1103      1113      1123      1133      1143      1153      1163      1173      1183      1193
        O32393_ARTPT   1004 LRPEPRLITILFSDIVGFTRMSNALQSQGVAELLNEYLGEMTRAVFENQGTVDKFVGDAIMALYGAPEEMSPSEQVRRAIATARQMLVALEKLNQGWQERGLVGRNEVPPVRFRCGIHQGMAVVGLFGSQERSDFTAIGPSVNIAARLQEATAPNSIMVSAMVAQYVPDEEIIKREFLELKGIDEPVMTCVINPNM 1199
               SCOP domains d2bw7b_ B: automated matches                                                                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeee..eeeeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhh......---....eeeeeeeeeeeeeeee....eeeeeehhhhhhhhhhhhhh....eeeehhhhh..hhh.eeeeeee........eeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bw7 B 1004 MRPEPRLITILFSDIVGFTRMSNALQSQGVAELLNEYLGEMTRAVFENQGTVDKFVGDAIMALYGAPEEMSPSEQVRRAIATARQMLVALEKLNQGWQERGLVGR---PPVRFRCGIHQGMAVVGLFGSQERSDFTAIGPSVNIAARLQEATAPNSIMVSAMVAQYVPDEEIIKREFLELKGIDEPVMTCVINPNM 1199
                                  1013      1023      1033      1043      1053      1063      1073      1083      1093      1103    | 1113      1123      1133      1143      1153      1163      1173      1183      1193
                                                                                                                                 1108   |
                                                                                                                                     1112


Chain C from PDB  Type:PROTEIN  Length:196
 aligned with O32393_ARTPT | O32393 from UniProtKB/TrEMBL  Length:1202

    Alignment length:196
                                  1013      1023      1033      1043      1053      1063      1073      1083      1093      1103      1113      1123      1133      1143      1153      1163      1173      1183      1193
        O32393_ARTPT   1004 LRPEPRLITILFSDIVGFTRMSNALQSQGVAELLNEYLGEMTRAVFENQGTVDKFVGDAIMALYGAPEEMSPSEQVRRAIATARQMLVALEKLNQGWQERGLVGRNEVPPVRFRCGIHQGMAVVGLFGSQERSDFTAIGPSVNIAARLQEATAPNSIMVSAMVAQYVPDEEIIKREFLELKGIDEPVMTCVINPNM 1199
               SCOP domains d2bw7c_ C: automated matches                                                                                                                                                                         SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeeee.....hhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeee..eeeeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........eeeeeeeeeeeeeeee....eeeeeehhhhhhhhhhhhhh....eeee.hhhhhhhhh.eeeeeee........eeeeee.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bw7 C 1004 MRPEPRLITILFSDIVGFTRMSNALQSQGVAELLNEYLGEMTRAVFENQGTVDKFVGDAIMALYGAPEEMSPSEQVRRAIATARQMLVALEKLNQGWQERGLVGRNEVPPVRFRCGIHQGMAVVGLFGSQERSDFTAIGPSVNIAARLQEATAPNSIMVSAMVAQYVPDEEIIKREFLELKGIDEPVMTCVINPNM 1199
                                  1013      1023      1033      1043      1053      1063      1073      1083      1093      1103      1113      1123      1133      1143      1153      1163      1173      1183      1193


Chain D from PDB  Type:PROTEIN  Length:193
 aligned with O32393_ARTPT | O32393 from UniProtKB/TrEMBL  Length:1202

    Alignment length:195
                                  1014      1024      1034      1044      1054      1064      1074      1084      1094      1104      1114      1124      1134      1144      1154      1164      1174      1184      1194
        O32393_ARTPT   1005 RPEPRLITILFSDIVGFTRMSNALQSQGVAELLNEYLGEMTRAVFENQGTVDKFVGDAIMALYGAPEEMSPSEQVRRAIATARQMLVALEKLNQGWQERGLVGRNEVPPVRFRCGIHQGMAVVGLFGSQERSDFTAIGPSVNIAARLQEATAPNSIMVSAMVAQYVPDEEIIKREFLELKGIDEPVMTCVINPNM 1199
               SCOP domains d2bw7d_ D: automated matches                                                                                                                                                                        SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeeeeee.........hhhhhhhhhhhhhhhhhhhhhhh...eeeeee..eeeeee......hhhhhhhhhhhhhhhhhhhhhhhhhh........--......eeeeeeeeeeeeeeee....eeeeeehhhhhhhhhhhhhh....eeeehhhhh..hhh.eeeeeee........eeeeee.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bw7 D 1005 RPEPRLITILFSDIVGFTRMSNALQSQGVAELLNEYLGEMTRAVFENQGTVDKFVGDAIMALYGAPEEMSPSEQVRRAIATARQMLVALEKLNQGWQERGLVG--EVPPVRFRCGIHQGMAVVGLFGSQERSDFTAIGPSVNIAARLQEATAPNSIMVSAMVAQYVPDEEIIKREFLELKGIDEPVMTCVINPNM 1199
                                  1014      1024      1034      1044      1054      1064      1074      1084      1094      1104  |  |1114      1124      1134      1144      1154      1164      1174      1184      1194
                                                                                                                               1107  |
                                                                                                                                  1110
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2BW7)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BW7)

(-) Gene Ontology  (15, 15)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (O32393_ARTPT | O32393)
molecular function
    GO:0004016    adenylate cyclase activity    Catalysis of the reaction: ATP = 3',5'-cyclic AMP + diphosphate.
    GO:0016829    lyase activity    Catalysis of the cleavage of C-C, C-O, C-N and other bonds by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond. They differ from other enzymes in that two substrates are involved in one reaction direction, but only one in the other direction. When acting on the single substrate, a molecule is eliminated and this generates either a new double bond or a new ring.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000155    phosphorelay sensor kinase activity    Catalysis of the phosphorylation of a histidine residue in response to detection of an extracellular signal such as a chemical ligand or change in environment, to initiate a change in cell state or activity. The two-component sensor is a histidine kinase that autophosphorylates a histidine residue in its active site. The phosphate is then transferred to an aspartate residue in a downstream response regulator, to trigger a response.
    GO:0016849    phosphorus-oxygen lyase activity    Catalysis of the cleavage of a phosphorus-oxygen bond by other means than by hydrolysis or oxidation, or conversely adding a group to a double bond.
    GO:0016772    transferase activity, transferring phosphorus-containing groups    Catalysis of the transfer of a phosphorus-containing group from one compound (donor) to another (acceptor).
biological process
    GO:0006171    cAMP biosynthetic process    The chemical reactions and pathways resulting in the formation of the nucleotide cAMP (cyclic AMP, adenosine 3',5'-cyclophosphate).
    GO:0009190    cyclic nucleotide biosynthetic process    The chemical reactions and pathways resulting in the formation of a cyclic nucleotide, a nucleotide in which the phosphate group is in diester linkage to two positions on the sugar residue.
    GO:0035556    intracellular signal transduction    The process in which a signal is passed on to downstream components within the cell, which become activated themselves to further propagate the signal and finally trigger a change in the function or state of the cell.
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0018298    protein-chromophore linkage    The covalent or noncovalent attachment of a chromophore to a protein.
    GO:0007165    signal transduction    The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
    GO:0023014    signal transduction by protein phosphorylation    A process in which the transfer of one or more phosphate groups to a substrate transmits a signal to the phosphorylated substrate.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    APC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ECS  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Ala A:1069 - Pro A:1070   [ RasMol ]
    Ala B:1069 - Pro B:1070   [ RasMol ]
    Ala C:1069 - Pro C:1070   [ RasMol ]
    Ala D:1069 - Pro D:1070   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2bw7
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O32393_ARTPT | O32393
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  4.6.1.1
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O32393_ARTPT | O32393
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        O32393_ARTPT | O32393: 1wc0 1wc1 1wc3 1wc4 1wc5 1wc6

(-) Related Entries Specified in the PDB File

1wc0 SOLUBLE ADENYLYL CYCLASE CYAC FROM S. PLATENSIS IN COMPLEX WITH ALPHA,BETA- METHYLENE-ATP
1wc1 SOLUBLE ADENYLYL CYCLASE CYAC FROM S. PLATENSIS IN COMPLEX WITH RP-ATPALPHAS
1wc3 SOLUBLE ADENYLYL CYCLASE CYAC FROM S. PLATENSIS IN COMPLEX WITH ALPHA,BETA- METHYLENE-ATP AND STRONTIUM
1wc4 SOLUBLE ADENYLYL CYCLASE CYAC FROM S. PLATENSIS IN COMPLEX WITH ALPHA,BETA- METHYLENE-ATP AND EUROPIUM
1wc5 SOLUBLE ADENYLYL CYCLASE CYAC FROM S. PLATENSIS IN COMPLEX WITH ALPHA,BETA- METHYLENE-ATP IN PRESENCE OF BICARBONATE
1wc6 SOLUBLE ADENYLYL CYCLASE CYAC FROM S. PLATENSIS IN COMPLEX WITH RP-ATPALPHAS IN PRESENCE OF BICARBONATE
