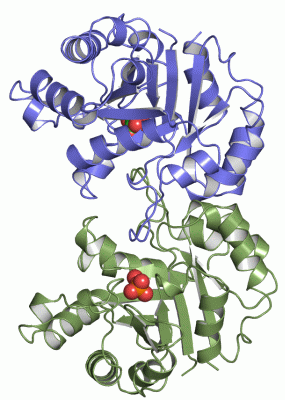

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

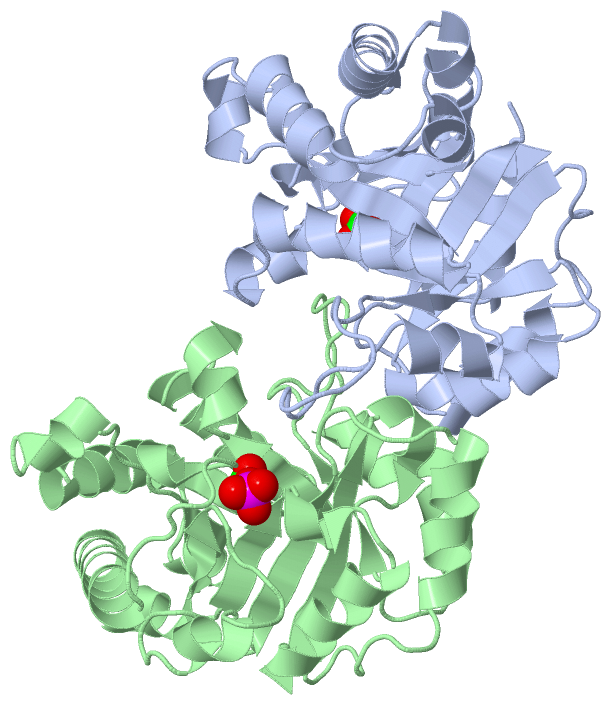

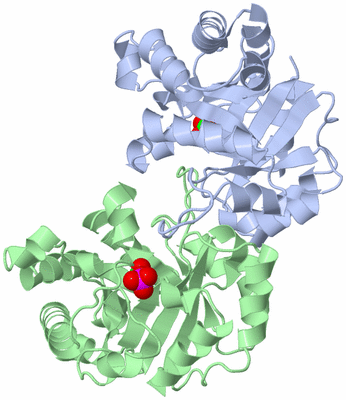

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

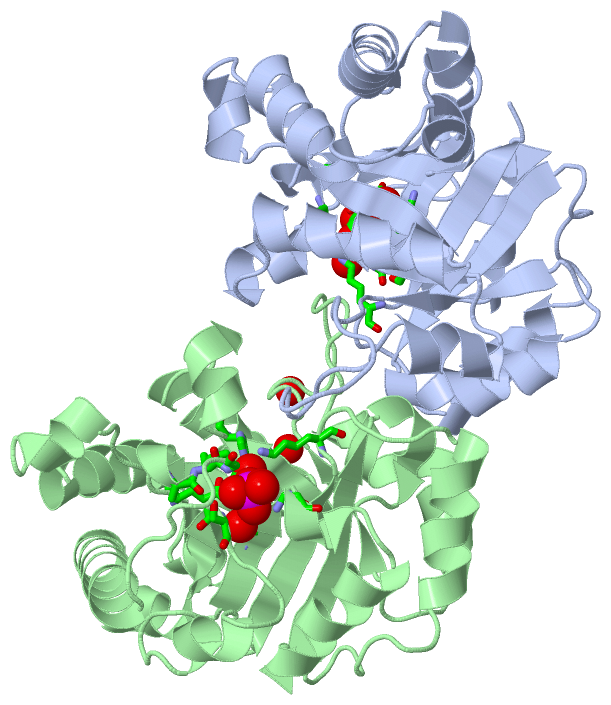

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  DOES THE HIS12-LYS13 PAIR PLAY A ROLE IN THE ADAPTATION OF THERMOPHILIC TIMS TO HIGH TEMPERATURES?

Authors :  L. F. Delboni, S. C. Mande, W. G. J. Hol
Date :  04 Jan 99  (Deposition) - 13 Jan 99  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Thermophilic Triose-Phosphate, Glycolysis, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Alvarez, J. Wouters, D. Maes, V. Mainfroid, F. Rentier-Delrue, L. Wyns, E. Depiereux, J. A. Martial
Lys13 Plays A Crucial Role In The Functional Adaptation Of The Thermophilic Triose-Phosphate Isomerase From Bacillus Stearothermophilus To High Temperatures.
J. Biol. Chem. V. 274 19181 1999
PubMed-ID: 10383424  |  Reference-DOI: 10.1074/JBC.274.27.19181
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN (TRIOSEPHOSPHATE ISOMERASE)
    Chains: A, B
    EC Number: 5.3.1.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Mutation: YES
    Organism Scientific: GEOBACILLUS STEAROTHERMOPHILUS
    Organism Taxid: 1422
    Synonym: TIM

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1PGA2Ligand/Ion2-PHOSPHOGLYCOLIC ACID

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASN A:8 , LYS A:10 , HIS A:94 , GLU A:166 , ILE A:171 , GLY A:172 , GLY A:211 , SER A:212 , LEU A:231 , GLY A:233 , GLY A:234 , HOH A:309 , HOH A:315 , HOH A:321BINDING SITE FOR RESIDUE PGA A 301
2AC2SOFTWARELYS B:10 , HIS B:94 , GLU B:166 , ALA B:170 , ILE B:171 , GLY B:172 , GLY B:211 , SER B:212 , LEU B:231 , GLY B:233 , GLY B:234 , HOH B:305 , HOH B:324 , HOH B:367 , HOH B:369BINDING SITE FOR RESIDUE PGA B 302

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BTM)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2BTM)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BTM)

(-) PROSITE Motifs  (2, 4)

Asymmetric/Biological Unit (2, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1TIM_2PS51440 Triosephosphate isomerase (TIM) family profile.TPIS_GEOSE3-249
 		  2A:2-248
B:2-248
2TIM_1PS00171 Triosephosphate isomerase active site.TPIS_GEOSE165-175
 		  2A:164-174
B:164-174

(-) Exons   (0, 0)

(no "Exon" information available for 2BTM)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:251
 aligned with TPIS_GEOSE | P00943 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:251
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251
           TPIS_GEOSE     2 RKPIIAGNWKMHKTLAEAVQFVEDVKGHVPPADEVISVVCAPFLFLDRLVQAADGTDLKIGAQTMHFADQGAYTGEVSPVMLKDLGVTYVILGHSERRQMFAETDETVNKKVLAAFTRGLIPIICCGESLEEREAGQTNAVVASQVEKALAGLTPEQVKQAVIAYEPIWAIGTGKSSTPEDANSVCGHIRSVVSRLFGPEAAEAIRIQYGGSVKPDNIRDFLAQQQIDGPLVGGASLEPASFLQLVEAGRH 252
               SCOP domains d2btma_ A: Triosephosphate isomerase                                                                                                                                                                                                                        SCOP domains
               CATH domains 2btmA00 A:1-251 Aldolase class I                                                                                                                                                                                                                            CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee......hhhhhhhhhhh.........eeeeeee.hhhhhhhhhhh....eeeee................hhhhhhh...eeee..hhhhhh....hhhhhhhhhhhhhh..eeeeee...hhhhh...hhhhhhhhhhhhh....hhhhhh.eeeee.hhh........hhhhhhhhhhhhhhhhhhh.hhhh...eeeee.......hhhhh......eeee.hhh..hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -TIM_2  PDB: A:2-248 UniProt: 3-249                                                                                                                                                                                                                     --- PROSITE (1)
                PROSITE (2) -------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      ----------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2btm A   1 RKPIIAGNWKMNGTLAEAVQFVEDVKGHVPPADEVISVVCAPFLFLDRLVQAADGTDLKIGAQTMHFADQGAYTGEVSPVMLKDLGVTYVILGHSERRQMFAETDETVNKKVLAAFTRGLIPIICCGESLEEREAGQTNAVVASQVEKALAGLTPEQVKQAVIAYEPIWAIGTGKSSTPEDANSVCGHIRSVVSRLFGPEAAEAIRIQYGGSVKPDNIRDFLAQQQIDGALVGGASLEPASFLQLVEAGRH 251
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250


Chain B from PDB  Type:PROTEIN  Length:251
 aligned with TPIS_GEOSE | P00943 from UniProtKB/Swiss-Prot  Length:253

    Alignment length:251
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251
           TPIS_GEOSE     2 RKPIIAGNWKMHKTLAEAVQFVEDVKGHVPPADEVISVVCAPFLFLDRLVQAADGTDLKIGAQTMHFADQGAYTGEVSPVMLKDLGVTYVILGHSERRQMFAETDETVNKKVLAAFTRGLIPIICCGESLEEREAGQTNAVVASQVEKALAGLTPEQVKQAVIAYEPIWAIGTGKSSTPEDANSVCGHIRSVVSRLFGPEAAEAIRIQYGGSVKPDNIRDFLAQQQIDGPLVGGASLEPASFLQLVEAGRH 252
               SCOP domains d2btmb_ B: Triosephosphate isomerase                                                                                                                                                                                                                        SCOP domains
               CATH domains 2btmB00 B:1-251 Aldolase class I                                                                                                                                                                                                                            CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee......hhhhhhhhhhh.........eeeeeee.hhhhhhhhhhh.....eeee................hhhhhhh...eeee..hhhhhh....hhhhhhhhhhhhh...eeeeee...hhhhh...hhhhhhhhhhhhh....hhhhhh.eeee..hhh........hhhhhhhhhhhhhhhhhhh.hhhhhh.eeeee.......hhhhh......eeee.hhh..hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) -TIM_2  PDB: B:2-248 UniProt: 3-249                                                                                                                                                                                                                     --- PROSITE (1)
                PROSITE (2) -------------------------------------------------------------------------------------------------------------------------------------------------------------------TIM_1      ----------------------------------------------------------------------------- PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2btm B   1 RKPIIAGNWKMNGTLAEAVQFVEDVKGHVPPADEVISVVCAPFLFLDRLVQAADGTDLKIGAQTMHFADQGAYTGEVSPVMLKDLGVTYVILGHSERRQMFAETDETVNKKVLAAFTRGLIPIICCGESLEEREAGQTNAVVASQVEKALAGLTPEQVKQAVIAYEPIWAIGTGKSSTPEDANSVCGHIRSVVSRLFGPEAAEAIRIQYGGSVKPDNIRDFLAQQQIDGALVGGASLEPASFLQLVEAGRH 251
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BTM)

(-) Gene Ontology  (8, 8)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (TPIS_GEOSE | P00943)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
    GO:0004807    triose-phosphate isomerase activity    Catalysis of the reaction: D-glyceraldehyde 3-phosphate = glycerone phosphate.
biological process
    GO:0006094    gluconeogenesis    The formation of glucose from noncarbohydrate precursors, such as pyruvate, amino acids and glycerol.
    GO:0006096    glycolytic process    The chemical reactions and pathways resulting in the breakdown of a carbohydrate into pyruvate, with the concomitant production of a small amount of ATP and the reduction of NAD(P) to NAD(P)H. Glycolysis begins with the metabolism of a carbohydrate to generate products that can enter the pathway and ends with the production of pyruvate. Pyruvate may be converted to acetyl-coenzyme A, ethanol, lactate, or other small molecules.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0006098    pentose-phosphate shunt    The glucose-6-phosphate catabolic process in which, coupled to NADPH synthesis, glucose-6-P is oxidized with the formation of carbon dioxide (CO2) and ribulose 5-phosphate; ribulose 5-P then enters a series of reactions interconverting sugar phosphates. The pentose phosphate pathway is a major source of reducing equivalents for biosynthesis reactions and is also important for the conversion of hexoses to pentoses.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
