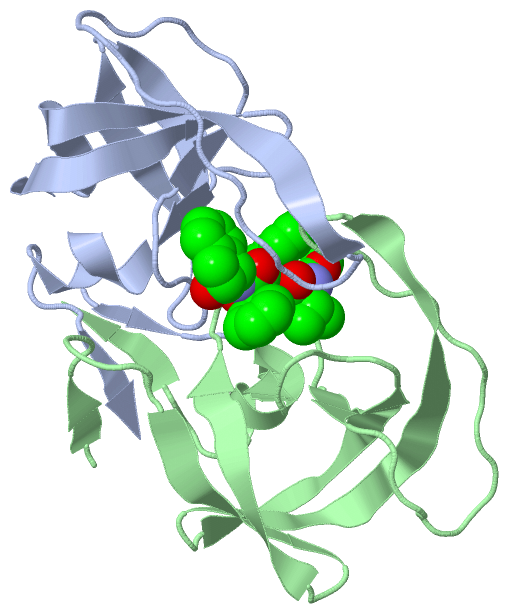

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

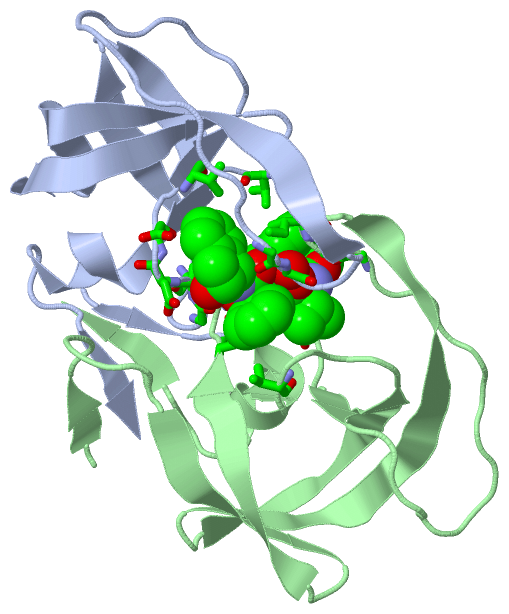

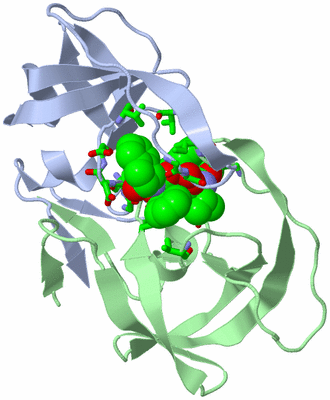

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  HIV-1 PROTEASE IN COMPLEX WITH INHIBITOR AHA455

Authors :  T. Unge, J. K. Ekegren, H. V. Schenk, M. Zreik Safa, H. Wallberg, B. Samuelsson, A. Hallberg
Date :  28 Apr 05  (Deposition) - 14 Dec 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Hydrolase/Inhibitor, Hydrolase/Inhibitor Complex, Hiv-1 Protease, Inhibitor, Drug Design, Hydrolase Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. K. Ekegren, T. Unge, M. Z. Safa, H. Wallberg, B. Samuelsson, A. Hallberg
A New Class Of Hiv-1 Protease Inhibitors Containing A Tertiary Alcohol In The Transition- State Mimicking Scaffold.
J. Med. Chem. V. 48 8098 2005
PubMed-ID: 16335934  |  Reference-DOI: 10.1021/JM050790T

(-) Compounds

Molecule 1 - HIV-1 PROTEASE
    Chains: A, B
    EC Number: 3.4.23.16
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET11D
    Expression System Strain: ROSETTA
    Expression System Taxid: 562
    Organism Scientific: HUMAN IMMUNODEFICIENCY VIRUS 1
    Organism Taxid: 11676
    Other Details: COMPLEX WITH INHIBITOR AHA455
    Variant: D10

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1A1A1Ligand/Ion6-AMINO HEXANOIC ACID

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:8 , ASP A:25 , GLY A:27 , ALA A:28 , ASP A:29 , ASP A:30 , VAL A:32 , GLY A:48 , GLY A:49 , VAL A:82 , HOH A:2021 , ASP B:125 , GLY B:127 , ALA B:128 , ASP B:129 , GLY B:148 , GLY B:149 , ILE B:150 , VAL B:182BINDING SITE FOR RESIDUE A1A A1100

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BQV)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2BQV)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BQV)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BQV)

(-) Exons   (0, 0)

(no "Exon" information available for 2BQV)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:99
 aligned with O92139_9HIV1 | O92139 from UniProtKB/TrEMBL  Length:99

    Alignment length:99
                                    10        20        30        40        50        60        70        80        90
         O92139_9HIV1     1 PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMSLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPVNIIGRNLLTQIGCTLNF  99
               SCOP domains d2bqva_ A: Human immunodeficiency virus type 1 protease                                             SCOP domains
               CATH domains 2bqvA00 A:1-99 Acid Proteases                                                                       CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee......eeeeee..eeeeeee.......ee..................eeeeeeeeeeeeeee..eeeeeeeee......eehhhhhh....eee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 2bqv A   1 PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMSLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPVNIIGRNLLTQIGCTLNF  99
                                    10        20        30        40        50        60        70        80        90


Chain B from PDB  Type:PROTEIN  Length:99
 aligned with O92139_9HIV1 | O92139 from UniProtKB/TrEMBL  Length:99

    Alignment length:99
                                    10        20        30        40        50        60        70        80        90
         O92139_9HIV1     1 PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMSLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPVNIIGRNLLTQIGCTLNF  99
               SCOP domains d2bqvb_ B: Human immunodeficiency virus type 1 protease                                             SCOP domains
               CATH domains 2bqvB00 B:101-199 Acid Proteases                                                                    CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .ee......eeeeee..eeeeeee.......ee..................eeeeeeeeeeeeeee..eeeeeeeee......eehhhhhh....eee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------- Transcript
                 2bqv B 101 PQITLWQRPLVTIKIGGQLKEALLDTGADDTVLEEMSLPGRWKPKMIGGIGGFIKVRQYDQILIEICGHKAIGTVLVGPTPVNIIGRNLLTQIGCTLNF 199
                                   110       120       130       140       150       160       170       180       190
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BQV)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (O92139_9HIV1 | O92139)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    A1A  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2bqv)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2bqv
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O92139_9HIV1 | O92139
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  3.4.23.16
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O92139_9HIV1 | O92139
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        O92139_9HIV1 | O92139: 1hvc 2bb9
UniProtKB/TrEMBL
        O92139_9HIV1 | O92139: 1hvi 1zp8 2i4w

(-) Related Entries Specified in the PDB File

1hvc HIV-1 PROTEASE (TETHERED DIMER LINKED BY GLY-GLY-SER-SER-GLY) COMPLEXED WITH A- 76928
2bb9 STRUCTURE OF HIV1 PROTEASE AND AKC4P_133A COMPLEX.
