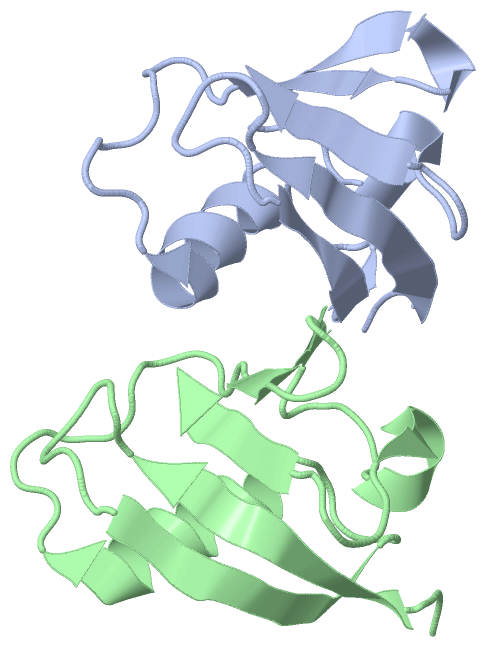

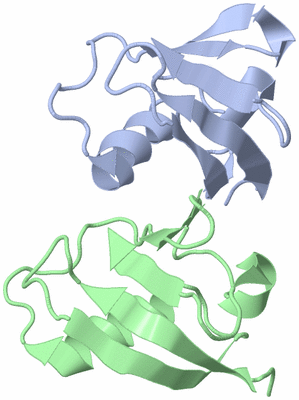

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

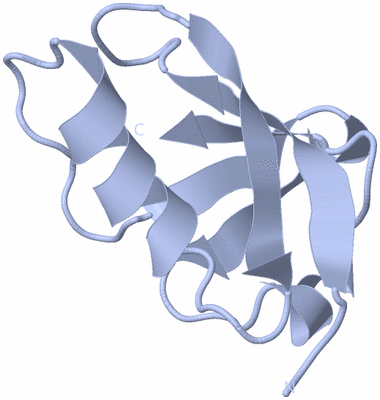

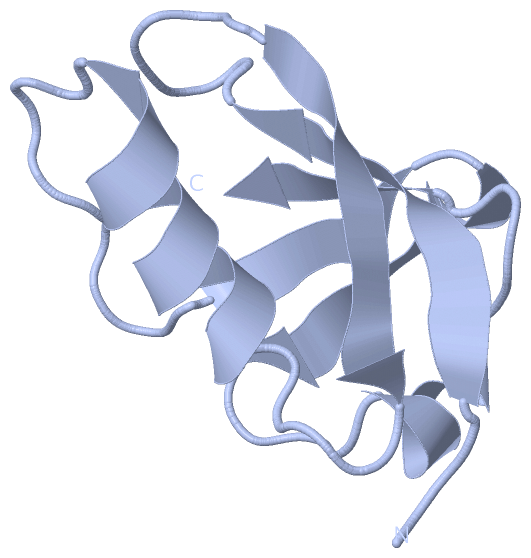

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

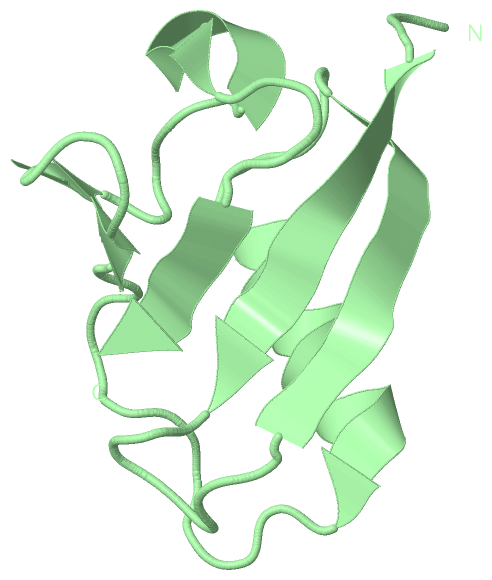

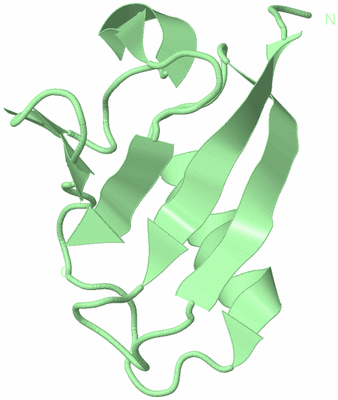

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  UBIQUITIN-LIKE PROTEIN YUKD OF BACILLUS SUBTILIS

Authors :  F. Van Den Ent, J. Lowe
Date :  22 Apr 05  (Deposition) - 04 Jul 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Yukd, Ubiquitin-Like Protein, Ubiquitin (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. Van Den Ent, J. Lowe
Crystal Structure Of Ubiquitin-Like Protein Yukd From Bacillus Subtilis
Febs Lett. V. 579 3837 2005
PubMed-ID: 15978580  |  Reference-DOI: 10.1016/J.FEBSLET.2005.06.002

(-) Compounds

Molecule 1 - YUKD PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PHIS17
    Expression System Strain: C41(DE3)
    Expression System Taxid: 562
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2BPS)

(-) Sites  (0, 0)

(no "Site" information available for 2BPS)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BPS)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Met A:42 -Pro A:43

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BPS)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BPS)

(-) Exons   (0, 0)

(no "Exon" information available for 2BPS)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:81
 aligned with YUKD_BACSU | P71071 from UniProtKB/Swiss-Prot  Length:79

    Alignment length:81
                              1
                              |      8        18        28        38        48        58        68        78
            YUKD_BACSU    - --MYIDITIDLKHYNGSVFDLRLSDYHPVKKVIDIAWQAQSVSMPPREGHWIRVVNKDKVFSGECKLSDCGITNGDRLEIL 79
               SCOP domains --------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee.......eeeeeee.....hhhhhhhhhhh..........eeee.hhheeee....hhhhh.....eeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                  2bps A -1 HGSYIDITIDLKHYNGSVFDLRLSDYHPVKKVIDIAWQAQSVSMPPREGHWIRVVNKDKVFSGECKLSDCGITNGDRLEIL 79
                                     8        18        28        38        48        58        68        78


Chain B from PDB  Type:PROTEIN  Length:81
 aligned with YUKD_BACSU | P71071 from UniProtKB/Swiss-Prot  Length:79

    Alignment length:81
                              1
                              |      8        18        28        38        48        58        68        78
            YUKD_BACSU    - --MYIDITIDLKHYNGSVFDLRLSDYHPVKKVIDIAWQAQSVSMPPREGHWIRVVNKDKVFSGECKLSDCGITNGDRLEIL 79
               SCOP domains --------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee.......eeeeeee.....hhhhhhhhhhh...........eee....eee.....hhhhh.....eeee. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                  2bps B -1 HGSYIDITIDLKHYNGSVFDLRLSDYHPVKKVIDIAWQAQSVSMPPREGHWIRVVNKDKVFSGECKLSDCGITNGDRLEIL 79
                                     8        18        28        38        48        58        68        78
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2BPS)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2BPS)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BPS)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2BPS)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2bps)

  Sites
(no "Sites" information available for 2bps)

  Cis Peptide Bonds
    Met A:42 - Pro A:43   [ RasMol ]
