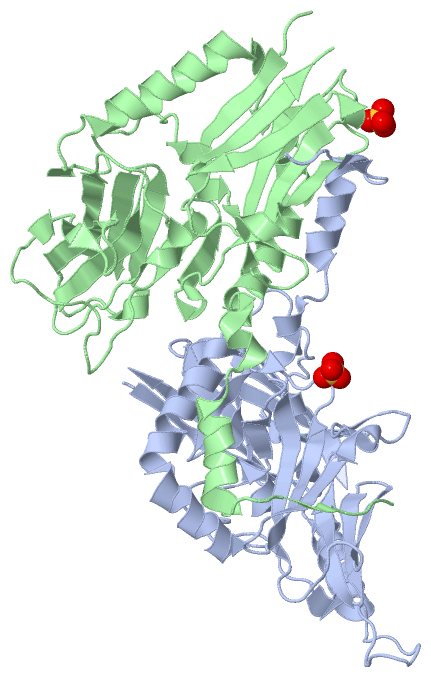

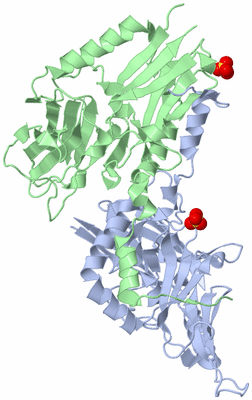

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

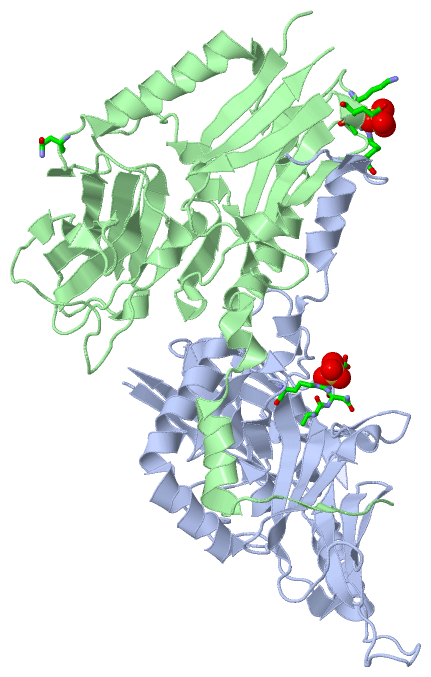

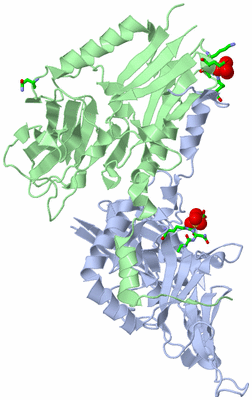

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE AND ASSEMBLY OF TSP36, A METAZOAN SMALL HEAT SHOCK PROTEIN

Authors :  R. J. Stamler, G. Kappe, W. C. Boelens, C. Slingsby
Date :  12 Apr 05  (Deposition) - 23 Sep 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Heat Shock Protein, Small Heat Shock Protein, A-Crystallin, Molecular Chaperone, Taenia Saginata (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. J. Stamler, G. Kappe, W. C. Boelens, C. Slingsby
Wrapping The Alpha-Crystallin Domain Fold In A Chaperone Assembly.
J. Mol. Biol. V. 353 68 2005
PubMed-ID: 16165157  |  Reference-DOI: 10.1016/J.JMB.2005.08.025

(-) Compounds

Molecule 1 - SMALL HEAT SHOCK PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET3A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Organism Common: BEEF TAPEWORM
    Organism Scientific: TAENIA SAGINATA
    Organism Taxid: 6206
    Other Details: ONCOSPHERE
    Synonym: TSP36

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:111 , VAL A:187 , ASN A:188 , GLU A:189BINDING SITE FOR RESIDUE SO4 A1315
2AC2SOFTWAREARG A:7 , GLN B:81 , LYS B:124 , ALA B:125 , GLU B:126BINDING SITE FOR RESIDUE SO4 B1315

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BOL)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2BOL)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BOL)

(-) PROSITE Motifs  (1, 4)

Asymmetric/Biological Unit (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SHSPPS01031 Small heat shock protein (sHSP) domain profile.TSP36_TAESA216-314

95-200
 		  4A:216-314
B:216-314
A:95-200
B:95-200

(-) Exons   (0, 0)

(no "Exon" information available for 2BOL)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:301
 aligned with TSP36_TAESA | Q7YZT0 from UniProtKB/Swiss-Prot  Length:314

    Alignment length:313
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311
          TSP36_TAESA     2 SIFPTRDSRDLSSRRRSLIDWEFPQMALVPLDQVFDWAERSRQSLHDDIVNMHRNLFSLEPFTAMDNAFESVMKEMSAIQPREFHPELEYTQPGELDFLKDAYEVGKDGRLHFKVYFNVKNFKAEEITIKADKNKLVVRAQKSVACGDAAMSESVGRSIPLPPSVDRNHIQATITTDDVLVIEAPVNEPNYKAIKLSPEKGLAIQPSEVQERQLAVKNKEGLEIVTAEDGSKKIHLELKVDPHFAPKDVKVWAKGNKVYVHGVTGKEEKTENASHSEHREFYKAFVTPEVVDASKTQAEIVDGLMVVEAPLFK 314
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee...hhhhhhhhhhh..hhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....eehhhhhhhhhhhhhhhhh...ee............hhhhhh.eee.....eeeeeeee........eeeeee..eeeeee..............eeeeee.....hhhhheeee....eeeeeee........eeee...eeee................eeeeee.....eeeeeeee.....hhh.eeeee...eeeeeeee.------------.eeeeeeee...ee.hhhheeeee..eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------SHSP  PDB: A:95-200 UniProt: 95-200                                                                       ---------------SHSP  PDB: A:216-314 UniProt: 216-314                                                               PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bol A   2 SIFPTRDSRDLSSRRRSLIDWEFPQMALVPLDQVFDWAERSRQSLHDDIVNMHRNLFSLEPFTAMDNAFESVMKEMSAIQPREFHPELEYTQPGELDFLKDAYEVGKDGRLHFKVYFNVKNFKAEEITIKADKNKLVVRAQKSVACGDAAMSESVGRSIPLPPSVDRNHIQATITTDDVLVIEAPVNEPNYKAIKLSPEKGLAIQPSEVQERQLAVKNKEGLEIVTAEDGSKKIHLELKVDPHFAPKDVKVWAKGNKVYVHGVTG------------HREFYKAFVTPEVVDASKTQAEIVDGLMVVEAPLFK 314
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261    |    -       281       291       301       311
                                                                                                                                                                                                                                                                                                  266          279


Chain B from PDB  Type:PROTEIN  Length:291
 aligned with TSP36_TAESA | Q7YZT0 from UniProtKB/Swiss-Prot  Length:314

    Alignment length:313
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311
          TSP36_TAESA     2 SIFPTRDSRDLSSRRRSLIDWEFPQMALVPLDQVFDWAERSRQSLHDDIVNMHRNLFSLEPFTAMDNAFESVMKEMSAIQPREFHPELEYTQPGELDFLKDAYEVGKDGRLHFKVYFNVKNFKAEEITIKADKNKLVVRAQKSVACGDAAMSESVGRSIPLPPSVDRNHIQATITTDDVLVIEAPVNEPNYKAIKLSPEKGLAIQPSEVQERQLAVKNKEGLEIVTAEDGSKKIHLELKVDPHFAPKDVKVWAKGNKVYVHGVTGKEEKTENASHSEHREFYKAFVTPEVVDASKTQAEIVDGLMVVEAPLFK 314
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....ee...hhhhhhhhhhh..hhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhh....eehhhhhhhhhhhhhhhh....ee............hhhhhh.eee.....eeeeeeee....hhh.eeeeee..eeeeee...--------...eeeeee.....hhhhheeee....eeeeeee....hhh.eeee...eeee................ee..ee.....eeeeeeee.....hhh.eeeeee..eeeeeee.--------------.eeeeeee......hhhh.......eeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------SHSP  PDB: B:95-200 UniProt: 95-200                                                                       ---------------SHSP  PDB: B:216-314 UniProt: 216-314                                                               PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bol B   2 SIFPTRDSRDLSSRRRSLIDWEFPQMALVPLDQVFDWAERSRQSLHDDIVNMHRNLFSLEPFTAMDNAFESVMKEMSAIQPREFHPELEYTQPGELDFLKDAYEVGKDGRLHFKVYFNVKNFKAEEITIKADKNKLVVRAQKS--------SESVGRSIPLPPSVDRNHIQATITTDDVLVIEAPVNEPNYKAIKLSPEKGLAIQPSEVQERQLAVKNKEGLEIVTAEDGSKKIHLELKVDPHFAPKDVKVWAKGNKVYVHGVT--------------REFYKAFVTPEVVDASKTQAEIVDGLMVVEAPLFK 314
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141  |      - |     161       171       181       191       201       211       221       231       241       251       261   |     -       281       291       301       311
                                                                                                                                                                        144      153                                                                                                             265            280
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2BOL)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2BOL)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BOL)

(-) Gene Ontology  (1, 1)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (TSP36_TAESA | Q7YZT0)
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
