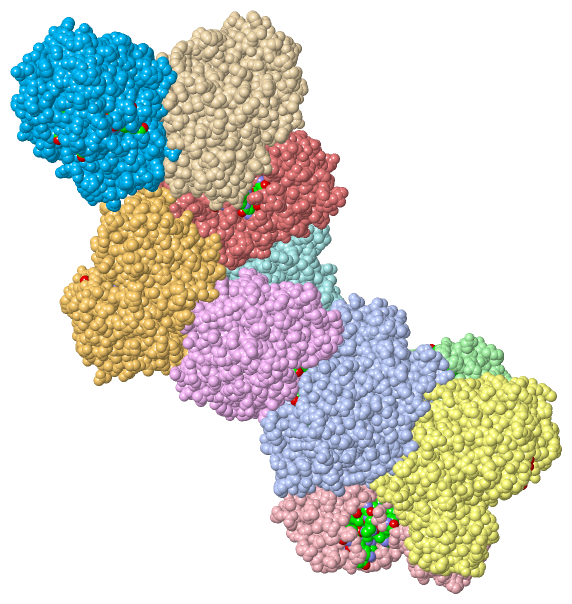

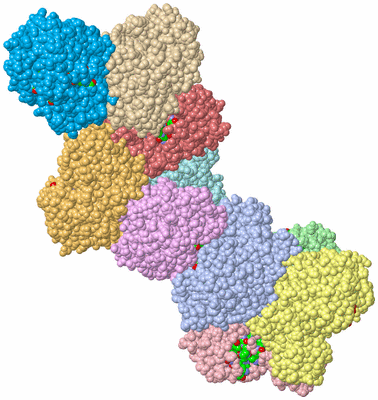

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

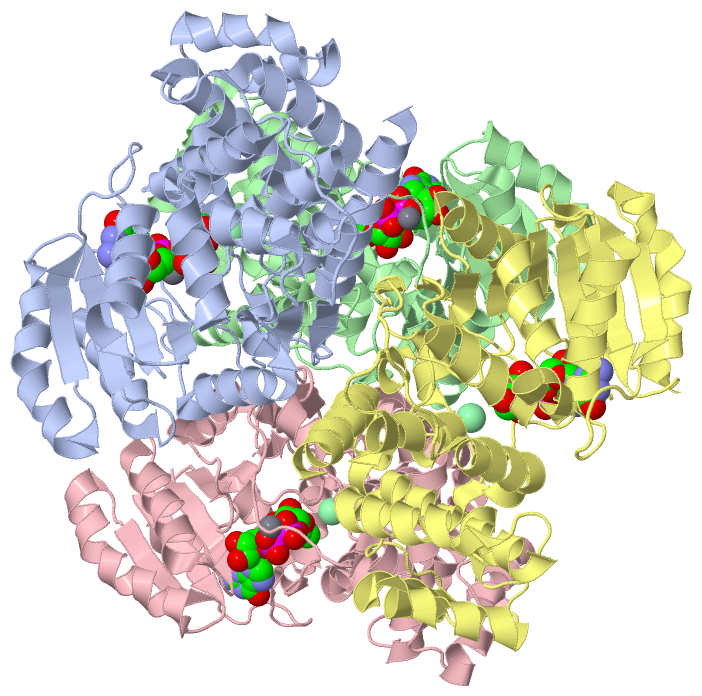

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

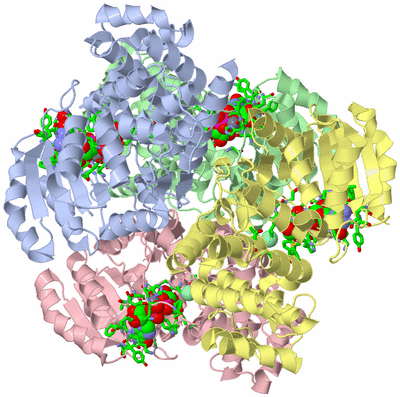

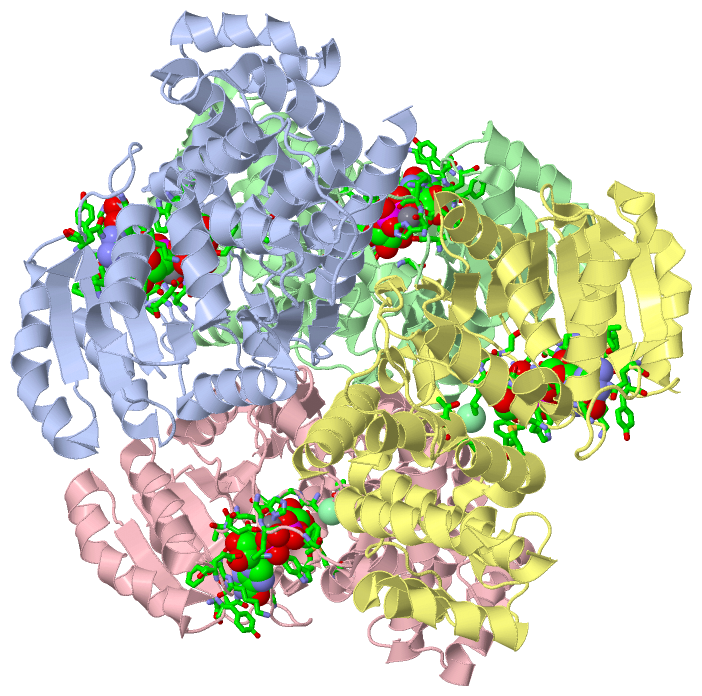

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

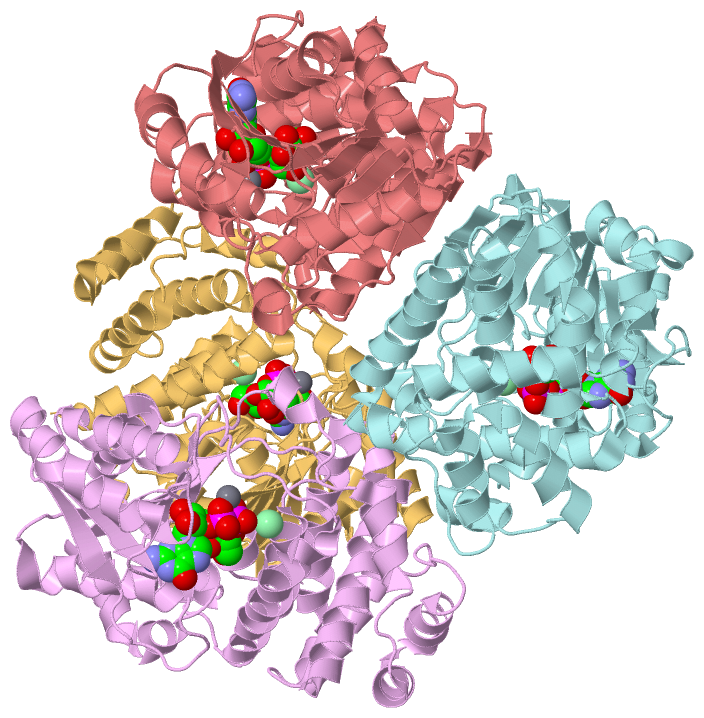

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

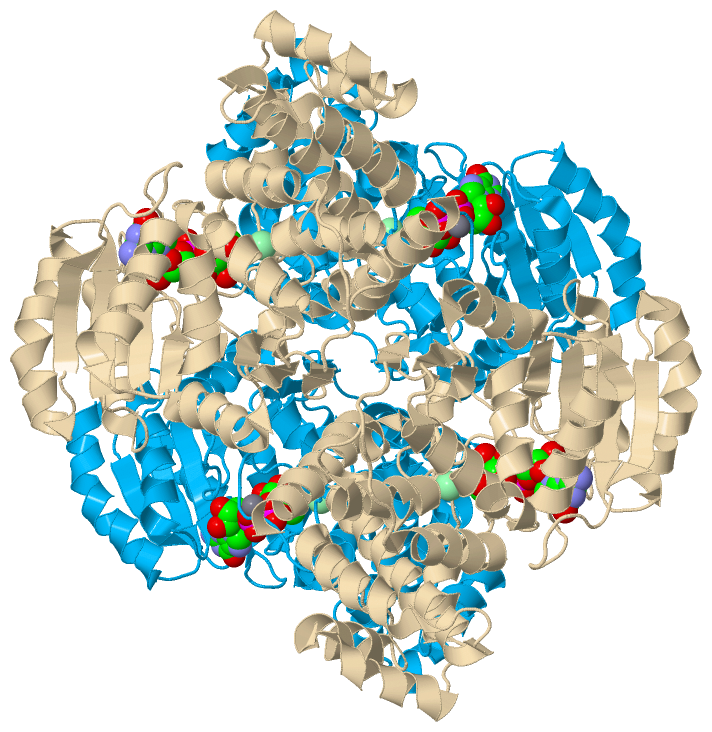

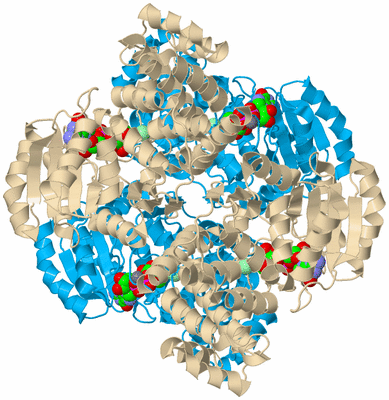

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  DISSECTION OF MANNOSYLGLYCERATE SYNTHASE: AN ARCHETYPAL MANNOSYLTRANSFERASE

Authors :  J. Flint, E. Taylor, M. Yang, D. N. Bolam, L. E. Tailford, C. Martinez-Fleites, E. J. Dodson, B. G. Davis, H. J. Gilbert, G. J. Davies
Date :  08 Apr 05  (Deposition) - 06 Jun 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.80
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J
Biol. Unit 1:  A,B,C,D  (1x)
Biol. Unit 2:  E,F,G,H  (1x)
Biol. Unit 3:  I,J  (2x)
Keywords :  Catalysis, Glycosyltransferase, Mannose, Transferase, Stereoselectivity (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Flint, E. Taylor, M. Yang, D. N. Bolam, L. E. Tailford, C. Martinez-Fleites, E. J. Dodson, B. G. Davis, H. J. Gilbert, G. J. Davies
Structural Dissection And High-Throughput Screening Of Mannosylglyceerate Synthase
Nat. Struct. Mol. Biol. V. 12 608 2005
PubMed-ID: 15951819  |  Reference-DOI: 10.1038/NSMB950

(-) Compounds

Molecule 1 - MANNOSYLGLYCERATE SYNTHASE
    Chains: A, B, C, D, E, F, G, H, I, J
    EC Number: 2.4.1.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET22B
    Expression System Strain: TUNER (DE3)
    Expression System Taxid: 562
    Organism Scientific: RHODOTHERMUS MARINUS
    Organism Taxid: 29549

 Structural Features

(-) Chains, Units

  12345678910
Asymmetric Unit : ABCDEFGHIJ
Biological Unit 1 (1x): ABCD
Biological Unit 2 (1x):     EFGH
Biological Unit 3 (2x):         IJ

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 30)

Asymmetric Unit (3, 30)
No.NameCountTypeFull Name
1CL10Ligand/IonCHLORIDE ION
2GDX10Ligand/IonGUANOSINE 5'-(TRIHYDROGEN DIPHOSPHATE), P'-D-MANNOPYRANOSYL ESTER
3MN10Ligand/IonMANGANESE (II) ION
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2GDX4Ligand/IonGUANOSINE 5'-(TRIHYDROGEN DIPHOSPHATE), P'-D-MANNOPYRANOSYL ESTER
3MN-1Ligand/IonMANGANESE (II) ION
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2GDX4Ligand/IonGUANOSINE 5'-(TRIHYDROGEN DIPHOSPHATE), P'-D-MANNOPYRANOSYL ESTER
3MN-1Ligand/IonMANGANESE (II) ION
Biological Unit 3 (1, 4)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2GDX4Ligand/IonGUANOSINE 5'-(TRIHYDROGEN DIPHOSPHATE), P'-D-MANNOPYRANOSYL ESTER
3MN-1Ligand/IonMANGANESE (II) ION

(-) Sites  (30, 30)

Asymmetric Unit (30, 30)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREASP A:102 , HIS A:217 , GDX A:400 , HOH A:2077 , HOH A:2078BINDING SITE FOR RESIDUE MN A 500
02AC2SOFTWAREALA A:136 , THR A:139BINDING SITE FOR RESIDUE CL A1382
03AC3SOFTWAREASP B:102 , HIS B:217 , GDX B:400BINDING SITE FOR RESIDUE MN B 500
04AC4SOFTWAREALA B:136 , THR B:139BINDING SITE FOR RESIDUE CL B1382
05AC5SOFTWAREASP C:102 , HIS C:217 , GDX C:400 , HOH C:2038BINDING SITE FOR RESIDUE MN C 500
06AC6SOFTWAREALA C:136 , THR C:139BINDING SITE FOR RESIDUE CL C1382
07AC7SOFTWAREASP D:102 , HIS D:217 , GDX D:400BINDING SITE FOR RESIDUE MN D 500
08AC8SOFTWAREALA D:136 , ILE D:138 , THR D:139BINDING SITE FOR RESIDUE CL D1382
09AC9SOFTWAREASP E:102 , HIS E:217 , GDX E:400 , HOH E:2034BINDING SITE FOR RESIDUE MN E 500
10BC1SOFTWAREALA E:136 , THR E:139BINDING SITE FOR RESIDUE CL E1382
11BC2SOFTWAREASP F:102 , HIS F:217 , GDX F:400BINDING SITE FOR RESIDUE MN F 500
12BC3SOFTWAREALA F:136 , ILE F:138 , THR F:139BINDING SITE FOR RESIDUE CL F1382
13BC4SOFTWAREASP G:102 , HIS G:217 , GDX G:400BINDING SITE FOR RESIDUE MN G 500
14BC5SOFTWAREALA G:136 , ILE G:138 , THR G:139BINDING SITE FOR RESIDUE CL G1382
15BC6SOFTWAREASP H:102 , HIS H:217 , GDX H:400BINDING SITE FOR RESIDUE MN H 500
16BC7SOFTWAREALA H:136 , ILE H:138 , THR H:139BINDING SITE FOR RESIDUE CL H1382
17BC8SOFTWAREASP I:102 , HIS I:217 , GDX I:400BINDING SITE FOR RESIDUE MN I 500
18BC9SOFTWAREALA I:136 , ILE I:138 , THR I:139BINDING SITE FOR RESIDUE CL I1382
19CC1SOFTWAREASP J:102 , HIS J:217 , GDX J:400BINDING SITE FOR RESIDUE MN J 500
20CC2SOFTWAREALA J:136 , ILE J:138 , THR J:139BINDING SITE FOR RESIDUE CL J1382
21CC3SOFTWAREPRO A:7 , PHE A:8 , LYS A:9 , GLU A:11 , ILE A:35 , TYR A:37 , GLN A:66 , GLY A:75 , LYS A:76 , ASP A:100 , ALA A:101 , ASP A:102 , LEU A:163 , GLY A:165 , TRP A:189 , ASP A:192 , HIS A:217 , ARG A:218 , TYR A:220 , MET A:229 , MN A:500 , HOH A:2075 , HOH A:2076BINDING SITE FOR RESIDUE GDX A 400
22CC4SOFTWAREPRO B:7 , PHE B:8 , LYS B:9 , GLU B:11 , ILE B:35 , TYR B:37 , GLN B:66 , GLY B:75 , LYS B:76 , ASP B:100 , ALA B:101 , ASP B:102 , LEU B:163 , GLY B:164 , GLY B:165 , TRP B:189 , ASP B:192 , HIS B:217 , ARG B:218 , TYR B:220 , MET B:229 , MN B:500BINDING SITE FOR RESIDUE GDX B 400
23CC5SOFTWAREPRO C:7 , PHE C:8 , LYS C:9 , GLU C:11 , ILE C:35 , TYR C:37 , GLN C:66 , GLY C:75 , LYS C:76 , ASP C:100 , ALA C:101 , ASP C:102 , LEU C:163 , GLY C:164 , GLY C:165 , TRP C:189 , ASP C:192 , HIS C:217 , ARG C:218 , TYR C:220 , MET C:229 , MN C:500BINDING SITE FOR RESIDUE GDX C 400
24CC6SOFTWAREPRO D:7 , PHE D:8 , LYS D:9 , GLU D:11 , ILE D:35 , TYR D:37 , GLN D:66 , GLY D:75 , LYS D:76 , ASP D:100 , ALA D:101 , ASP D:102 , LEU D:163 , GLY D:164 , GLY D:165 , TRP D:189 , ASP D:192 , HIS D:217 , ARG D:218 , TYR D:220 , MET D:229 , MN D:500BINDING SITE FOR RESIDUE GDX D 400
25CC7SOFTWAREPRO E:7 , PHE E:8 , LYS E:9 , GLU E:11 , ILE E:35 , TYR E:37 , GLN E:66 , GLY E:75 , LYS E:76 , ASP E:100 , ALA E:101 , ASP E:102 , LEU E:163 , GLY E:164 , GLY E:165 , TRP E:189 , ASP E:192 , HIS E:217 , ARG E:218 , TYR E:220 , MET E:229 , MN E:500 , HOH E:2034BINDING SITE FOR RESIDUE GDX E 400
26CC8SOFTWAREPRO F:7 , PHE F:8 , LYS F:9 , GLU F:11 , ILE F:35 , TYR F:37 , GLN F:66 , GLY F:75 , LYS F:76 , ASP F:100 , ALA F:101 , ASP F:102 , LEU F:163 , GLY F:164 , GLY F:165 , TRP F:189 , ASP F:192 , HIS F:217 , ARG F:218 , TYR F:220 , MET F:229 , MN F:500BINDING SITE FOR RESIDUE GDX F 400
27CC9SOFTWAREPRO G:7 , PHE G:8 , LYS G:9 , GLU G:11 , ILE G:35 , TYR G:37 , GLN G:66 , GLY G:75 , LYS G:76 , ASP G:100 , ALA G:101 , ASP G:102 , LEU G:163 , GLY G:165 , TRP G:189 , ASP G:192 , HIS G:217 , ARG G:218 , TYR G:220 , MET G:229 , MN G:500BINDING SITE FOR RESIDUE GDX G 400
28DC1SOFTWAREPRO H:7 , PHE H:8 , LYS H:9 , GLU H:11 , ILE H:35 , TYR H:37 , GLN H:66 , GLY H:75 , LYS H:76 , ASP H:100 , ALA H:101 , ASP H:102 , LEU H:163 , GLY H:165 , TRP H:189 , ASP H:192 , HIS H:217 , ARG H:218 , TYR H:220 , MET H:229 , MN H:500BINDING SITE FOR RESIDUE GDX H 400
29DC2SOFTWAREPRO I:7 , PHE I:8 , LYS I:9 , GLU I:11 , ILE I:35 , TYR I:37 , GLN I:66 , GLY I:75 , LYS I:76 , ASP I:100 , ALA I:101 , ASP I:102 , LEU I:163 , GLY I:164 , GLY I:165 , TRP I:189 , ASP I:192 , HIS I:217 , ARG I:218 , TYR I:220 , MET I:229 , MN I:500BINDING SITE FOR RESIDUE GDX I 400
30DC3SOFTWAREPRO J:7 , PHE J:8 , LYS J:9 , GLU J:11 , ILE J:35 , TYR J:37 , GLN J:66 , GLY J:75 , LYS J:76 , ASP J:100 , ALA J:101 , ASP J:102 , LEU J:163 , GLY J:164 , GLY J:165 , TRP J:189 , ASP J:192 , LYS J:215 , HIS J:217 , ARG J:218 , TYR J:220 , MET J:229 , MN J:500BINDING SITE FOR RESIDUE GDX J 400

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BO8)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Val C:245 -Gly C:246
2Gly F:246 -Gln F:247
3Val J:245 -Gly J:246

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BO8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BO8)

(-) Exons   (0, 0)

(no "Exon" information available for 2BO8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8a_ A: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhh..........eee......hhhhhh....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 A   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain B from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8b_ B: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhh....hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhhh.........eee......hhhhhh....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 B   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain C from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8c_ C: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhh....hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhh..........eee......hhhhhh....hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 C   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain D from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8d_ D: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhh...eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhh..........eee......hhhhhh....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 D   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain E from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8e_ E: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhhh.........eee......hhhhhh....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 E   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain F from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8f_ F: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhh....hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhhh.........eee......hhhhhh....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 F   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain G from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8g_ G: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhh..........eee......hhhhhh....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 G   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain H from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8h_ H: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhhh.........eee......hhhhhh....hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 H   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain I from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8i_ I: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhh....hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhhh.........eee......hhhhhh....hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 I   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381


Chain J from PDB  Type:PROTEIN  Length:381
 aligned with MGS_RHOMR | Q9RFR0 from UniProtKB/Swiss-Prot  Length:397

    Alignment length:381
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
            MGS_RHOMR     2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
               SCOP domains d2bo8j_ J: automated matches                                                                                                                                                                                                                                                                                                                                                                  SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee...hhhhhhhhhhhhhhh....eeeeee...hhhhhhhhhhhhhhhhhhh..eeeee.........hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhh..eeeee.......hhhhhhhhhhhhhhhh...hhhhh.......eeeehhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhhhhhhhh..........eee......hhhhhh....hhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bo8 J   2 SLVVFPFKHEHPEVLLHNVRVAAAHPRVHEVLCIGYERDQTYEAVERAAPEISRATGTPVSVRLQERLGTLRPGKGDGMNTALRYFLEETQWERIHFYDADITSFGPDWITKAEEAADFGYGLVRHYFPRASTDAMITWMITRTGFALLWPHTELSWIEQPLGGELLMRREVAAMLYEDERVRRRSDWGIDTLYTFVTVQQGVSIYECYIPEGKAHRLYGGLDDLRTMLVECFAAIQSLQHEVVGQPAIHRQEHPHRVPVHIAERVGYDVEATLHRLMQHWTPRQVELLELFTTPVREGLRTCQRRPAFNFMDEMAWAATYHVLLEHFQPGDPDWEELLFKLWTTRVLNYTMTVALRGYDYAQQYLYRMLGRYRYQAALEN 382
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 10)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2BO8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BO8)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H,I,J   (MGS_RHOMR | Q9RFR0)
molecular function
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016758    transferase activity, transferring hexosyl groups    Catalysis of the transfer of a hexosyl group from one compound (donor) to another (acceptor).
biological process
    GO:0051479    mannosylglycerate biosynthetic process    The chemical reactions and pathways resulting in the formation of mannosylglycerate, a very common compatible solute in thermophilic and hyperthermophilic organisms.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GDX  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gly F:246 - Gln F:247   [ RasMol ]
    Val C:245 - Gly C:246   [ RasMol ]
    Val J:245 - Gly J:246   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2bo8
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  MGS_RHOMR | Q9RFR0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.4.1.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  MGS_RHOMR | Q9RFR0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        MGS_RHOMR | Q9RFR0: 2bo4 2bo6 2bo7 2y4j 2y4k 2y4l

(-) Related Entries Specified in the PDB File

2bo4 DISSECTION OF MANNOSYLGLYCERATE SYNTHASE: AN ARCHETYPAL MANNOSYLTRANSFERASE
2bo6 DISSECTION OF MANNOSYLGLYCERATE SYNTHASE: AN ARCHETYPAL MANNOSYLTRANSFERASE
2bo7 DISSECTION OF MANNOSYLGLYCERATE SYNTHASE: AN ARCHETYPAL MANNOSYLTRANSFERASE
