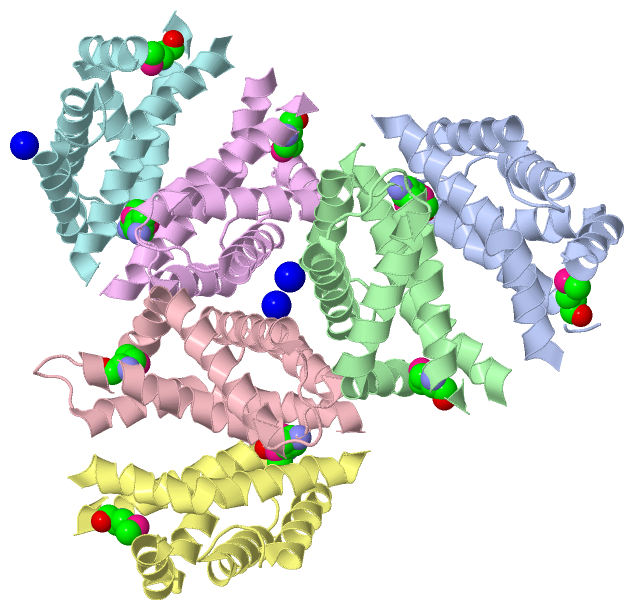

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

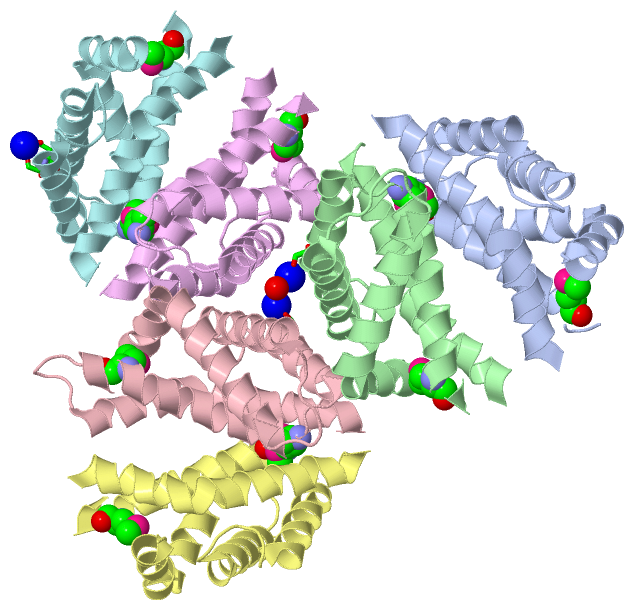

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

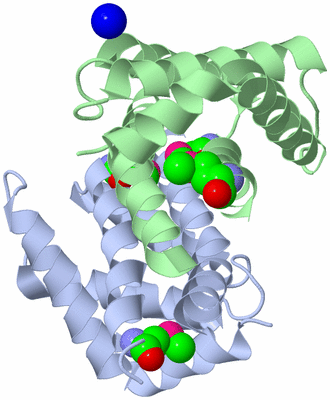

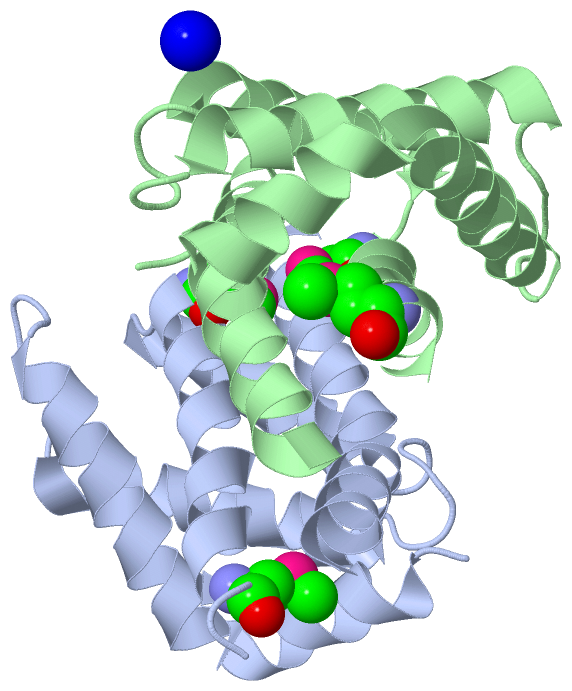

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

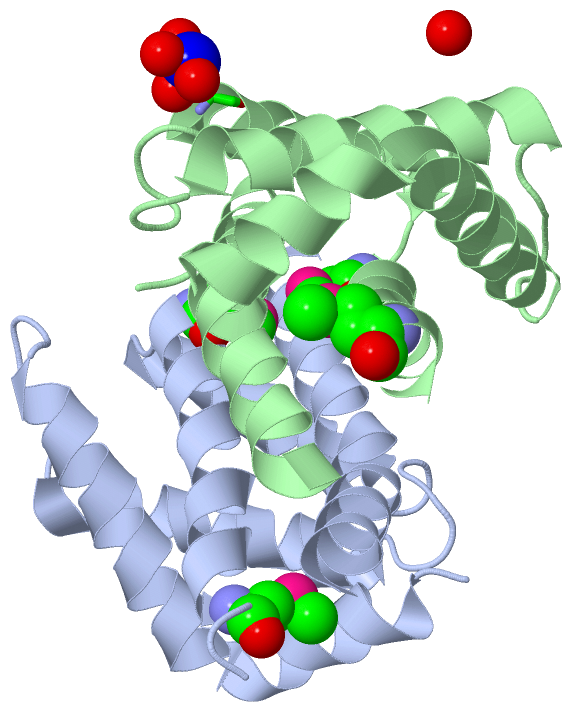

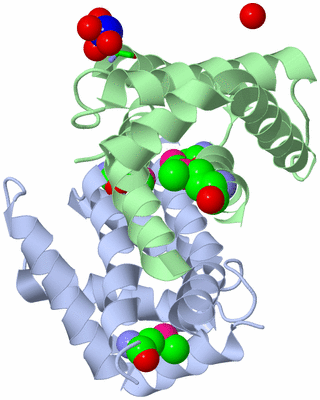

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

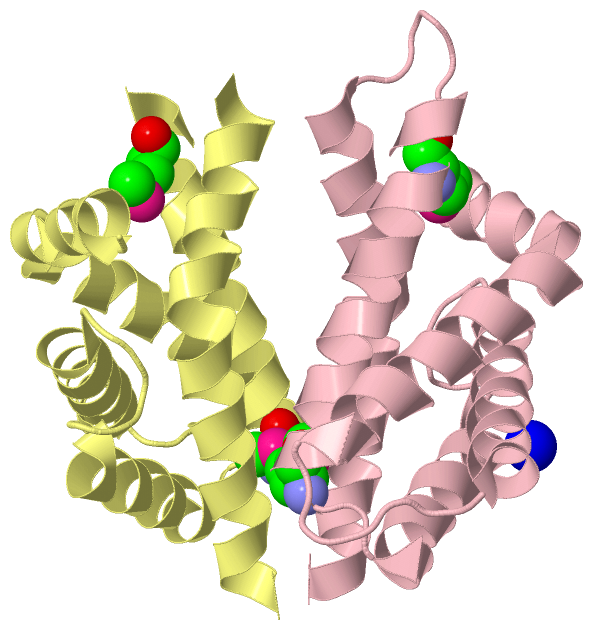

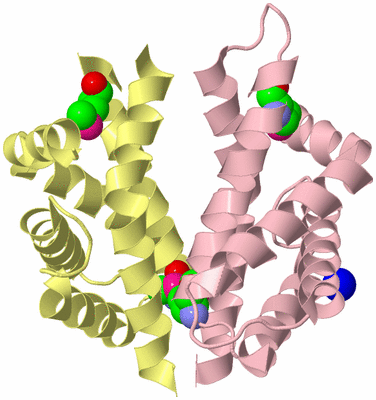

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

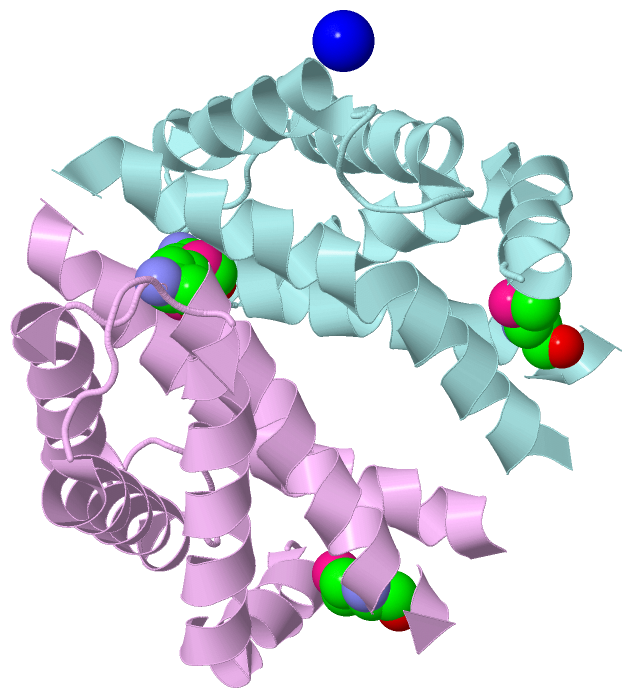

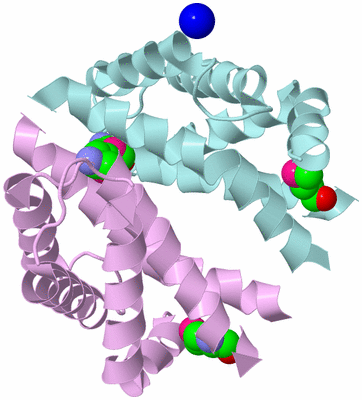

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF THE N-TERMINAL DOMAIN OF RSBR

Authors :  J. W. Murray, O. Delumeau, R. J. Lewis
Date :  28 Mar 05  (Deposition) - 03 Nov 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  E,F  (1x)
Keywords :  Stress-Response, Stress Response, Phosphorylation (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. W. Murray, O. Delumeau, R. J. Lewis
Structure Of A Nonheme Globin In Environmental Stress Signaling.
Proc. Natl. Acad. Sci. Usa V. 102 17320 2005
PubMed-ID: 16301540  |  Reference-DOI: 10.1073/PNAS.0506599102

(-) Compounds

Molecule 1 - MODULATOR PROTEIN RSBR
    Chains: A, B, C, D, E, F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: B834
    Expression System Taxid: 562
    Fragment: N-TERMINAL DOMAIN, RESIDUES 1-136
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x):     EF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 15)

Asymmetric Unit (2, 15)
No.NameCountTypeFull Name
1MSE12Mod. Amino AcidSELENOMETHIONINE
2NA3Ligand/IonSODIUM ION
Biological Unit 1 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2NA-1Ligand/IonSODIUM ION
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2NA-1Ligand/IonSODIUM ION
Biological Unit 3 (1, 4)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2NA-1Ligand/IonSODIUM ION

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARESER B:65 , HOH B:2079 , HOH B:2081 , HOH B:2083 , HOH C:2022 , HOH C:2049BINDING SITE FOR RESIDUE NA B1137
2AC2SOFTWARESER C:65 , HOH C:2070 , HOH C:2075 , HOH C:2076 , HOH E:2018 , HOH E:2043BINDING SITE FOR RESIDUE NA C1137
3AC3SOFTWAREHOH B:2052 , SER F:65 , GLN F:66 , HOH F:2032 , HOH F:2083 , HOH F:2088 , HOH F:2089BINDING SITE FOR RESIDUE NA F1137

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BNL)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2BNL)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BNL)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BNL)

(-) Exons   (0, 0)

(no "Exon" information available for 2BNL)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:129
 aligned with RSBRA_BACSU | P42409 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:134
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
          RSBRA_BACSU     3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSMKFLATALAEFWKRLYTKMNDKRLPDQESTELIWQIDRFFSPINTEIFNQYSISWE 136
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh....-----hhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bnl A   3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSmKFLATALAEFWKRLYTKmNDK-----ESTELIWQIDRFFSPINTEIFNQYSISWE 136
                                    12        22        32        42        52        62        72        82        92      |102     | 112       122       132
                                                                                                         81-MSE            99-MSE  108
                                                                                                                             102


Chain B from PDB  Type:PROTEIN  Length:128
 aligned with RSBRA_BACSU | P42409 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:134
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
          RSBRA_BACSU     3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSMKFLATALAEFWKRLYTKMNDKRLPDQESTELIWQIDRFFSPINTEIFNQYSISWE 136
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh------hhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bnl B   3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSmKFLATALAEFWKRLYTKmND------ESTELIWQIDRFFSPINTEIFNQYSISWE 136
                                    12        22        32        42        52        62        72        82        92      | |-     | 112       122       132
                                                                                                         81-MSE            99-MSE  108
                                                                                                                            101


Chain C from PDB  Type:PROTEIN  Length:134
 aligned with RSBRA_BACSU | P42409 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:134
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
          RSBRA_BACSU     3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSMKFLATALAEFWKRLYTKMNDKRLPDQESTELIWQIDRFFSPINTEIFNQYSISWE 136
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bnl C   3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSmKFLATALAEFWKRLYTKmNDKRLPDQESTELIWQIDRFFSPINTEIFNQYSISWE 136
                                    12        22        32        42        52        62        72        82        92      |102       112       122       132
                                                                                                         81-MSE            99-MSE


Chain D from PDB  Type:PROTEIN  Length:129
 aligned with RSBRA_BACSU | P42409 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:134
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
          RSBRA_BACSU     3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSMKFLATALAEFWKRLYTKMNDKRLPDQESTELIWQIDRFFSPINTEIFNQYSISWE 136
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh-----hhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bnl D   3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSmKFLATALAEFWKRLYTKmNDK-----ESTELIWQIDRFFSPINTEIFNQYSISWE 136
                                    12        22        32        42        52        62        72        82        92      |102     | 112       122       132
                                                                                                         81-MSE            99-MSE  108
                                                                                                                             102


Chain E from PDB  Type:PROTEIN  Length:129
 aligned with RSBRA_BACSU | P42409 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:134
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
          RSBRA_BACSU     3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSMKFLATALAEFWKRLYTKMNDKRLPDQESTELIWQIDRFFSPINTEIFNQYSISWE 136
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.-----hhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bnl E   3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSmKFLATALAEFWKRLYTKmNDK-----ESTELIWQIDRFFSPINTEIFNQYSISWE 136
                                    12        22        32        42        52        62        72        82        92      |102     | 112       122       132
                                                                                                         81-MSE            99-MSE  108
                                                                                                                             102


Chain F from PDB  Type:PROTEIN  Length:129
 aligned with RSBRA_BACSU | P42409 from UniProtKB/Swiss-Prot  Length:274

    Alignment length:134
                                    12        22        32        42        52        62        72        82        92       102       112       122       132
          RSBRA_BACSU     3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSMKFLATALAEFWKRLYTKMNDKRLPDQESTELIWQIDRFFSPINTEIFNQYSISWE 136
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh-----hhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bnl F   3 SNQTVYQFIAENQNELLQLWTDTLKELSEQESYQLTDQVYENISKEYIDILLLSVKDENAAESQISELALRAVQIGLSmKFLATALAEFWKRLYTKmNDK-----ESTELIWQIDRFFSPINTEIFNQYSISWE 136
                                    12        22        32        42        52        62        72        82        92      |102     | 112       122       132
                                                                                                         81-MSE            99-MSE  108
                                                                                                                             102
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2BNL)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2BNL)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BNL)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2BNL)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2bnl)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2bnl
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RSBRA_BACSU | P42409
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  RSBRA_BACSU | P42409
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2BNL)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2BNL)
