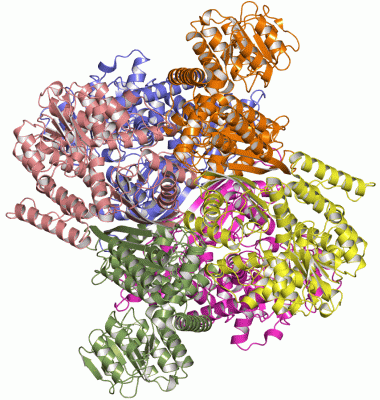

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

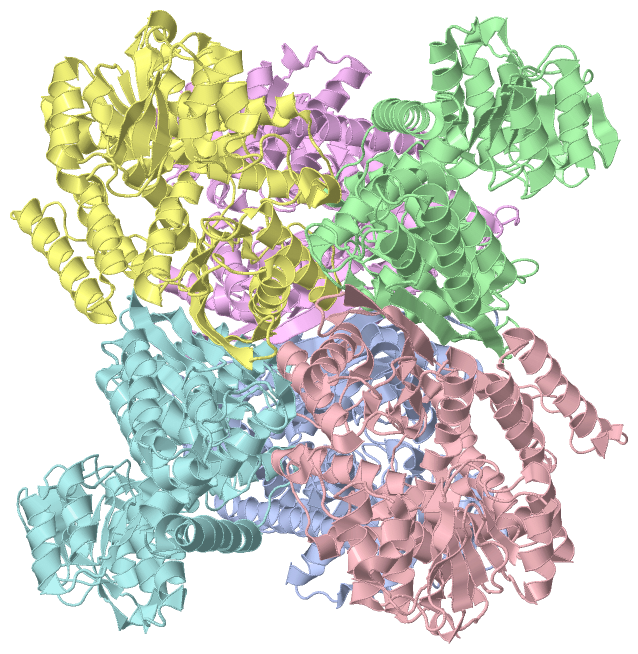

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF PLASMODIUM FALCIPARUM GLUTAMATE DEHYDROGENASE, A PUTATIVE TARGET FOR NOVEL ANTIMALARIAL DRUGS

Authors :  C. Werner, M. T. Stubbs, R. L. Krauth-Siege, G. Klebe
Date :  10 Mar 05  (Deposition) - 19 May 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F
Keywords :  Plasmodium Falciparum, Malaria, Glutamate Dehydrogenase, Drug Design, Crystal Structure Analysis, Oligomer Organization, Nadp, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Werner, M. T. Stubbs, R. L. Krauth-Siege, G. Klebe
The Crystal Structure Of Plasmodium Falciparum Glutamate Dehydrogenase, A Putative Target For Novel Antimalarial Drugs
J. Mol. Biol. V. 349 597 2005
PubMed-ID: 15878595  |  Reference-DOI: 10.1016/J.JMB.2005.03.077

(-) Compounds

Molecule 1 - GLUTAMATE DEHYDROGENASE (NADP+)
    Chains: A, B, C, D, E, F
    EC Number: 1.4.1.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: PLASMODIUM FALCIPARUM
    Organism Taxid: 5833

 Structural Features

(-) Chains, Units

  123456
Asymmetric/Biological Unit : ABCDEF

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2BMA)

(-) Sites  (0, 0)

(no "Site" information available for 2BMA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BMA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2BMA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BMA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BMA)

(-) Exons   (0, 0)

(no "Exon" information available for 2BMA)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:467
 aligned with O96940_PLAFA | O96940 from UniProtKB/TrEMBL  Length:470

    Alignment length:467
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463
        O96940_PLAFA      4 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNEINLEDAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  470
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh...eeeeeeeeee.....eeeeeeeeeeee.....eeeeeee....hhhhhhhhhhhhhhhhhhh....eeeeeee.......hhhhhhhhhhhhhhhhhhhh....eeee.....hhhhhhhhhhhhhhhhh.........hhhhh......hhhhhhhhhhhhhhhhh...hhhh.eeeee..hhhhhhhhhhhhhh..ee.eeee..eeee.....hhhhhhhhhhhhh....hhhhhhhh....ee............eeee........hhhhhhhhhh...eee.......hhhhhhhhhhh..eeehhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bma A  -22 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNDVDLDQAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  448
                                   -13        -3 ||      8        18        28        38   ||   50        60        70        80        90       100       110       120       130       140       150       160       170       180       190   ||  201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361|      372       382       392       402       412     | 421       431       441
                                                -1|                                       42|                                                                                                                                                  194|                                                                                                                                                                  361|                                                   417A
                                                  1                                        45                                                                                                                                                   196                                                                                                                                                                   363


Chain B from PDB  Type:PROTEIN  Length:467
 aligned with O96940_PLAFA | O96940 from UniProtKB/TrEMBL  Length:470

    Alignment length:467
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463
        O96940_PLAFA      4 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNEINLEDAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  470
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh...eeeeeeeeee.....eeeeeeeeeeee.....eeeeeee....hhhhhhhhhhhhhhhhhhh.....eeeeee.......hhhhhhhhhhhhhhhhhhhh....eeee.....hhhhhhhhhhhhhhhhh.........hhhhh......hhhhhhhhhhhhhhhhhh..hhhh.eeeee..hhhhhhhhhhhhhh..ee.eeee..eeee.....hhhhhhhhhh.......hhhhhhhh....eeee..hhhhh...eeee.......hhhhhhhhhhh...eee.......hhhhhhhhhhh..eeehhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bma B  -22 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNDVDLDQAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  448
                                   -13        -3 ||      8        18        28        38   ||   50        60        70        80        90       100       110       120       130       140       150       160       170       180       190   ||  201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361|      372       382       392       402       412     | 421       431       441
                                                -1|                                       42|                                                                                                                                                  194|                                                                                                                                                                  361|                                                   417A
                                                  1                                        45                                                                                                                                                   196                                                                                                                                                                   363


Chain C from PDB  Type:PROTEIN  Length:467
 aligned with O96940_PLAFA | O96940 from UniProtKB/TrEMBL  Length:470

    Alignment length:467
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463
        O96940_PLAFA      4 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNEINLEDAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  470
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh...eeeeeeeeee.....eeeeeeeeeeee.....eeeeeee....hhhhhhhhhhhhhhhhhhh....eeeeeee.......hhhhhhhhhhhhhhhhhhhh....eeee.....hhhhhhhhhhhhhhhhh.........hhhhh......hhhhhhhhhhhhhhhhh...hhhh.eeeee..hhhhhhhhhhhhhh..ee.eeee..eeee.....hhhhhhhhhhhhh....hhhhhhhh....ee............eeee........hhhhhhhhhh...eee.......hhhhhhhhhhh..eeehhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bma C  -22 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNDVDLDQAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  448
                                   -13        -3 ||      8        18        28        38   ||   50        60        70        80        90       100       110       120       130       140       150       160       170       180       190   ||  201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361|      372       382       392       402       412     | 421       431       441
                                                -1|                                       42|                                                                                                                                                  194|                                                                                                                                                                  361|                                                   417A
                                                  1                                        45                                                                                                                                                   196                                                                                                                                                                   363


Chain D from PDB  Type:PROTEIN  Length:467
 aligned with O96940_PLAFA | O96940 from UniProtKB/TrEMBL  Length:470

    Alignment length:467
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463
        O96940_PLAFA      4 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNEINLEDAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  470
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh...eeeeeeeeee.....eeeeeeeeeeee.....eeeeeee....hhhhhhhhhhhhhhhhhhh.....eeeeee.......hhhhhhhhhhhhhhhhhhhh....eeee.....hhhhhhhhhhhhhhhhh.........hhhhh......hhhhhhhhhhhhhhhhhh..hhhh.eeeee..hhhhhhhhhhhhhh..ee.eeee..eeee.....hhhhhhhhhh.......hhhhhhhh....eeee..hhhhh...eeee.......hhhhhhhhhhh...eee.......hhhhhhhhhhh..eeehhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bma D  -22 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNDVDLDQAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  448
                                   -13        -3 ||      8        18        28        38   ||   50        60        70        80        90       100       110       120       130       140       150       160       170       180       190   ||  201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361|      372       382       392       402       412     | 421       431       441
                                                -1|                                       42|                                                                                                                                                  194|                                                                                                                                                                  361|                                                   417A
                                                  1                                        45                                                                                                                                                   196                                                                                                                                                                   363


Chain E from PDB  Type:PROTEIN  Length:467
 aligned with O96940_PLAFA | O96940 from UniProtKB/TrEMBL  Length:470

    Alignment length:467
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463
        O96940_PLAFA      4 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNEINLEDAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  470
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh...eeeeeeeeee.....eeeeeeeeeeee.....eeeeeee....hhhhhhhhhhhhhhhhhhh.....eeeeee.......hhhhhhhhhhhhhhhhhhhh....eeee.....hhhhhhhhhhhhhhhhh.........hhhhh......hhhhhhhhhhhhhhhhhh..hhhh.eeeee..hhhhhhhhhhhhhh..ee.eeee..eeee.....hhhhhhhhhh.......hhhhhhhh....eeee..hhhhh...eeee.......hhhhhhhhhhh...eee.......hhhhhhhhhhh..eeehhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bma E  -22 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNDVDLDQAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  448
                                   -13        -3 ||      8        18        28        38   ||   50        60        70        80        90       100       110       120       130       140       150       160       170       180       190   ||  201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361|      372       382       392       402       412     | 421       431       441
                                                -1|                                       42|                                                                                                                                                  194|                                                                                                                                                                  361|                                                   417A
                                                  1                                        45                                                                                                                                                   196                                                                                                                                                                   363


Chain F from PDB  Type:PROTEIN  Length:467
 aligned with O96940_PLAFA | O96940 from UniProtKB/TrEMBL  Length:470

    Alignment length:467
                                    13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353       363       373       383       393       403       413       423       433       443       453       463
        O96940_PLAFA      4 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNEINLEDAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  470
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh...eeeeeeeeee.....eeeeeeeeeeee.....eeeeeee....hhhhhhhhhhhhhhhhhhh....eeeeeee.......hhhhhhhhhhhhhhhhhhhh....eeee.....hhhhhhhhhhhhhhhhh.........hhhhh......hhhhhhhhhhhhhhhhh...hhhh.eeeee..hhhhhhhhhhhhhh..ee.eeee..eeee.....hhhhhhhhhhhhh....hhhhhhhh....ee............eeee........hhhhhhhhhh...eee.......hhhhhhhhhhh..eeehhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                2bma F  -22 LKDKTGRFVVLDKNASNYESLVDQEMNNVYERVMKLDPNQVEFLQAFHEILYSLKPLFMEEPKYLPIIETLSEPERAIQFRVCWLDDNGVQRKNRCFRVQYNSALGPYKGGLRFHPSVNLSIVKFLGFEQIFKNSLTGLSMGGGKGGSDFDPKGKSDNEILKFCQAFMNELYRHIGPCTDVPAGDIGVGGREIGYLYGQYKKIVNSFNGTLTGKNVKWGGSNLRVEATGYGLVYFVLEVLKSLNIPVEKQTAVVSGSGNVALYCVQKLLHLNVKVLTLSDSNGYVYEPNGFTHENLEFLIDLKEEKKGRIKEYLNHSSTAKYFPNEKPWGVPCTLAFPCATQNDVDLDQAKLLQKNGCILVGEGANMPSTVDAINLFKSNNIIYCPSKAANAGGVAISGLEMSQNFQFSHWTRETVDEKLKEIMRNIFIACSENALKYTKNKYDLQAGANIAGFLKVAESYIEQGCF  448
                                   -13        -3 ||      8        18        28        38   ||   50        60        70        80        90       100       110       120       130       140       150       160       170       180       190   ||  201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361|      372       382       392       402       412     | 421       431       441
                                                -1|                                       42|                                                                                                                                                  194|                                                                                                                                                                  361|                                                   417A
                                                  1                                        45                                                                                                                                                   196                                                                                                                                                                   363
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2BMA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2BMA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BMA)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (O96940_PLAFA | O96940)
molecular function
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016639    oxidoreductase activity, acting on the CH-NH2 group of donors, NAD or NADP as acceptor    Catalysis of an oxidation-reduction (redox) reaction in which a CH-NH2 group acts as a hydrogen or electron donor and reduces NAD+ or NADP.
biological process
    GO:0006520    cellular amino acid metabolic process    The chemical reactions and pathways involving amino acids, carboxylic acids containing one or more amino groups, as carried out by individual cells.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2bma)

  Sites
(no "Sites" information available for 2bma)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2bma)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2bma
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  O96940_PLAFA | O96940
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  1.4.1.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  O96940_PLAFA | O96940
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2BMA)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2BMA)
