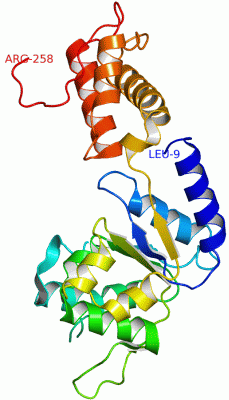

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)
Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  PSPF AAA DOMAIN

Authors :  M. Rappas, J. Schumacher, F. Beuron, H. Niwa, P. Bordes, S. Wigneshweraraj, C. A. Keetch, C. V. Robinson, M. Buck, X. Zhang
Date :  08 Feb 05  (Deposition) - 31 Mar 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.75
Chains :  Asym./Biol. Unit :  A
Keywords :  Transcription, Aaa, Transcription Activation, Gene Regulation, Sigma54 Activator, Enhancer Binding Protein, Pspf, Atp-Binding, Dna- Binding, Transcription Regulation, (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Rappas, J. Schumacher, F. Beuron, H. Niwa, P. Bordes, S. Wigneshweraraj, C. A. Keetch, C. V. Robinson, M. Buck, X. Zhang
Structural Insights Into The Activity Of Enhancer-Binding Proteins
Science V. 307 1972 2005
PubMed-ID: 15790859  |  Reference-DOI: 10.1126/SCIENCE.1105932

(-) Compounds

Molecule 1 - PSP OPERON TRANSCRIPTIONAL ACTIVATOR
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B PLUS
    Expression System Strain: B834
    Expression System Taxid: 562
    Fragment: AAA DOMAIN, RESIDUES 1-265
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83333
    Strain: K12
    Synonym: PSPF, PHAGE SHOCK PROTEIN F

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2BJW)

(-) Sites  (0, 0)

(no "Site" information available for 2BJW)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BJW)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2BJW)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BJW)

(-) PROSITE Motifs  (2, 2)

Asymmetric/Biological Unit (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1SIGMA54_INTERACT_2PS00676 Sigma-54 interaction domain ATP-binding region B signature.PSPF_ECOLI94-109  1A:94-109
2SIGMA54_INTERACT_3PS00688 Sigma-54 interaction domain C-terminal part signature.PSPF_ECOLI222-231  1A:222-231

(-) Exons   (0, 0)

(no "Exon" information available for 2BJW)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:243
 aligned with PSPF_ECOLI | P37344 from UniProtKB/Swiss-Prot  Length:325

    Alignment length:251
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258
           PSPF_ECOLI     9 LGEANSFLEVLEQVSHLAPLDKPVLIIGERGTGKELIASRLHYLSSRWQGPFISLNCAALNENLLDSELFGHEAGAFTGAQKRHPGRFERADGGTLFLDELATAPMMVQEKLLRVIEYGELERVGGSQPLQVNVRLVCATNADLPAMVNEGTFRADLLDRLAFDVVQLPPLRERESDIMLMAEYFAIQMCREIKLPLFPGFTERARETLLNYRWPGNIRELKNVVERSVYRHGTSDYPLDDIIIDPFKRRP 259
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2bjwA01 A:9-179 P-loop containing nucleotide triphosphate hydrolases                                                                                                       2bjwA02 A:180-259  [code=1.10.8.60, no name defined]                             CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhh.....eeee.....hhhhhhhhhhhh.......eeeee.hhhhhhhhhhhhhh..--------....hhhhhh...eeeeehhhhhhhhhhhhhhhhhhhhee........ee...eeeeee..hhhhhhhh...hhhhhhhhh.eeee..hhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhh...hhhhhhhhhhhhhhhhhh.................. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------SIGMA54_INTERACT----------------------------------------------------------------------------------------------------------------SIGMA54_IN---------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2bjw A   9 LGEANSFLEVLEQVSHLAPLDKPVLIIGERGTGKELIASRLHYLSSRWQGPFISLNCAALNENLLDSELFGHE--------KRHPGRFERADGGTLFLDELATAPMMVQEKLLRVIEYGELERVGGSQPLQVNVRLVCATNADLPAMVNEGTFRADLLDRLAFDVVQLPPLRERESDIMLMAEYFAIQMCREIKLPLFPGFTERARETLLNYRWPGNIRELKNVVERSVYRHGTSDYPLDDIIIDPFKRRP 259
                                    18        28        38        48        58        68        78  |      - |      98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258
                                                                                                   81       90
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2BJW)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BJW)

(-) Gene Ontology  (11, 11)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (PSPF_ECOLI | P37344)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0043565    sequence-specific DNA binding    Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
    GO:0008134    transcription factor binding    Interacting selectively and non-covalently with a transcription factor, any protein required to initiate or regulate transcription.
biological process
    GO:0045892    negative regulation of transcription, DNA-templated    Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0000160    phosphorelay signal transduction system    A conserved series of molecular signals found in prokaryotes and eukaryotes; involves autophosphorylation of a histidine kinase and the transfer of the phosphate group to an aspartate that then acts as a phospho-donor to response regulator proteins.
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2bjw)

  Sites
(no "Sites" information available for 2bjw)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2bjw)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

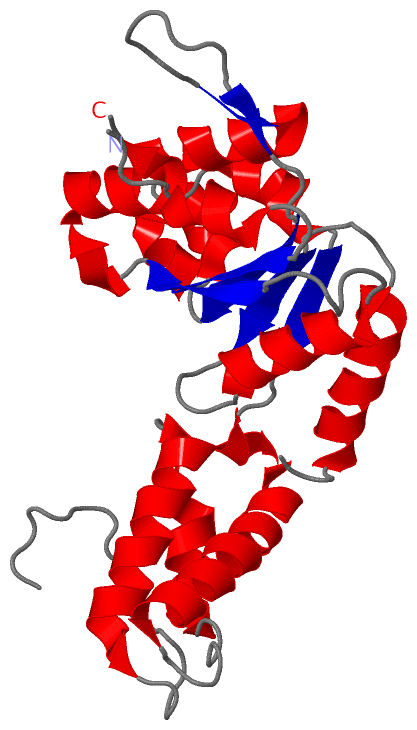

[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2bjw
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PSPF_ECOLI | P37344
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PSPF_ECOLI | P37344
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PSPF_ECOLI | P37344: 2bjv 2c96 2c98 2c99 2c9c 2vii 4qnm 4qnr 4qos 5nss

(-) Related Entries Specified in the PDB File

2bjv CRYSTAL STRUCTURE OF PSPF(1-275) R168A MUTANT
