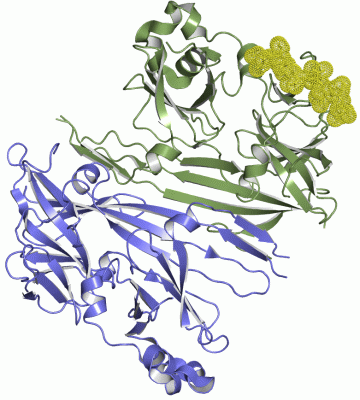

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

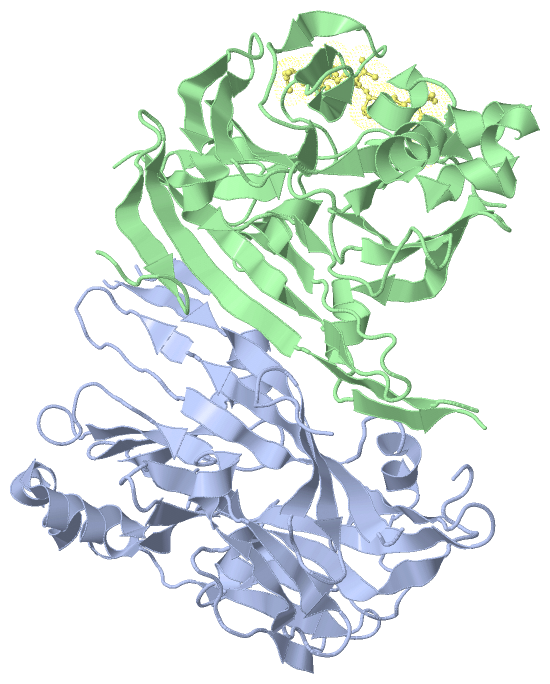

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE COMPACT LUMENAL DOMAIN OF YEAST IRE1

Authors :  J. J. Credle, J. S. Finer-Moore, F. R. Papa, R. M. Stroud, P. Walter
Date :  21 Oct 05  (Deposition) - 13 Dec 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.98
Chains :  Asym./Biol. Unit :  A,B,D
Keywords :  Peptide-Binding Groove Peptide-Mediated Oligomerization Beta- Propeller, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. J. Credle, J. S. Finer-Moore, F. R. Papa, R. M. Stroud, P. Walter
Inaugural Article: On The Mechanism Of Sensing Unfolded Protein In The Endoplasmic Reticulum
Proc. Natl. Acad. Sci. Usa V. 102 18773 2005
PubMed-ID: 16365312  |  Reference-DOI: 10.1073/PNAS.0509487102

(-) Compounds

Molecule 1 - SERINE/THREONINE-PROTEIN KINASE/ENDORIBONUCLEASE IRE1
    ChainsA, B
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPGEX4T-2
    Expression System StrainDE3-STARS
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentRESIDUES 111-449, LUMENAL DOMAIN
    GeneIRE1, ERN1
    Organism CommonBAKER'S YEAST
    Organism ScientificSACCHAROMYCES CEREVISIAE
    Organism Taxid4932
    SynonymENDOPLASMIC RETICULUM-TO-NUCLEUS SIGNALING 1

Molecule 2 - PEPTIDE
    ChainsD
    EngineeredYES
    Other DetailsCO-CRYSTALLIZED PEPTIDE OF UNKNOWN ORIGIN AND SEQUENCE
    SyntheticYES

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit ABD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2BE1)

(-) Sites  (0, 0)

(no "Site" information available for 2BE1)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BE1)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Ser A:202 -Pro A:203
2Ser B:202 -Pro B:203

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BE1)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BE1)

(-) Exons   (1, 2)

Asymmetric/Biological Unit (1, 2)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.1YHR079C1YHR079C.1VIII:261593-2582463348IRE1_YEAST1-111511152A:111-449 (gaps)
B:111-449 (gaps)
339
339

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:301
 aligned with IRE1_YEAST | P32361 from UniProtKB/Swiss-Prot  Length:1115

    Alignment length:339
                                   120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440
           IRE1_YEAST   111 NRSLNELSLSDILIAADVEGGLHAVDRRNGHIIWSIEPENFQPLIEIQEPSRLETYETLIIEPFGDGNIYYFNAHQGLQKLPLSIRQLVSTSPLHLKTNIVVNDSGKIVEDEKVYTGSMRTIMYTINMLNGEIISAFGPGSKNGYFGSQSVDCSPEEKIKLQECENMIVIGKTIFELGIHSYDGASYNVTYSTWQQNVLDVPLALQNTFSKDGMCIAPFRDKSLLASDLDFRIARWVSPTFPGIIVGLFDVFNDLRTNENILVPHPFNPGDHESISSNKVYLDQTSNLSWFALSSQNFPSLVESAPISRYASSDRWRVSSIFEDETLFKNAIMGVHQIY 449
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeee....eeeee.....eeeeehhhhh...ee..........eeeee......eeeeee...eeeeeeeehhhhhh...eeee..----------..eeeee.eeeeeeeeee.....eeeee.......--------------------..eeeeeeeeee.ee..........eeeeee....hhhhhh..........eeee...eeeee......eeee.......eeeeeeeeee....eeeeee.....--------..eeeee.....eeeee...hhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhheee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: A:111-449 (gaps) UniProt: 1-1115 [INCOMPLETE]                                                                                                                                                                                                                                                                                        Transcript 1
                 2be1 A 111 NRSLNELSLSDILIAADVEGGLHAVDRRNGHIIWSIEPENFQPLIEIQEPSRLETYETLIIEPFGDGNIYYFNAHQGLQKLPLSIRQLVSTSPLHLKTN----------EDEKVYTGSMRTIMYTINMLNGEIISAFGPGSKNG--------------------ENMIVIGKTIFELGIHSYDGASYNVTYSTWQQNVLDVPLALQNTFSKDGMCIAPFRDKSLLASDLDFRIARWVSPTFPGIIVGLFDVFNDLRTNENILVPHPFNP--------NKVYLDQTSNLSWFALSSQNFPSLVESAPISRYASSDRWRVSSIFEDETLFKNAIMGVHQIY 449
                                   120       130       140       150       160       170       180       190       200        |-       220       230       240       250   |     -         -    |  280       290       300       310       320       330       340       350       360       370        |-       390       400       410       420       430       440
                                                                                                                            209        220                               254                  275                                                                                                     379      388

Chain B from PDB  Type:PROTEIN  Length:301
 aligned with IRE1_YEAST | P32361 from UniProtKB/Swiss-Prot  Length:1115

    Alignment length:339
                                   120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440
           IRE1_YEAST   111 NRSLNELSLSDILIAADVEGGLHAVDRRNGHIIWSIEPENFQPLIEIQEPSRLETYETLIIEPFGDGNIYYFNAHQGLQKLPLSIRQLVSTSPLHLKTNIVVNDSGKIVEDEKVYTGSMRTIMYTINMLNGEIISAFGPGSKNGYFGSQSVDCSPEEKIKLQECENMIVIGKTIFELGIHSYDGASYNVTYSTWQQNVLDVPLALQNTFSKDGMCIAPFRDKSLLASDLDFRIARWVSPTFPGIIVGLFDVFNDLRTNENILVPHPFNPGDHESISSNKVYLDQTSNLSWFALSSQNFPSLVESAPISRYASSDRWRVSSIFEDETLFKNAIMGVHQIY 449
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeeeeeee....eeeee.....eeeeehhhhh...ee..........eeeeee.....eeeeee...eeeeeeeehhhhhh...eeee..----------..eeeee.eeeeeeeeee.....eeeee.......--------------------..eeeeeeeeee.ee..........eeeeee....hhhhhh..........eeee...eeeee......eeee.......eeeeeeeeee....eeeeee.....--------..eeeee.....eeeee...hhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhheee... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
               Transcript 1 Exon 1.1  PDB: B:111-449 (gaps) UniProt: 1-1115 [INCOMPLETE]                                                                                                                                                                                                                                                                                        Transcript 1
                 2be1 B 111 NRSLNELSLSDILIAADVEGGLHAVDRRNGHIIWSIEPENFQPLIEIQEPSRLETYETLIIEPFGDGNIYYFNAHQGLQKLPLSIRQLVSTSPLHLKTN----------EDEKVYTGSMRTIMYTINMLNGEIISAFGPGSKNG--------------------ENMIVIGKTIFELGIHSYDGASYNVTYSTWQQNVLDVPLALQNTFSKDGMCIAPFRDKSLLASDLDFRIARWVSPTFPGIIVGLFDVFNDLRTNENILVPHPFNP--------NKVYLDQTSNLSWFALSSQNFPSLVESAPISRYASSDRWRVSSIFEDETLFKNAIMGVHQIY 449
                                   120       130       140       150       160       170       180       190       200        |-       220       230       240       250   |     -         -    |  280       290       300       310       320       330       340       350       360       370        |-       390       400       410       420       430       440
                                                                                                                            209        220                               254                  275                                                                                                     379      388

Chain D from PDB  Type:PROTEIN  Length:8

               SCOP domains -------- SCOP domains
               CATH domains -------- CATH domains
               Pfam domains -------- Pfam domains
         Sec.struct. author ........ Sec.struct. author
                 SAPs(SNPs) -------- SAPs(SNPs)
                    PROSITE -------- PROSITE
                 Transcript -------- Transcript
                 2be1 D  19 VVVVVVVV  26

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2BE1)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2BE1)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BE1)

(-) Gene Ontology  (38, 38)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (IRE1_YEAST | P32361)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0004521    endoribonuclease activity    Catalysis of the hydrolysis of ester linkages within ribonucleic acid by creating internal breaks.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0042802    identical protein binding    Interacting selectively and non-covalently with an identical protein or proteins.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0042803    protein homodimerization activity    Interacting selectively and non-covalently with an identical protein to form a homodimer.
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0004540    ribonuclease activity    Catalysis of the hydrolysis of phosphodiester bonds in chains of RNA.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0051082    unfolded protein binding    Interacting selectively and non-covalently with an unfolded protein.
biological process
    GO:0036498    IRE1-mediated unfolded protein response    A series of molecular signals mediated by the endoplasmic reticulum stress sensor IRE1 (Inositol-requiring transmembrane kinase/endonuclease). Begins with activation of IRE1 in response to endoplasmic reticulum (ER) stress, and ends with regulation of a downstream cellular process, e.g. transcription. One target of activated IRE1 is the transcription factor HAC1 in yeast, or XBP1 in mammals; IRE1 cleaves an intron of a mRNA coding for HAC1/XBP1 to generate an activated HAC1/XBP1 transcription factor, which controls the up regulation of UPR-related genes. At least in mammals, IRE1 can also signal through additional intracellular pathways including JNK and NF-kappaB.
    GO:0090501    RNA phosphodiester bond hydrolysis    The RNA metabolic process in which the phosphodiester bonds between ribonucleotides are cleaved by hydrolysis.
    GO:0090502    RNA phosphodiester bond hydrolysis, endonucleolytic    The chemical reactions and pathways involving the hydrolysis of internal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0030968    endoplasmic reticulum unfolded protein response    The series of molecular signals generated as a consequence of the presence of unfolded proteins in the endoplasmic reticulum (ER) or other ER-related stress; results in changes in the regulation of transcription and translation.
    GO:0031505    fungal-type cell wall organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of the fungal-type cell wall.
    GO:0006020    inositol metabolic process    The chemical reactions and pathways involving inositol, 1,2,3,4,5,6-cyclohexanehexol, a growth factor for animals and microorganisms.
    GO:0006397    mRNA processing    Any process involved in the conversion of a primary mRNA transcript into one or more mature mRNA(s) prior to translation into polypeptide.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0051260    protein homooligomerization    The process of creating protein oligomers, compounds composed of a small number, usually between three and ten, of identical component monomers. Oligomers may be formed by the polymerization of a number of monomers or the depolymerization of a large protein polymer.
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0000042    protein targeting to Golgi    The process of directing proteins towards the Golgi; usually uses signals contained within the protein.
    GO:0036290    protein trans-autophosphorylation    The phosphorylation by a protein of a residue on an identical protein. For example, phosphorylation by the other kinase within a homodimer.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0034976    response to endoplasmic reticulum stress    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stress acting at the endoplasmic reticulum. ER stress usually results from the accumulation of unfolded or misfolded proteins in the ER lumen.
    GO:0006986    response to unfolded protein    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of an unfolded protein stimulus.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
cellular component
    GO:0005783    endoplasmic reticulum    The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
    GO:0005789    endoplasmic reticulum membrane    The lipid bilayer surrounding the endoplasmic reticulum.
    GO:0030176    integral component of endoplasmic reticulum membrane    The component of the endoplasmic reticulum membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
