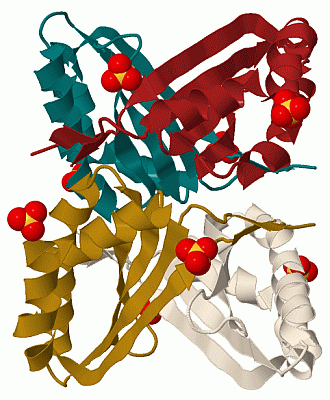

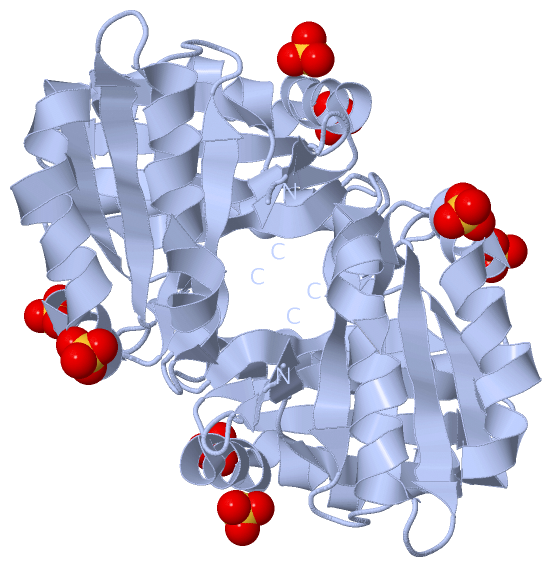

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

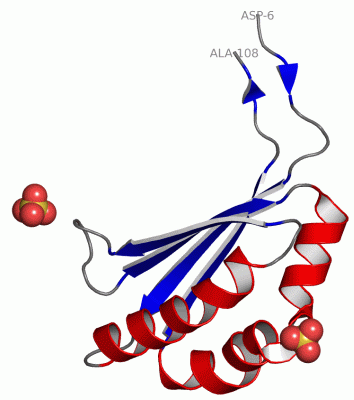

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

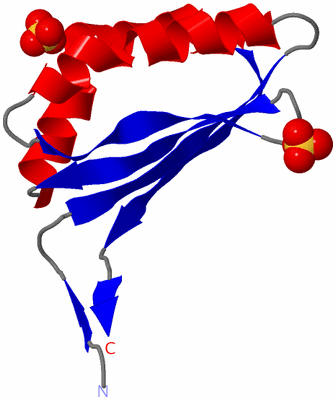

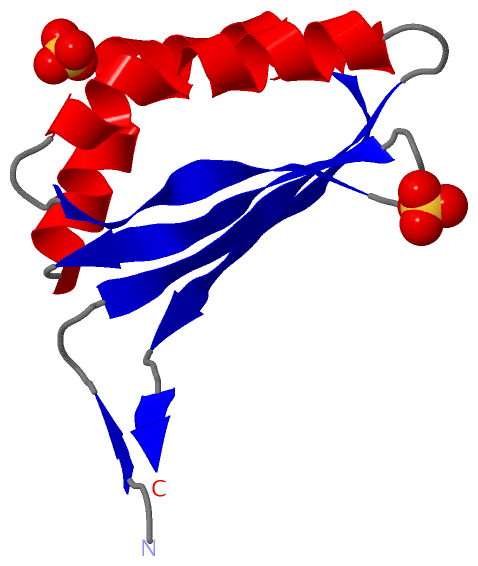

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

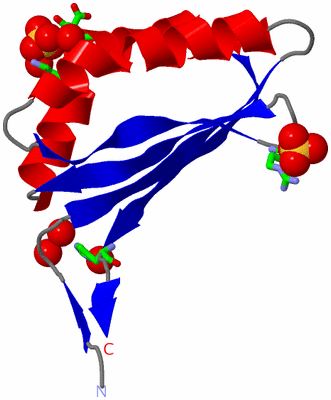

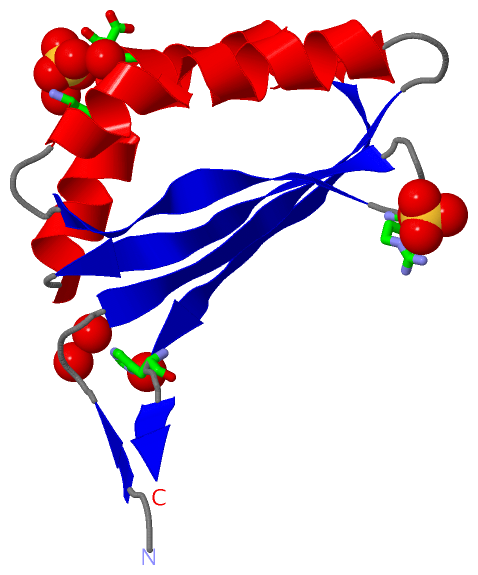

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

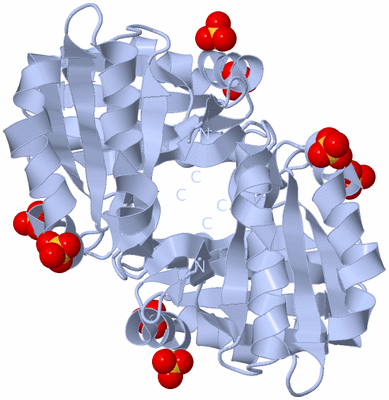

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

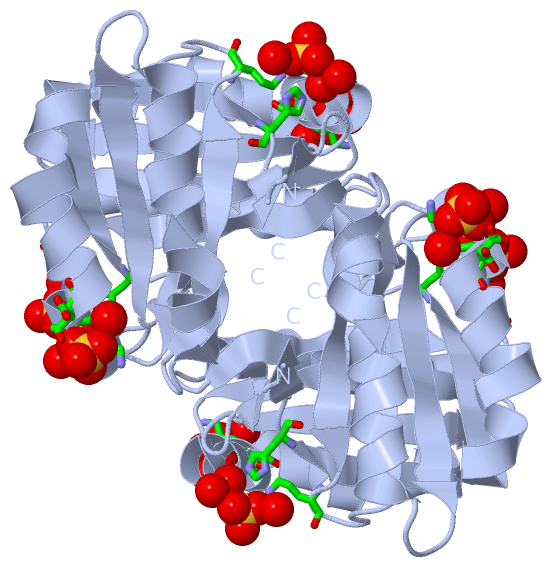

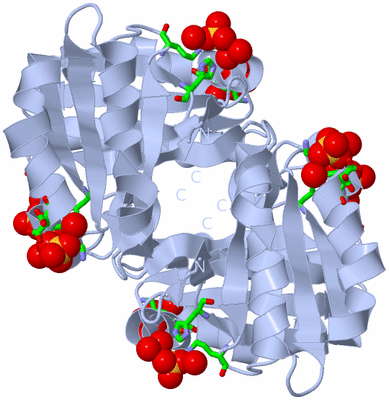

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

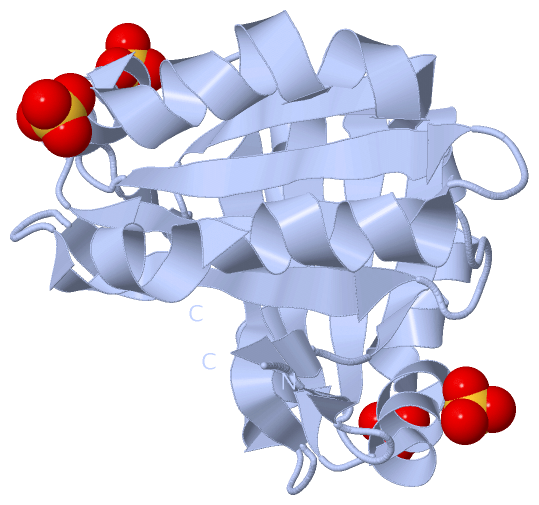

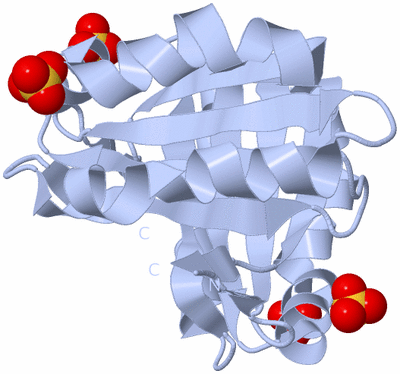

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PROTEIN SO0527 FROM SHEWANELLA ONEIDENSIS

Authors :  C. Chang, L. Bigelow, A. Joachimiak, Midwest Center For Structural (Mcsg)
Date :  17 Oct 05  (Deposition) - 29 Nov 05  (Release) - 26 Sep 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.97
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (4x)
Biol. Unit 2:  A  (2x)
Keywords :  Mcsg, So0527, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Chang, L. Bigelow, F. Collart, A. Joachimiak
Crystal Structure Of Protein So0527 From Shewanella Oneidensis
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN SO0527
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PMCSG
    Organism Scientific: SHEWANELLA ONEIDENSIS
    Organism Taxid: 211586
    Strain: MR-1

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (4x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1SO42Ligand/IonSULFATE ION
Biological Unit 1 (1, 8)
No.NameCountTypeFull Name
1SO48Ligand/IonSULFATE ION
Biological Unit 2 (1, 4)
No.NameCountTypeFull Name
1SO44Ligand/IonSULFATE ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:56 , HIS A:104 , HOH A:235 , HOH A:309 , HOH A:337BINDING SITE FOR RESIDUE SO4 A 201
2AC2SOFTWARELYS A:80 , ASP A:81 , HOH A:210 , HOH A:298BINDING SITE FOR RESIDUE SO4 A 202

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2BBE)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2BBE)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2BBE)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2BBE)

(-) Exons   (0, 0)

(no "Exon" information available for 2BBE)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:103
 aligned with Q8EJE0_SHEON | Q8EJE0 from UniProtKB/TrEMBL  Length:108

    Alignment length:103
                                    15        25        35        45        55        65        75        85        95       105
         Q8EJE0_SHEON     6 DYKINQQQIVCVASFLSKEGKTEALIAALASLIPDTRREAGCIRYELNVSRDEPRRVTFVEKFVDIAAFDEHCAKDAIQHYFHQVMPELVESFHVETYHQVIA 108
               SCOP domains d2bbea_ A: automated matches                                                                            SCOP domains
               CATH domains 2bbeA00 A:6-108  [code=3.30.70.900, no name defined]                                                    CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..ee....eeeeeeeee...hhhhhhhhhhhhhhhhhh...eeeeeeee......eeeeeeee.hhhhhhhhhhhhhhhhhhhhhhhhheeeeeeeee..ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------- Transcript
                 2bbe A   6 DYKINQQQIVCVASFLSKEGKTEALIAALASLIPDTRREAGCIRYELNVSRDEPRRVTFVEKFVDIAAFDEHCAKDAIQHYFHQVMPELVESFHVETYHQVIA 108
                                    15        25        35        45        55        65        75        85        95       105
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2BBE)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)
Chain A   (Q8EJE0_SHEON | Q8EJE0)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
    GO:0004497    monooxygenase activity    Catalysis of the incorporation of one atom from molecular oxygen into a compound and the reduction of the other atom of oxygen to water.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.
