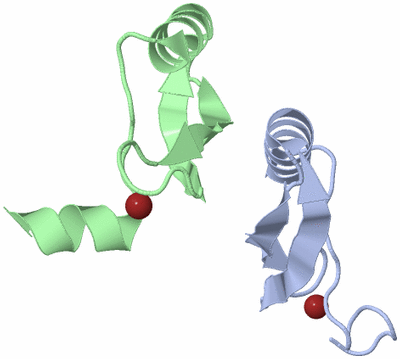

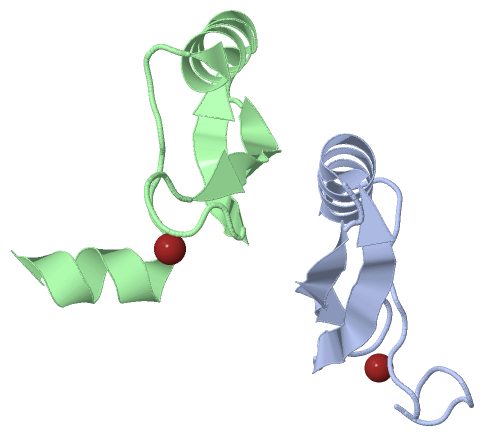

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

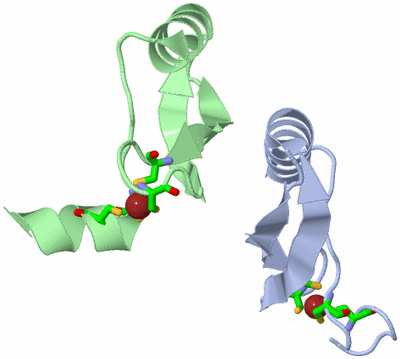

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

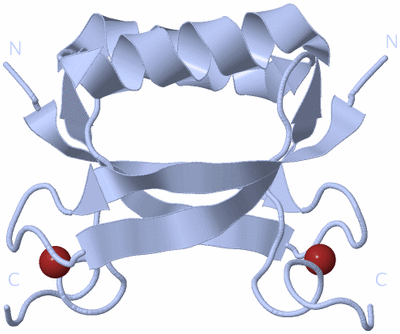

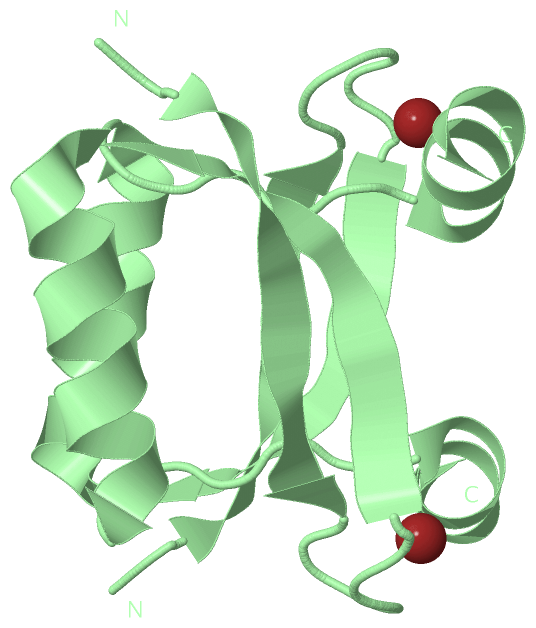

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

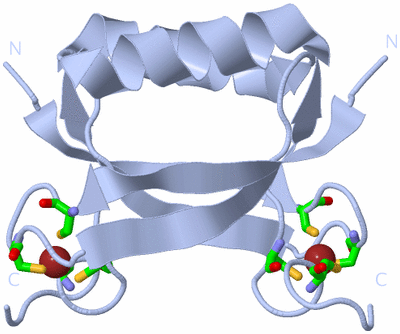

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

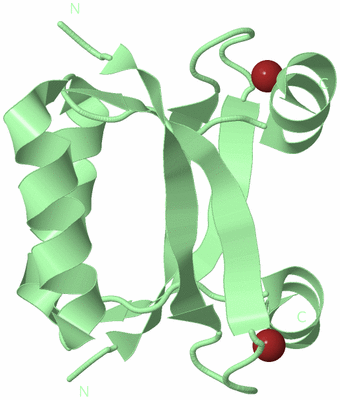

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HPV E7 CR3 DOMAIN

Authors :  X. Liu, A. Clements, K. Zhao, R. Marmorstein
Date :  11 Oct 05  (Deposition) - 25 Oct 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  B  (2x)
Keywords :  Zinc Finger, Homodimer, Transcription, Viral Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Liu, A. Clements, K. Zhao, R. Marmorstein
Structure Of The Human Papillomavirus E7 Oncoprotein And It Mechanism For Inactivation Of The Retinoblastoma Tumor Suppressor.
J. Biol. Chem. V. 281 578 2006
PubMed-ID: 16249186  |  Reference-DOI: 10.1074/JBC.M508455200

(-) Compounds

Molecule 1 - E7 PROTEIN
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PRSET-A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: CR3 DOMAIN (RESIDUES 44-93)
    Organism Scientific: HUMAN PAPILLOMAVIRUS TYPE 1A
    Organism Taxid: 10583

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): A
Biological Unit 2 (2x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1ZN2Ligand/IonZINC ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1ZN-1Ligand/IonZINC ION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS B:52 , CYS B:55 , CYS B:85 , CYS B:88BINDING SITE FOR RESIDUE ZN B 1001
2AC2SOFTWARECYS A:52 , CYS A:55 , CYS A:85 , CYS A:88BINDING SITE FOR RESIDUE ZN A 1002

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2B9D)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2B9D)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2B9D)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2B9D)

(-) Exons   (0, 0)

(no "Exon" information available for 2B9D)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:52
 aligned with VE7_HPV1 | P06465 from UniProtKB/Swiss-Prot  Length:93

    Alignment length:52
                                    51        61        71        81        91
              VE7_HPV1   42 PQQPYAVVASCAYCEKLVRLTVLADHSAIRQLEELLLRSLNIVCPLCTLQRQ 93
               SCOP domains d2b9da1 A:42-93 E7 oncoprotein                       SCOP domains
               CATH domains ---------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee......eeeeeeeehhhhhhhhhhhhh............... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------- Transcript
                  2b9d A 42 MKQPYAVVASCAYCEKLVRLTVLADHSAIRQLEEMLLRSLNIVCPLCTLQRQ 93
                                    51        61        71        81        91


Chain B from PDB  Type:PROTEIN  Length:52
 aligned with VE7_HPV1 | P06465 from UniProtKB/Swiss-Prot  Length:93

    Alignment length:52
                                    51        61        71        81        91
              VE7_HPV1   42 PQQPYAVVASCAYCEKLVRLTVLADHSAIRQLEELLLRSLNIVCPLCTLQRQ 93
               SCOP domains d2b9db_ B: E7 oncoprotein                            SCOP domains
               CATH domains ---------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee......eeeeeeeehhhhhhhhhhhhh......hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------- Transcript
                  2b9d B 42 MKQPYAVVASCAYCEKLVRLTVLADHSAIRQLEEMLLRSLNIVCPLCTLQRQ 93
                                    51        61        71        81        91
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Small proteins (3458)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2B9D)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2B9D)

(-) Gene Ontology  (14, 14)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (VE7_HPV1 | P06465)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
    GO:0030683    evasion or tolerance by virus of host immune response    Any process, either active or passive, by which a virus avoids the effects of the host organism's immune response. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0039645    modulation by virus of host G1/S transition checkpoint    Any viral process that modulates the frequency, rate or extent of the host cell G1/S transition checkpoint.
    GO:0060153    modulation by virus of host cell cycle    Any viral process that modulates the rate or extent of progression through the cell cycle.
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0039503    suppression by virus of host innate immune response    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of the innate immune response of the host organism, the host's first line of defense.
    GO:0039502    suppression by virus of host type I interferon-mediated signaling pathway    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of type I interferon-mediated signaling in the host organism. Type I interferons include the interferon-alpha, beta, delta, episilon, zeta, kappa, tau, and omega gene families.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
cellular component
    GO:0030430    host cell cytoplasm    The cytoplasm of a host cell.
    GO:0042025    host cell nucleus    A membrane-bounded organelle as it is found in the host cell in which chromosomes are housed and replicated. The host is defined as the larger of the organisms involved in a symbiotic interaction.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2b9d)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

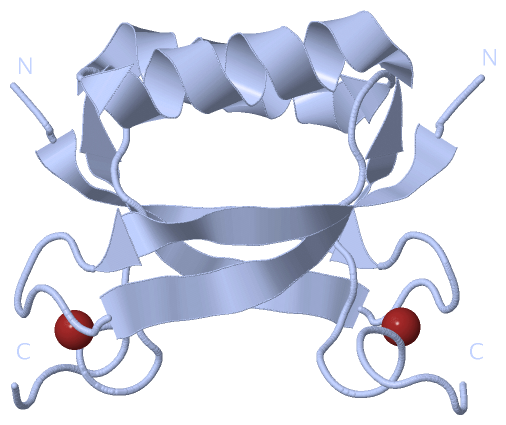

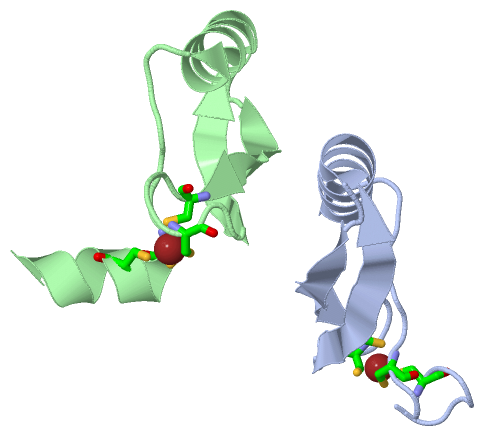

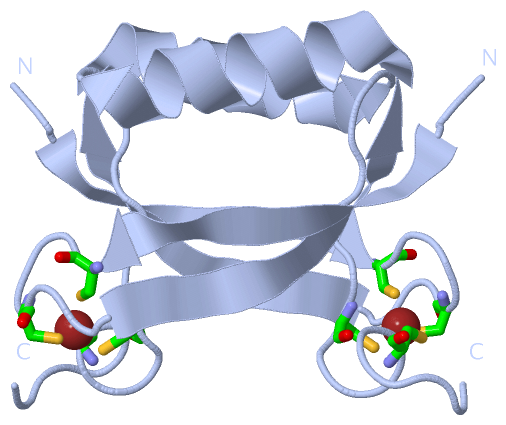

[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
