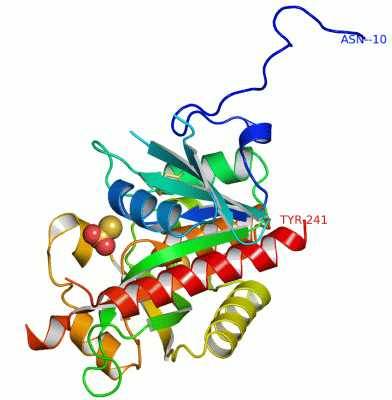

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

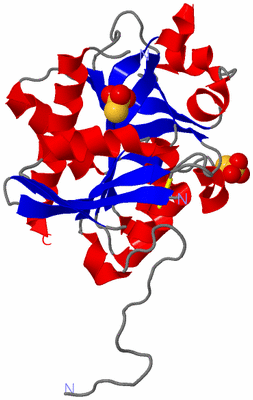

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

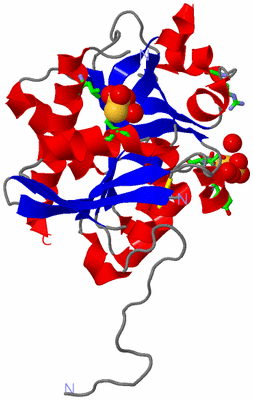

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

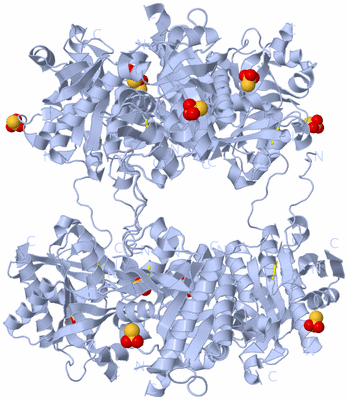

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

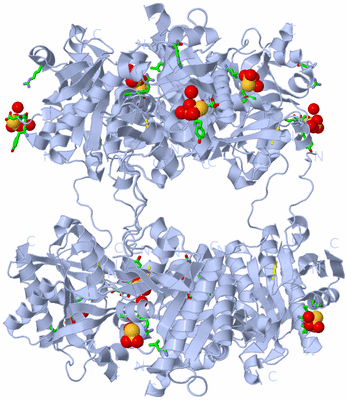

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURAL ANALYSIS OF P KNOWLESI HOMOLOG OF P FALCIPARUM PNP

Authors :  M. A. Robien, J. Bosch, W. G. J. Hol, Structural Genomics Of Pathogen Protozoa Consortium (Sgpp)
Date :  10 Oct 05  (Deposition) - 01 Nov 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (6x)
Keywords :  Sgpp, Structural Genomics, Psi, Protein Structure Initiative, Pnp, Udp, Ontario/Toronto Sgc, Structural Genomics Of Pathogenic Protozoa Consortium, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. A. Robien, J. Bosch, W. G. J. Hol, Structural Genomics Of Pathogenic Protozoa Consortium (Sgpp
Structural Analysis Of P Knowlesi Homolog Of P Falciparum Pnp
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PURINE NUCLEOSIDE PHOSPHORYLASE
    Chains: A
    EC Number: 2.4.2.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET14B
    Expression System Strain: BL21STAR(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: T7
    Organism Scientific: PLASMODIUM KNOWLESI
    Organism Taxid: 5850

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (6x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric Unit (1, 2)
No.NameCountTypeFull Name
1THJ2Ligand/IonTHIOSULFATE
Biological Unit 1 (1, 12)
No.NameCountTypeFull Name
1THJ12Ligand/IonTHIOSULFATE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETYR A:120 , SER A:121 , ASP A:122 , ARG A:166 , HOH A:364 , HOH A:381BINDING SITE FOR RESIDUE THJ A 301
2AC2SOFTWAREGLY A:23 , ARG A:24 , LEU A:223 , HOH A:425BINDING SITE FOR RESIDUE THJ A 303

(-) SS Bonds  (1, 1)

Asymmetric Unit
No.Residues
1A:68 -A:71

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2B94)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2B94)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2B94)

(-) Exons   (0, 0)

(no "Exon" information available for 2B94)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:242
 aligned with D0VWV7_PLAKN | D0VWV7 from UniProtKB/TrEMBL  Length:245

    Alignment length:252
                                   1
                                   | 3        13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243
         D0VWV7_PLAKN     - -------MEEEMQRHIKLTPSQTTPVVLVVGDPGRVDKVKMLCDSYVDLAYNREYKSVECTYKGQKFLCVSHGVGSAGCAICFEELMNNGAKVIIRAGSCGSLQPTQMKRGDICICNAAVREDRVSHLMIYSDFPAVADFEVYDTLNKVAQELEVPVFNGISLSSDLYYPHKIIPTRLEDYSKANVAVVEMEVATLMVMGTLRKVKTGGIFIVDGCPLKWDEGDFDNNLVPEKLENMIKISLETCARLAKKY 245
               SCOP domains d2b94a_ A: automated matches                                                                                                                                                                                                                                 SCOP domains
               CATH domains -----------2b94A01 A:1-241  [code=3.40.50.1580, no    name defined]                                                                                                                                                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..................hhhhh..eeee..hhhhhhhhhhh..eeee..---.eeeeeeee..eeeeeeee......hhhhhhhhhhh...eeeeeeeeee..........eeeeeeeeee..hhhhhh.....ee.hhhhhhhhhhhhhhh....eeeeeeee.hhhhhh....hhhhhhhh...eee.hhhhhhhhhhhhh.eeeeeeeeeehhhhh-------..hhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2b94 A -10 NLYFQGHMEEEMQRHIKLTPSQTTPVVLVVGDPGRVDKVKMLCDSYVDLA---EYKSVECTYKGQKFLCVSHGVGSAGCAICFEELMNNGAKVIIRAGSCGSLQPTQMKRGDICICNAAVREDRVSHLMIYSDFPAVADFEVYDTLNKVAQELEVPVFNGISLSSDLYYPHKIIPTRLEDYSKANVAVVEMEVATLMVMGTLRKVKTGGIFIVDGCPLKW-------NLVPEKLENMIKISLETCARLAKKY 241
                                    -1         9        19        29        39   |    49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239
                                                                            39  43                                                                                                                                                                   209     217
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2B94)

(-) Gene Ontology  (3, 3)

Asymmetric Unit(hide GO term definitions)
Chain A   (D0VWV7_PLAKN | D0VWV7)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0004731    purine-nucleoside phosphorylase activity    Catalysis of the reaction: purine nucleoside + phosphate = purine + alpha-D-ribose 1-phosphate.
biological process
    GO:0009116    nucleoside metabolic process    The chemical reactions and pathways involving a nucleoside, a nucleobase linked to either beta-D-ribofuranose (a ribonucleoside) or 2-deoxy-beta-D-ribofuranose, (a deoxyribonucleoside), e.g. adenosine, guanosine, inosine, cytidine, uridine and deoxyadenosine, deoxyguanosine, deoxycytidine and thymidine (= deoxythymidine).

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    THJ  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2b94)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

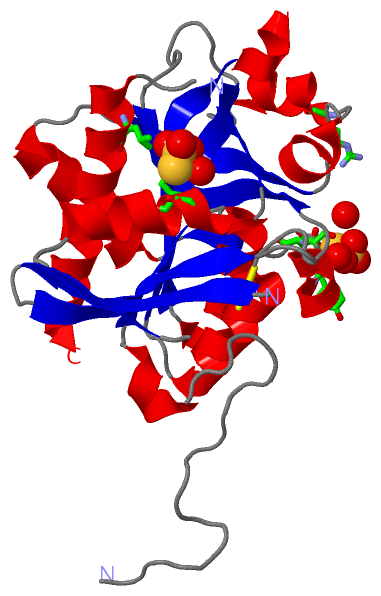

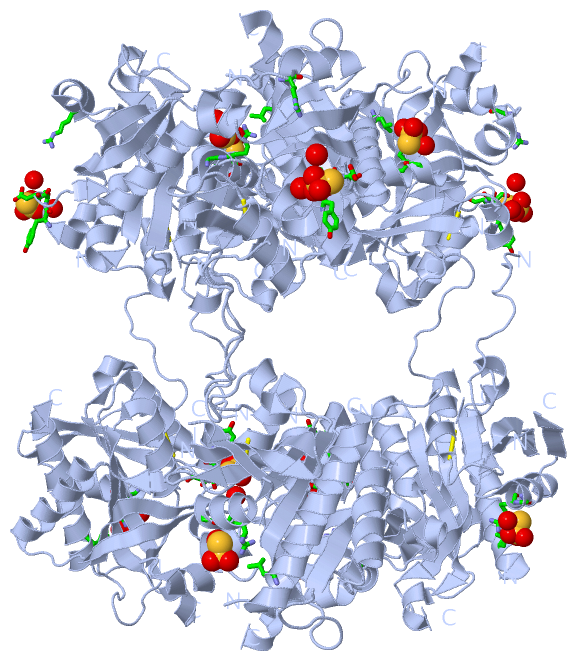

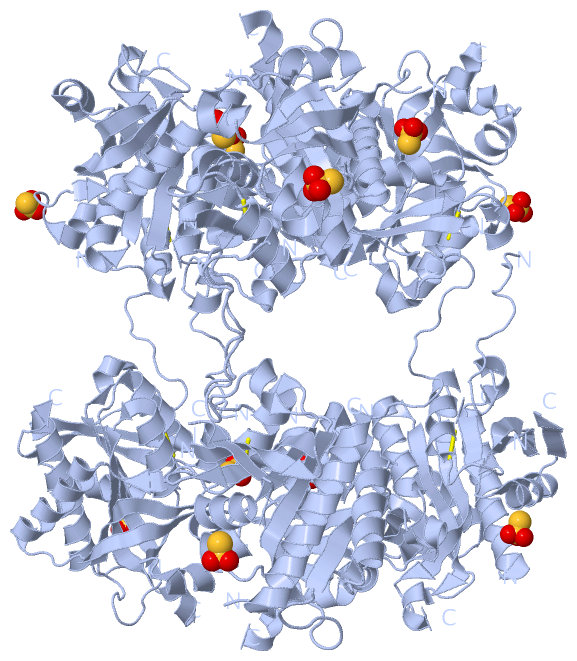

[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
