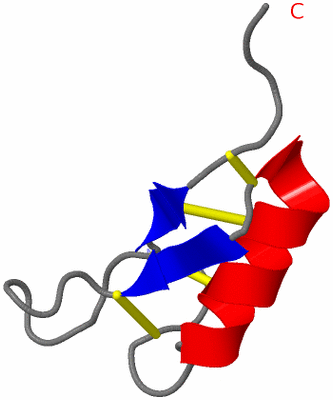

Image NMR Structure - model 1

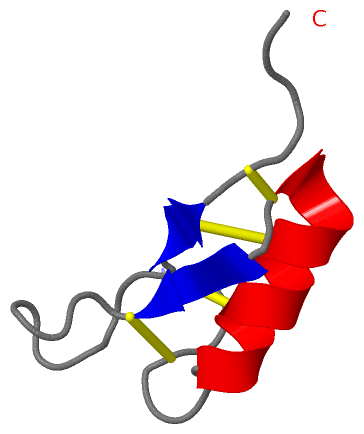

NMR Structure - model 1  (Jmol Viewer)

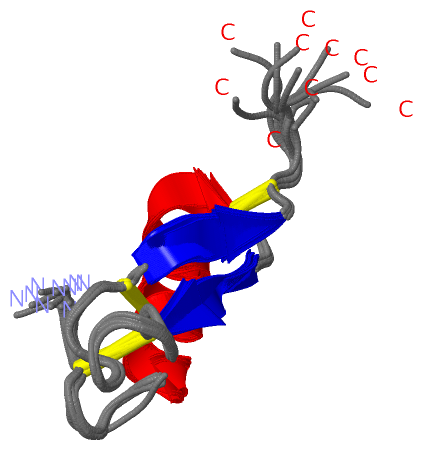

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE RECOMBINANT CRASSOSTREA GIGAS DEFENSIN

Authors :  Y. Gueguen, H. Amaury, A. Aumelas, J. Garnier, J. Fievet, J. M. Escoubas, P. Bulet, M. Gonzales, C. Lelong, P. Favrel, E. Bachere
Date :  30 Sep 05  (Deposition) - 29 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (10x)
Keywords :  Antibacterial Peptide, Defensin, Cysteine-Rich Peptide, Antimicrobial Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Gueguen, A. Herpin, A. Aumelas, J. Garnier, J. Fievet, J. M. Escoubas, P. Bulet, M. Gonzalez, C. Lelong, P. Favrel, E. Bachere
Characterization Of A Defensin From The Oyster Crassostrea Gigas: Recombinant Production, Folding, Solution Structure, Antimicrobial Activities And Gene Expression
J. Biol. Chem. V. 281 313 2006
PubMed-ID: 16246846  |  Reference-DOI: 10.1074/JBC.M510850200
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DEFENSIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-28A
    Expression System Strain: ROSETTA(DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 1-43
    Organism Common: PACIFIC OYSTER
    Organism Scientific: CRASSOSTREA GIGAS
    Organism Taxid: 29159

 Structural Features

(-) Chains, Units


NMR Structure (10x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2B68)

(-) Sites  (0, 0)

(no "Site" information available for 2B68)

(-) SS Bonds  (4, 4)

NMR Structure
No.Residues
1A:4 -A:25
2A:11 -A:34
3A:15 -A:36
4A:20 -A:39

(-) Cis Peptide Bonds  (1, 10)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10Cys A:4 -Pro A:5

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2B68)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2B68)

(-) Exons   (0, 0)

(no "Exon" information available for 2B68)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:43
 aligned with Q4GWV4_CRAGI | Q4GWV4 from UniProtKB/TrEMBL  Length:65

    Alignment length:43
                                    32        42        52        62
          Q4GWV4_CRAGI   23 GFGCPGNQLKCNNHCKSISCRAGYCDAATLWLRCTCTDCNGKK 65
               SCOP domains ------------------------------------------- SCOP domains
               CATH domains ------------------------------------------- CATH domains
               Pfam domains ------------------------------------------- Pfam domains
         Sec.struct. author .......hhhhhhhhhhhh..eee..........eee...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------- PROSITE
                 Transcript ------------------------------------------- Transcript
                  2b68 A  1 GFGCPGNQLKCNNHCKSISCRAGYCDAATLWLRCTCTDCNGKK 43
                                    10        20        30        40
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2B68)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2B68)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2B68)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (Q4GWV4_CRAGI | Q4GWV4)
biological process
    GO:0006952    defense response    Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2b68)

  Sites
(no "Sites" information available for 2b68)

  Cis Peptide Bonds
    Cys A:4 - Pro A:5   [ RasMol ]
