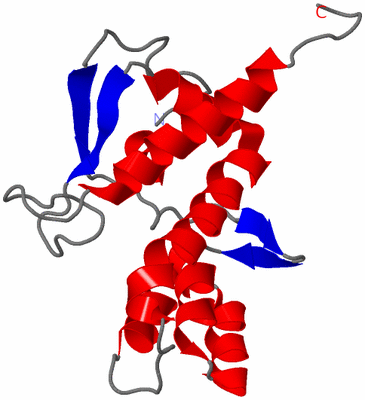

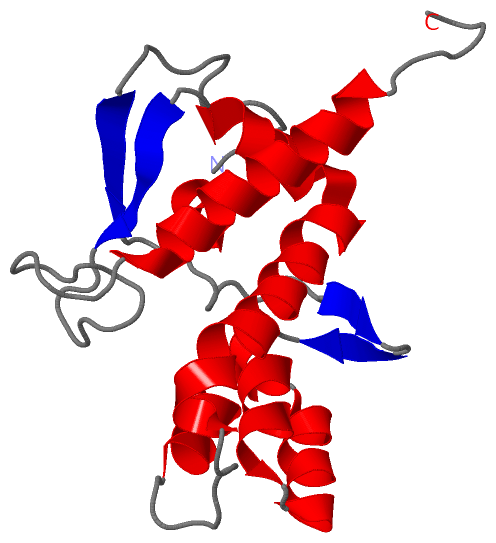

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

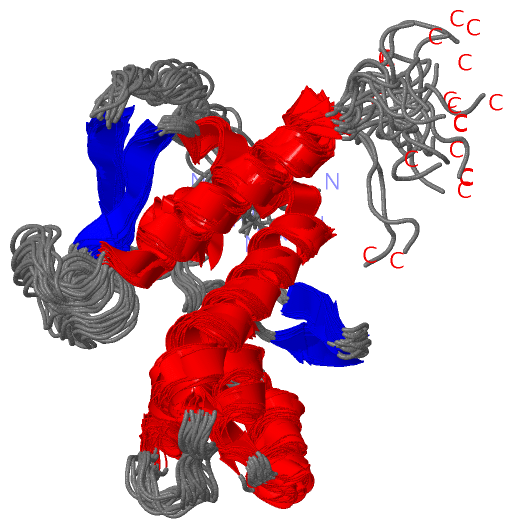

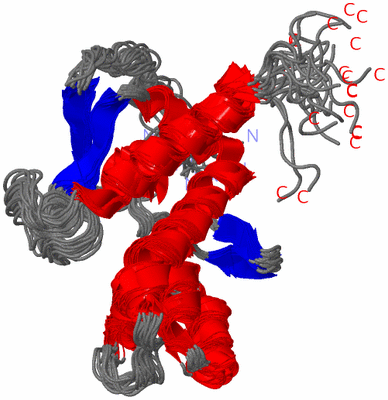

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF THE E.COLI PROTEIN YBIA, NORTHEAST STRUCTURAL GENOMICS TARGET ET24.

Authors :  T. A. Ramelot, J. R. Cort, R. Xiao, L. Y. Shih, T. B. Acton, G. T. Montelione, M. A. Kennedy, Northeast Structural Genomics Consortium (Nesg)
Date :  21 Sep 05  (Deposition) - 01 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (20x)
Keywords :  Et24, Nmr Structure, Nesg, Structural Genomics, Ybia, Cog 3236, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  T. A. Ramelot, J. R. Cort, R. Xiao, L. Y. Shih, T. B. Acton, G. T. Montelione, M. A. Kennedy
Nmr Structure Of The E. Coli Protein Ybia, Northeast Structural Genomics Target Et24.
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN YBIA
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: P11
    Expression System Strain: BL21 (LAMDA DE3) PMGK
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: YBIA
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2B3W)

(-) Sites  (0, 0)

(no "Site" information available for 2B3W)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2B3W)

(-) Cis Peptide Bonds  (1, 20)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20Ala A:119 -Pro A:120

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2B3W)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2B3W)

(-) Exons   (0, 0)

(no "Exon" information available for 2B3W)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:168
 aligned with RIBX_ECOLI | P30176 from UniProtKB/Swiss-Prot  Length:160

    Alignment length:168
                                                                                                                                                                                         160
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
           RIBX_ECOLI     1 MPVRAQRIQHVMQDTIINFYSTSDDYGDFSNFAAWPIKVDGKTWPTSEHYFQAQKFLDEKYREEIRRVSSPMVAARMGRDRSKPLRKNWESVKEQVMRKALRAKFEQHAELRALLLATAPAKLVEHTENDAYWGDGGHGKGKNRLGYLLMELREQLAIEK--------   -
               SCOP domains d2b3wa1 A:1-160 Hypothetical protein YbiA                                                                                                                       -------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..............eeeee....hhhhh........eee..eee.hhhhhhhhhhh.hhhhhhhhhhh.hhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeee.................hhhhhhhhhhhhhhhhhhh....... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2b3w A   1 MPVRAQRIQHVMQDTIINFYSTSDDYGDFSNFAAWPIKVDGKTWPTSEHYFQAQKFLDEKYREEIRRVSSPMVAARMGRDRSKPLRKNWESVKEQVMRKALRAKFEQHAELRALLLATAPAKLVEHTENDAYWGDGGHGKGKNRLGYLLMELREQLAIEKLEHHHHHH 168
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2B3W)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2B3W)

(-) Gene Ontology  (7, 7)

NMR Structure(hide GO term definitions)
Chain A   (RIBX_ECOLI | P30176)
molecular function
    GO:0019239    deaminase activity    Catalysis of the removal of an amino group from a substrate, producing ammonia (NH3).
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0016799    hydrolase activity, hydrolyzing N-glycosyl compounds    Catalysis of the hydrolysis of any N-glycosyl bond.
biological process
    GO:0009451    RNA modification    The covalent alteration of one or more nucleotides within an RNA molecule to produce an RNA molecule with a sequence that differs from that coded genetically.
    GO:1901135    carbohydrate derivative metabolic process    The chemical reactions and pathways involving carbohydrate derivative.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2b3w)

  Sites
(no "Sites" information available for 2b3w)

  Cis Peptide Bonds
    Ala A:119 - Pro A:120   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
