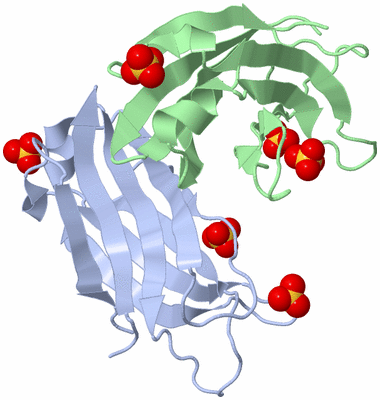

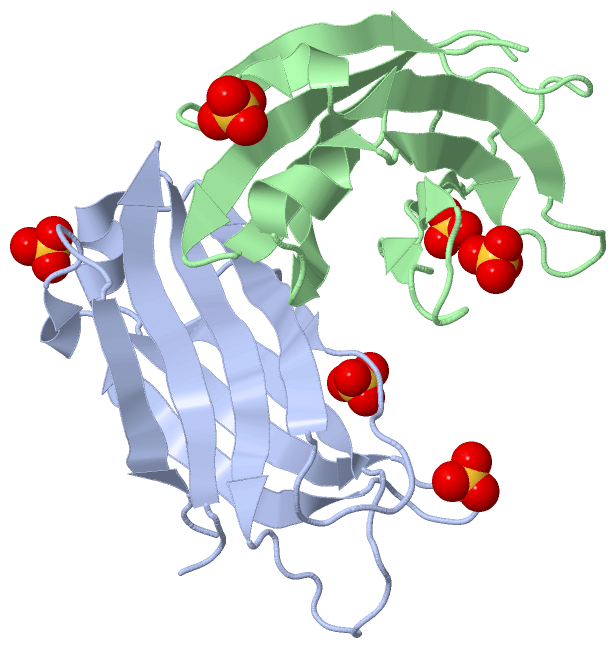

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

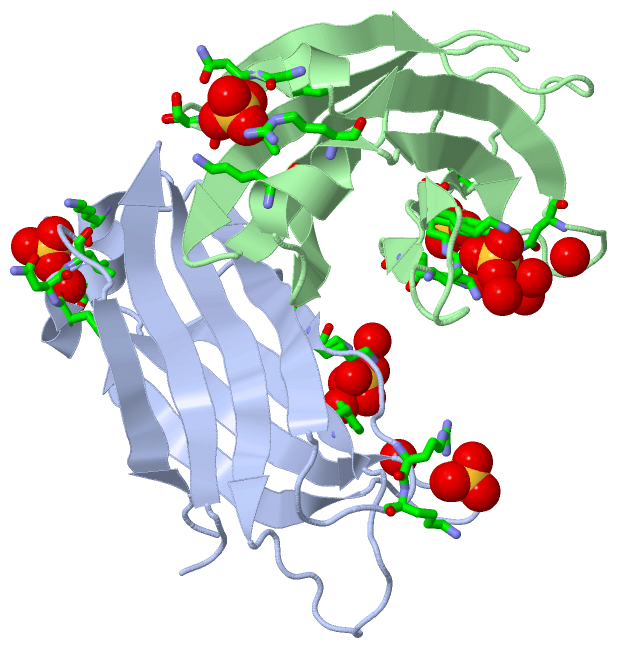

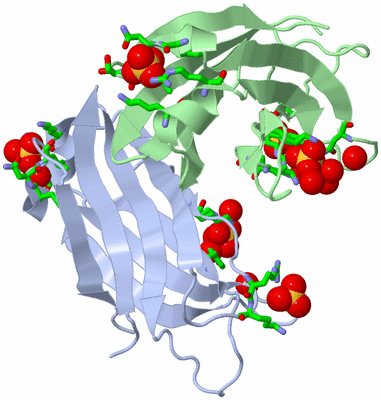

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

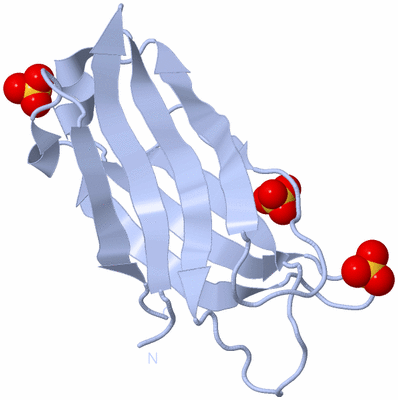

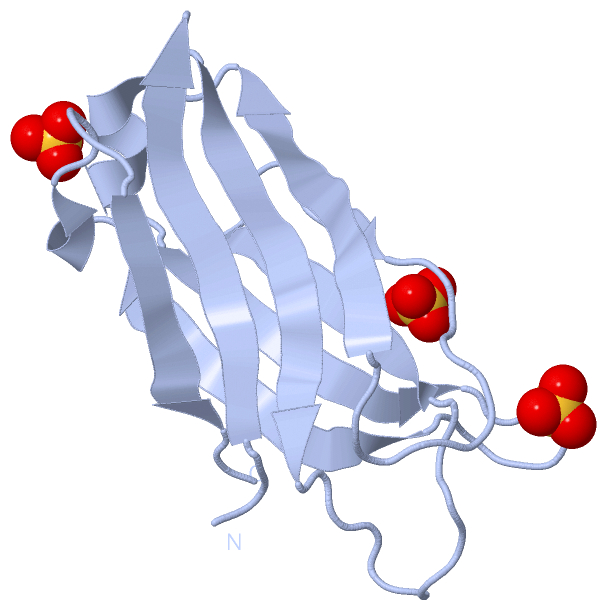

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

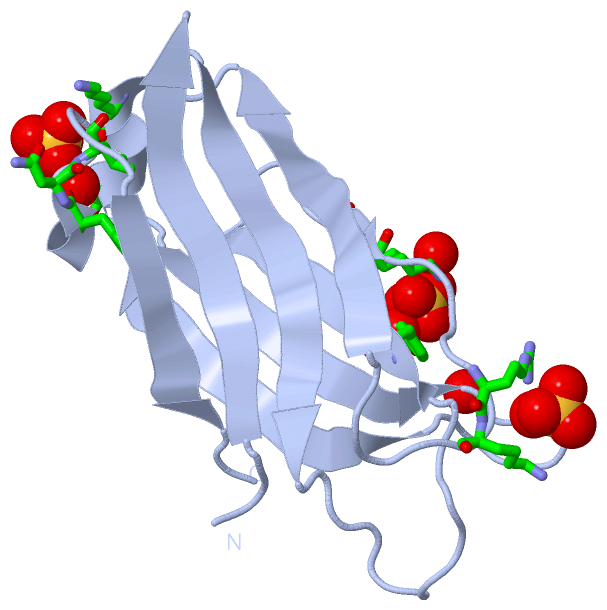

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

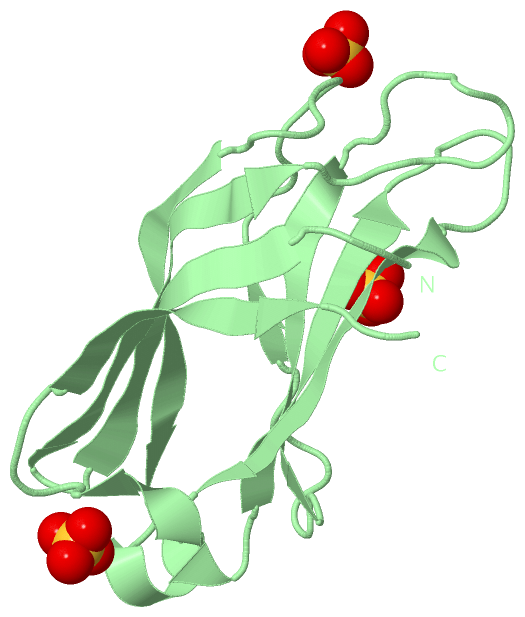

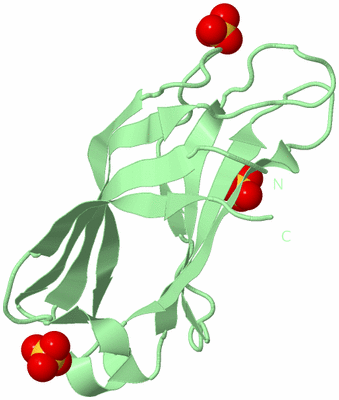

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

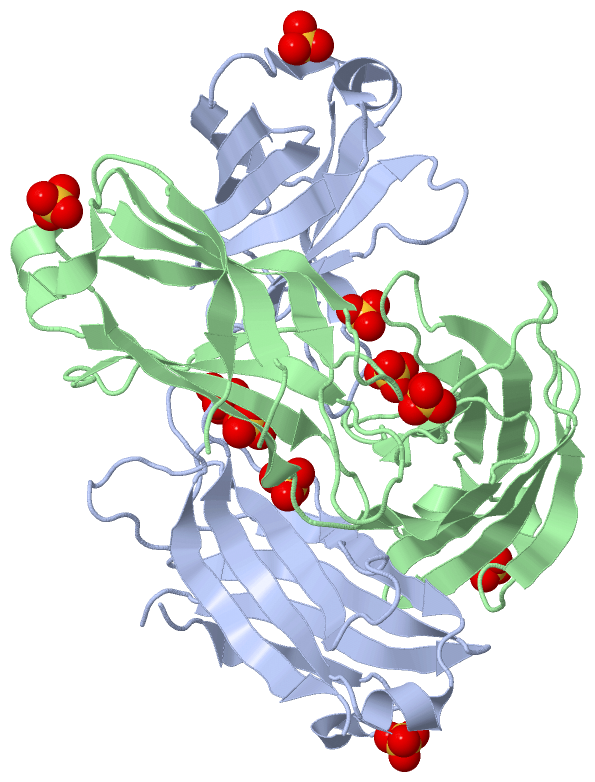

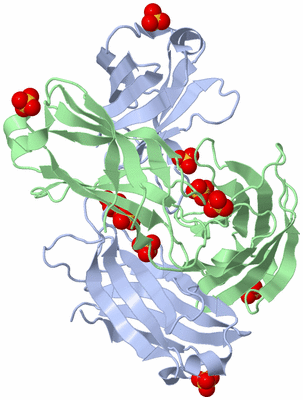

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE C2 DOMAIN OF CLASS II PHOSPHATIDYLINOSITIDE 3-KINASE C2

Authors :  L. Liu, X. Song, D. He, C. Komma, A. Kita, J. V. Verbasius, H. Bellamy, K. M M. P. Czech, G. W. Zhou
Date :  20 Sep 05  (Deposition) - 13 Dec 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  A,B  (2x)
Keywords :  C2 Domain, Lipid Binding, Pi3-Kinase, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  L. Liu, X. Song, D. He, C. Komma, A. Kita, J. V. Virbasius, G. Huang, H. D. Bellamy, K. Miki, M. P. Czech, G. W. Zhou
Crystal Structure Of The C2 Domain Of Class Ii Phosphatidylinositide 3-Kinase C2Alpha.
J. Biol. Chem. V. 281 4254 2006
PubMed-ID: 16338929  |  Reference-DOI: 10.1074/JBC.M510791200

(-) Compounds

Molecule 1 - PHOSPHATIDYLINOSITOL-4-PHOSPHATE 3-KINASE C2 DOMAIN- CONTAINING ALPHA POLYPEPTIDE
    ChainsA, B
    EC Number2.7.1.154
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System Taxid562
    GenePIK3C2A, CPK
    Organism CommonHOUSE MOUSE
    Organism ScientificMUS MUSCULUS
    Organism Taxid10090
    SynonymPHOSPHOINOSITIDE 3-KINASE-C2-ALPHA, PTDINS-3-KINASE C2 ALPHA, PI3K-C2ALPHA, CPK-M, P170

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit AB
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B
Biological Unit 3 (2x)AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 6)

Asymmetric Unit (1, 6)
No.NameCountTypeFull Name
1SO46Ligand/IonSULFATE ION
Biological Unit 1 (1, 3)
No.NameCountTypeFull Name
1SO43Ligand/IonSULFATE ION
Biological Unit 2 (1, 3)
No.NameCountTypeFull Name
1SO43Ligand/IonSULFATE ION
Biological Unit 3 (1, 12)
No.NameCountTypeFull Name
1SO412Ligand/IonSULFATE ION

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHOH B:56 , ARG B:1439 , LYS B:1440BINDING SITE FOR RESIDUE SO4 B 301
2AC2SOFTWAREHOH A:65 , ARG A:1439 , LYS A:1440BINDING SITE FOR RESIDUE SO4 A 302
3AC3SOFTWAREHOH A:164 , LYS A:1457 , ARG A:1461 , PHE A:1491 , ASN A:1492 , LEU A:1493BINDING SITE FOR RESIDUE SO4 A 303
4AC4SOFTWAREHOH A:22 , HOH A:168 , TYR A:1418 , LYS A:1432 , LYS A:1434 , HOH B:18 , HOH B:163BINDING SITE FOR RESIDUE SO4 A 304
5AC5SOFTWARELYS B:1457 , ARG B:1461 , PHE B:1491 , ASN B:1492 , LEU B:1493 , SER B:1494BINDING SITE FOR RESIDUE SO4 B 305
6AC6SOFTWAREHOH A:53 , HOH B:110 , HOH B:122 , HOH B:170 , TYR B:1418 , LYS B:1420 , LYS B:1432 , LYS B:1434 , ASN B:1478BINDING SITE FOR RESIDUE SO4 B 306

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2B3R)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Leu A:1424 -Pro A:1425
2Leu B:1424 -Pro B:1425
3Thr B:1504 -Ala B:1505

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2B3R)

(-) PROSITE Motifs  (1, 2)

Asymmetric Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1C2PS50004 C2 domain profile.P3C2A_MOUSE1573-1662

  2A:1396-1485
B:1396-1485
Biological Unit 1 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1C2PS50004 C2 domain profile.P3C2A_MOUSE1573-1662

  1A:1396-1485
-
Biological Unit 2 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1C2PS50004 C2 domain profile.P3C2A_MOUSE1573-1662

  1-
B:1396-1485
Biological Unit 3 (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1C2PS50004 C2 domain profile.P3C2A_MOUSE1573-1662

  4A:1396-1485
B:1396-1485

(-) Exons   (0, 0)

(no "Exon" information available for 2B3R)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:124
 aligned with P3C2A_MOUSE | Q61194 from UniProtKB/Swiss-Prot  Length:1686

    Alignment length:126
                                  1566      1576      1586      1596      1606      1616      1626      1636      1646      1656      1666      1676
         P3C2A_MOUSE   1557 GQIGGAVKLSVSYRNGTLFIMVMHIKDLVTEDGADPNPYVKTYLLPDTHKTSKRKTKISRKTRNPTFNEMLVYSGYSKETLRQRELQLSVLSAESLRENFFLGGITLPLKDFNLSKETVKWYQLTA 1682
               SCOP domains d  2b3ra_ A: automated matches                                                                                                 SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .--..eeeeeeeee..eeeeeeeeee...........eeeeeeee........ee..........eeeeeeeee..hhhhhh..eeeeeeee.......eeeeeeeee.hhh.....eeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------C2  PDB: A:1396-1485 UniProt: 1573-1662                                                   -------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                2b3r A   -2 G--SGAVKLSVSYRNGTLFIMVMHIKDLVTEDGADPNPYVKTYLLPDTHKTSKRKTKISRKTRNPTFNEMLVYSGYSKETLRQRELQLSVLSAESLRENFFLGGITLPLKDFNLSKETVKWYQLTA 1505
                            |  || 1389      1399      1409      1419      1429      1439      1449      1459      1469      1479      1489      1499
                            | -1|
                           -21384

Chain B from PDB  Type:PROTEIN  Length:124
 aligned with P3C2A_MOUSE | Q61194 from UniProtKB/Swiss-Prot  Length:1686

    Alignment length:126
                                  1566      1576      1586      1596      1606      1616      1626      1636      1646      1656      1666      1676
         P3C2A_MOUSE   1557 GQIGGAVKLSVSYRNGTLFIMVMHIKDLVTEDGADPNPYVKTYLLPDTHKTSKRKTKISRKTRNPTFNEMLVYSGYSKETLRQRELQLSVLSAESLRENFFLGGITLPLKDFNLSKETVKWYQLTA 1682
               SCOP domains d  2b3rb_ B: automated matches                                                                                                 SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .--..eeeeeeeee..eeeeeeeeee...........eeeeeeee........ee..........eeeeeeeee..hhhhhh..eeeeeeee.......eeeeeeeee.hhh.....eeeeee... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------------C2  PDB: B:1396-1485 UniProt: 1573-1662                                                   -------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------ Transcript
                2b3r B   -2 G--SGAVKLSVSYRNGTLFIMVMHIKDLVTEDGADPNPYVKTYLLPDTHKTSKRKTKISRKTRNPTFNEMLVYSGYSKETLRQRELQLSVLSAESLRENFFLGGITLPLKDFNLSKETVKWYQLTA 1505
                            |  || 1389      1399      1409      1419      1429      1439      1449      1459      1469      1479      1489      1499
                           -2 -1|
                             1384

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2B3R)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2B3R)

(-) Gene Ontology  (26, 26)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (P3C2A_MOUSE | Q61194)
molecular function
    GO:0016303    1-phosphatidylinositol-3-kinase activity    Catalysis of the reaction: 1-phosphatidyl-1D-myo-inositol + ATP = a 1-phosphatidyl-1D-myo-inositol 3-phosphate + ADP + 2 H(+).
    GO:0035005    1-phosphatidylinositol-4-phosphate 3-kinase activity    Catalysis of the reaction: 1-phosphatidyl-1D-myo-inositol 4-phosphate + ATP = 1-phosphatidyl-1D-myo-inositol 3,4-bisphosphate + ADP + 2 H(+).
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0035091    phosphatidylinositol binding    Interacting selectively and non-covalently with any inositol-containing glycerophospholipid, i.e. phosphatidylinositol (PtdIns) and its phosphorylated derivatives.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:1905037    autophagosome organization    A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of an autophagosome.
    GO:0009267    cellular response to starvation    Any process that results in a change in state or activity of a cell (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of deprivation of nourishment.
    GO:0006897    endocytosis    A vesicle-mediated transport process in which cells take up external materials or membrane constituents by the invagination of a small region of the plasma membrane to form a new membrane-bounded vesicle.
    GO:0006887    exocytosis    A process of secretion by a cell that results in the release of intracellular molecules (e.g. hormones, matrix proteins) contained within a membrane-bounded vesicle. Exocytosis can occur either by full fusion, when the vesicle collapses into the plasma membrane, or by a kiss-and-run mechanism that involves the formation of a transient contact, a pore, between a granule (for exemple of chromaffin cells) and the plasma membrane. The latter process most of the time leads to only partial secretion of the granule content. Exocytosis begins with steps that prepare vesicles for fusion with the membrane (tethering and docking) and ends when molecules are secreted from the cell.
    GO:0071583    negative regulation of zinc ion transmembrane transport    Any process that stops, prevents, or reduces the frequency, rate or extent of the directed movement of zinc ions (Zn2+) from one side of a membrane to the other.
    GO:0046854    phosphatidylinositol phosphorylation    The process of introducing one or more phosphate groups into a phosphatidylinositol, any glycerophosphoinositol having one phosphatidyl group esterified to one of the hydroxy groups of inositol.
    GO:0036092    phosphatidylinositol-3-phosphate biosynthetic process    The chemical reactions and pathways resulting in the formation of phosphatidylinositol-3-phosphate, a phosphatidylinositol monophosphate carrying the phosphate group at the 3-position.
    GO:0048015    phosphatidylinositol-mediated signaling    A series of molecular signals in which a cell uses a phosphatidylinositol-mediated signaling to convert a signal into a response. Phosphatidylinositols include phosphatidylinositol (PtdIns) and its phosphorylated derivatives.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
    GO:0005794    Golgi apparatus    A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
    GO:0030136    clathrin-coated vesicle    A vesicle with a coat formed of clathrin connected to the membrane via one of the clathrin adaptor complexes.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0031410    cytoplasmic vesicle    A vesicle found in the cytoplasm of a cell.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005942    phosphatidylinositol 3-kinase complex    A protein complex capable of phosphatidylinositol 3-kinase activity and containing subunits of any phosphatidylinositol 3-kinase (PI3K) enzyme. These complexes are divided in three classes (called I, II and III) that differ for their presence across taxonomic groups and for the type of their constituents. Catalytic subunits of phosphatidylinositol 3-kinase enzymes are present in all 3 classes; regulatory subunits of phosphatidylinositol 3-kinase enzymes are present in classes I and III; adaptor proteins have been observed in class II complexes and may be present in other classes too.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0031982    vesicle    Any small, fluid-filled, spherical organelle enclosed by membrane.
