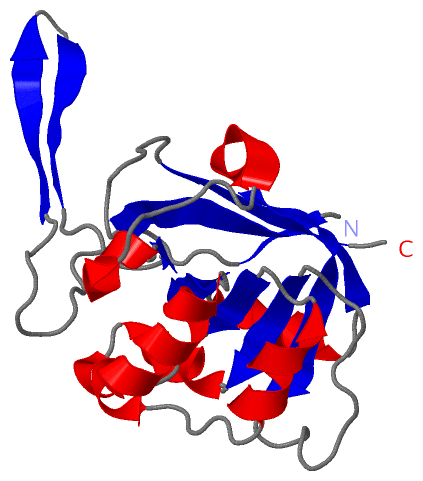

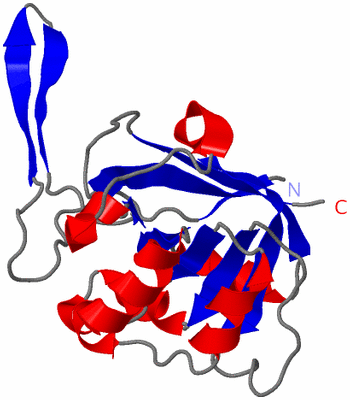

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

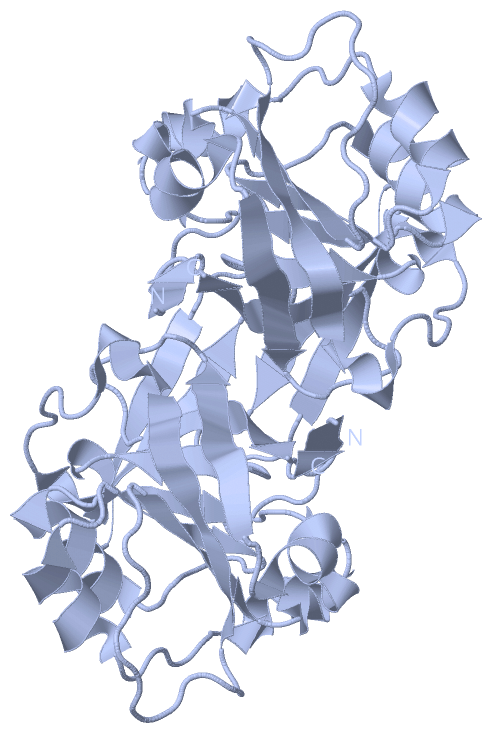

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PROTEIN MJ0783 FROM METHANOCOCCUS JANNASCHII

Authors :  Y. Patskovsky, U. Ramagopal, S. C. Almo, S. K. Burley, New York Sgx Re Center For Structural Genomics (Nysgxrc)
Date :  13 Sep 05  (Deposition) - 20 Sep 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.45
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Hypothetical Protein, Structural Genomics, Psi, Protein Structure Initiative, New York Sgx Research Center For Structural Genomics, Nysgxrc, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Patskovsky, U. Ramagopal, S. C. Almo
Crystal Structure Of Hypothetical Protein Mj0783 From Methanococcus Jannaschii
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN MJ0783
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: MJ0783
    Organism Scientific: METHANOCALDOCOCCUS JANNASCHII
    Organism Taxid: 2190

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2B0A)

(-) Sites  (0, 0)

(no "Site" information available for 2B0A)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2B0A)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2B0A)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2B0A)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2B0A)

(-) Exons   (0, 0)

(no "Exon" information available for 2B0A)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:186
 aligned with Y783_METJA | Q58193 from UniProtKB/Swiss-Prot  Length:186

    Alignment length:186
                                                                                                                                                                                                                  186
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181    |
           Y783_METJA     2 EILDLTQTLINFPYPGDPELRIIEKKIDGFIVSEIIMGSHLCTHIDYPKHVGLENRIPFKDGIIKGKGYCISLDDFERNKLPACDILLIYTGFSKYWGRDEYFEKIPEIPFLDDIIKSNIKCVGIDACTIGGFEEHKRLLSNNILIIENLNENLKNLVGKSFYFLGLPLKIFDIDASPIRCIAIL-   -
               SCOP domains d2b0aa1 A:1-186 Hypothetical protein MJ0783                                                                                                                                                SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .eee................eeeeeee..eeeeeee.......eee.hhhhh......hhhhheeeeeeeee.............eeeee.hhhhhh.hhhhhhh.....hhhhhhhh...eeee......hhhhhhhhhhh..eeee..hhhhhhhh..eeeeeeee.......eeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2b0a A   1 EILDLTQTLINFPRPGDPELRIIEKKIDGFIVSEIIMGSHLCTHIDYPKHVGLENRIPFKDGIIKGKGYCISLDDFPGNKLPACDILLIYTGFSKYWGRDEYFEKIPEIPFLDDIIKSNIKCVGIDACTIGGFEEHKRLLSNNILIIENLNENLKNLVGKSFYFLGLPLKIFDIDASPIRCIAILE 186
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2B0A)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2B0A)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A   (Y783_METJA | Q58193)
molecular function
    GO:0004061    arylformamidase activity    Catalysis of the reaction: N-formyl-L-kynurenine + H2O = formate + L-kynurenine.
biological process
    GO:0019441    tryptophan catabolic process to kynurenine    The chemical reactions and pathways resulting in the breakdown of tryptophan into other compounds, including kynurenine.
