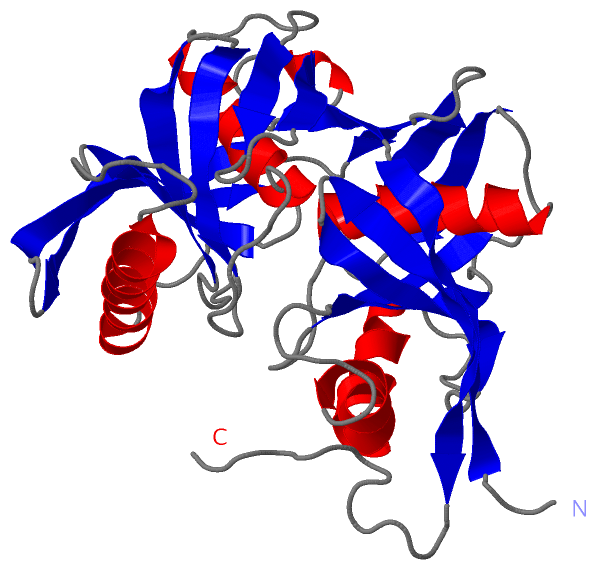

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PA1268 SOLVED BY SULFUR SAD

Authors :  Y. Liu, E. Gorodichtchenskaia, T. Skarina, C. Yang, A. Joachimiak, A. Edwards, E. F. Pai, A. Savchenko, Midwest Center For Structural Genomics (Mcsg)
Date :  12 Sep 05  (Deposition) - 20 Dec 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.13
Chains :  Asym./Biol. Unit :  A
Keywords :  Pa1268, Apc5861, Sulfur Sad, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Liu, E. Gorodichtchenskaia, T. Skarina, C. Yang, A. Joachimiak, A. Edwards, E. F. Pai, A. Savchenko
Crystal Structure Of Pa1268 Solved By Sulfur Sad
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN PA1268
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET15B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 287

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2AZP)

(-) Sites  (0, 0)

(no "Site" information available for 2AZP)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AZP)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Glu A:52 -Pro A:53

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AZP)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AZP)

(-) Exons   (0, 0)

(no "Exon" information available for 2AZP)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:318
 aligned with 4HYPE_PSEAE | Q9I476 from UniProtKB/Swiss-Prot  Length:314

    Alignment length:318
                              1                                                                                                                                                                                                                                                                                                                      314
                              |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308     |
         4HYPE_PSEAE      - --MQRIRIIDSHTGGEPTRLVIGGFPDLGQGDMAERRRLLGERHDAWRAACILEPRGSDVLVGALLCAPVDPEACAGVIFFNNSGYLGMCGHGTIGLVASLAHLGRIGPGVHRIETPVGEVEATLHEDGSVSVRNVPAYRYRRQVSVEVPGIGRVSGDIAWGGNWFFLVAGHGQRLAGDNLDALTAYTVAVQQALDDQDIRGEDGGAIDHIELFADDPHADSRNFVLCPGKAYDRSPCGTGTSAKLACLAADGKLLPGQPWRQASVIGSQFEGRYEWLDGQPGGPIVPTIRGRAHVSAEATLLLADDDPFAWGIRR--    -
               SCOP domains d2azpa_ A: automated matches                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains 2azpA01 A:-2-133,A:291-1002 Diaminopimelate Epimerase; Chain A, domain 1                                                               2azpA02 A:134-290 Diaminopimelate Epimerase; Chain A, domain 1                                                                                               2azpA01 A:-2-133,A:291-100 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeeeeee..eeeeeeee........hhhhhhhhhhhhhhhhhhhhhh........eeeeee........eeeeee........hhhhhhhhhhhhhhh.....eeeeee.....eeeee.....eeee....eeeeeeeeeee...eeeeeeeee...eeeeee.........hhhhhhhhhhhhhhhhhhh...........eeeeeeee..eeeeeeee..........hhhhhhhhhhhhhhh........eeee.....eeeeeeee.hhh....eeeeeee.eeeeeeeeeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                2azp A   -2 GHMQRIRIIDSHTGGEPTRLVIGGFPDLGQGDMAERRRLLGERHDAWRAACILEPRGSDVLVGALLCAPVDPEACAGVIFFNNSGYLGMCGHGTIGLVASLAHLGRIGPGVHRIETPVGEVEATLHEDGSVSVRNVPAYRYRRQVSVEVPGIGRVSGDIAWGGNWFFLVAGHGQRLAGDNLDALTAYTVAVQQALDDQDIRGEDGGAIDHIELFADDPHADSRNFVLCPGKAYDRSPCGTGTSAKLACLAADGKLLPGQPWRQASVIGSQFEGRYEWLDGQPGGPIVPTIRGRAHVSAEATLLLADDDPFAWGIRRGS 1002
                             ||      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308     ||
                             ||                                                                                                                                                                                                                                                                                                                      314|
                            -1|                                                                                                                                                                                                                                                                                                                      1001
                              1
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AZP)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (4HYPE_PSEAE | Q9I476)
molecular function
    GO:0047580    4-hydroxyproline epimerase activity    Catalysis of the reaction: trans-4-hydroxy-L-proline = cis-4-hydroxy-D-proline.
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2azp)

  Sites
(no "Sites" information available for 2azp)

  Cis Peptide Bonds
    Glu A:52 - Pro A:53   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2azp
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  4HYPE_PSEAE | Q9I476
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  4HYPE_PSEAE | Q9I476
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2AZP)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2AZP)
