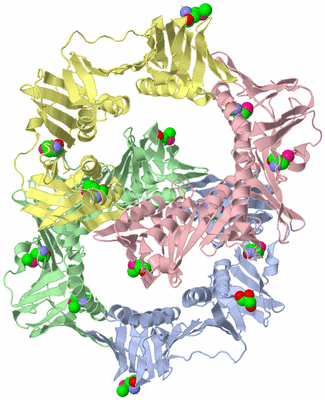

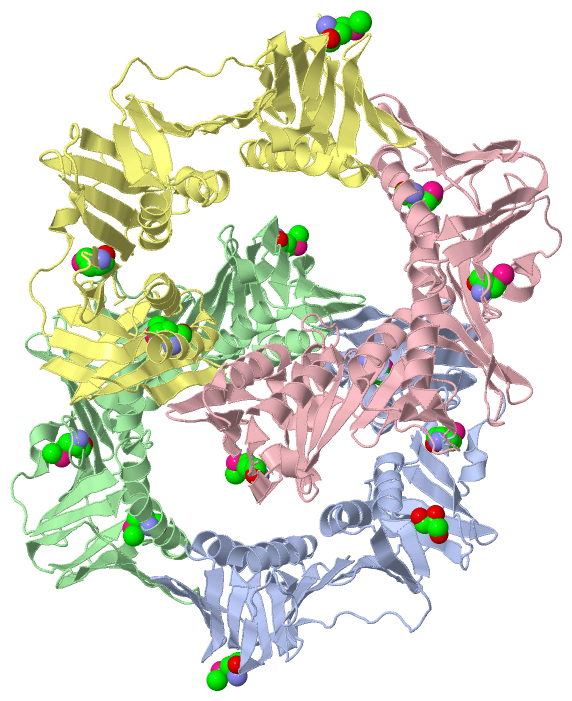

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

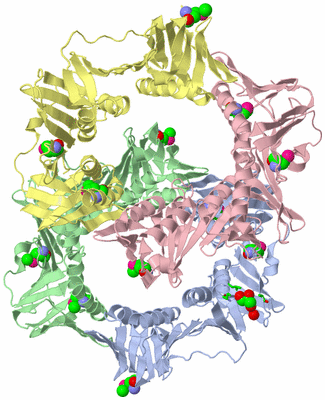

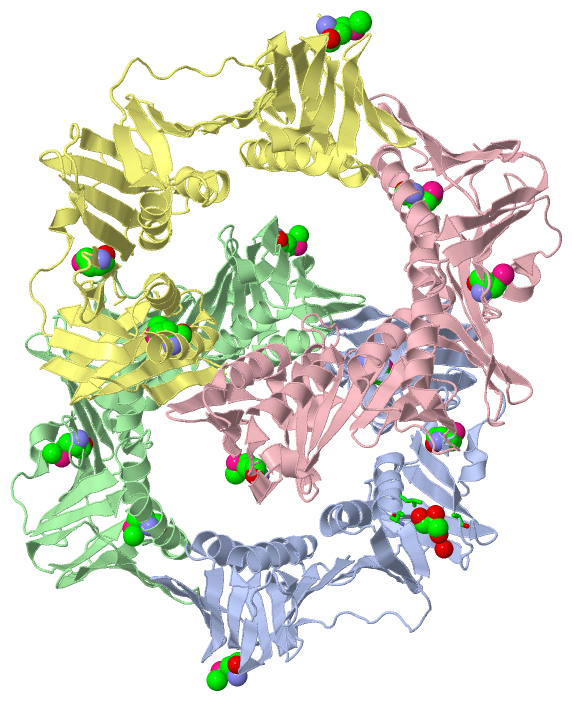

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

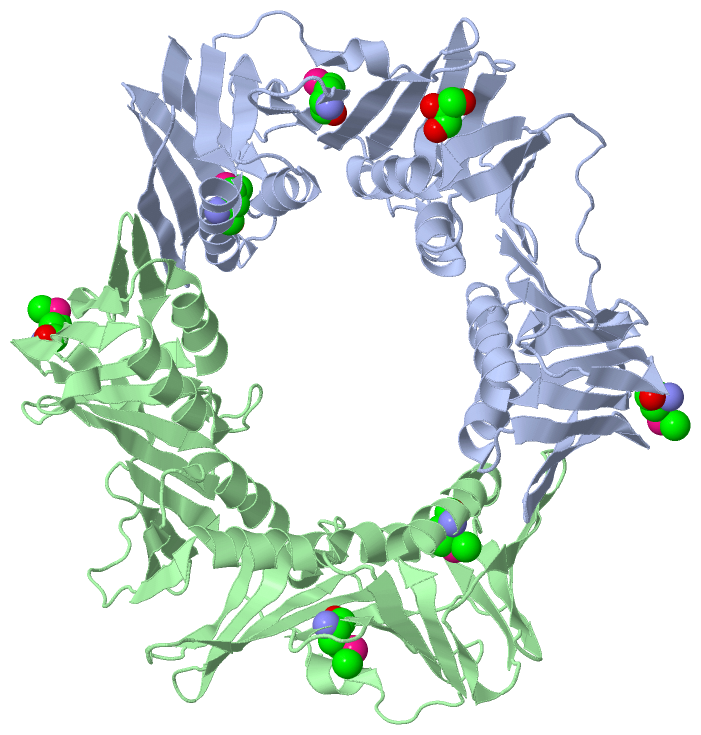

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

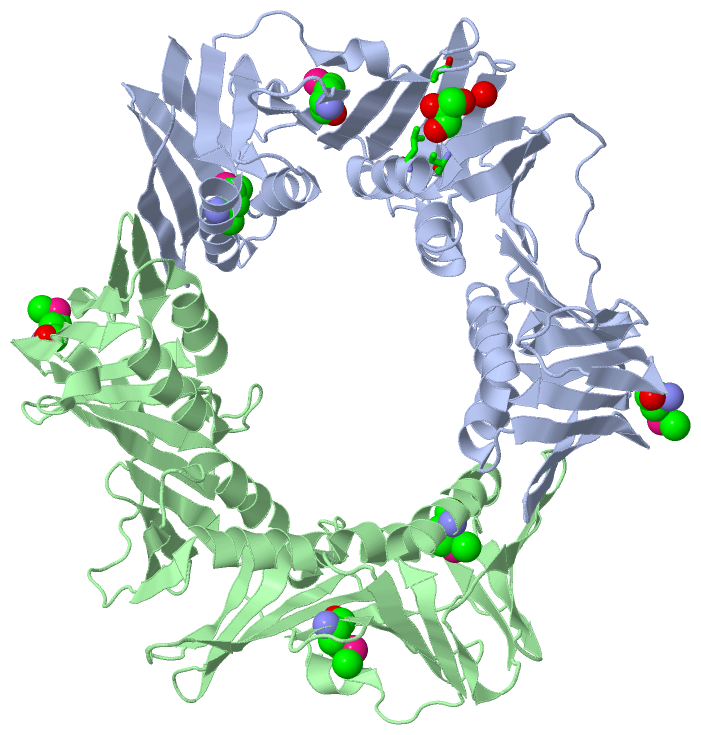

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

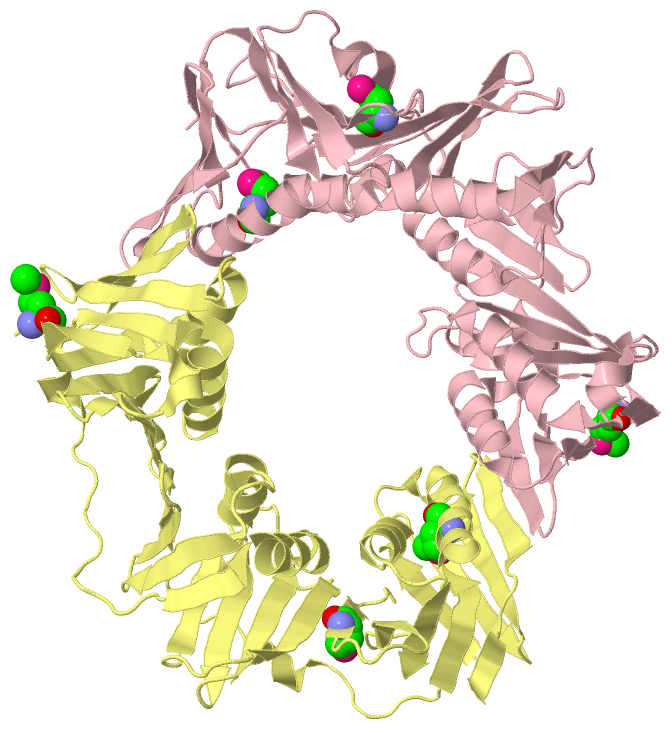

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF DNA POLYMERASE III, BETA CHAIN (EC 2.7.7.7) (NP_344555.1) FROM STREPTOCOCCUS PNEUMONIAE TIGR4 AT 2.50 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  31 Aug 05  (Deposition) - 20 Sep 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Np_344555. 1, Dna Polymerase Iii, Beta Chain (Ec 2. 7. 7. 7), Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Joint Center For Structural Genomics (Jcsg)
Crystal Structure Of Dna Polymerase Iii, Beta Chain (Ec 2. 7. 7. 7) (Np_344555. 1) From Streptococcus Pneumoniae Tigr4 At 2. 50 A Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - DNA POLYMERASE III, BETA CHAIN
    Chains: A, B, C, D
    EC Number: 2.7.7.7
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: HK100
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: DNAN
    Organism Scientific: STREPTOCOCCUS PNEUMONIAE
    Organism Taxid: 170187
    Strain: TIGR4

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 13)

Asymmetric Unit (2, 13)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2MSE12Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (2, 7)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 6)
No.NameCountTypeFull Name
1GOL-1Ligand/IonGLYCEROL
2MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLU A:138 , LEU A:141 , GLU A:193 , HOH A:462BINDING SITE FOR RESIDUE GOL A 379

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AWA)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AWA)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AWA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AWA)

(-) Exons   (0, 0)

(no "Exon" information available for 2AWA)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:377
 aligned with DPO3B_STRPN | O06672 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:377
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370
          DPO3B_STRPN     1 MIHFSINKNLFLQALNTTKRAISSKNAIPILSTVKIDVTNEGITLIGSNGQISIENFISQKNEDAGLLITSLGSILLEASFFINVVSSLPDVTLDFKEIEQNQIVLTSGKSEITLKGKDSEQYPRIQEISASTPLILETKLLKKIINETAFAASTQESRPILTGVHFVLSQHKELKTVATDSHRLSQKKLTLEKNSDDFDVVIPSRSLREFSAVFTDDIETVEIFFANNQILFRSENISFYTRLLEGNYPDTDRLIPTDFNTTITFNVVNLRQSMERARLLSSATQNGTVKLEIKDGVVSAHVHSPEVGKVNEEIDTDQVTGEDLTISFNPTYLIDSLKALNSEKVTISFISAVRPFTLVPADTDEDFMQLITPVRT 377
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeehhhhhhhhhhhhhhh.....hhhh.eeeeee...eeeeeee...eeeeeeee........eeee.eeeeeehhhhhhhhhhh...eeeeeee...eeeeee..eeeeee..hhhhh...........eeeehhhhhhhhhhhhhhh.....hhhh.eeeeeee...eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh.....eeeeee...eeeee...eeeeee........hhhhh.....eeeeeehhhhhhhhhhhhhhhh......eeeeee..eeeeeeee...eeeeeee...eeee..eeeeehhhhhhhhhhh....eeeeee......eeeee.....eeeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awa A   1 mIHFSINKNLFLQALNTTKRAISSKNAIPILSTVKIDVTNEGITLIGSNGQISIENFISQKNEDAGLLITSLGSILLEASFFINVVSSLPDVTLDFKEIEQNQIVLTSGKSEITLKGKDSEQYPRIQEISASTPLILETKLLKKIINETAFAASTQESRPILTGVHFVLSQHKELKTVATDSHRLSQKKLTLEKNSDDFDVVIPSRSLREFSAVFTDDIETVEIFFANNQILFRSENISFYTRLLEGNYPDTDRLIPTDFNTTITFNVVNLRQSmERARLLSSATQNGTVKLEIKDGVVSAHVHSPEVGKVNEEIDTDQVTGEDLTISFNPTYLIDSLKALNSEKVTISFISAVRPFTLVPADTDEDFmQLITPVRT 377
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270    |  280       290       300       310       320       330       340       350       360       370
                            |                                                                                                                                                                                                                                                                               275-MSE                                                                                       369-MSE
                            1-MSE


Chain B from PDB  Type:PROTEIN  Length:378
 aligned with DPO3B_STRPN | O06672 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:378
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369
          DPO3B_STRPN     - -MIHFSINKNLFLQALNTTKRAISSKNAIPILSTVKIDVTNEGITLIGSNGQISIENFISQKNEDAGLLITSLGSILLEASFFINVVSSLPDVTLDFKEIEQNQIVLTSGKSEITLKGKDSEQYPRIQEISASTPLILETKLLKKIINETAFAASTQESRPILTGVHFVLSQHKELKTVATDSHRLSQKKLTLEKNSDDFDVVIPSRSLREFSAVFTDDIETVEIFFANNQILFRSENISFYTRLLEGNYPDTDRLIPTDFNTTITFNVVNLRQSMERARLLSSATQNGTVKLEIKDGVVSAHVHSPEVGKVNEEIDTDQVTGEDLTISFNPTYLIDSLKALNSEKVTISFISAVRPFTLVPADTDEDFMQLITPVRT 377
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeehhhhhhhhhhhhh.......hhhh.eeeeee...eeeeeee...eeeeeeee..hhhhh.eeee.eeeeeehhhhhhhhhhh...eeeeeee...eeeeee..eeeeee..hhhhh...........eeeehhhhhhhhhhhhhhh.....hhhh.eeeeeee...eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh.....eeeeee...eeeee...eeeeee........hhhhh.....eeeeeehhhhhhhhhhhhhhhh......eeeeee..eeeeeeee...eeeeeee...eeee..eeeeehhhhhhhhhhh....eeeeee......eeeee.....eeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2awa B   0 HmIHFSINKNLFLQALNTTKRAISSKNAIPILSTVKIDVTNEGITLIGSNGQISIENFISQKNEDAGLLITSLGSILLEASFFINVVSSLPDVTLDFKEIEQNQIVLTSGKSEITLKGKDSEQYPRIQEISASTPLILETKLLKKIINETAFAASTQESRPILTGVHFVLSQHKELKTVATDSHRLSQKKLTLEKNSDDFDVVIPSRSLREFSAVFTDDIETVEIFFANNQILFRSENISFYTRLLEGNYPDTDRLIPTDFNTTITFNVVNLRQSmERARLLSSATQNGTVKLEIKDGVVSAHVHSPEVGKVNEEIDTDQVTGEDLTISFNPTYLIDSLKALNSEKVTISFISAVRPFTLVPADTDEDFmQLITPVRT 377
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269     | 279       289       299       309       319       329       339       349       359       369
                             1-MSE                                                                                                                                                                                                                                                                           275-MSE                                                                                       369-MSE


Chain C from PDB  Type:PROTEIN  Length:377
 aligned with DPO3B_STRPN | O06672 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:377
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370
          DPO3B_STRPN     1 MIHFSINKNLFLQALNTTKRAISSKNAIPILSTVKIDVTNEGITLIGSNGQISIENFISQKNEDAGLLITSLGSILLEASFFINVVSSLPDVTLDFKEIEQNQIVLTSGKSEITLKGKDSEQYPRIQEISASTPLILETKLLKKIINETAFAASTQESRPILTGVHFVLSQHKELKTVATDSHRLSQKKLTLEKNSDDFDVVIPSRSLREFSAVFTDDIETVEIFFANNQILFRSENISFYTRLLEGNYPDTDRLIPTDFNTTITFNVVNLRQSMERARLLSSATQNGTVKLEIKDGVVSAHVHSPEVGKVNEEIDTDQVTGEDLTISFNPTYLIDSLKALNSEKVTISFISAVRPFTLVPADTDEDFMQLITPVRT 377
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeehhhhhhhhhhhhh.......hhhh.eeeeeee..eeeeeee...eeeeeeee..hhhhh.eeee.eeeeeehhhhhhhhhhh...eeeeeee...eeeee...eeeeee..hhhhh...........eeeehhhhhhhhhhhhhhh.....hhhh.eeeeeee...eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh.....eeeeee...eeeee...eeeeee........hhhhh.....eeeeeehhhhhhhhhhhhhhhh......eeeeee..eeeeeeee...eeeeee....eeee..eeeeehhhhhhhhhhh....eeeeee......eeeee......eeeee..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awa C   1 mIHFSINKNLFLQALNTTKRAISSKNAIPILSTVKIDVTNEGITLIGSNGQISIENFISQKNEDAGLLITSLGSILLEASFFINVVSSLPDVTLDFKEIEQNQIVLTSGKSEITLKGKDSEQYPRIQEISASTPLILETKLLKKIINETAFAASTQESRPILTGVHFVLSQHKELKTVATDSHRLSQKKLTLEKNSDDFDVVIPSRSLREFSAVFTDDIETVEIFFANNQILFRSENISFYTRLLEGNYPDTDRLIPTDFNTTITFNVVNLRQSmERARLLSSATQNGTVKLEIKDGVVSAHVHSPEVGKVNEEIDTDQVTGEDLTISFNPTYLIDSLKALNSEKVTISFISAVRPFTLVPADTDEDFmQLITPVRT 377
                            |       10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270    |  280       290       300       310       320       330       340       350       360       370
                            1-MSE                                                                                                                                                                                                                                                                           275-MSE                                                                                       369-MSE


Chain D from PDB  Type:PROTEIN  Length:377
 aligned with DPO3B_STRPN | O06672 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:377
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369
          DPO3B_STRPN     - -MIHFSINKNLFLQALNTTKRAISSKNAIPILSTVKIDVTNEGITLIGSNGQISIENFISQKNEDAGLLITSLGSILLEASFFINVVSSLPDVTLDFKEIEQNQIVLTSGKSEITLKGKDSEQYPRIQEISASTPLILETKLLKKIINETAFAASTQESRPILTGVHFVLSQHKELKTVATDSHRLSQKKLTLEKNSDDFDVVIPSRSLREFSAVFTDDIETVEIFFANNQILFRSENISFYTRLLEGNYPDTDRLIPTDFNTTITFNVVNLRQSMERARLLSSATQNGTVKLEIKDGVVSAHVHSPEVGKVNEEIDTDQVTGEDLTISFNPTYLIDSLKALNSEKVTISFISAVRPFTLVPADTDEDFMQLITPVR 376
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeehhhhhhhhhhhhh.......hhhh.eeeeee...eeeeeee...eeeeeeee..hhhhh.eeee.eeeeeehhhhhhhhhhh...eeeeeee...eeeeee..eeeeee..hhhhh...........eeeehhhhhhhhhhhhhhh......hhh.eeeeeee...eeeeeee...eeeeeeee.......eeeeeehhhhhhhhhhh.....eeeeee...eeeee...eeeeee.......hhhhh......eeeeeehhhhhhhhhhhhhhhh......eeeeee..eeeeeeee...eeeeee....eeee..eeeeehhhhhhhhhhh....eeeeee......eeeee......eeeee.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2awa D   0 HmIHFSINKNLFLQALNTTKRAISSKNAIPILSTVKIDVTNEGITLIGSNGQISIENFISQKNEDAGLLITSLGSILLEASFFINVVSSLPDVTLDFKEIEQNQIVLTSGKSEITLKGKDSEQYPRIQEISASTPLILETKLLKKIINETAFAASTQESRPILTGVHFVLSQHKELKTVATDSHRLSQKKLTLEKNSDDFDVVIPSRSLREFSAVFTDDIETVEIFFANNQILFRSENISFYTRLLEGNYPDTDRLIPTDFNTTITFNVVNLRQSmERARLLSSATQNGTVKLEIKDGVVSAHVHSPEVGKVNEEIDTDQVTGEDLTISFNPTYLIDSLKALNSEKVTISFISAVRPFTLVPADTDEDFmQLITPVR 376
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269     | 279       289       299       309       319       329       339       349       359       369
                             1-MSE                                                                                                                                                                                                                                                                           275-MSE                                                                                       369-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2AWA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2AWA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AWA)

(-) Gene Ontology  (10, 10)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (DPO3B_STRPN | O06672)
molecular function
    GO:0008408    3'-5' exonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by removing nucleotide residues from the 3' end.
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003887    DNA-directed DNA polymerase activity    Catalysis of the reaction: deoxynucleoside triphosphate + DNA(n) = diphosphate + DNA(n+1); the synthesis of DNA from deoxyribonucleotide triphosphates in the presence of a DNA template and a 3'hydroxyl group.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0071897    DNA biosynthetic process    The cellular DNA metabolic process resulting in the formation of DNA, deoxyribonucleic acid, one of the two main types of nucleic acid, consisting of a long unbranched macromolecule formed from one or two strands of linked deoxyribonucleotides, the 3'-phosphate group of each constituent deoxyribonucleotide being joined in 3',5'-phosphodiester linkage to the 5'-hydroxyl group of the deoxyribose moiety of the next one.
    GO:0006260    DNA replication    The cellular metabolic process in which a cell duplicates one or more molecules of DNA. DNA replication begins when specific sequences, known as origins of replication, are recognized and bound by initiation proteins, and ends when the original DNA molecule has been completely duplicated and the copies topologically separated. The unit of replication usually corresponds to the genome of the cell, an organelle, or a virus. The template for replication can either be an existing DNA molecule or RNA.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
cellular component
    GO:0009360    DNA polymerase III complex    The DNA polymerase III holoenzyme is a complex that contains 10 different types of subunits. These subunits are organized into 3 functionally essential sub-assemblies: the pol III core, the beta sliding clamp processivity factor and the clamp-loading complex. The pol III core carries out the polymerase and the 3'-5' exonuclease proofreading activities. The polymerase is tethered to the template via the sliding clamp processivity factor. The clamp-loading complex assembles the beta processivity factor onto the primer template and plays a central role in the organization and communication at the replication fork.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
