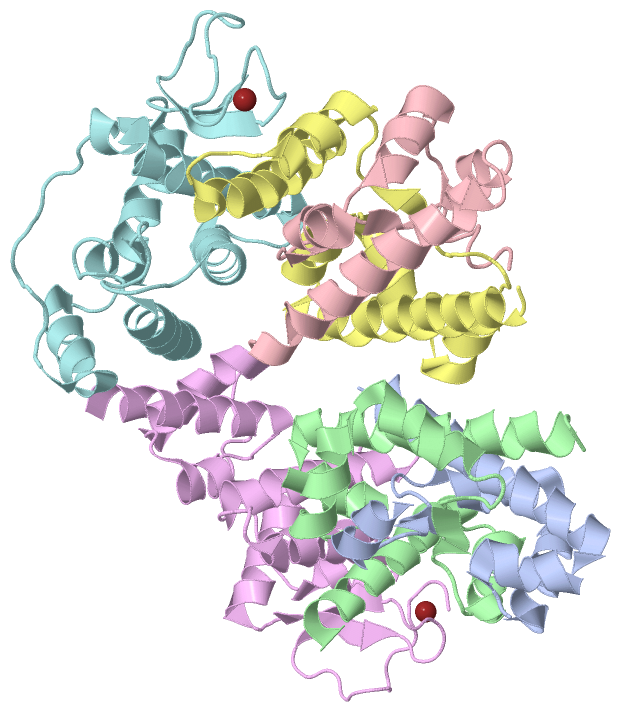

Title :   STRUCTURE OF THE ESCHERICHIA COLI FLHDC COMPLEX, A PROKARYOTIC HETEROMERIC REGULATOR OF TRANSCRIPTION

Authors :   S. Wang, R. T. Fleming, E. M. Westbrook, P. Matsumura, D. B. Mckay

Date :   30 Aug 05 (Deposition) - 13 Dec 05 (Release) - 24 Feb 09 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   3.00

Chains :   Asym./Biol. Unit : A,B,C,D,E,F

Keywords :   C4-Type Zinc Finger, Transcription Activator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Wang, R. T. Fleming, E. M. Westbrook, P. Matsumura, D. B. Mckay
Structure Of The Escherichia Coli Flhdc Complex, A Prokaryotic Heteromeric Regulator Of Transcription.
J. Mol. Biol. V. 355 798 2006
PubMed-ID: 16337229 | Reference-DOI: 10.1016/J.JMB.2005.11.020
(for further references see the PDB file header)

Molecule 1 - TRANSCRIPTIONAL ACTIVATOR FLHD
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Gene	:	FLHD, FLBB
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

Molecule 2 - FLAGELLAR TRANSCRIPTIONAL ACTIVATOR FLHC
	Chains	:	E, F
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI BL21(DE3)
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Gene	:	FLHC, FLAI
	Organism Scientific	:	ESCHERICHIA COLI
	Organism Taxid	:	562

		1	2	3	4	5	6
Asymmetric/Biological Unit	:	A	B	C	D	E	F

Summary Information (see also Sequences/Alignments below)

Asymmetric/Biological Unit (1, 2)

No.	Name	Count	Type	Full Name
1	ZN	2	Ligand/Ion	ZINC ION

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	CYS F:137 , CYS F:140 , CYS F:157 , CYS F:160	BINDING SITE FOR RESIDUE ZN F 300
2	AC2	SOFTWARE	CYS E:137 , CYS E:140 , CYS E:157 , CYS E:160	BINDING SITE FOR RESIDUE ZN E 400

(no "SS Bond" information available for 2AVU)

(no "Cis Peptide Bond" information available for 2AVU)

(no "SAP(SNP)/Variant" information available for 2AVU)

(no "PROSITE Motif" information available for 2AVU)

(no "Exon" information available for 2AVU)

Asymmetric/Biological Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:76
 aligned with FLHD_ECOLI | P0A8S9 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:76
                                    12        22        32        42        52        62        72
           FLHD_ECOLI     3 TSELLKHIYDINLSYLLLAQRLIVQDKASAMFRLGINEEMATTLAALTLPQMVKLAETNQLVCHFRFDSHQTITQL  78
               SCOP domains d2avua_ A: Flagellar transcriptional activator FlhD                          SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.....eee...hhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                 2avu A   3 TSELLKHIYDINLSYLLLAQRLIVQDKASAMFRLGINEEMATTLAALTLPQMVKLAETNQLVCHFRFDSHQTITQL  78
                                    12        22        32        42        52        62        72

Chain B from PDB  Type:PROTEIN  Length:104
 aligned with FLHD_ECOLI | P0A8S9 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:104
                                    12        22        32        42        52        62        72        82        92       102
           FLHD_ECOLI     3 TSELLKHIYDINLSYLLLAQRLIVQDKASAMFRLGINEEMATTLAALTLPQMVKLAETNQLVCHFRFDSHQTITQLTQDSRVDDLQQIHTGIMLSTRLLNDVNQ 106
               SCOP domains d2avub_ B: Flagellar transcriptional activator FlhD                                                      SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.....eee...hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2avu B   3 TSELLKHIYDINLSYLLLAQRLIVQDKASAMFRLGINEEMATTLAALTLPQMVKLAETNQLVCHFRFDSHQTITQLTQDSRVDDLQQIHTGIMLSTRLLNDVNQ 106
                                    12        22        32        42        52        62        72        82        92       102

Chain C from PDB  Type:PROTEIN  Length:76
 aligned with FLHD_ECOLI | P0A8S9 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:76
                                    12        22        32        42        52        62        72
           FLHD_ECOLI     3 TSELLKHIYDINLSYLLLAQRLIVQDKASAMFRLGINEEMATTLAALTLPQMVKLAETNQLVCHFRFDSHQTITQL  78
               SCOP domains d2avuc_ C: Flagellar transcriptional activator FlhD                          SCOP domains
               CATH domains ---------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhh....hhhhhh..hhhhhhhhhh.hhhhhhhhhh.....eee........... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------- Transcript
                 2avu C   3 TSELLKHIYDINLSYLLLAQRLIVQDKASAMFRLGINEEMATTLAALTLPQMVKLAETNQLVCHFRFDSHQTITQL  78
                                    12        22        32        42        52        62        72

Chain D from PDB  Type:PROTEIN  Length:104
 aligned with FLHD_ECOLI | P0A8S9 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:104
                                    12        22        32        42        52        62        72        82        92       102
           FLHD_ECOLI     3 TSELLKHIYDINLSYLLLAQRLIVQDKASAMFRLGINEEMATTLAALTLPQMVKLAETNQLVCHFRFDSHQTITQLTQDSRVDDLQQIHTGIMLSTRLLNDVNQ 106
               SCOP domains d2avud_ D: Flagellar transcriptional activator FlhD                                                      SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhh.....eee...hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------- Transcript
                 2avu D   3 TSELLKHIYDINLSYLLLAQRLIVQDKASAMFRLGINEEMATTLAALTLPQMVKLAETNQLVCHFRFDSHQTITQLTQDSRVDDLQQIHTGIMLSTRLLNDVNQ 106
                                    12        22        32        42        52        62        72        82        92       102

Chain E from PDB  Type:PROTEIN  Length:156
 aligned with FLHC_ECOLI | P0ABY7 from UniProtKB/Swiss-Prot  Length:192

    Alignment length:156
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154
           FLHC_ECOLI     5 SIVQEARDIQLAMELITLGARLQMLESETQLSRGRLIKLYKELRGSPPPKGMLPFSTDWFMTWEQNVHASMFCNAWQFLLKTGLCNGVDAVIKAYRLYLEQCPQAEEGPLLALTRAWTLVRFVESGLLQLSSCNCCGGNFITHAHQPVGSFACSLC 160
               SCOP domains d2avue1 E:5-160 Flagellar transcriptional activator FlhC                                                                                                     SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh...hhhhhhhh..hhhhhhhhhhhhh............hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhh..eeeee......eeeee............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2avu E   5 SIVQEARDIQLAMELITLGARLQMLESETQLSRGRLIKLYKELRGSPPPKGMLPFSTDWFMTWEQNVHASMFCNAWQFLLKTGLCNGVDAVIKAYRLYLEQCPQAEEGPLLALTRAWTLVRFVESGLLQLSSCNCCGGNFITHAHQPVGSFACSLC 160
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154

Chain F from PDB  Type:PROTEIN  Length:156
 aligned with FLHC_ECOLI | P0ABY7 from UniProtKB/Swiss-Prot  Length:192

    Alignment length:156
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154
           FLHC_ECOLI     5 SIVQEARDIQLAMELITLGARLQMLESETQLSRGRLIKLYKELRGSPPPKGMLPFSTDWFMTWEQNVHASMFCNAWQFLLKTGLCNGVDAVIKAYRLYLEQCPQAEEGPLLALTRAWTLVRFVESGLLQLSSCNCCGGNFITHAHQPVGSFACSLC 160
               SCOP domains d2avuf_ F: Flagellar transcriptional activator FlhC                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhh.....hhhhhh..hhhhhhhhhhhhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhh...eeee......eeee.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2avu F   5 SIVQEARDIQLAMELITLGARLQMLESETQLSRGRLIKLYKELRGSPPPKGMLPFSTDWFMTWEQNVHASMFCNAWQFLLKTGLCNGVDAVIKAYRLYLEQCPQAEEGPLLALTRAWTLVRFVESGLLQLSSCNCCGGNFITHAHQPVGSFACSLC 160
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "CATH Domain" information available for 2AVU)

(no "Pfam Domain" information available for 2AVU)

Asymmetric/Biological Unit(hide GO term definitions)

Chain A,B,C,D (FLHD_ECOLI | P0A8S9)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
biological process
	GO:0044780	bacterial-type flagellum assembly	The assembly of a bacterial-type flagellum, a motor complex composed of an extracellular helical protein filament coupled to a rotary motor embedded in the cell envelope which functions in cell motility.
	GO:0044781	bacterial-type flagellum organization	A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of a bacterial-type flagellum, a motor complex composed of an extracellular helical protein filament coupled to a rotary motor embedded in the cell envelope which functions in cell motility.
	GO:0045892	negative regulation of transcription, DNA-templated	Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0045893	positive regulation of transcription, DNA-templated	Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
	GO:1902208	regulation of bacterial-type flagellum assembly	Any process that modulates the frequency, rate or extent of bacterial-type flagellum assembly.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Chain E,F (FLHC_ECOLI | P0ABY7)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0044781	bacterial-type flagellum organization	A process that is carried out at the cellular level which results in the assembly, arrangement of constituent parts, or disassembly of a bacterial-type flagellum, a motor complex composed of an extracellular helical protein filament coupled to a rotary motor embedded in the cell envelope which functions in cell motility.
	GO:0045892	negative regulation of transcription, DNA-templated	Any process that stops, prevents, or reduces the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0045893	positive regulation of transcription, DNA-templated	Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.
	GO:1902208	regulation of bacterial-type flagellum assembly	Any process that modulates the frequency, rate or extent of bacterial-type flagellum assembly.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Asymmetric/Biological Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2avu)

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym./Biol. Unit PNG format \| Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	2avu
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	FLHC_ECOLI \| P0ABY7
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	FLHD_ECOLI \| P0A8S9
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	FLHC_ECOLI \| P0ABY7
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	FLHD_ECOLI \| P0A8S9
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	FLHD_ECOLI \| P0A8S9	:	1g8e 4es4

(no "Related Entries Specified in the PDB File" available for 2AVU)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (2, 6)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (11, 19)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
