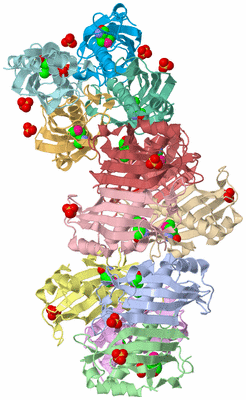

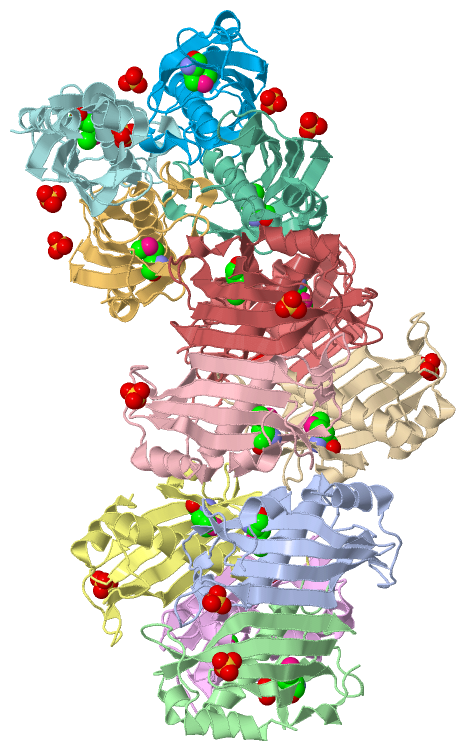

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

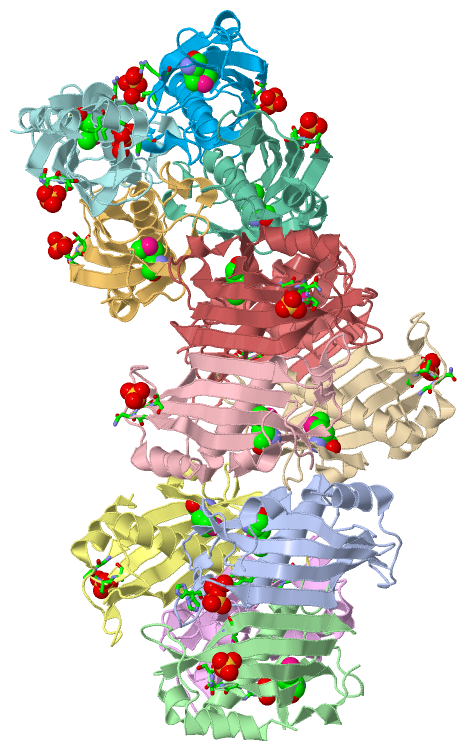

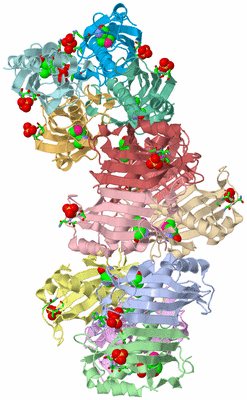

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

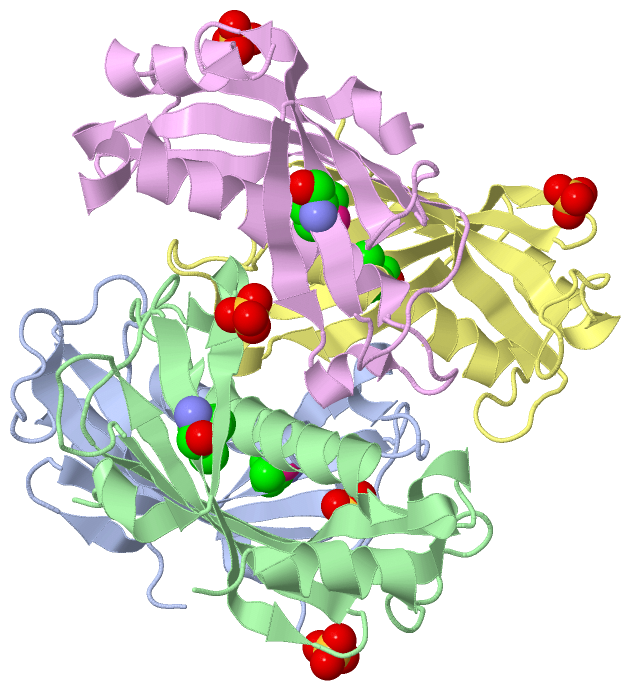

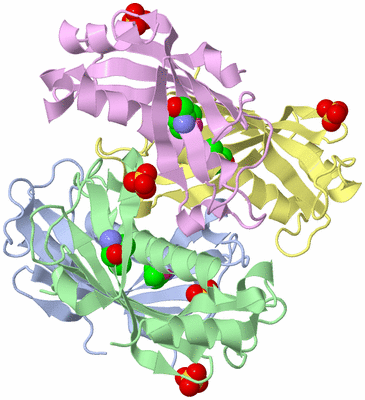

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

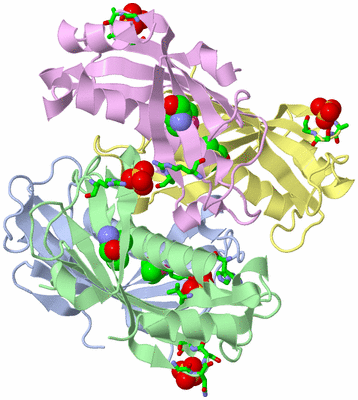

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

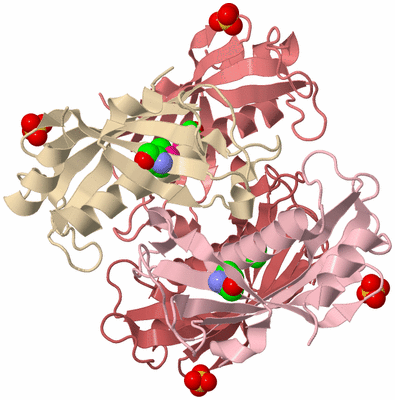

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

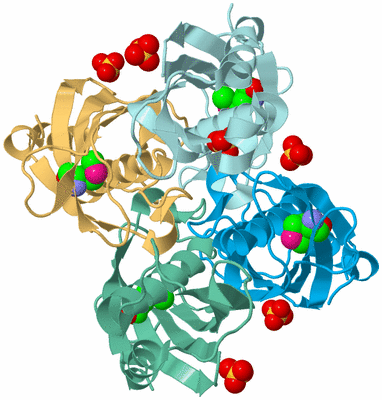

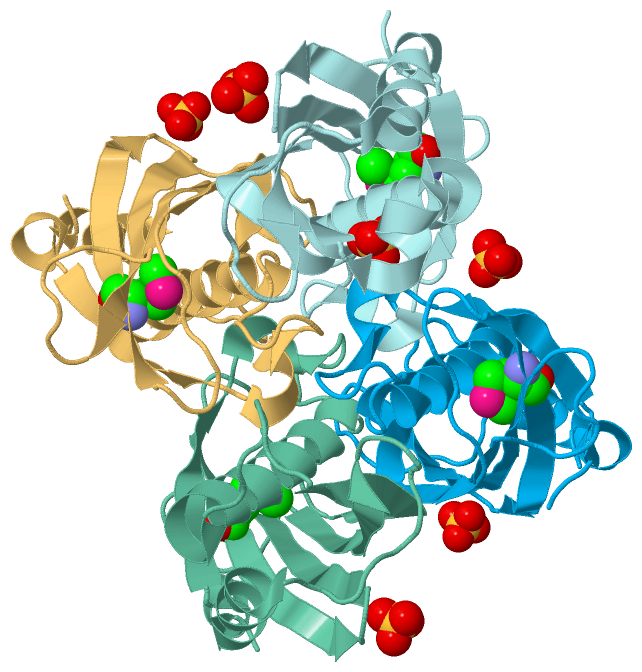

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE PA5185 PROTEIN FROM PSEUDOMONAS AERUGINOSA STRAIN PAO1.

Authors :  M. Chruszcz, S. Wang, M. Cymborowski, M. Kudritska, E. Evdokimova, A. E A. Savchenko, A. Joachimiak, W. Minor, Midwest Center For Structu Genomics (Mcsg)
Date :  29 Aug 05  (Deposition) - 18 Oct 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H,I,J,K,L
Biol. Unit 1:  A,B,D,E  (1x)
Biol. Unit 2:  C,H,I,K  (1x)
Biol. Unit 3:  F,G,J,L  (1x)
Keywords :  Thioesterase, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Chruszcz, M. D. Zimmerman, S. Wang, K. D. Koclega, H. Zheng, E. Evdokimova, M. Kudritska, M. Cymborowski, A. Savchenko, A. Edwards, W. Minor
Function-Biased Choice Of Additives For Optimization Of Protein Crystallization - The Case Of The Putative Thioesterase Pa5185 From Pseudomonas Aeruginosa Pao1.
Cryst. Growth Des. V. 8 4054 2008
PubMed-ID: 19898606  |  Reference-DOI: 10.1021/CG800430F

(-) Compounds

Molecule 1 - THIOESTERASE
    Chains: A, B, C, D, E, F, G, H, I, J, K, L
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET15B
    Expression System Strain: BL21-GOLD (DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 208964
    Strain: PAO1

 Structural Features

(-) Chains, Units

  123456789101112
Asymmetric Unit : ABCDEFGHIJKL
Biological Unit 1 (1x): AB DE
Biological Unit 2 (1x):   C    HI K
Biological Unit 3 (1x):      FG  J L

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 27)

Asymmetric Unit (2, 27)
No.NameCountTypeFull Name
1MSE12Mod. Amino AcidSELENOMETHIONINE
2SO415Ligand/IonSULFATE ION
Biological Unit 1 (2, 9)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2SO45Ligand/IonSULFATE ION
Biological Unit 2 (2, 8)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2SO44Ligand/IonSULFATE ION
Biological Unit 3 (2, 10)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2SO46Ligand/IonSULFATE ION

(-) Sites  (15, 15)

Asymmetric Unit (15, 15)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREARG B:81 , SER E:19 , ARG E:81BINDING SITE FOR RESIDUE SO4 B 148
02AC2SOFTWAREGLY B:92 , ASN B:93 , SER B:94 , SER B:95BINDING SITE FOR RESIDUE SO4 B 149
03AC3SOFTWAREGLY C:92 , ASN C:93 , SER C:94 , SER C:95BINDING SITE FOR RESIDUE SO4 C 148
04AC4SOFTWAREGLY D:92 , ASN D:93 , SER D:94 , SER D:95BINDING SITE FOR RESIDUE SO4 D 148
05AC5SOFTWAREGLY E:92 , ASN E:93 , SER E:94 , SER E:95BINDING SITE FOR RESIDUE SO4 E 148
06AC6SOFTWAREGLY F:92 , ASN F:93 , SER F:94 , SER F:95BINDING SITE FOR RESIDUE SO4 F 148
07AC7SOFTWAREGLY G:92 , ASN G:93 , SER G:94 , SER G:95BINDING SITE FOR RESIDUE SO4 G 148
08AC8SOFTWAREASN H:93 , SER H:94 , SER H:95BINDING SITE FOR RESIDUE SO4 H 148
09AC9SOFTWAREGLY I:92 , ASN I:93 , SER I:94 , SER I:95BINDING SITE FOR RESIDUE SO4 I 148
10BC1SOFTWAREGLY J:92 , ASN J:93 , SER J:94 , SER J:95BINDING SITE FOR RESIDUE SO4 J 148
11BC2SOFTWAREGLY K:92 , ASN K:93 , SER K:94 , SER K:95BINDING SITE FOR RESIDUE SO4 K 148
12BC3SOFTWAREGLY L:92 , ASN L:93 , SER L:94 , SER L:95BINDING SITE FOR RESIDUE SO4 L 148
13BC4SOFTWAREASN F:45 , LEU F:48 , ILE F:49 , ILE F:56 , HOH F:151 , TRP J:22BINDING SITE FOR RESIDUE SO4 F 149
14BC5SOFTWAREHIS A:30 , TYR A:36 , HOH A:150 , HOH A:157 , VAL B:65BINDING SITE FOR RESIDUE SO4 A 148
15BC6SOFTWARESER F:19 , ARG F:81 , SER J:19 , ARG J:81 , HOH J:158BINDING SITE FOR RESIDUE SO4 F 150

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AV9)

(-) Cis Peptide Bonds  (12, 12)

Asymmetric Unit
No.Residues
1Phe A:78 -Pro A:79
2Phe B:78 -Pro B:79
3Phe C:78 -Pro C:79
4Phe D:78 -Pro D:79
5Phe E:78 -Pro E:79
6Phe F:78 -Pro F:79
7Phe G:78 -Pro G:79
8Phe H:78 -Pro H:79
9Phe I:78 -Pro I:79
10Phe J:78 -Pro J:79
11Phe K:78 -Pro K:79
12Phe L:78 -Pro L:79

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AV9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AV9)

(-) Exons   (0, 0)

(no "Exon" information available for 2AV9)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:142
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:142
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144
         Q9HU04_PSEAE     5 PRPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQSSA 146
               SCOP domains d2av9a1 A:5-146 Hypothetical thioesterase PA5185                                                                                               SCOP domains
               CATH domains 2av9A00 A:5-146  [code=3.10.129.10, no name defined]                                                                                           CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhh.eeeeee.hhhhh........hhhhhhhhhhhhhhhhhh.........eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 A   5 PRPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQSSA 146
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144
                                                                                                          84-MSE


Chain B from PDB  Type:PROTEIN  Length:139
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:139
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
         Q9HU04_PSEAE     6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
               SCOP domains d2av9b_ B: automated matches                                                                                                                SCOP domains
               CATH domains 2av9B00 B:6-144  [code=3.10.129.10, no name defined]                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh.eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeee........eeeeeeeeeee.........hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 B   6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
                                                                                                         84-MSE


Chain C from PDB  Type:PROTEIN  Length:139
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:139
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
         Q9HU04_PSEAE     6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
               SCOP domains d2av9c_ C: automated matches                                                                                                                SCOP domains
               CATH domains 2av9C00 C:6-144  [code=3.10.129.10, no name defined]                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh.eeeeee.hhhhh........hhhhhhhhhhhhhhhhhh.........eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 C   6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
                                                                                                         84-MSE


Chain D from PDB  Type:PROTEIN  Length:142
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:142
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142
         Q9HU04_PSEAE     3 TAPRPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
               SCOP domains d2av9d_ D: automated matches                                                                                                                   SCOP domains
               CATH domains 2av9D00 D:3-144  [code=3.10.129.10, no name defined]                                                                                           CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhh.eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhh........eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 D   3 TAPRPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
                                    12        22        32        42        52        62        72        82 |      92       102       112       122       132       142
                                                                                                            84-MSE


Chain E from PDB  Type:PROTEIN  Length:137
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:137
                                    16        26        36        46        56        66        76        86        96       106       116       126       136
         Q9HU04_PSEAE     7 PLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
               SCOP domains d2av9e_ E: automated matches                                                                                                              SCOP domains
               CATH domains 2av9E00 E:7-143  [code=3.10.129.10, no name defined]                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhh.eeeeee.hhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 E   7 PLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
                                    16        26        36        46        56        66        76       |86        96       106       116       126       136
                                                                                                        84-MSE


Chain F from PDB  Type:PROTEIN  Length:139
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:139
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
         Q9HU04_PSEAE     6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
               SCOP domains d2av9f_ F: automated matches                                                                                                                SCOP domains
               CATH domains 2av9F00 F:6-144  [code=3.10.129.10, no name defined]                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh.eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 F   6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
                                                                                                         84-MSE


Chain G from PDB  Type:PROTEIN  Length:136
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:136
                                    17        27        37        47        57        67        77        87        97       107       117       127       137
         Q9HU04_PSEAE     8 LREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
               SCOP domains d2av9g_ G: automated matches                                                                                                             SCOP domains
               CATH domains 2av9G00 G:8-143  [code=3.10.129.10, no name defined]                                                                                     CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhh.eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhhh.......eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 G   8 LREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
                                    17        27        37        47        57        67        77      | 87        97       107       117       127       137
                                                                                                       84-MSE


Chain H from PDB  Type:PROTEIN  Length:139
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:139
                                    14        24        34        44        54        64        74        84        94       104       114       124       134
         Q9HU04_PSEAE     5 PRPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
               SCOP domains d2av9h_ H: automated matches                                                                                                                SCOP domains
               CATH domains 2av9H00 H:5-143  [code=3.10.129.10, no name defined]                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhh.eeeee..hhhhh........hhhhhhhhhhhhhhhhhh.........eeeeeeeeeeee.........eeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 H   5 PRPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
                                    14        24        34        44        54        64        74        84        94       104       114       124       134
                                                                                                          84-MSE


Chain I from PDB  Type:PROTEIN  Length:139
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:139
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
         Q9HU04_PSEAE     6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
               SCOP domains d2av9i_ I: automated matches                                                                                                                SCOP domains
               CATH domains 2av9I00 I:6-144  [code=3.10.129.10, no name defined]                                                                                        CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh.eeeee..hhhhh......hhhhhhhhhhhhhhhhhhhhh........eeeeeeeeeeee.........eeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 I   6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQS 144
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
                                                                                                         84-MSE


Chain J from PDB  Type:PROTEIN  Length:138
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:138
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
         Q9HU04_PSEAE     6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
               SCOP domains d2av9j_ J: automated matches                                                                                                               SCOP domains
               CATH domains 2av9J00 J:6-143  [code=3.10.129.10, no name defined]                                                                                       CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhh.eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhh........eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeee........eeeeeeeeeee.........hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2av9 J   6 RPLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
                                    15        25        35        45        55        65        75        85        95       105       115       125       135
                                                                                                         84-MSE


Chain K from PDB  Type:PROTEIN  Length:137
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:137
                                    16        26        36        46        56        66        76        86        96       106       116       126       136
         Q9HU04_PSEAE     7 PLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
               SCOP domains d2av9k_ K: automated matches                                                                                                              SCOP domains
               CATH domains 2av9K00 K:7-143  [code=3.10.129.10, no name defined]                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhh.eeeee..hhhhh........hhhhhhhhhhhhhhhhhhhh.......eeeeeeeeeeee.........eeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 K   7 PLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
                                    16        26        36        46        56        66        76       |86        96       106       116       126       136
                                                                                                        84-MSE


Chain L from PDB  Type:PROTEIN  Length:137
 aligned with Q9HU04_PSEAE | Q9HU04 from UniProtKB/TrEMBL  Length:147

    Alignment length:137
                                    16        26        36        46        56        66        76        86        96       106       116       126       136
         Q9HU04_PSEAE     7 PLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEMGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
               SCOP domains d2av9l_ L: automated matches                                                                                                              SCOP domains
               CATH domains 2av9L00 L:7-143  [code=3.10.129.10, no name defined]                                                                                      CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhh.eeeeee.hhhhh........hhhhhhhhhhhhhhhhhhh........eeeeeeeeeeee........eeeeeeeeeee...eeeeeeeeee.......eeeeeeeeeee.........hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2av9 L   7 PLREQYLHFQPISTRWHDNDIYGHVNNVTYYAFFDTAVNTYLIERGGLDIQGGEVIGLVVSSSCDYFAPVAFPQRIEmGLRVARLGNSSVQYELALFLEGQREACAAGRFVHVFVERRSSRPVAIPQELRDALAALQ 143
                                    16        26        36        46        56        66        76       |86        96       106       116       126       136
                                                                                                        84-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 12)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 12)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AV9)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2AV9)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Phe A:78 - Pro A:79   [ RasMol ]
    Phe B:78 - Pro B:79   [ RasMol ]
    Phe C:78 - Pro C:79   [ RasMol ]
    Phe D:78 - Pro D:79   [ RasMol ]
    Phe E:78 - Pro E:79   [ RasMol ]
    Phe F:78 - Pro F:79   [ RasMol ]
    Phe G:78 - Pro G:79   [ RasMol ]
    Phe H:78 - Pro H:79   [ RasMol ]
    Phe I:78 - Pro I:79   [ RasMol ]
    Phe J:78 - Pro J:79   [ RasMol ]
    Phe K:78 - Pro K:79   [ RasMol ]
    Phe L:78 - Pro L:79   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2av9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q9HU04_PSEAE | Q9HU04
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q9HU04_PSEAE | Q9HU04
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q9HU04_PSEAE | Q9HU04: 2o5u 2o6b 2o6t 2o6u

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2AV9)
