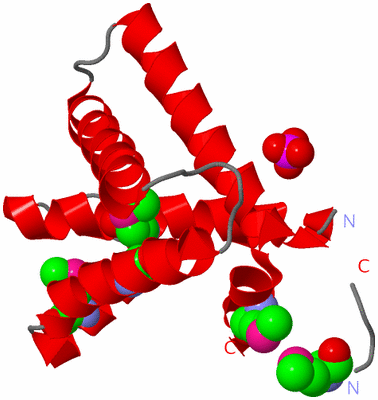

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF A CONSERVED DOMAIN FROM LOCUS EF2947 FROM ENTEROCOCCUS FAECALIS V583

Authors :  M. E. Cuff, S. Moy, R. Mulligan, A. Joachimiak, Midwest Center For St Genomics (Mcsg)
Date :  26 Aug 05  (Deposition) - 11 Oct 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.10
Chains :  Asym./Biol. Unit :  A
Keywords :  Enterococcus Faecalis, Structural Genomics, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. E. Cuff, S. Moy, R. Mulligan, A. Joachimiak
Structure Of A Conserved Domain From Locus Ef2947 From Enterococcus Faecalis V583
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - CONSERVED DOMAIN PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: EF2947
    Organism Scientific: ENTEROCOCCUS FAECALIS
    Organism Taxid: 226185
    Strain: V583

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 6)

Asymmetric/Biological Unit (2, 6)
No.NameCountTypeFull Name
1MSE5Mod. Amino AcidSELENOMETHIONINE
2PO41Ligand/IonPHOSPHATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPHE A:12 , GLU A:15 , GLU A:49 , HOH A:209 , HOH A:217BINDING SITE FOR RESIDUE PO4 A 201

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AU5)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AU5)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AU5)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AU5)

(-) Exons   (0, 0)

(no "Exon" information available for 2AU5)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:129
 aligned with Q82ZV0_ENTFA | Q82ZV0 from UniProtKB/TrEMBL  Length:136

    Alignment length:133
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129
         Q82ZV0_ENTFA     - -MLILSTEKEPNFEYEEITRSFLSNMLAFTRGHFTGDISHFSPIVLAEMEKDPNWLEEAAGGMQGVIVQSLLEDENFSSVEQLKGELARLIRLYFALAKDNLTENQESLYVDLFDKFTFLLLCSDEFIMYLDS 132
               SCOP domains -d2au5    a1 A:1-132 Hypothetical protein EF2947                                                                                      SCOP domains
               CATH domains 2au5A0    0 A:0-132 EF2947-like domains                                                                                               CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......----.hhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2au5 A   0 AmLILS----PNFEYEEITRSFLSNmLAFTRGHFTGDISHFSPIVLAEmEKDPNWLEEAAGGmQGVIVQSLLEDENFSSVEQLKGELARLIRLYFALAKDNLTENQESLYVDLFDKFTFLLLCSDEFImYLDS 132
                             |   |   -|       19     |  29        39        49        59  |     69        79        89        99       109       119       129
                             |   5   10             25-MSE                 48-MSE        62-MSE                                                           128-MSE
                             1-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AU5)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2AU5)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2au5)


(-) Still Images

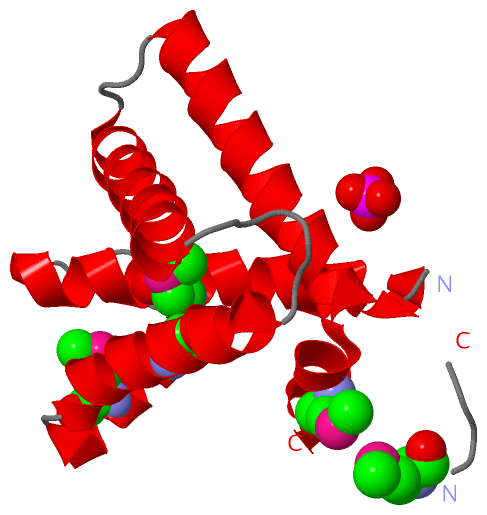

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

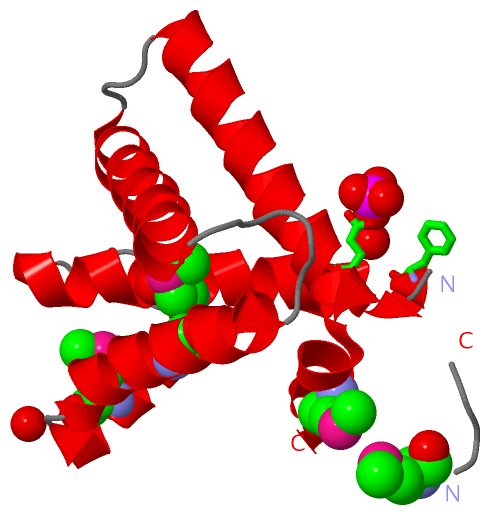

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
