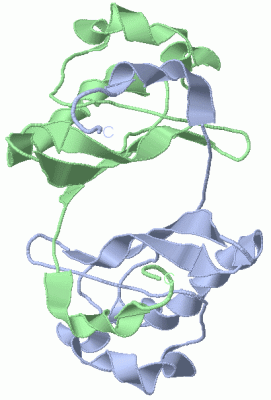

Image NMR Structure - manually
NMR Structure - manually  (Jmol Viewer)

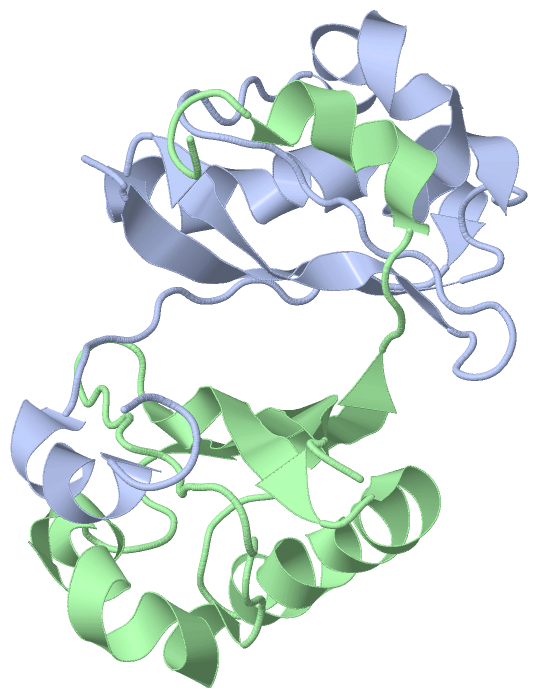

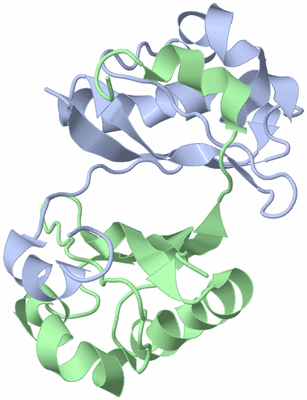

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

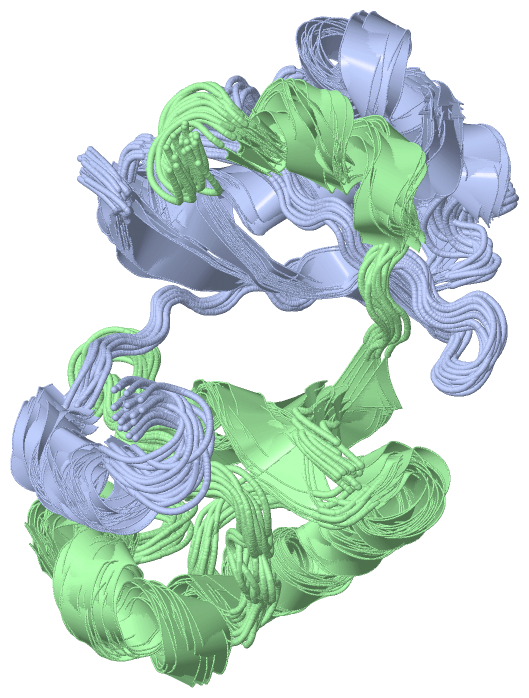

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF YDHR PROTEIN FROM ESCHERICHIA COLI

Authors :  M. Revington, A. Semesi, A. Yee, G. S. Shaw, Ontario Centre For Structural Proteomics (Ocsp)
Date :  24 Aug 05  (Deposition) - 15 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A,B  (20x)
Keywords :  Dimeric Apha+Beta Barrel, Homodimer, Structural Genomics, Ontario Centre For Structural Proteomics, Ocsp, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Revington, A. Semesi, A. Yee, G. S. Shaw
Solution Structure Of The Escherichia Coli Protein Ydhr: A Putative Mono-Oxygenase.
Protein Sci. V. 14 3115 2005
PubMed-ID: 16260765  |  Reference-DOI: 10.1110/PS.051809305
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PROTEIN YDHR PRECURSOR
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21
    Expression System Plasmid: PET15B
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: YDHR
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562

 Structural Features

(-) Chains, Units


NMR Structure (20x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2ASY)

(-) Sites  (0, 0)

(no "Site" information available for 2ASY)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2ASY)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2ASY)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2ASY)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2ASY)

(-) Exons   (0, 0)

(no "Exon" information available for 2ASY)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:101
 aligned with YDHR_ECOLI | P0ACX3 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
           YDHR_ECOLI     1 MATLLQLHFAFNGPFGDAMAEQLKPLAESINQEPGFLWKVWTESEKNHEAGGIYLFTDEKSALAYLEKHTARLKNLGVEEVVAKVFDVNEPLSQINQAKLA 101
               SCOP domains d2asya1 A:1-101 Hypothetical protein YdhR                                                             SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....hhhhhhhhhhhhhhhh.................eeeeeeee.hhhhhhhhhhhhhhhhhhhh...........hhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 2asy A   1 MATLLQLHFAFNGPFGDAMAEQLKPLAESINQEPGFLWKVWTESEKNHEAGGIYLFTDEKSALAYLEKHTARLKNLGVEEVVAKVFDVNEPLSQINQAKLA 101
                                    10        20        30        40        50        60        70        80        90       100


Chain A from PDB  Type:PROTEIN  Length:101
 aligned with YDHR_SHIFL | P0ACX4 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
           YDHR_SHIFL     1 MATLLQLHFAFNGPFGDAMAEQLKPLAESINQEPGFLWKVWTESEKNHEAGGIYLFTDEKSALAYLEKHTARLKNLGVEEVVAKVFDVNEPLSQINQAKLA 101
               SCOP domains d2asya1 A:1-101 Hypothetical protein YdhR                                                             SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....hhhhhhhhhhhhhhhh.................eeeeeeee.hhhhhhhhhhhhhhhhhhhh...........hhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 2asy A   1 MATLLQLHFAFNGPFGDAMAEQLKPLAESINQEPGFLWKVWTESEKNHEAGGIYLFTDEKSALAYLEKHTARLKNLGVEEVVAKVFDVNEPLSQINQAKLA 101
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:101
 aligned with YDHR_ECOLI | P0ACX3 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
           YDHR_ECOLI     1 MATLLQLHFAFNGPFGDAMAEQLKPLAESINQEPGFLWKVWTESEKNHEAGGIYLFTDEKSALAYLEKHTARLKNLGVEEVVAKVFDVNEPLSQINQAKLA 101
               SCOP domains d2asyb_ B: Hypothetical protein YdhR                                                                  SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....hhhhhhhhhhhhhhhh.................eeeeeeee.hhhhhhhhhhhhhhhhh.......eeee...hhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 2asy B   1 MATLLQLHFAFNGPFGDAMAEQLKPLAESINQEPGFLWKVWTESEKNHEAGGIYLFTDEKSALAYLEKHTARLKNLGVEEVVAKVFDVNEPLSQINQAKLA 101
                                    10        20        30        40        50        60        70        80        90       100


Chain B from PDB  Type:PROTEIN  Length:101
 aligned with YDHR_SHIFL | P0ACX4 from UniProtKB/Swiss-Prot  Length:101

    Alignment length:101
                                    10        20        30        40        50        60        70        80        90       100
           YDHR_SHIFL     1 MATLLQLHFAFNGPFGDAMAEQLKPLAESINQEPGFLWKVWTESEKNHEAGGIYLFTDEKSALAYLEKHTARLKNLGVEEVVAKVFDVNEPLSQINQAKLA 101
               SCOP domains d2asyb_ B: Hypothetical protein YdhR                                                                  SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee.....hhhhhhhhhhhhhhhh.................eeeeeeee.hhhhhhhhhhhhhhhhh.......eeee...hhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 2asy B   1 MATLLQLHFAFNGPFGDAMAEQLKPLAESINQEPGFLWKVWTESEKNHEAGGIYLFTDEKSALAYLEKHTARLKNLGVEEVVAKVFDVNEPLSQINQAKLA 101
                                    10        20        30        40        50        60        70        80        90       100
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

NMR Structure
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2ASY)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2ASY)

(-) Gene Ontology  (4, 6)

NMR Structure(hide GO term definitions)
Chain A,B   (YDHR_SHIFL | P0ACX4)
molecular function
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

Chain A,B   (YDHR_ECOLI | P0ACX3)
molecular function
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
cellular component
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2asy)

  Sites
(no "Sites" information available for 2asy)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2asy)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2asy
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  YDHR_ECOLI | P0ACX3
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  YDHR_SHIFL | P0ACX4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  YDHR_ECOLI | P0ACX3
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  YDHR_SHIFL | P0ACX4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        YDHR_ECOLI | P0ACX3: 1wd6 2hiq

(-) Related Entries Specified in the PDB File

1wd6 X-RAY STRUCTURE OF SAME PROTEIN
