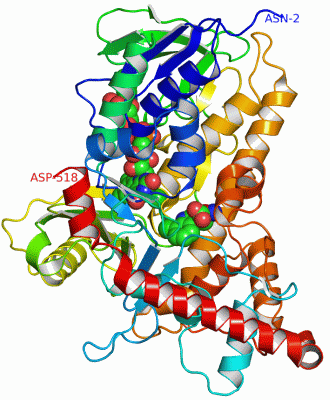

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

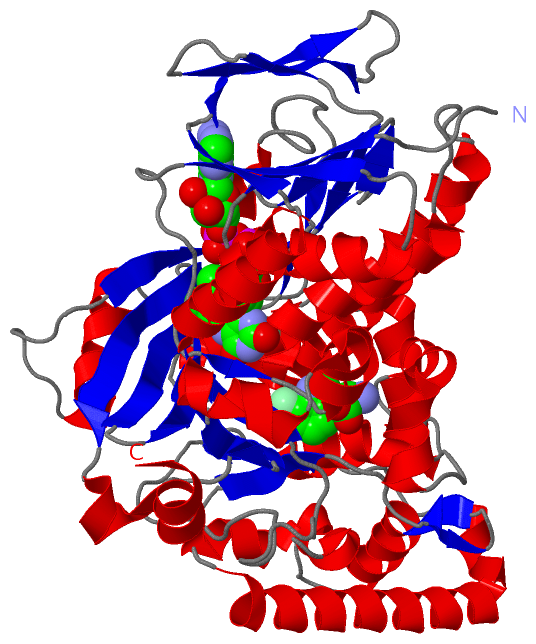

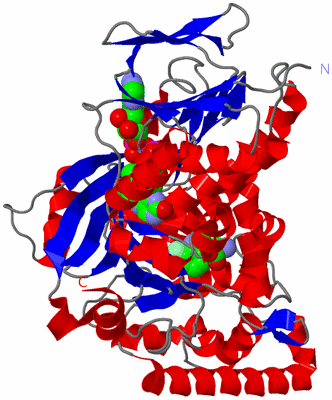

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

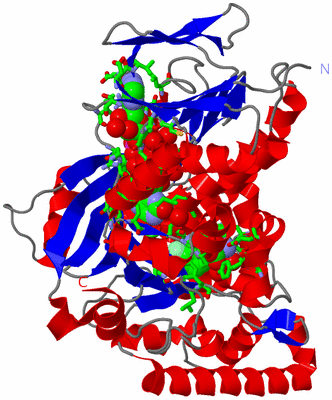

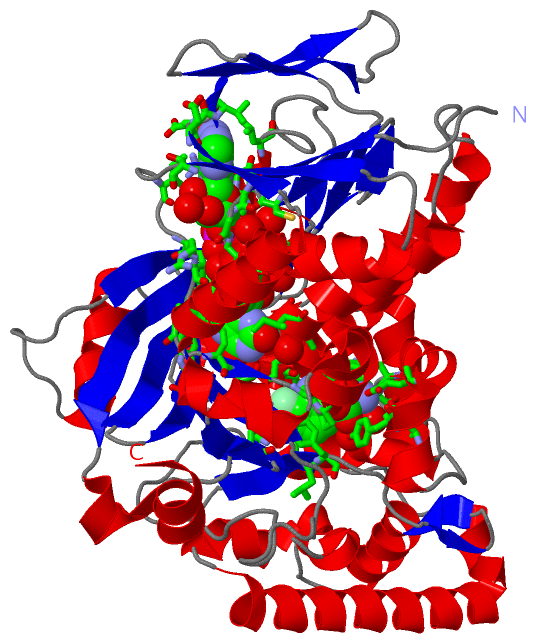

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

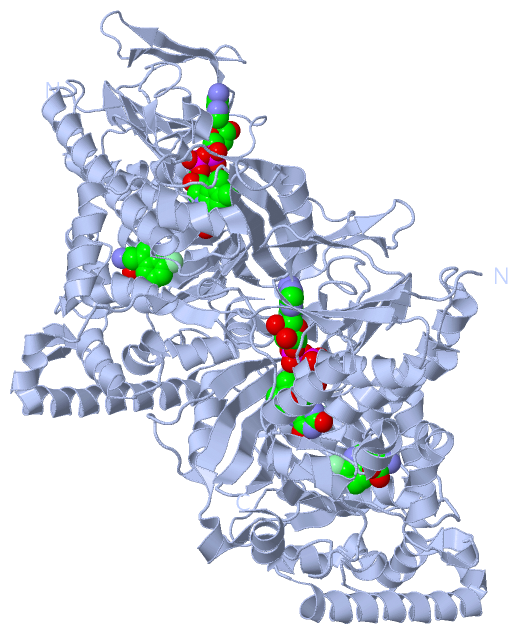

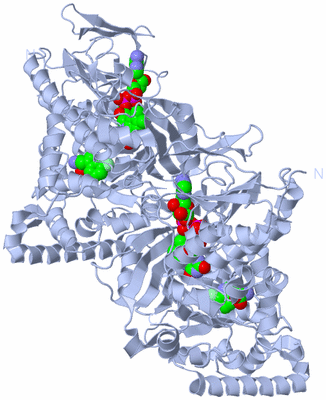

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

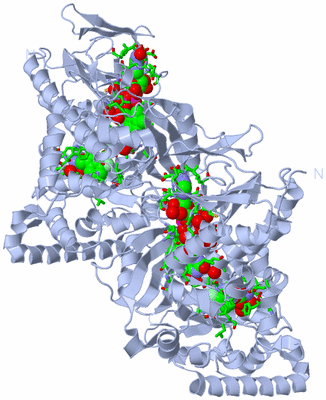

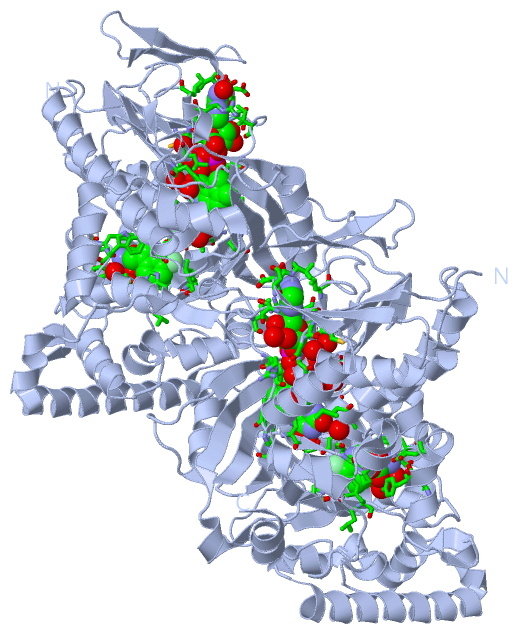

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF TRYPTOPHAN 7-HALOGENASE (PRNA)SUGGESTS A MECHANISM FOR REGIOSELECTIVE CHLORINATION

Authors :  C. Dong, S. Flecks, S. Unversucht, C. Haupt, K. H. Van Pee, J. H. Naismit Scottish Structural Proteomics Facility (Sspf)
Date :  19 Aug 05  (Deposition) - 04 Oct 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Keywords :  Tryptophan 7-Halogenase, Flavin-Dependent Halogenase, Helical Bundle, Sandwiched Sheets, Structural Genomics, Scottish Structural Proteomics Facility, Sspf, Biosynthetic Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Dong, S. Flecks, S. Unversucht, C. Haupt, K. H. Van Pee, J. H. Naismith
Tryptophan 7-Halogenase (Prna) Structure Suggests A Mechanism For Regioselective Chlorination.
Science V. 309 2216 2005
PubMed-ID: 16195462  |  Reference-DOI: 10.1126/SCIENCE.1116510
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TRYPTOPHAN HALOGENASE PRNA
    Chains: A
    Engineered: YES
    Expression System: PSEUDOMONAS FLUORESCENS
    Expression System Plasmid: PPEH14
    Expression System Strain: PSEUDOMONAS FLUORESCENS BL915
    Expression System Taxid: 294
    Expression System Vector Type: PLASMID
    Gene: PRNA
    Organism Scientific: PSEUDOMONAS FLUORESCENS
    Organism Taxid: 294

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 3)

Asymmetric Unit (3, 3)
No.NameCountTypeFull Name
1CL1Ligand/IonCHLORIDE ION
2CTE1Ligand/Ion7-CHLOROTRYPTOPHAN
3FAD1Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE
Biological Unit 1 (2, 4)
No.NameCountTypeFull Name
1CL-1Ligand/IonCHLORIDE ION
2CTE2Ligand/Ion7-CHLOROTRYPTOPHAN
3FAD2Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREPRO A:344 , SER A:347 , THR A:348 , GLY A:349 , FAD A:600BINDING SITE FOR RESIDUE CL A 700
2AC2SOFTWAREILE A:52 , PRO A:53 , LYS A:79 , ILE A:82 , HIS A:101 , LEU A:102 , PHE A:103 , GLU A:346 , SER A:347 , TYR A:443 , TYR A:444 , GLU A:450 , PHE A:454 , TRP A:455 , ASN A:459 , HOH A:730 , HOH A:774 , HOH A:834BINDING SITE FOR RESIDUE CTE A 650
3AC3SOFTWAREGLY A:12 , GLY A:13 , GLY A:14 , THR A:15 , ALA A:16 , SER A:39 , ILE A:42 , ARG A:44 , ILE A:45 , VAL A:47 , GLU A:49 , ALA A:50 , ASP A:185 , GLU A:186 , VAL A:187 , CYS A:217 , SER A:218 , GLY A:219 , ARG A:221 , LEU A:223 , TRP A:274 , GLY A:336 , LEU A:337 , PHE A:341 , PRO A:344 , GLY A:349 , ILE A:350 , CL A:700 , HOH A:703 , HOH A:707 , HOH A:729 , HOH A:758 , HOH A:783 , HOH A:789 , HOH A:865 , HOH A:887 , HOH A:900 , HOH A:905BINDING SITE FOR RESIDUE FAD A 600

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AR8)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AR8)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AR8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AR8)

(-) Exons   (0, 0)

(no "Exon" information available for 2AR8)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:517
 aligned with PRNA_PSEFL | P95480 from UniProtKB/Swiss-Prot  Length:538

    Alignment length:517
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511
           PRNA_PSEFL     2 NKPIKNIVIVGGGTAGWMAASYLVRALQQQANITLIESAAIPRIGVGEATIPSLQKVFFDFLGIPEREWMPQVNGAFKAAIKFVNWRKSPDPSRDDHFYHLFGNVPNCDGVPLTHYWLRKREQGFQQPMEYACYPQPGALDGKLAPCLSDGTRQMSHAWHFDAHLVADFLKRWAVERGVNRVVDEVVDVRLNNRGYISNLLTKEGRTLEADLFIDCSGMRGLLINQALKEPFIDMSDYLLCDSAVASAVPNDDARDGVEPYTSSIAMNSGWTWKIPMLGRFGSGYVFSSHFTSRDQATADFLKLWGLSDNQPLNQIKFRVGRNKRAWVNNCVSIGLSSCFLEPLESTGIYFIYAALYQLVKHFPDTSFDPRLSDAFNAEIVHMFDDCRDFVQAHYFTTSRDDTPFWLANRHDLRLSDAIKEKVQRYKAGLPLTTTSFDDSTYYETFDYEFKNFWLNGNYYCIFAGLGMLPDRSLPLLQHRPESIEKAEAMFASIRREAERLRTSLPTNYDYLRSLRD 518
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeee..hhhhhhhhhhhhhhh....eeeeee..........ee..hhhhhhhhhhhh.hhhhhhhhhh.eee.eeeee............eeeee.....ee..eehhhhhhhhhhh....hhhhhhh.hhhhhhh...............eeeehhhhhhhhhhhhhhhh..eeee..eeeeee.....eeeeee....ee...eeee.hhhhh..........eee........eeeeeeee.hhhhhh....eeeee...eeeeeeee..eeeeeeee.....hhhhhhhhhhhhh........eeee...eee...ee..eee.hhh.ee.hhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhh...hhhhhhhhhhhhhh........hhhhhhhhhhhhhhh..hhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ar8 A   2 NKPIKNIVIVGGGTAGWMAASYLVRALQQQANITLIESAAIPRIGVGEATIPSLQKVFFDFLGIPEREWMPQVNGAFKAAIKFVNWRKSPDPSRDDHFYHLFGNVPNCDGVPLTHYWLRKREQGFQQPMEYACYPQPGALDGKLAPCLSDGTRQMSHAWHFDAHLVADFLKRWAVERGVNRVVDEVVDVRLNNRGYISNLLTKEGRTLEADLFIDCSGMRGLLINQALKEPFIDMSDYLLCDSAVASAVPNDDARDGVEPYTSSIAMNSGWTWKIPMLGRFGSGYVFSSHFTSRDQATADFLKLWGLSDNQPLNQIKFRVGRNKRAWVNNCVSIGLSSCFLEPLESTGIYFIYAALYQLVKHFPDTSFDPRLSDAFNAEIVHMFDDCRDFVQAHYFTTSRDDTPFWLANRHDLRLSDAIKEKVQRYKAGLPLTTTSFDDSTYYETFDYEFKNFWLNGNYYCIFAGLGMLPDRSLPLLQHRPESIEKAEAMFASIRREAERLRTSLPTNYDYLRSLRD 518
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391       401       411       421       431       441       451       461       471       481       491       501       511
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2AR8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2AR8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AR8)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A   (PRNA_PSEFL | P95480)
molecular function
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
    GO:0017000    antibiotic biosynthetic process    The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CTE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FAD  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ar8)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2ar8
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PRNA_PSEFL | P95480
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PRNA_PSEFL | P95480
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PRNA_PSEFL | P95480: 2apg 2aqj 2ard 2jkc 4z43 4z44

(-) Related Entries Specified in the PDB File

2apg THE SAME PROTEIN IN COMPLEX WITH 7-CHLOROTRYPTOPHAN
2aqj THE SAME PROTEIN BUT IN COMPLEX WITH PRODUCT
