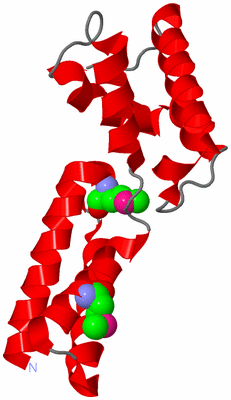

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PROTEIN PG0816 FROM PORPHYROMONAS GINGIVALIS

Authors :  C. Chang, P. Quartey, S. Moy, F. Collart, A. Joachimiak, Midwest Cente Structural Genomics (Mcsg)
Date :  16 Aug 05  (Deposition) - 27 Sep 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.01
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Porphyromonas Gingivalis, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Chang, P. Quartey, S. Moy, F. Collart, A. Joachimiak
Crystal Structure Of Protein Pg0816 From Porphyromonas Gingivalis
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN PG0816
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: PORPHYROMONAS GINGIVALIS
    Organism Taxid: 242619
    Strain: W83

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1MSE2Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2APL)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2APL)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ser A:92 -Pro A:93

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2APL)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2APL)

(-) Exons   (0, 0)

(no "Exon" information available for 2APL)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:149
 aligned with Q7MW33_PORGI | Q7MW33 from UniProtKB/TrEMBL  Length:157

    Alignment length:149
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
         Q7MW33_PORGI     2 KSTEKKELSHFRLKLETYLNEHFPEMSGNNPFITARSDEALTAYCDAVAQGFSHPEAESMASEVLYQGLHFSRYDTLVSVLEREFEQELPSPLPERLAPILLKNKAIQSVFAKYDLTDDFEASPEYEHLYTELTGTIVLLIESNHLPTI 150
               SCOP domains d2apla1 A:2-150 Hypothetical protein PG0816                                                                                                           SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh....hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2apl A   2 KSTEKKELSHFRLKLETYLNEHFPEmSGNNPFITARSDEALTAYCDAVAQGFSHPEAESmASEVLYQGLHFSRYDTLVSVLEREFEQELPSPLPERLAPILLKNKAIQSVFAKYDLTDDFEASPEYEHLYTELTGTIVLLIESNHLPTI 150
                                    11        21     |  31        41        51        61        71        81        91       101       111       121       131       141
                                                    27-MSE                            61-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2APL)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2APL)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2APL)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2apl)

  Cis Peptide Bonds
    Ser A:92 - Pro A:93   [ RasMol ]

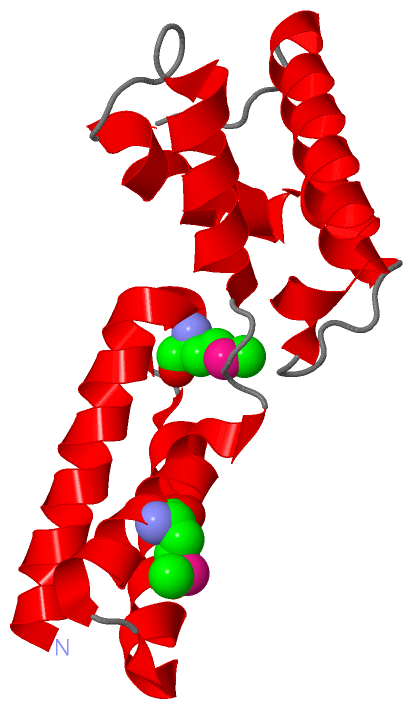

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
