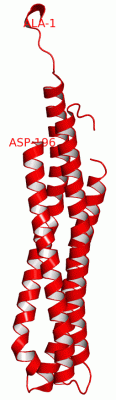

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

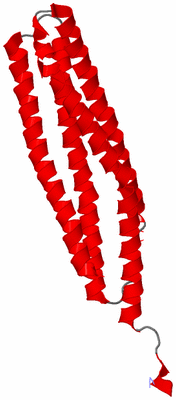

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  1.6 A CRYSTAL STRUCTURE OF A CONSERVED PROTEIN OF UNKNOWN FUNCTION FROM STAPHYLOCOCCUS AUREUS

Authors :  R. Zhang, M. Zhou, G. Joachimiak, O. Schneewind, A. Joachimiak, Midwes For Structural Genomics (Mcsg)
Date :  15 Aug 05  (Deposition) - 27 Sep 05  (Release) - 26 Nov 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Tetra Helix, Psi, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, M. Zhou, G. Joachimiak, O. Schneewind, A. Joachimiak
1. 6A Crystal Structure Of A Conserved Hypothetical Protein From Staphylococcus Aureus Mw2
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - CONSERVED HYPOTHETICAL PROTEIN
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PDM68
    Expression System Strain: BL21 (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: MW0975
    Organism Scientific: STAPHYLOCOCCUS AUREUS SUBSP. AUREUS
    Organism Taxid: 196620
    Strain: MW2

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2AP3)

(-) Sites  (0, 0)

(no "Site" information available for 2AP3)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AP3)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AP3)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AP3)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AP3)

(-) Exons   (0, 0)

(no "Exon" information available for 2AP3)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:192
 aligned with A0A0H3JVL5_S | A0A0H3JVL5 from UniProtKB/TrEMBL  Length:208

    Alignment length:201
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204
         A0A0H3JVL5_S     5 KTIAVVLASSVLLAGCTTDKKEIKAYLKQVDKIKDDEEPIKTVGKKIAELDEKKKKLTEDVNSKDTAVRGKAVKDLIKNADDRLKEFEKEEDAIKKSEQDFKKAKSHVDNIDNDVKRKEVKQLDDVLKEKYKLHSDYAKAYKKAVNSEKTLFKYLNQNDATQQGVNEKSKAIEQNYKKLKEVSDKYTKVLNKVGKEKQDVD 205
               SCOP domains -----------     d2ap3a1 A:12-196 Hypothetical protein MW0975 (SA0943)                                                                                                                                     SCOP domains
               CATH domains 2ap3A00 A:1     -196 MW0975(SA0943)-like                                                                                                                                                                  CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhh...hhh-----hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..----....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2ap3 A   1 AHMGIQRPTST-----TTDKKEIKAYLKQVDKIKDDEEPIKTVGKKIAELDEKKKKLTEDVNSKDTAVRGKAVKDLIKNADDRLKEFEKEEDAIKKSEQDFKKA----DNIDNDVKRKEVKQLDDVLKEKYKLHSDYAKAYKKAVNSEKTLFKYLNQNDATQQGVNEKSKAIEQNYKKLKEVSDKYTKVLNKVQKEKQDVD 196
                                    10|     | 15        25        35        45        55        65        75        85        95   |   105       115       125       135       145       155       165       175       185       195
                                     11    12                                                                                     99  104
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Mainly Alpha (13335)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AP3)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 2AP3)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2ap3)

  Sites
(no "Sites" information available for 2ap3)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2ap3)


(-) Still Images

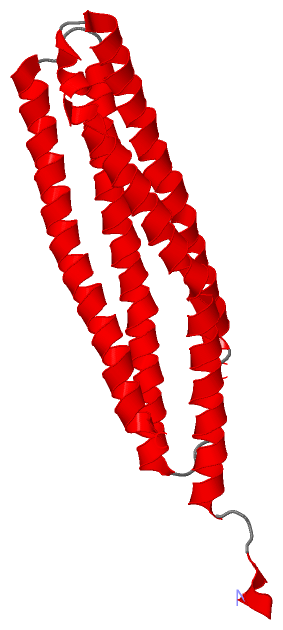

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
