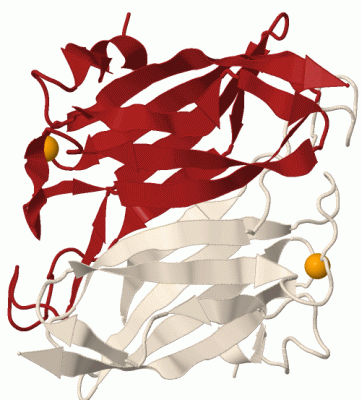

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

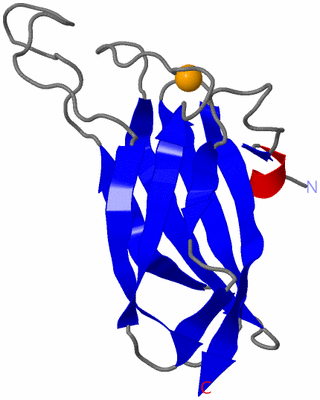

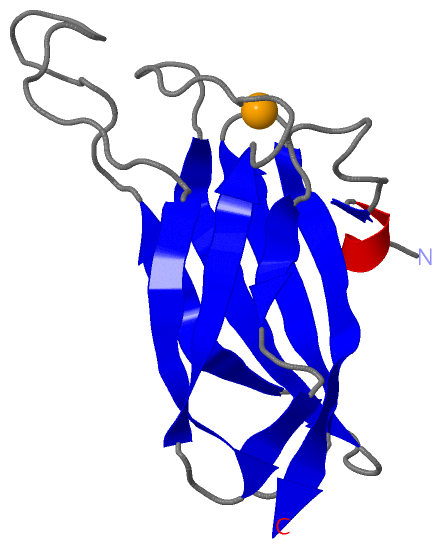

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

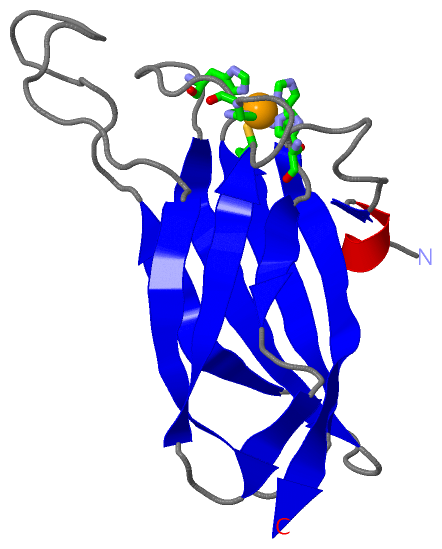

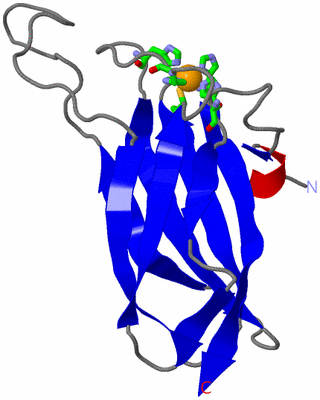

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

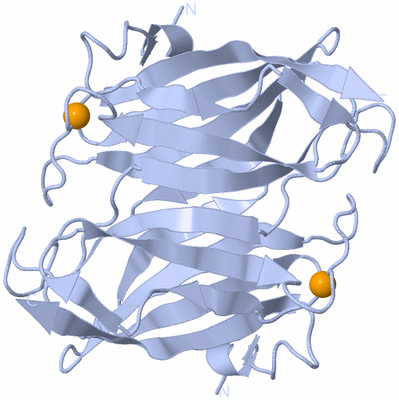

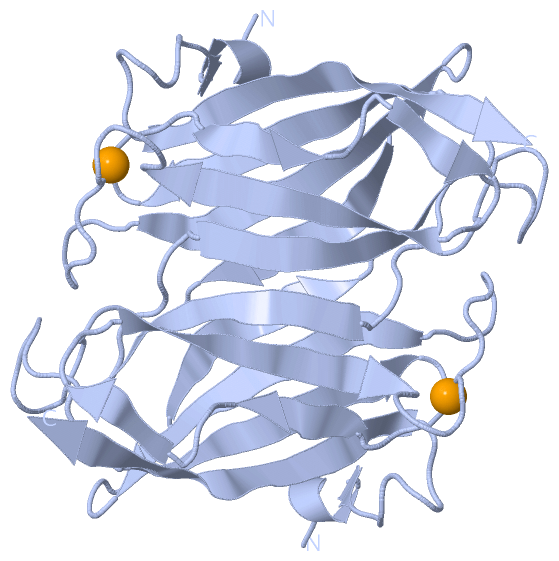

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

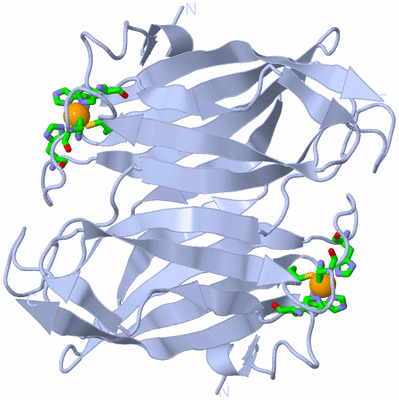

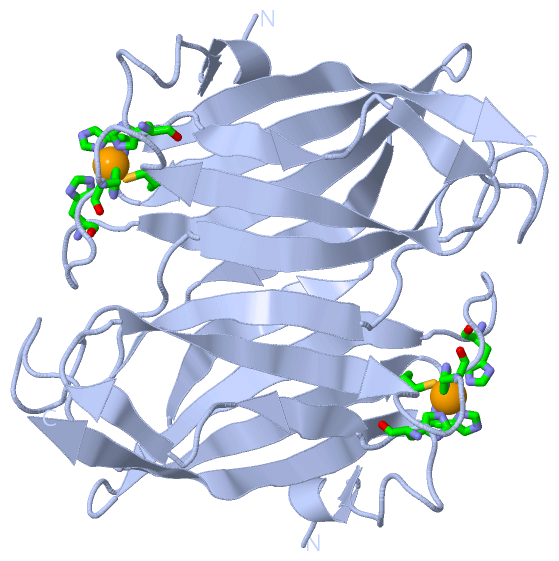

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

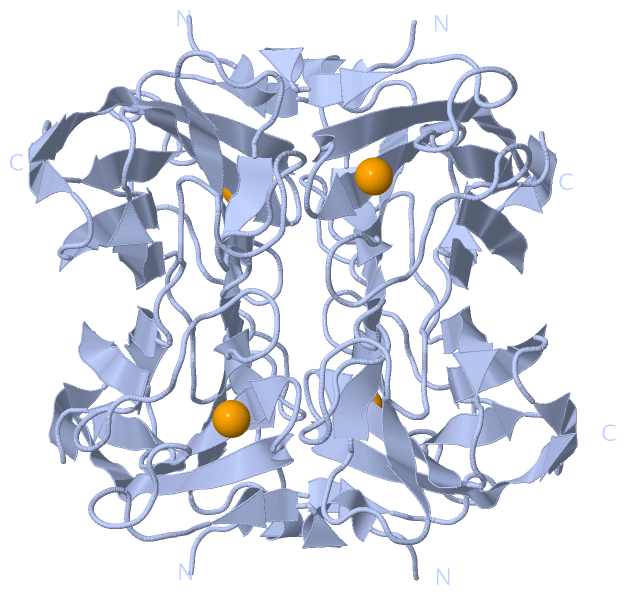

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PUTATIVE SUPEROXIDE REDUCTASE (TM0658) FROM THERMOTOGA MARITIMA AT 2.00 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  10 Aug 05  (Deposition) - 23 Aug 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  A  (4x)
Keywords :  Putative Superoxide Reductase, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi-2, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Joint Center For Structural Genomics (Jcsg)
Crystal Structure Of Putative Superoxide Reductase (Ec 1. 15. 1. 2) (Sor) (Tm0658) From Thermotoga Maritima At 2. 00 A Resolution
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PUTATIVE SUPEROXIDE REDUCTASE
    Chains: A
    EC Number: 1.15.1.2
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: HK100
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TM0658
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336
    Synonym: SOR

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A
Biological Unit 2 (4x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric Unit (1, 1)
No.NameCountTypeFull Name
1FE1Ligand/IonFE (III) ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1FE-1Ligand/IonFE (III) ION
Biological Unit 2 (0, 0)
No.NameCountTypeFull Name
1FE-1Ligand/IonFE (III) ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:17 , HIS A:45 , HIS A:51 , CYS A:115 , HIS A:118BINDING SITE FOR RESIDUE FE A 200

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AMU)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AMU)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AMU)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AMU)

(-) Exons   (0, 0)

(no "Exon" information available for 2AMU)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:132
 aligned with SOR_THEMA | Q9WZC6 from UniProtKB/Swiss-Prot  Length:131

    Alignment length:132
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129
            SOR_THEMA     - -MKLSDFIKTEDFKKEKHVPVIEAPEKVKKDEKVQIVVTVGKEIPHPNTTEHHIRWIKVFFQPDGDPYVYEVGRYEFNAHGESVQGPNIGAVYTEPTVTTVVKLNRSGTIIALSYCNIHGLWESSQKITVEE 131
               SCOP domains d2amua_ A: automated matches                                                                                                         SCOP domains
               CATH domains 2amuA00 A:0-131  [code=2.60.40.730, no name defined]                                                                                 CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhh.ee..........eeee...eee...eeeeeeee.............eeeeeeeeee......eeeeeee....................eeeeeee....eeeeeeeee...eeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2amu A   0 HMKLSDFIKTEDFKKEKHVPVIEAPEKVKKDEKVQIVVTVGKEIPHPNTTEHHIRWIKVFFQPDGDPYVYEVGRYEFNAHGESVQGPNIGAVYTEPTVTTVVKLNRSGTIIALSYCNIHGLWESSQKITVEE 131
                                     9        19        29        39        49        59        69        79        89        99       109       119       129
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AMU)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A   (SOR_THEMA | Q9WZC6)
molecular function
    GO:0005506    iron ion binding    Interacting selectively and non-covalently with iron (Fe) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0050605    superoxide reductase activity    Catalysis of the reaction: superoxide + reduced rubredoxin + 2 H+ = H2O2 + rubredoxin.
biological process
    GO:0098869    cellular oxidant detoxification    Any process carried out at the cellular level that reduces or removes the toxicity superoxide radicals or hydrogen peroxide.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
