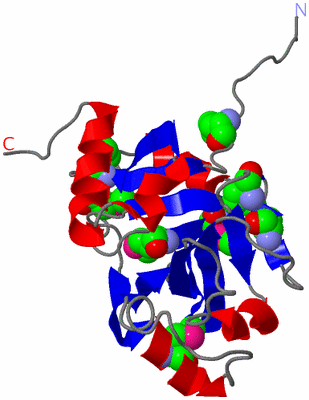

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  X-RAY CRYSTAL STRUCTURE OF PROTEIN VC0467 FROM VIBRIO CHOLERAE. NORTHEAST STRUCTURAL GENOMICS CONSORTIUM TARGET VCR8.

Authors :  A. P. Kuzin, M. Abashidze, S. M. Vorobiev, T. Acton, R. Xiao, K. Conover, L. -C. Ma, R. Kellie, G. T. Montelione, J. F. Hunt, L. Tong, Northeast Structural Genomics Consortium (Nesg)
Date :  01 Aug 05  (Deposition) - 20 Sep 05  (Release) - 09 Jun 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.21
Chains :  Asym./Biol. Unit :  A
Keywords :  X-Ray Structure, Nesg, Vcr8, Q9Kup8, Structural Genomics, Psi, Protein Structure Initiative, Northeast Structural Genomics Consortium, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  A. P. Kuzin, M. Abashidze, S. M. Vorobiev, T. Acton, R. Xiao, K. Conover, L. -C. Ma, R. Kellie, G. T. Montelione, J. F. Hunt, L. Tong
X-Ray Structure Of Hypothetical Protein Vc0467 From Vibrio Cholerae: New Fold. Northeast Structural Genomics Consortium Target Vcr8.
To Be Published
PubMed: search
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL UPF0301 PROTEIN VC0467
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21
    Expression System Strain: BL21(DE3) + MAGIC
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: VIBRIO CHOLERAE
    Organism Taxid: 666

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 8)

Asymmetric/Biological Unit (1, 8)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2AJ2)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2AJ2)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2AJ2)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2AJ2)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2AJ2)

(-) Exons   (0, 0)

(no "Exon" information available for 2AJ2)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:187
 aligned with Y467_VIBCH | Q9KUP8 from UniProtKB/Swiss-Prot  Length:187

    Alignment length:187
                                    1
                                    |2        12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172
           Y467_VIBCH     - --------MNLTNHFLVAMPSMKDPYFKRSVIYICEHNQDGAMGLMINAPIDITVGGMLKQVDIEPAYPQSHQENLKKPVFNGGPVSEDRGFILHRPRDHYESSMKMTDDIAVTTSKDILTVLGTEAEPEGYIVALGYSGWSAGQLEVELTENSWLTIEADPELIFNTPVHEKWQKAIQKLGISPAQ 179
               SCOP domains --------d2aj2a1 A:14-192 Hypothetical protein VC0467                                                                                                                                        SCOP domains
               CATH domains 2aj2A01 A:6-53,A:144-192 VC0467-like            2aj2A02 A:54-143 VC0467-like domains                                                      2aj2A01 A:6-53,A:144-192 VC0467-like              CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............eeeee............eeeeeeee..eeeeee...eeeeehhhhhhhhh...............eeee...eeeeeeeeee........eee.....eee.hhhhhhh.........eeeeeeeeee..hhhhhhhh...eeeee.hhhhhhh.hhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2aj2 A   6 SDIEVGHSmNLTNHFLVAmPSmKDPYFKRSVIYICEHNQDGAmGLmINAPIDITVGGmLKQVDIEPAYPQSHQENLKKPVFNGGPVSEDRGFILHRPRDHYESSmKmTDDIAVTTSKDILTVLGTEAEPEGYIVALGYSGWSAGQLEVELTENSWLTIEADPELIFNTPVHEKWQKAIQKLGISPAQ 192
                                    15        25 |      35        45  |  |  55       |65        75        85        95       105    | |115       125       135       145       155       165       175       185
                                   14-MSE    24-MSE                  48-MSE         63-MSE                                        110-MSE
                                                27-MSE                  51-MSE                                                      112-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2AJ2)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (Y467_VIBCH | Q9KUP8)
molecular function
    GO:0003674    molecular_function    Elemental activities, such as catalysis or binding, describing the actions of a gene product at the molecular level. A given gene product may exhibit one or more molecular functions.
biological process
    GO:0008150    biological_process    Any process specifically pertinent to the functioning of integrated living units: cells, tissues, organs, and organisms. A process is a collection of molecular events with a defined beginning and end.
cellular component
    GO:0005575    cellular_component    The part of a cell, extracellular environment or virus in which a gene product is located. A gene product may be located in one or more parts of a cell and its location may be as specific as a particular macromolecular complex, that is, a stable, persistent association of macromolecules that function together.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2aj2)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2aj2)


(-) Still Images

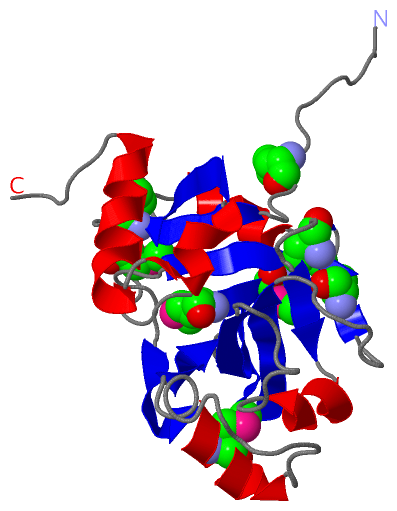

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2aj2
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Y467_VIBCH | Q9KUP8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Y467_VIBCH | Q9KUP8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        Y467_VIBCH | Q9KUP8: 2haf

(-) Related Entries Specified in the PDB File

vcr8
