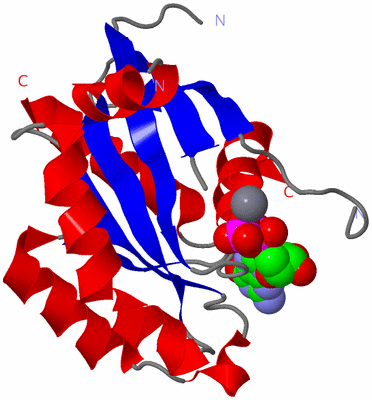

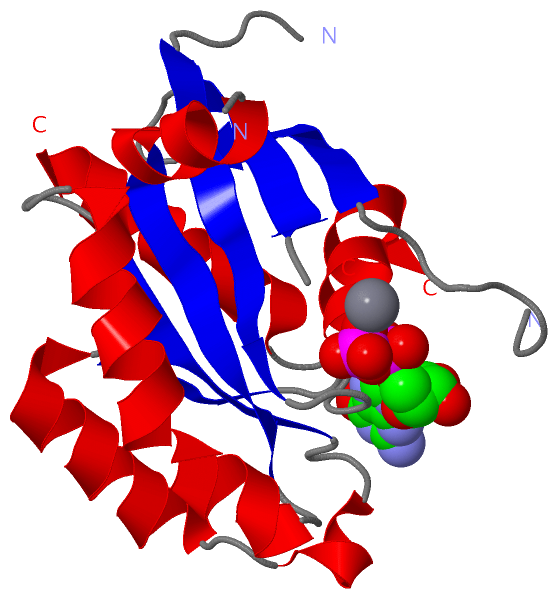

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

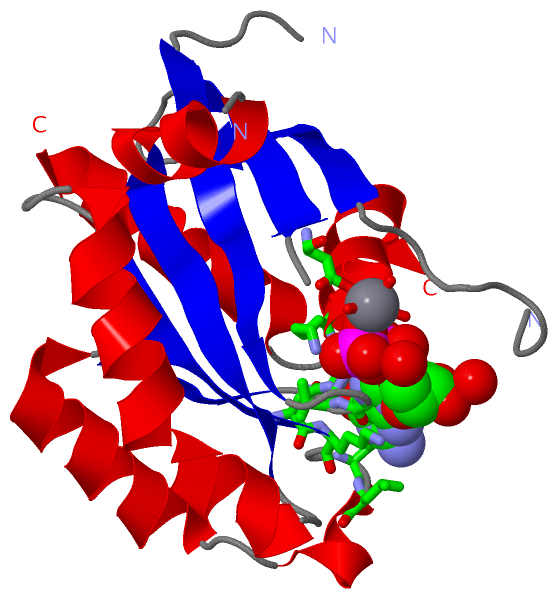

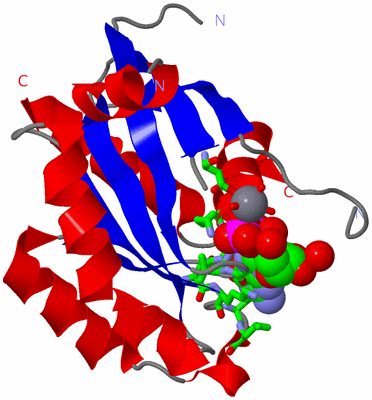

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HUMAN RAB14

Authors :  J. Wang, W. Tempel, C. H. Arrowsmith, A. M. Edwards, M. Sundstrom, J. Wei A. Bochkarev, H. Park, Structural Genomics Consortium (Sgc)
Date :  17 Feb 12  (Deposition) - 29 Feb 12  (Release) - 29 Feb 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A
Keywords :  Ras, Gtpase, Gtp, Oncogene, Rab14, Structural Genomics Consortium, Sgc, Protein Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. Wang, W. Tempel, C. H. Arrowsmith, A. M. Edwards, M. Sundstrom, J. Weigelt, A. Bochkarev, H. Park
Crystal Structure Of Human Rab14
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - RAS-RELATED PROTEIN RAB-14
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidP28A-LIC
    Expression System StrainBL21 (DE3)
    Expression System Taxid469008
    FragmentUNP RESIDUES 1-177
    GeneRAB14
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1CA1Ligand/IonCALCIUM ION
2GDP1Ligand/IonGUANOSINE-5'-DIPHOSPHATE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLY A:21 , VAL A:22 , GLY A:23 , LYS A:24 , SER A:25 , CYS A:26 , ASP A:66 , ASN A:124 , LYS A:125 , ASP A:127 , LEU A:128 , SER A:154 , ALA A:155 , LYS A:156 , CA A:202 , HOH A:311 , HOH A:319 , HOH A:323BINDING SITE FOR RESIDUE GDP A 201
2AC2SOFTWARESER A:25 , ASP A:66 , GDP A:201 , HOH A:319 , HOH A:334 , HOH A:340BINDING SITE FOR RESIDUE CA A 202

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4DRZ)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4DRZ)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4DRZ)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1RABPS51419 small GTPase Rab1 family profile.RAB14_HUMAN7-213  1A:7-175

(-) Exons   (7, 7)

Asymmetric/Biological Unit (7, 7)
 ENSEMBLUniProtKBPDB
No.Transcript IDExonExon IDGenome LocationLengthIDLocationLengthCountLocationLength
1.3ENST000003738403ENSE00001461729chr9:123964147-123963917231RAB14_HUMAN-00--
1.4ENST000003738404ENSE00001461727chr9:123955697-12395563959RAB14_HUMAN1-18181A:6-1813
1.5ENST000003738405ENSE00000806482chr9:123954502-12395444954RAB14_HUMAN18-36191A:18-3518
1.6ENST000003738406ENSE00000806478chr9:123953009-123952832178RAB14_HUMAN36-95601A:40-95 (gaps)56
1.7ENST000003738407ENSE00000724454chr9:123949297-12394923167RAB14_HUMAN95-117231A:95-11723
1.8ENST000003738408ENSE00000724453chr9:123945676-12394558988RAB14_HUMAN118-147301A:118-14730
1.9ENST000003738409ENSE00000724451chr9:123945238-12394520831RAB14_HUMAN147-157111A:147-15711
1.10bENST0000037384010bENSE00001461714chr9:123943851-1239404153437RAB14_HUMAN157-215591A:157-17519

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:160
 aligned with RAB14_HUMAN | P61106 from UniProtKB/Swiss-Prot  Length:215

    Alignment length:170
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175
          RAB14_HUMAN     6 YNYSYIFKYIIIGDMGVGKSCLLHQFTEKKFMADCPHTIGVEFGTRIIEVSGQKIKLQIWDTAGQERFRAVTRSYYRGAAGALMVYDITRRSTYNHLSSWLTDARNLTNPNTVIILIGNKADLEAQRDVTYEEAKQFAEENGLLFLEASAKTGENVEDAFLEAAKKIYQN 175
               SCOP domains d4drza_ A: Rab14                                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeee....hhhhhhhhhhhh.----........eeeeeee....eeeeeeee..------.hhhhhhhheeeeeeeee..hhhhhhhhhhhhhhhhhhh....eeeeeee...hhhhh..hhhhhhhhhhhhh.eeee.......hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -RAB  PDB: A:7-175 UniProt: 7-213                                                                                                                                          PROSITE
           Transcript 1 (1) Exon 1.4     -----------------Exon 1.6  PDB: A:40-95 (gaps) UniProt: 36-95 [INCOMPLETE]   ----------------------Exon 1.8  PDB: A:118-147      ---------Exon 1.10b          Transcript 1 (1)
           Transcript 1 (2) ------------Exon 1.5           ----------------------------------------------------------Exon 1.7  PDB: A:95-117-----------------------------Exon 1.9   ------------------ Transcript 1 (2)
                 4drz A   6 YNYSYIFKYIIIGDMGVGKSCLLHQFTEKK----CPHTIGVEFGTRIIEVSGQKIKLQIWDTA------AVTRSYYRGAAGALMVYDITRRSTYNHLSSWLTDARNLTNPNTVIILIGNKADLEAQRDVTYEEAKQFAEENGLLFLEASAKTGENVEDAFLEAAKKIYQN 175
                                    15        25        35    |   45        55        65  |     75        85        95       105       115       125       135       145       155       165       175
                                                        35   40                          68     75

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4DRZ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4DRZ)

(-) Gene Ontology  (49, 49)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (RAB14_HUMAN | P61106)
molecular function
    GO:0019003    GDP binding    Interacting selectively and non-covalently with GDP, guanosine 5'-diphosphate.
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
    GO:0003924    GTPase activity    Catalysis of the reaction: GTP + H2O = GDP + phosphate.
    GO:0031489    myosin V binding    Interacting selectively and non-covalently with a class V myosin; myosin V is a dimeric molecule involved in intracellular transport.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0006895    Golgi to endosome transport    The directed movement of substances from the Golgi to early sorting endosomes. Clathrin vesicles transport substances from the trans-Golgi to endosomes.
    GO:0045176    apical protein localization    Any process in which a protein is transported to, or maintained in, apical regions of the cell.
    GO:0007589    body fluid secretion    The controlled release of a fluid by a cell or tissue in an animal.
    GO:0042742    defense response to bacterium    Reactions triggered in response to the presence of a bacterium that act to protect the cell or organism.
    GO:0009790    embryo development    The process whose specific outcome is the progression of an embryo from its formation until the end of its embryonic life stage. The end of the embryonic stage is organism-specific. For example, for mammals, the process would begin with zygote formation and end with birth. For insects, the process would begin at zygote formation and end with larval hatching. For plant zygotic embryos, this would be from zygote formation to the end of seed dormancy. For plant vegetative embryos, this would be from the initial determination of the cell or group of cells to form an embryo until the point when the embryo becomes independent of the parent plant.
    GO:0032456    endocytic recycling    The directed movement of membrane-bounded vesicles from recycling endosomes back to the plasma membrane where they are recycled for further rounds of transport.
    GO:0008543    fibroblast growth factor receptor signaling pathway    The series of molecular signals generated as a consequence of a fibroblast growth factor receptor binding to one of its physiological ligands.
    GO:0046907    intracellular transport    The directed movement of substances within a cell.
    GO:0061024    membrane organization    A process which results in the assembly, arrangement of constituent parts, or disassembly of a membrane. A membrane is a double layer of lipid molecules that encloses all cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins.
    GO:0090387    phagolysosome assembly involved in apoptotic cell clearance    The process in which a phagosome, a vesicle formed by phagocytosis, fuses with a lysosome as a part of apoptotic cell clearance.
    GO:0090382    phagosome maturation    A process that is carried out at the cellular level which results in the arrangement of constituent parts of a phagosome within a cell. Phagosome maturation begins with endocytosis and formation of the early phagosome and ends with the formation of the hybrid organelle, the phagolysosome.
    GO:0015031    protein transport    The directed movement of proteins into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0032880    regulation of protein localization    Any process that modulates the frequency, rate or extent of any process in which a protein is transported to, or maintained in, a specific location.
    GO:0007264    small GTPase mediated signal transduction    Any series of molecular signals in which a small monomeric GTPase relays one or more of the signals.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
    GO:0016192    vesicle-mediated transport    A cellular transport process in which transported substances are moved in membrane-bounded vesicles; transported substances are enclosed in the vesicle lumen or located in the vesicle membrane. The process begins with a step that directs a substance to the forming vesicle, and includes vesicle budding and coating. Vesicles are then targeted to, and fuse with, an acceptor membrane.
cellular component
    GO:0005794    Golgi apparatus    A compound membranous cytoplasmic organelle of eukaryotic cells, consisting of flattened, ribosome-free vesicles arranged in a more or less regular stack. The Golgi apparatus differs from the endoplasmic reticulum in often having slightly thicker membranes, appearing in sections as a characteristic shallow semicircle so that the convex side (cis or entry face) abuts the endoplasmic reticulum, secretory vesicles emerging from the concave side (trans or exit face). In vertebrate cells there is usually one such organelle, while in invertebrates and plants, where they are known usually as dictyosomes, there may be several scattered in the cytoplasm. The Golgi apparatus processes proteins produced on the ribosomes of the rough endoplasmic reticulum; such processing includes modification of the core oligosaccharides of glycoproteins, and the sorting and packaging of proteins for transport to a variety of cellular locations. Three different regions of the Golgi are now recognized both in terms of structure and function: cis, in the vicinity of the cis face, trans, in the vicinity of the trans face, and medial, lying between the cis and trans regions.
    GO:0000139    Golgi membrane    The lipid bilayer surrounding any of the compartments of the Golgi apparatus.
    GO:0005795    Golgi stack    The set of thin, flattened membrane-bounded compartments, called cisternae, that form the central portion of the Golgi complex. The stack usually comprises cis, medial, and trans cisternae; the cis- and trans-Golgi networks are not considered part of the stack.
    GO:0097208    alveolar lamellar body    A specialized secretory organelle found in type II pneumocytes and involved in the synthesis, secretion, and reutilization of pulmonary surfactant.
    GO:0016324    apical plasma membrane    The region of the plasma membrane located at the apical end of the cell.
    GO:0031410    cytoplasmic vesicle    A vesicle found in the cytoplasm of a cell.
    GO:0030659    cytoplasmic vesicle membrane    The lipid bilayer surrounding a cytoplasmic vesicle.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005769    early endosome    A membrane-bounded organelle that receives incoming material from primary endocytic vesicles that have been generated by clathrin-dependent and clathrin-independent endocytosis; vesicles fuse with the early endosome to deliver cargo for sorting into recycling or degradation pathways.
    GO:0031901    early endosome membrane    The lipid bilayer surrounding an early endosome.
    GO:0005768    endosome    A vacuole to which materials ingested by endocytosis are delivered.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.
    GO:0043231    intracellular membrane-bounded organelle    Organized structure of distinctive morphology and function, bounded by a single or double lipid bilayer membrane and occurring within the cell. Includes the nucleus, mitochondria, plastids, vacuoles, and vesicles. Excludes the plasma membrane.
    GO:0005770    late endosome    A prelysosomal endocytic organelle differentiated from early endosomes by lower lumenal pH and different protein composition. Late endosomes are more spherical than early endosomes and are mostly juxtanuclear, being concentrated near the microtubule organizing center.
    GO:0005765    lysosomal membrane    The lipid bilayer surrounding the lysosome and separating its contents from the cell cytoplasm.
    GO:0005764    lysosome    A small lytic vacuole that has cell cycle-independent morphology and is found in most animal cells and that contains a variety of hydrolases, most of which have their maximal activities in the pH range 5-6. The contained enzymes display latency if properly isolated. About 40 different lysosomal hydrolases are known and lysosomes have a great variety of morphologies and functions.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0042175    nuclear outer membrane-endoplasmic reticulum membrane network    The continuous network of membranes encompassing the nuclear outer membrane and the endoplasmic reticulum membrane.
    GO:0048471    perinuclear region of cytoplasm    Cytoplasm situated near, or occurring around, the nucleus.
    GO:0045335    phagocytic vesicle    A membrane-bounded intracellular vesicle that arises from the ingestion of particulate material by phagocytosis.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0055037    recycling endosome    An organelle consisting of a network of tubules that functions in targeting molecules, such as receptors transporters and lipids, to the plasma membrane.
    GO:0005791    rough endoplasmic reticulum    The rough (or granular) endoplasmic reticulum (ER) has ribosomes adhering to the outer surface; the ribosomes are the site of translation of the mRNA for those proteins which are either to be retained within the cisternae (ER-resident proteins), the proteins of the lysosomes, or the proteins destined for export from the cell. Glycoproteins undergo their initial glycosylation within the cisternae.
    GO:0005802    trans-Golgi network    The network of interconnected tubular and cisternal structures located within the Golgi apparatus on the side distal to the endoplasmic reticulum, from which secretory vesicles emerge. The trans-Golgi network is important in the later stages of protein secretion where it is thought to play a key role in the sorting and targeting of secreted proteins to the correct destination.
    GO:0030140    trans-Golgi network transport vesicle    A vesicle that mediates transport between the trans-Golgi network and other parts of the cell.
    GO:0030133    transport vesicle    Any of the vesicles of the constitutive secretory pathway, which carry cargo from the endoplasmic reticulum to the Golgi, between Golgi cisternae, from the Golgi to the ER (retrograde transport) or to destinations within or outside the cell.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    CA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GDP  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4drz)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4drz
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  RAB14_HUMAN | P61106
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  RAB14_HUMAN | P61106
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        RAB14_HUMAN | P611061z0f 4d0g

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 4DRZ)
