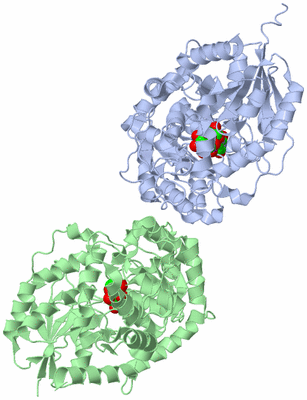

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

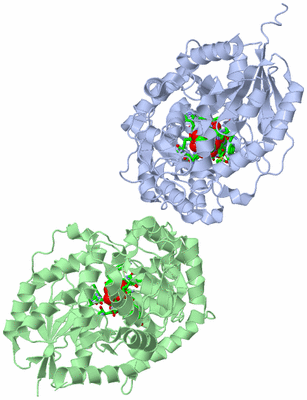

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MEDICAGO TRUNCATULA UGT71G1 COMPLEXED WITH UDP-GLUCOSE

Authors :  H. Shao, X. He, L. Achnine, J. W. Blount, R. A. Dixon, X. Wang
Date :  19 Jul 05  (Deposition) - 15 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Glycosyltransferase, Udp-Glucose (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Shao, X. He, L. Achnine, J. W. Blount, R. A. Dixon, X. Wang
Crystal Structures Of A Multifunctional Triterpene/Flavonoid Glycosyltransferase From Medicago Truncatula.
Plant Cell V. 17 3141 2005
PubMed-ID: 16214900  |  Reference-DOI: 10.1105/TPC.105.035055
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - TRITERPENE UDP-GLUCOSYL TRANSFERASE UGT71G1
    Chains: A, B
    EC Number: 2.4.1.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Common: BARREL MEDIC
    Organism Scientific: MEDICAGO TRUNCATULA
    Organism Taxid: 3880

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1UPG2Ligand/IonURIDINE-5'-DIPHOSPHATE-GLUCOSE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREILE A:20 , GLY A:21 , HIS A:22 , THR A:143 , CYS A:282 , GLY A:284 , SER A:285 , MET A:286 , TRP A:339 , ALA A:340 , GLN A:342 , HIS A:357 , GLY A:359 , TRP A:360 , ASN A:361 , SER A:362 , GLU A:365 , TYR A:379 , ALA A:380 , GLU A:381 , GLN A:382BINDING SITE FOR RESIDUE UPG A 900
2AC2SOFTWAREILE B:20 , GLY B:21 , HIS B:22 , THR B:143 , CYS B:282 , GLY B:284 , SER B:285 , TRP B:339 , ALA B:340 , GLN B:342 , HIS B:357 , GLY B:359 , TRP B:360 , ASN B:361 , SER B:362 , GLU B:365 , TYR B:379 , GLU B:381 , GLN B:382BINDING SITE FOR RESIDUE UPG B 901

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2ACW)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Gly A:245 -Pro A:246
2Gly B:245 -Pro B:246
3Asn B:255 -Pro B:256

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2ACW)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2ACW)

(-) Exons   (0, 0)

(no "Exon" information available for 2ACW)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:461
 aligned with Q5IFH7_MEDTR | Q5IFH7 from UniProtKB/TrEMBL  Length:465

    Alignment length:461
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462
         Q5IFH7_MEDTR     3 MSDINKNSELIFIPAPGIGHLASALEFAKLLTNHDKNLYITVFCIKFPGMPFADSYIKSVLASQPQIQLIDLPEVEPPPQELLKSPEFYILTFLESLIPHVKATIKTILSNKVVGLVLDFFCVSMIDVGNEFGIPSYLFLTSNVGFLSLMLSLKNRQIEEVFDDSDRDHQLLNIPGISNQVPSNVLPDACFNKDGGYIAYYKLAERFRDTKGIIVNTFSDLEQSSIDALYDHDEKIPPIYAVGPLLDLKGQPNPKLDQAQHDLILKWLDEQPDKSVVFLCFGSMGVSFGPSQIREIALGLKHSGVRFLWSNSAEKKVFPEGFLEWMELEGKGMICGWAPQVEVLAHKAIGGFVSHCGWNSILESMWFGVPILTWPIYAEQQLNAFRLVKEWGVGLGLRVDYRKGSDVVAAEEIEKGLKDLMDKDSIVHKKVQEMKEMSRNAVVDGGSSLISVGKLIDDITG 463
               SCOP domains d2acwa1 A:3-463 Triterpene UDP-glucosyl transferase UGT71G1                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eeeeee......hhhhhhhhhhhhhhh...eeeeeee........hhhhhhhhh.....eeeee.......hhhhh.hhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeee.hhhhhhhhhhh....eeeee..hhhhhhhhhhhhhh..............................hhhhh...hhhhhhhhhhhhhhhh.eeee..hhhhhhhhhhhhhhhh.....eee...............hhhhhhhhhhhhhhh....eeeee........hhhhhhhhhhhhhhhh.eeeee...hhhhh..hhhhhhhhhh.eeee...hhhhhhhh..eeeeee..hhhhhhhhhhh...eee.....hhhhhhhhhhhh...eee............hhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2acw A   3 MSDINKNSELIFIPAPGIGHLASALEFAKLLTNHDKNLYITVFCIKFPGMPFADSYIKSVLASQPQIQLIDLPEVEPPPQELLKSPEFYILTFLESLIPHVKATIKTILSNKVVGLVLDFFCVSMIDVGNEFGIPSYLFLTSNVGFLSLMLSLKNRQIEEVFDDSDRDHQLLNIPGISNQVPSNVLPDACFNKDGGYIAYYKLAERFRDTKGIIVNTFSDLEQSSIDALYDHDEKIPPIYAVGPLLDLKGQPNPKLDQAQHDLILKWLDEQPDKSVVFLCFGSMGVSFGPSQIREIALGLKHSGVRFLWSNSAEKKVFPEGFLEWMELEGKGMICGWAPQVEVLAHKAIGGFVSHCGWNSILESMWFGVPILTWPIYAEQQLNAFRLVKEWGVGLGLRVDYRKGSDVVAAEEIEKGLKDLMDKDSIVHKKVQEMKEMSRNAVVDGGSSLISVGKLIDDITG 463
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462


Chain B from PDB  Type:PROTEIN  Length:456
 aligned with Q5IFH7_MEDTR | Q5IFH7 from UniProtKB/TrEMBL  Length:465

    Alignment length:456
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457
         Q5IFH7_MEDTR     8 KNSELIFIPAPGIGHLASALEFAKLLTNHDKNLYITVFCIKFPGMPFADSYIKSVLASQPQIQLIDLPEVEPPPQELLKSPEFYILTFLESLIPHVKATIKTILSNKVVGLVLDFFCVSMIDVGNEFGIPSYLFLTSNVGFLSLMLSLKNRQIEEVFDDSDRDHQLLNIPGISNQVPSNVLPDACFNKDGGYIAYYKLAERFRDTKGIIVNTFSDLEQSSIDALYDHDEKIPPIYAVGPLLDLKGQPNPKLDQAQHDLILKWLDEQPDKSVVFLCFGSMGVSFGPSQIREIALGLKHSGVRFLWSNSAEKKVFPEGFLEWMELEGKGMICGWAPQVEVLAHKAIGGFVSHCGWNSILESMWFGVPILTWPIYAEQQLNAFRLVKEWGVGLGLRVDYRKGSDVVAAEEIEKGLKDLMDKDSIVHKKVQEMKEMSRNAVVDGGSSLISVGKLIDDITG 463
               SCOP domains d2acwb_ B: automated matches                                                                                                                                                                                                                                                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee.......hhhhhhhhhhhhh....eeeeeee......................eeeee.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeeee.hhhhhhhhhhhh...eeeee..hhhhhhhhhhhhhh.....hhhhh....ee........ee.hhhhhhhh...hhhhhhhhhhhhhhhh.eeee..hhhhhhhhhhhhhhhh.....eee................hhhhhhhhhhhhh.....eeeee........hhhhhhhhhhhhhhhh.eeeee...hhhhh..hhhhhhhhhh.eeee...hhhhhhhh..eeeeee..hhhhhhhhhhh...eee.....hhhhhhhhhhhh...eee............hhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 2acw B   8 KNSELIFIPAPGIGHLASALEFAKLLTNHDKNLYITVFCIKFPGMPFADSYIKSVLASQPQIQLIDLPEVEPPPQELLKSPEFYILTFLESLIPHVKATIKTILSNKVVGLVLDFFCVSMIDVGNEFGIPSYLFLTSNVGFLSLMLSLKNRQIEEVFDDSDRDHQLLNIPGISNQVPSNVLPDACFNKDGGYIAYYKLAERFRDTKGIIVNTFSDLEQSSIDALYDHDEKIPPIYAVGPLLDLKGQPNPKLDQAQHDLILKWLDEQPDKSVVFLCFGSMGVSFGPSQIREIALGLKHSGVRFLWSNSAEKKVFPEGFLEWMELEGKGMICGWAPQVEVLAHKAIGGFVSHCGWNSILESMWFGVPILTWPIYAEQQLNAFRLVKEWGVGLGLRVDYRKGSDVVAAEEIEKGLKDLMDKDSIVHKKVQEMKEMSRNAVVDGGSSLISVGKLIDDITG 463
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317       327       337       347       357       367       377       387       397       407       417       427       437       447       457
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (2, 2)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2ACW)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2ACW)

(-) Gene Ontology  (5, 5)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q5IFH7_MEDTR | Q5IFH7)
molecular function
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016757    transferase activity, transferring glycosyl groups    Catalysis of the transfer of a glycosyl group from one compound (donor) to another (acceptor).
    GO:0016758    transferase activity, transferring hexosyl groups    Catalysis of the transfer of a hexosyl group from one compound (donor) to another (acceptor).
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    UPG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn B:255 - Pro B:256   [ RasMol ]
    Gly A:245 - Pro A:246   [ RasMol ]
    Gly B:245 - Pro B:246   [ RasMol ]


(-) Still Images

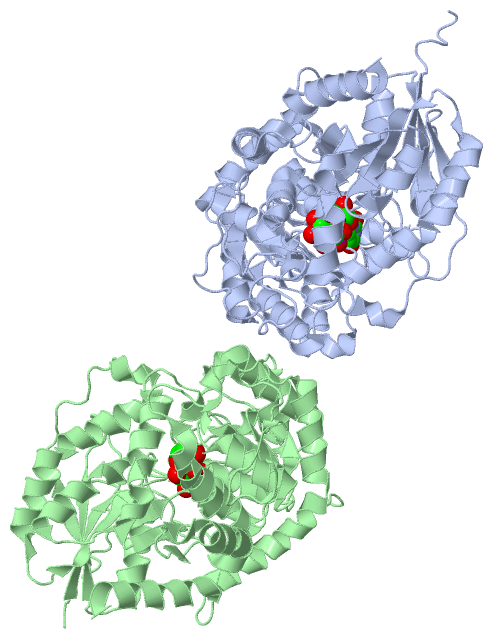

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

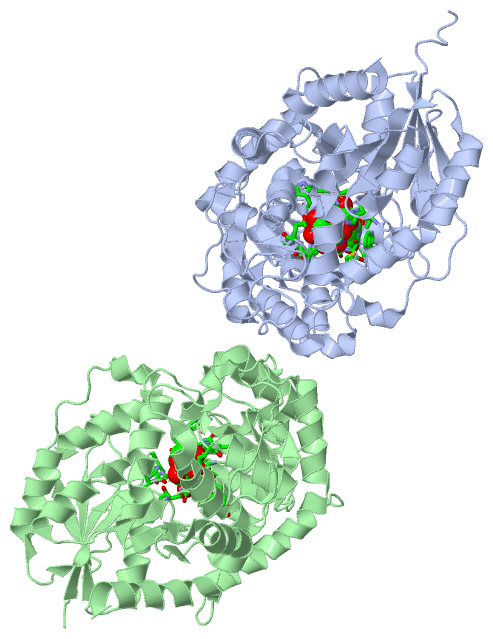

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
