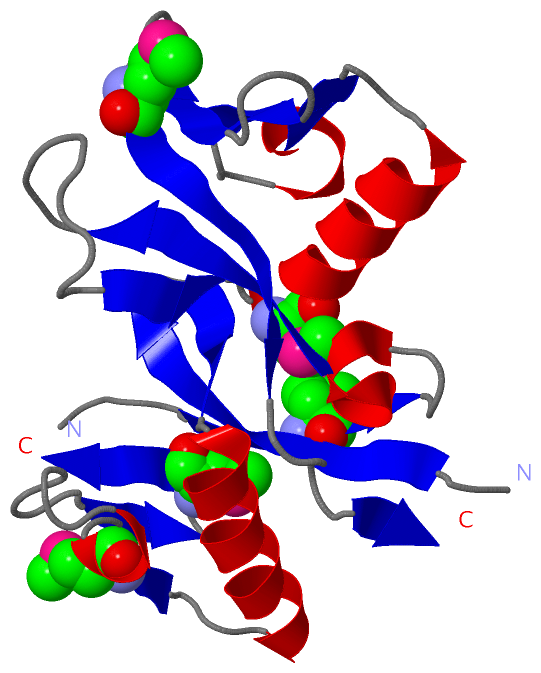

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

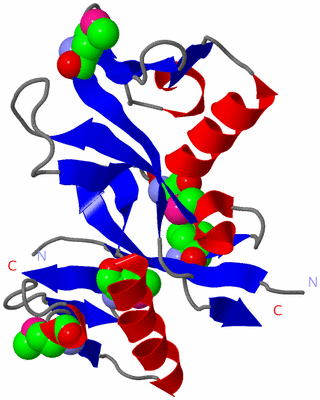

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF THE TANDEM WWE DOMAIN OF DROSOPHILA DELTEX

Authors :  M. E. Zweifel, D. J. Leahy, D. Barrick
Date :  10 Jul 05  (Deposition) - 22 Nov 05  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.15
Chains :  Asym./Biol. Unit :  A
Keywords :  Wwe Domain, Metal Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  M. E. Zweifel, D. J. Leahy, D. Barrick
Structure And Notch Receptor Binding Of The Tandem Wwe Domain Of Deltex.
Structure V. 13 1599 2005
PubMed-ID: 16271883  |  Reference-DOI: 10.1016/J.STR.2005.07.015
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - DELTEX PROTEIN
    ChainsA
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPET15B
    Expression System StrainB834(DE3)
    Expression System Taxid562
    Expression System Vector TypePLASMID
    FragmentWWE DOMAIN
    GeneDX
    Organism CommonFRUIT FLY
    Organism ScientificDROSOPHILA MELANOGASTER
    Organism Taxid7227

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 5)

Asymmetric/Biological Unit (1, 5)
No.NameCountTypeFull Name
1MSE5Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 2A90)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2A90)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Gln A:191 -Pro A:192
2Gly A:194 -Pro A:195

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A90)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1WWEPS50918 WWE domain profile.DTX_DROME35-118
119-201
  1-
A:119-201

(-) Exons   (0, 0)

(no "Exon" information available for 2A90)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:160
 aligned with DTX_DROME | Q23985 from UniProtKB/Swiss-Prot  Length:738

    Alignment length:169
                                    52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202
            DTX_DROME    43 AHAVCVWEFESRGKWLPYSPAVSQHLERAHAKKLTRVMLSDADPSLEQYYVNVRTMTQESEAETAGSGLLTIGVRRMFYAPSSPAGKGTKWEWSGGSADSNNDWRPYNMHVQCIIEDAWARGEQTLDLCNTHIGLPYTINFCNLTQLRQPSGPMRSIRRTQQAPYPLVK 211
               SCOP domains d2a90a1 A:43-131 Deltex (Dx)                                                             d2a90a2 A:132-211 Deltex (Dx)                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeee..eeee.hhhhhhhhhhhhhh...eee.hhh.......eee....eee.---------....eeeeee...hhhhhheeeeee.........eee.hhhhhhhhhhhhhh...eeehhhhh....eeee....eeee.....eeeeeeee.....ee. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE WWE  PDB: - UniProt: 35-118                                                 WWE  PDB: A:119-201 UniProt: 119-201                                               ---------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a90 A  43 AHAVSVWEFESRGKWLPYSPAVSQHLERAHAKKLTRVmLSDADPSLEQYYVNVRTmTQES---------LTIGVRRmFYAPSSPAGKGTKWEWSGGSADSNNDWRPYNmHVQSIIEDAWARGEQTLDLSNTHIGLPYTINFSNLTQLRQPSGPmRSIRRTQQAPYPLVK 211
                                    52        62        72       |82        92     | 102       112      |122       132       142       152       162       172       182       192   |   202
                                                                80-MSE            98-MSE       112      |                             151-MSE                                      196-MSE
                                                                                                      119-MSE

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric/Biological Unit

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2A90)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A90)

(-) Gene Ontology  (18, 18)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (DTX_DROME | Q23985)
molecular function
    GO:0005112    Notch binding    Interacting selectively and non-covalently with the Notch (N) protein, a surface receptor.
    GO:0017124    SH3 domain binding    Interacting selectively and non-covalently with a SH3 domain (Src homology 3) of a protein, small protein modules containing approximately 50 amino acid residues found in a great variety of intracellular or membrane-associated proteins.
    GO:0016874    ligase activity    Catalysis of the joining of two substances, or two groups within a single molecule, with the concomitant hydrolysis of the diphosphate bond in ATP or a similar triphosphate.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0061630    ubiquitin protein ligase activity    Catalysis of the transfer of ubiquitin to a substrate protein via the reaction X-ubiquitin + S -> X + S-ubiquitin, where X is either an E2 or E3 enzyme, the X-ubiquitin linkage is a thioester bond, and the S-ubiquitin linkage is an amide bond: an isopeptide bond between the C-terminal glycine of ubiquitin and the epsilon-amino group of lysine residues in the substrate or, in the linear extension of ubiquitin chains, a peptide bond the between the C-terminal glycine and N-terminal methionine of ubiquitin residues.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0007220    Notch receptor processing    The series of successive proteolytic cleavages of the Notch protein, which result in an active form of the receptor.
    GO:0007219    Notch signaling pathway    A series of molecular signals initiated by the binding of an extracellular ligand to the receptor Notch on the surface of a target cell, and ending with regulation of a downstream cellular process, e.g. transcription.
    GO:0016055    Wnt signaling pathway    The series of molecular signals initiated by binding of a Wnt protein to a frizzled family receptor on the surface of the target cell and ending with a change in cell state.
    GO:0006897    endocytosis    A vesicle-mediated transport process in which cells take up external materials or membrane constituents by the invagination of a small region of the plasma membrane to form a new membrane-bounded vesicle.
    GO:0016348    imaginal disc-derived leg joint morphogenesis    The process in which the anatomical structures of an imaginal disc-derived leg joint are generated and organized. The leg joint is a flexible region that separates the rigid sections of a leg to allow movement in a controlled manner. An example of this is found in Drosophila melanogaster.
    GO:0045746    negative regulation of Notch signaling pathway    Any process that stops, prevents, or reduces the frequency, rate or extent of the Notch signaling pathway.
    GO:0045747    positive regulation of Notch signaling pathway    Any process that activates or increases the frequency, rate or extent of the Notch signaling pathway.
    GO:0016567    protein ubiquitination    The process in which one or more ubiquitin groups are added to a protein.
    GO:0008593    regulation of Notch signaling pathway    Any process that modulates the frequency, rate or extent of the Notch signaling pathway.
    GO:0035220    wing disc development    Progression of the wing disc over time, from its initial formation through to its metamorphosis to form adult structures including the wing hinge, wing blade and pleura.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
