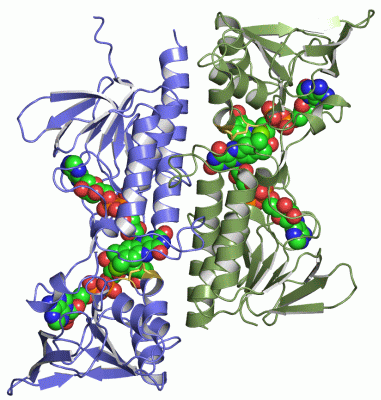

Image Asym./Biol. Unit - manually
Asym./Biol. Unit - manually  (Jmol Viewer)

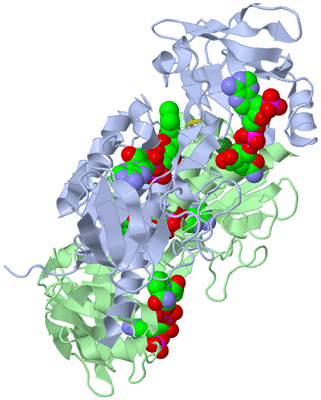

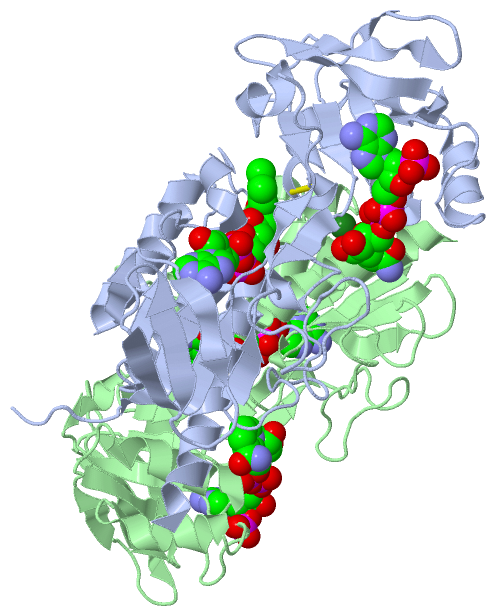

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

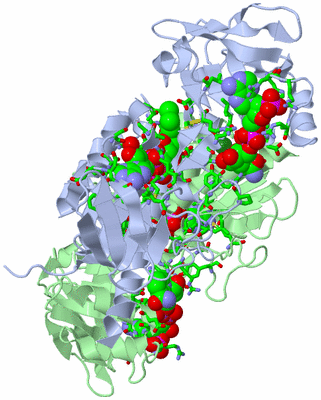

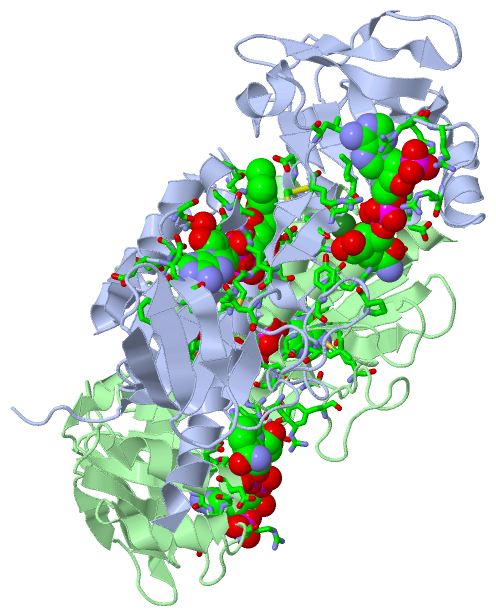

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF M. TUBERCULOSIS THIOREDOXIN REDUCTASE

Authors :  M. Akif, K. Suhre, C. Verma, S. C. Mande, Tb Structural Genomics Cons (Tbsgc)
Date :  07 Jul 05  (Deposition) - 29 Nov 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Thioredoxin Reductase, Trxr, Fad, Nap, Nma, Tls, Oxidoreductase, Structural Genomics, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tbsgc (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. Akif, K. Suhre, C. Verma, S. C. Mande
Conformational Flexibility Of Mycobacterium Tuberculosis Thioredoxin Reductase: Crystal Structure And Normal-Mode Analysis.
Acta Crystallogr. , Sect. D V. 61 1603 2005
PubMed-ID: 16301794  |  Reference-DOI: 10.1107/S0907444905030519

(-) Compounds

Molecule 1 - THIOREDOXIN REDUCTASE
    Chains: A, B
    EC Number: 1.8.1.9
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET23(A)
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: TRXB
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 1773
    Synonym: TRXR, TR

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 6)

Asymmetric/Biological Unit (3, 6)
No.NameCountTypeFull Name
1FAD2Ligand/IonFLAVIN-ADENINE DINUCLEOTIDE
2MG2Ligand/IonMAGNESIUM ION
3NAP2Ligand/IonNADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREHIS A:250 , ARG A:295 , NAP A:381BINDING SITE FOR RESIDUE MG A 336
2AC2SOFTWAREHIS B:250 , ARG B:295 , NAP B:481BINDING SITE FOR RESIDUE MG B 336
3AC3SOFTWAREGLY A:21 , SER A:22 , GLY A:23 , PRO A:24 , ALA A:25 , PHE A:43 , GLU A:44 , GLY A:45 , SER A:47 , GLY A:49 , GLY A:50 , ALA A:51 , LEU A:52 , THR A:55 , VAL A:58 , GLU A:59 , ASN A:60 , GLU A:91 , ASP A:92 , VAL A:93 , ALA A:121 , MET A:122 , GLY A:123 , CYS A:148 , ASP A:149 , ARG A:253 , LEU A:256 , GLY A:287 , ASP A:288 , ARG A:295 , GLN A:296 , ALA A:297 , VAL A:298 , HOH A:385 , HOH A:387 , TYR B:32BINDING SITE FOR RESIDUE FAD A 348
4AC4SOFTWAREARG A:127 , LEU A:129 , GLY A:164 , ASP A:165 , SER A:166 , HIS A:185 , ARG A:186 , ARG A:187 , ARG A:191 , ILE A:248 , GLY A:249 , PRO A:265 , TYR A:268 , LEU A:270 , ARG A:292 , ARG A:295 , MG A:336 , ARG B:313BINDING SITE FOR RESIDUE NAP A 381
5AC5SOFTWARETYR A:32 , ILE B:20 , GLY B:21 , SER B:22 , PRO B:24 , ALA B:25 , PHE B:43 , GLU B:44 , GLY B:45 , SER B:47 , PHE B:48 , GLY B:49 , GLY B:50 , ALA B:51 , LEU B:52 , THR B:55 , ASN B:60 , VAL B:93 , MET B:122 , GLY B:123 , ALA B:124 , CYS B:148 , ASP B:149 , ARG B:253 , LEU B:256 , GLY B:287 , ASP B:288 , ARG B:295 , GLN B:296 , ALA B:297 , VAL B:298BINDING SITE FOR RESIDUE FAD B 448
6AC6SOFTWAREILE B:161 , GLY B:162 , GLY B:163 , GLY B:164 , ASP B:165 , SER B:166 , GLU B:169 , HIS B:185 , ARG B:186 , ARG B:191 , ALA B:247 , ILE B:248 , GLY B:249 , GLU B:251 , TYR B:268 , ARG B:292 , ARG B:295 , MG B:336BINDING SITE FOR RESIDUE NAP B 481

(-) SS Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1A:145 -A:148
2B:145 -B:148

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2A87)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A87)

(-) PROSITE Motifs  (1, 2)

Asymmetric/Biological Unit (1, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PYRIDINE_REDOX_2PS00573 Pyridine nucleotide-disulphide oxidoreductases class-II active site.TRXB_MYCTO145-165
 		  2A:145-165
B:145-165
TRXB_MYCTU145-165
 		  2A:145-165
B:145-165

(-) Exons   (0, 0)

(no "Exon" information available for 2A87)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:313
 aligned with TRXB_MYCTO | P9WHH0 from UniProtKB/Swiss-Prot  Length:335

    Alignment length:313
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319
           TRXB_MYCTO    10 AHHPVRDVIVIGSGPAGYTAALYAARAQLAPLVFEGTSFGGALMTTTDVENYPGFRNGITGPELMDEMREQALRFGADLRMEDVESVSLHGPLKSVVTADGQTHRARAVILAMGAAARYLQVPGEQELLGRGVSSCATCDGFFFRDQDIAVIGGGDSAMEEATFLTRFARSVTLVHRRDEFRASKIMLDRARNNDKIRFLTNHTVVAVDGDTTVTGLRVRDTNTGAETTLPVTGVFVAIGHEPRSGLVREAIDVDPDGYVLVQGRTTSTSLPGVFAAGDLVDRTYRQAVTAAGSGCAAAIDAERWLAEHAATG 322
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2a87A01 A:10-126,A:250-322  [code=3.50.50.60, no name defined]                                                       2a87A02 A:127-249  [code=3.50.50.60, no name defined]                                                                      2a87A01 A:10-126,A:250-322  [code=3.50.50.60, no name defined]            CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeee.hhhhhhhhhhhhhhh....eee......hhhhh..............hhhhhhhhhhhhhhhh..eee...eeeee.....eeeee....eeeeeeeee...eee.....hhhhhh....ee.hhhhhhhhhh..eeeee..hhhhhhhhhhhh....eeeee..........hhhhhhhhh..eeee..eeeeeee......eeeeeee.....eee....eee...eee..............................eee.hhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------PYRIDINE_REDOX_2     ------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a87 A  10 AHHPVRDVIVIGSGPAGYTAALYAARAQLAPLVFEGTSFGGALMTTTDVENYPGFRNGITGPELMDEMREQALRFGADLRMEDVESVSLHGPLKSVVTADGQTHRARAVILAMGAAARYLQVPGEQELLGRGVSSCATCDGFFFRDQDIAVIGGGDSAMEEATFLTRFARSVTLVHRRDEFRASKIMLDRARNNDKIRFLTNHTVVAVDGDTTVTGLRVRDTNTGAETTLPVTGVFVAIGHEPRSGLVREAIDVDPDGYVLVQGRTTSTSLPGVFAAGDLVDRTYRQAVTAAGSGCAAAIDAERWLAEHAATG 322
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319


Chain A from PDB  Type:PROTEIN  Length:313
 aligned with TRXB_MYCTU | P9WHH1 from UniProtKB/Swiss-Prot  Length:335

    Alignment length:313
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319
           TRXB_MYCTU    10 AHHPVRDVIVIGSGPAGYTAALYAARAQLAPLVFEGTSFGGALMTTTDVENYPGFRNGITGPELMDEMREQALRFGADLRMEDVESVSLHGPLKSVVTADGQTHRARAVILAMGAAARYLQVPGEQELLGRGVSSCATCDGFFFRDQDIAVIGGGDSAMEEATFLTRFARSVTLVHRRDEFRASKIMLDRARNNDKIRFLTNHTVVAVDGDTTVTGLRVRDTNTGAETTLPVTGVFVAIGHEPRSGLVREAIDVDPDGYVLVQGRTTSTSLPGVFAAGDLVDRTYRQAVTAAGSGCAAAIDAERWLAEHAATG 322
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2a87A01 A:10-126,A:250-322  [code=3.50.50.60, no name defined]                                                       2a87A02 A:127-249  [code=3.50.50.60, no name defined]                                                                      2a87A01 A:10-126,A:250-322  [code=3.50.50.60, no name defined]            CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeee.hhhhhhhhhhhhhhh....eee......hhhhh..............hhhhhhhhhhhhhhhh..eee...eeeee.....eeeee....eeeeeeeee...eee.....hhhhhh....ee.hhhhhhhhhh..eeeee..hhhhhhhhhhhh....eeeee..........hhhhhhhhh..eeee..eeeeeee......eeeeeee.....eee....eee...eee..............................eee.hhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------------------------------------------------------------------------------------------------------------------------------------PYRIDINE_REDOX_2     ------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a87 A  10 AHHPVRDVIVIGSGPAGYTAALYAARAQLAPLVFEGTSFGGALMTTTDVENYPGFRNGITGPELMDEMREQALRFGADLRMEDVESVSLHGPLKSVVTADGQTHRARAVILAMGAAARYLQVPGEQELLGRGVSSCATCDGFFFRDQDIAVIGGGDSAMEEATFLTRFARSVTLVHRRDEFRASKIMLDRARNNDKIRFLTNHTVVAVDGDTTVTGLRVRDTNTGAETTLPVTGVFVAIGHEPRSGLVREAIDVDPDGYVLVQGRTTSTSLPGVFAAGDLVDRTYRQAVTAAGSGCAAAIDAERWLAEHAATG 322
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319


Chain B from PDB  Type:PROTEIN  Length:304
 aligned with TRXB_MYCTO | P9WHH0 from UniProtKB/Swiss-Prot  Length:335

    Alignment length:304
                                    24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314
           TRXB_MYCTO    15 RDVIVIGSGPAGYTAALYAARAQLAPLVFEGTSFGGALMTTTDVENYPGFRNGITGPELMDEMREQALRFGADLRMEDVESVSLHGPLKSVVTADGQTHRARAVILAMGAAARYLQVPGEQELLGRGVSSCATCDGFFFRDQDIAVIGGGDSAMEEATFLTRFARSVTLVHRRDEFRASKIMLDRARNNDKIRFLTNHTVVAVDGDTTVTGLRVRDTNTGAETTLPVTGVFVAIGHEPRSGLVREAIDVDPDGYVLVQGRTTSTSLPGVFAAGDLVDRTYRQAVTAAGSGCAAAIDAERWLAEH 318
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2a87B01 B:15-126,B:250-318  [code=3.50.50.60, no name defined]                                                  2a87B02 B:127-249  [code=3.50.50.60, no name defined]                                                                      2a87B01 B:15-126,B:250-318  [code=3.50.50.60, no name defined]        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee.hhhhhhhhhhhhhhh....eee......hhhhh..............hhhhhhhhhhhhhhhh..eee...eeeee.....eeeee....eeee.eeee...eee.....hhhhhh....ee.hhhhhhhhhh..eeeee..hhhhhhhhhhhh....eeeee..........hhhhhhhhh..eeee..eeeeeee......eeeeeee.....eee....eee...eee..............................eee.hhhh.....hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------PYRIDINE_REDOX_2     --------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a87 B  15 RDVIVIGSGPAGYTAALYAARAQLAPLVFEGTSFGGALMTTTDVENYPGFRNGITGPELMDEMREQALRFGADLRMEDVESVSLHGPLKSVVTADGQTHRARAVILAMGAAARYLQVPGEQELLGRGVSSCATCDGFFFRDQDIAVIGGGDSAMEEATFLTRFARSVTLVHRRDEFRASKIMLDRARNNDKIRFLTNHTVVAVDGDTTVTGLRVRDTNTGAETTLPVTGVFVAIGHEPRSGLVREAIDVDPDGYVLVQGRTTSTSLPGVFAAGDLVDRTYRQAVTAAGSGCAAAIDAERWLAEH 318
                                    24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314


Chain B from PDB  Type:PROTEIN  Length:304
 aligned with TRXB_MYCTU | P9WHH1 from UniProtKB/Swiss-Prot  Length:335

    Alignment length:304
                                    24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314
           TRXB_MYCTU    15 RDVIVIGSGPAGYTAALYAARAQLAPLVFEGTSFGGALMTTTDVENYPGFRNGITGPELMDEMREQALRFGADLRMEDVESVSLHGPLKSVVTADGQTHRARAVILAMGAAARYLQVPGEQELLGRGVSSCATCDGFFFRDQDIAVIGGGDSAMEEATFLTRFARSVTLVHRRDEFRASKIMLDRARNNDKIRFLTNHTVVAVDGDTTVTGLRVRDTNTGAETTLPVTGVFVAIGHEPRSGLVREAIDVDPDGYVLVQGRTTSTSLPGVFAAGDLVDRTYRQAVTAAGSGCAAAIDAERWLAEH 318
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 2a87B01 B:15-126,B:250-318  [code=3.50.50.60, no name defined]                                                  2a87B02 B:127-249  [code=3.50.50.60, no name defined]                                                                      2a87B01 B:15-126,B:250-318  [code=3.50.50.60, no name defined]        CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeee.hhhhhhhhhhhhhhh....eee......hhhhh..............hhhhhhhhhhhhhhhh..eee...eeeee.....eeeee....eeee.eeee...eee.....hhhhhh....ee.hhhhhhhhhh..eeeee..hhhhhhhhhhhh....eeeee..........hhhhhhhhh..eeee..eeeeeee......eeeeeee.....eee....eee...eee..............................eee.hhhh.....hhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----------------------------------------------------------------------------------------------------------------------------------PYRIDINE_REDOX_2     --------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a87 B  15 RDVIVIGSGPAGYTAALYAARAQLAPLVFEGTSFGGALMTTTDVENYPGFRNGITGPELMDEMREQALRFGADLRMEDVESVSLHGPLKSVVTADGQTHRARAVILAMGAAARYLQVPGEQELLGRGVSSCATCDGFFFRDQDIAVIGGGDSAMEEATFLTRFARSVTLVHRRDEFRASKIMLDRARNNDKIRFLTNHTVVAVDGDTTVTGLRVRDTNTGAETTLPVTGVFVAIGHEPRSGLVREAIDVDPDGYVLVQGRTTSTSLPGVFAAGDLVDRTYRQAVTAAGSGCAAAIDAERWLAEH 318
                                    24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 2A87)

(-) CATH Domains  (1, 4)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A87)

(-) Gene Ontology  (13, 18)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (TRXB_MYCTO | P9WHH0)
molecular function
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0004791    thioredoxin-disulfide reductase activity    Catalysis of the reaction: NADP(+) + thioredoxin = H(+) + NADPH + thioredoxin disulfide.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0019430    removal of superoxide radicals    Any process, acting at the cellular level, involved in removing superoxide radicals (O2-) from a cell or organism, e.g. by conversion to dioxygen (O2) and hydrogen peroxide (H2O2).
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

Chain A,B   (TRXB_MYCTU | P9WHH1)
molecular function
    GO:0070402    NADPH binding    Interacting selectively and non-covalently with the reduced form, NADPH, of nicotinamide-adenine dinucleotide phosphate, a coenzyme involved in many redox and biosynthetic reactions.
    GO:0050660    flavin adenine dinucleotide binding    Interacting selectively and non-covalently with FAD, flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes, in either the oxidized form, FAD, or the reduced form, FADH2.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0015035    protein disulfide oxidoreductase activity    Catalysis of the reaction: a protein with reduced sulfide groups = a protein with oxidized disulfide bonds.
    GO:0004791    thioredoxin-disulfide reductase activity    Catalysis of the reaction: NADP(+) + thioredoxin = H(+) + NADPH + thioredoxin disulfide.
biological process
    GO:0045454    cell redox homeostasis    Any process that maintains the redox environment of a cell or compartment within a cell.
    GO:0040007    growth    The increase in size or mass of an entire organism, a part of an organism or a cell.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.
    GO:0019430    removal of superoxide radicals    Any process, acting at the cellular level, involved in removing superoxide radicals (O2-) from a cell or organism, e.g. by conversion to dioxygen (O2) and hydrogen peroxide (H2O2).
    GO:0001666    response to hypoxia    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a stimulus indicating lowered oxygen tension. Hypoxia, defined as a decline in O2 levels below normoxic levels of 20.8 - 20.95%, results in metabolic adaptation at both the cellular and organismal level.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
