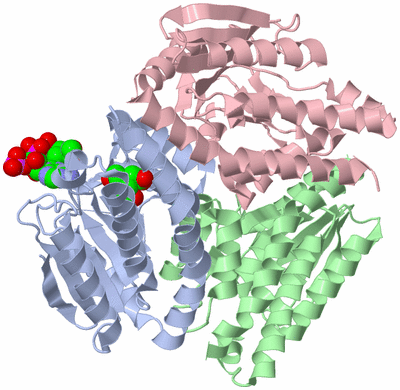

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

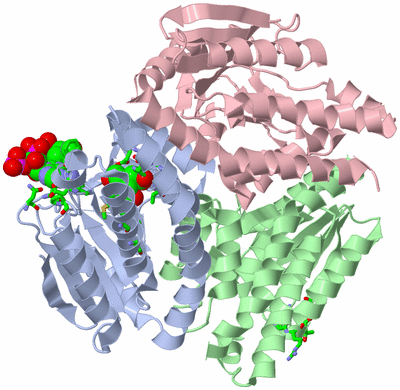

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CARBOXYMETHYLPROLINE SYNTHASE (CARB) FROM PECTOBACTERIUM CAROTOVORA, COMPLEXED WITH ACETYL COA AND BICINE

Authors :  M. C. Sleeman, J. L. Sorensen, E. T. Batchelar, M. A. Mcdonough, C. J. Sch
Date :  07 Jul 05  (Deposition) - 23 Aug 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.15
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Carbapenem, Carbapenam, Crotonase, Antibiotic, Beta-Lactam, Bicine, Acetyl Coenzyme A, Biosynthetic Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. C. Sleeman, J. L. Sorensen, E. T. Batchelar, M. A. Mcdonough, C. J. Schofield
Structural And Mechanistic Studies On Carboxymethylproline Synthase (Carb), A Unique Member Of The Crotonase Superfamily Catalyzing The First Step In Carbapenem Biosynthesis.
J. Biol. Chem. V. 280 34956 2005
PubMed-ID: 16096274  |  Reference-DOI: 10.1074/JBC.M507196200

(-) Compounds

Molecule 1 - CARB
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: PET24A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: CARB
    Organism Scientific: PECTOBACTERIUM CAROTOVORUM
    Organism Taxid: 554

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 2)

Asymmetric/Biological Unit (2, 2)
No.NameCountTypeFull Name
1ACO1Ligand/IonACETYL COENZYME *A
2BCN1Ligand/IonBICINE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASN A:19 , HIS A:21 , PRO A:23 , ALA A:60 , GLY A:62 , ASP A:63 , PHE A:64 , MET B:1 , HIS B:17 , SER B:25 , ARG B:26 , THR B:27BINDING SITE FOR RESIDUE ACO A 500
2AC2SOFTWAREVAL A:83 , TYR A:87 , MET A:108 , GLN A:111 , GLU A:131 , GLY A:137 , CYS A:138 , SER A:139 , VAL A:140 , GLY A:141 , HIS A:229BINDING SITE FOR RESIDUE BCN A 501

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2A81)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 2A81)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A81)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2A81)

(-) Exons   (0, 0)

(no "Exon" information available for 2A81)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:235
 aligned with CARB_PECCC | Q9XB60 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:235
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           CARB_PECCC     1 MVFEENSDEVRVITLDHPNKHNPFSRTLETSVKDALARANADDSVRAVVVYGGAERSFSAGGDFNEVKQLSRSEDIEEWIDRVIDLYQAVLNVNKPTIAAVDGYAIGMGFQFALMFDQRLMASTANFVMPELKHGIGCSVGAAILGFTHGFSTMQEIIYQCQSLDAPRCVDYRLVNQVVESSALLDAAITQAHVMASYPASAFINTKRAVNKPFIHLLEQTRDASKAVHKAAFQA 235
               SCOP domains d2a81a_ A: automated matches                                                                                                                                                                                                                SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..eeeeee.........hhhhhhhhhhhhhhhhhh....eeeee...........hhhhhhh..hhhhhhhhhhhhhhhhhhhhh....eeeee..eeehhhhhhhh...eeeee...eee.hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.eehhhhhhhhh...eee...hhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a81 A   1 MVFEENSDEVRVITLDHPNKHNPFSRTLETSVKDALARANADDSVRAVVVYGGAERSFSAGGDFNEVKQLSRSEDIEEWIDRVIDLYQAVLNVNKPTIAAVDGYAIGMGFQFALMFDQRLMASTANFVMPELKHGIGCSVGAAILGFTHGFSTMQEIIYQCQSLDAPRCVDYRLVNQVVESSALLDAAITQAHVMASYPASAFINTKRAVNKPFIHLLEQTRDASKAVHKAAFQA 235
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230


Chain B from PDB  Type:PROTEIN  Length:231
 aligned with CARB_PECCC | Q9XB60 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:231
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           CARB_PECCC     1 MVFEENSDEVRVITLDHPNKHNPFSRTLETSVKDALARANADDSVRAVVVYGGAERSFSAGGDFNEVKQLSRSEDIEEWIDRVIDLYQAVLNVNKPTIAAVDGYAIGMGFQFALMFDQRLMASTANFVMPELKHGIGCSVGAAILGFTHGFSTMQEIIYQCQSLDAPRCVDYRLVNQVVESSALLDAAITQAHVMASYPASAFINTKRAVNKPFIHLLEQTRDASKAVHKA 231
               SCOP domains d2a81b_ B: automated matches                                                                                                                                                                                                            SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..eeeeee.........hhhhhhhhhhhhhhhhhh....eeeee...........hhhhhh...hhhhhhhhhhhhhhhhhhhhh....eeeee..eeehhhhhhhhh..eeeee...eee.........hhhhhhhhhhhhhhhhhhhhhhhh.eehhhhhhhhh...eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a81 B   1 MVFEENSDEVRVITLDHPNKHNPFSRTLETSVKDALARANADDSVRAVVVYGGAERSFSAGGDFNEVKQLSRSEDIEEWIDRVIDLYQAVLNVNKPTIAAVDGYAIGMGFQFALMFDQRLMASTANFVMPELKHGIGCSVGAAILGFTHGFSTMQEIIYQCQSLDAPRCVDYRLVNQVVESSALLDAAITQAHVMASYPASAFINTKRAVNKPFIHLLEQTRDASKAVHKA 231
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230


Chain C from PDB  Type:PROTEIN  Length:231
 aligned with CARB_PECCC | Q9XB60 from UniProtKB/Swiss-Prot  Length:250

    Alignment length:231
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           CARB_PECCC     1 MVFEENSDEVRVITLDHPNKHNPFSRTLETSVKDALARANADDSVRAVVVYGGAERSFSAGGDFNEVKQLSRSEDIEEWIDRVIDLYQAVLNVNKPTIAAVDGYAIGMGFQFALMFDQRLMASTANFVMPELKHGIGCSVGAAILGFTHGFSTMQEIIYQCQSLDAPRCVDYRLVNQVVESSALLDAAITQAHVMASYPASAFINTKRAVNKPFIHLLEQTRDASKAVHKA 231
               SCOP domains d2a81c_ C: automated matches                                                                                                                                                                                                            SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee..eeeeee.........hhhhhhhhhhhhhhhhhh....eeeee...........hhhhhhhh.hhhhhhhhhhhhhhhhhhhhh....eeeee..eeehhhhhhhhh..eeeee...eee.hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhh.eeehhhhhhhh...eeehhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a81 C   1 MVFEENSDEVRVITLDHPNKHNPFSRTLETSVKDALARANADDSVRAVVVYGGAERSFSAGGDFNEVKQLSRSEDIEEWIDRVIDLYQAVLNVNKPTIAAVDGYAIGMGFQFALMFDQRLMASTANFVMPELKHGIGCSVGAAILGFTHGFSTMQEIIYQCQSLDAPRCVDYRLVNQVVESSALLDAAITQAHVMASYPASAFINTKRAVNKPFIHLLEQTRDASKAVHKA 231
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2A81)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A81)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C   (CARB_PECCC | Q9XB60)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0017000    antibiotic biosynthetic process    The chemical reactions and pathways resulting in the formation of an antibiotic, a substance produced by or derived from certain fungi, bacteria, and other organisms, that can destroy or inhibit the growth of other microorganisms.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ACO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    BCN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 2a81)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

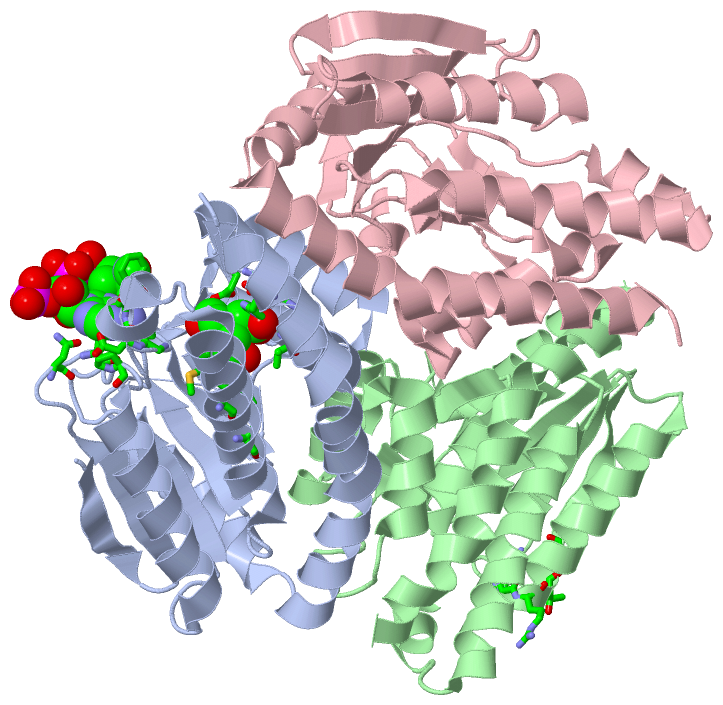

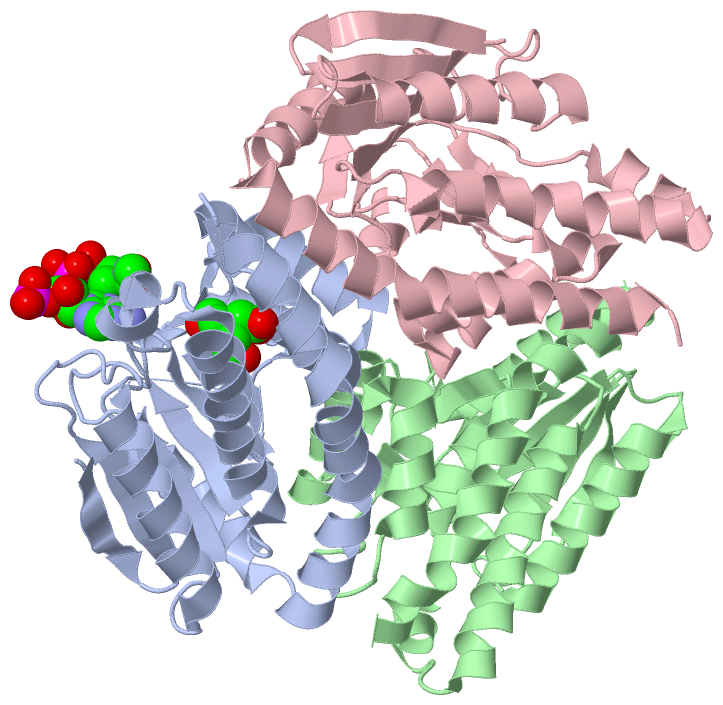

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2a81
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  CARB_PECCC | Q9XB60
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  CARB_PECCC | Q9XB60
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        CARB_PECCC | Q9XB60: 2a7k

(-) Related Entries Specified in the PDB File

2a7k THE SAME PROTEIN UNCOMPLEXED
