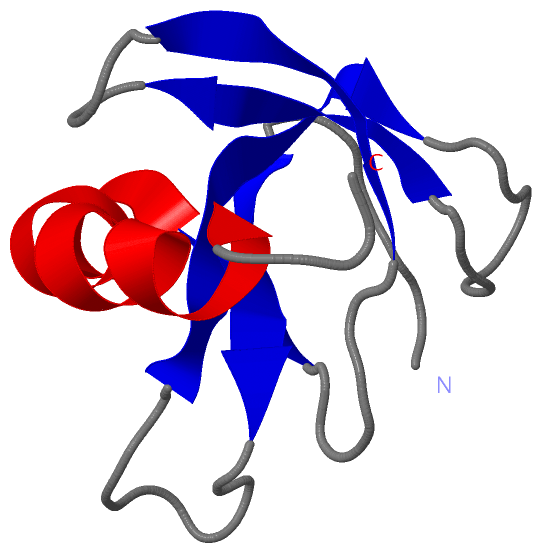

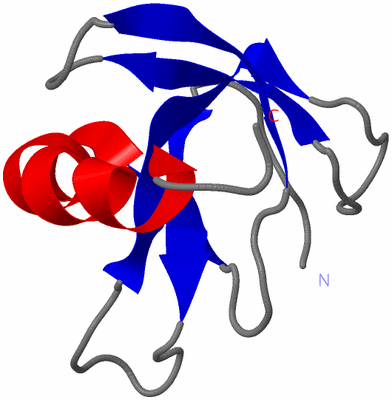

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

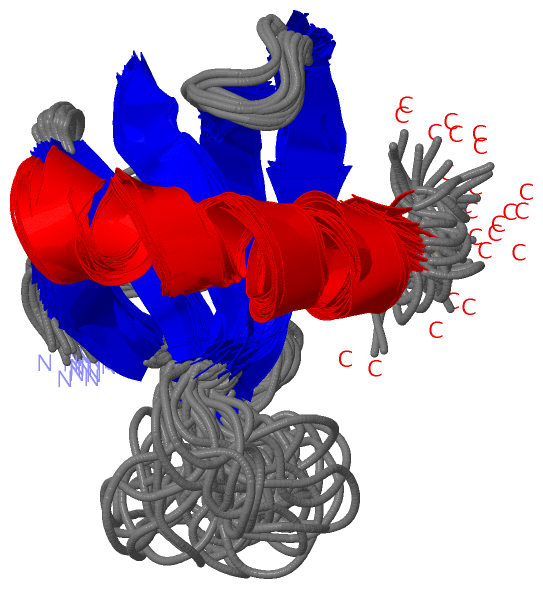

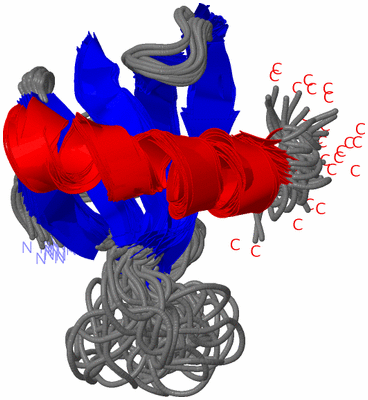

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  SOLUTION STRUCTURE OF THE CONSERVED HYPOTHETICAL PROTEIN RV2302 FROM THE BACTERIUM MYCOBACTERIUM TUBERCULOSIS

Authors :  G. W. Buchko, C. -Y. Kim, T. C. Terwilliger, M. A. Kennedy, Tb Structural Genomics Consortium (Tbsgc)
Date :  06 Jul 05  (Deposition) - 23 Aug 05  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (25x)
Keywords :  Anti-Parallel Beta Sheet, Structural Genomics, Psi, Protein Structure Initiative, Tb Structural Genomics Consortium, Tbsgc, Unknown Function (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  G. W. Buchko, C. Y. Kim, T. C. Terwilliger, M. A. Kennedy
Solution Structure Of The Conserved Hypothetical Protein Rv2302 From Mycobacterium Tuberculosis.
J. Bacteriol. V. 188 5993 2006
PubMed-ID: 16885468  |  Reference-DOI: 10.1128/JB.00460-06
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN RV2302/MT2359
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Strain: BL21PRO
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: RV2302
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 1773

 Structural Features

(-) Chains, Units


NMR Structure (25x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 2A7Y)

(-) Sites  (0, 0)

(no "Site" information available for 2A7Y)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2A7Y)

(-) Cis Peptide Bonds  (1, 25)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25Pro A:35 -Pro A:36

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A7Y)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2A7Y)

(-) Exons   (0, 0)

(no "Exon" information available for 2A7Y)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:80
 aligned with Y2302_MYCTO | P9WLD4 from UniProtKB/Swiss-Prot  Length:80

    Alignment length:80
                                    10        20        30        40        50        60        70        80
           Y2302_MYCTO    1 MHAKVGDYLVVKGTTTERHDQHAEIIEVRSADGSPPYVVRWLVNGHETTVYPGSDAVVVTATEHAEAEKRAAARAGHAAT 80
               SCOP domains d2a7ya1 A:1-80 Hypothetical protein Rv2302/MT2359                                SCOP domains
               CATH domains -------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeee........eeeeeeee.........eeeee....eeeee......eeehhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  2a7y A  1 MHAKVGDYLVVKGTTTERHDQHAEIIEVRSADGSPPYVVRWLVNGHETTVYPGSDAVVVTATEHAEAEKRAAARAGHAAT 80
                                    10        20        30        40        50        60        70        80


Chain A from PDB  Type:PROTEIN  Length:80
 aligned with Y2302_MYCTU | P9WLD5 from UniProtKB/Swiss-Prot  Length:80

    Alignment length:80
                                    10        20        30        40        50        60        70        80
           Y2302_MYCTU    1 MHAKVGDYLVVKGTTTERHDQHAEIIEVRSADGSPPYVVRWLVNGHETTVYPGSDAVVVTATEHAEAEKRAAARAGHAAT 80
               SCOP domains d2a7ya1 A:1-80 Hypothetical protein Rv2302/MT2359                                SCOP domains
               CATH domains -------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eeeee........eeeeeeee.........eeeee....eeeee......eeehhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  2a7y A  1 MHAKVGDYLVVKGTTTERHDQHAEIIEVRSADGSPPYVVRWLVNGHETTVYPGSDAVVVTATEHAEAEKRAAARAGHAAT 80
                                    10        20        30        40        50        60        70        80
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2A7Y)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A7Y)

(-) Gene Ontology  (1, 1)

NMR Structure(hide GO term definitions)
Chain A   (Y2302_MYCTU | P9WLD5)
cellular component
    GO:0005618    cell wall    The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.

Chain A   (Y2302_MYCTO | P9WLD4)

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 2a7y)

  Sites
(no "Sites" information available for 2a7y)

  Cis Peptide Bonds
    Pro A:35 - Pro A:36   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
