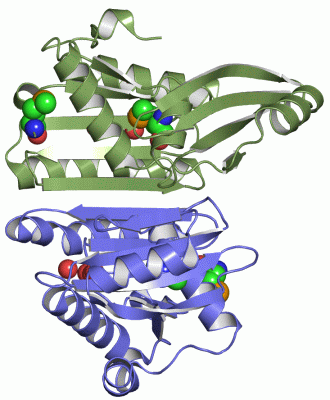

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

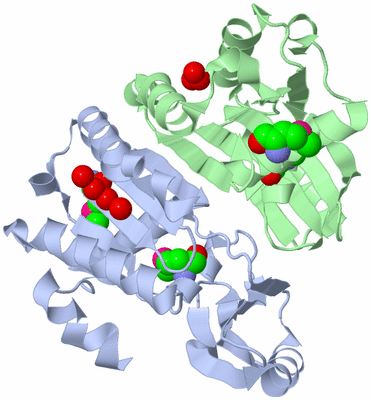

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

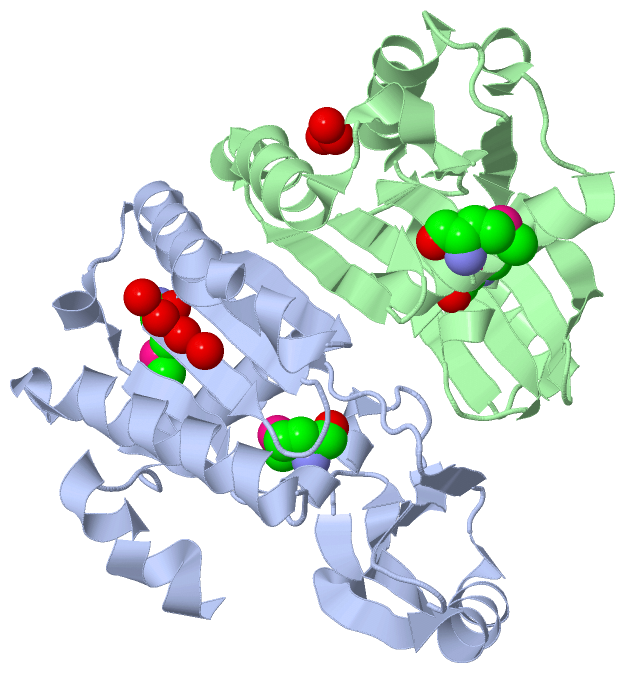

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

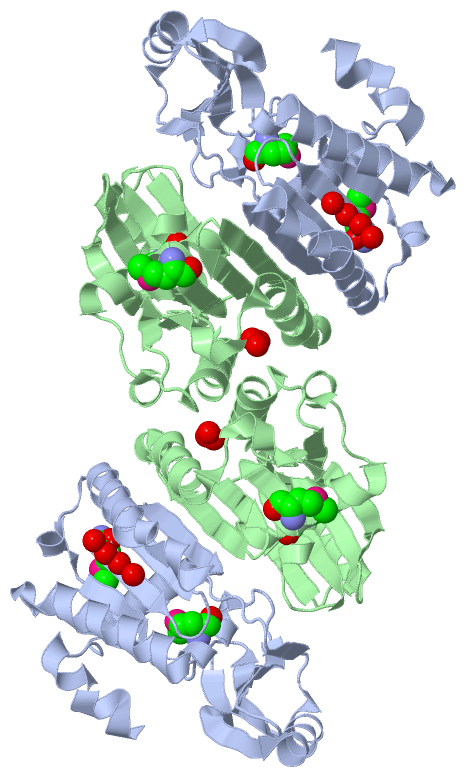

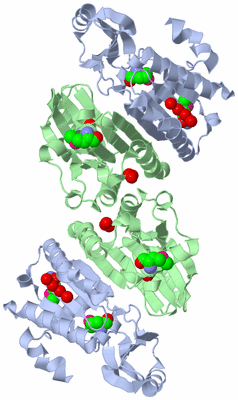

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

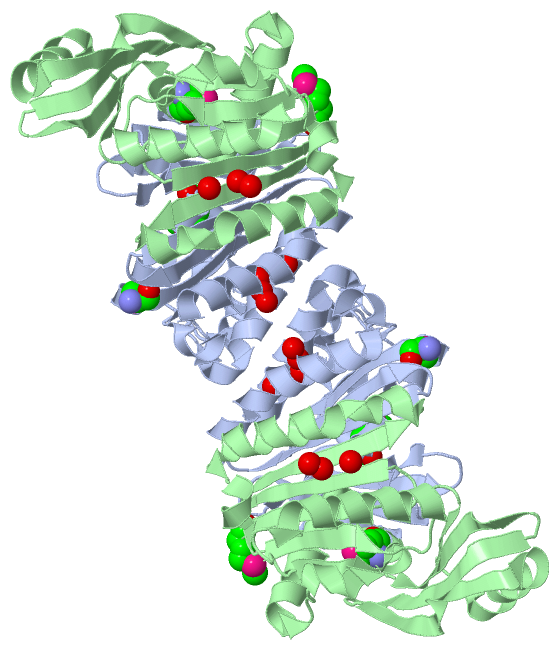

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF GLYCOPROTEIN ENDOPEPTIDASE (TM0874) FROM THERMOTOGA MARITIMA AT 2.50 A RESOLUTION

Authors :  Joint Center For Structural Genomics (Jcsg)
Date :  02 Jul 05  (Deposition) - 19 Jul 05  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  A,B  (2x)
Biol. Unit 3:  A,B  (2x)
Keywords :  Tm0874, Glycoprotein Endopeptidase, Structural Genomics, Joint Center For Structural Genomics, Jcsg, Protein Structure Initiative, Psi, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Q. Xu, D. Mcmullan, L. Jaroszewski, S. S. Krishna, M. A. Elsliger, A. P. Yeh, P. Abdubek, T. Astakhova, H. L. Axelrod, D. Carlton, H. J. Chiu, T. Clayton, L. Duan, J. Feuerhelm, J. Grant, G. W. Han, K. K. Jin, H. E. Klock, M. W. Knuth, M. D. Miller, A. T. Morse, E. Nigoghossian, L. Okach, S. Oommachen, J. Paulsen, R. Reyes, C. L. Rife, H. Van Den Bedem, K. O. Hodgson, J. Wooley, A. M. Deacon, A. Godzik, S. A. Lesley, I. A. Wilson
Structure Of An Essential Bacterial Protein Yeaz (Tm0874) From Thermotoga Maritima At 2. 5  A Resolution.
Acta Crystallogr. , Sect. F V. 66 1230 2010
PubMed-ID: 20944216  |  Reference-DOI: 10.1107/S1744309109022192

(-) Compounds

Molecule 1 - HYPOTHETICAL PROTEIN TM0874
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: HK100
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TM0874
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 243274
    Strain: MSB8
    Synonym: GLYCOPROTEIN ENDOPEPTIDASE

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): AB
Biological Unit 2 (2x): AB
Biological Unit 3 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 6)

Asymmetric Unit (2, 6)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2UNL2Ligand/IonUNKNOWN LIGAND
Biological Unit 1 (2, 6)
No.NameCountTypeFull Name
1MSE4Mod. Amino AcidSELENOMETHIONINE
2UNL2Ligand/IonUNKNOWN LIGAND
Biological Unit 2 (2, 12)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE
2UNL4Ligand/IonUNKNOWN LIGAND
Biological Unit 3 (2, 12)
No.NameCountTypeFull Name
1MSE8Mod. Amino AcidSELENOMETHIONINE
2UNL4Ligand/IonUNKNOWN LIGAND

(-) Sites  (0, 0)

(no "Site" information available for 2A6A)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 2A6A)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric Unit
No.Residues
1Gly A:63 -Pro A:64
2Lys A:127 -Gly A:128
3Gly B:63 -Pro B:64

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 2A6A)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 2A6A)

(-) Exons   (0, 0)

(no "Exon" information available for 2A6A)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:193
 aligned with TSAB_THEMA | Q9WZX7 from UniProtKB/Swiss-Prot  Length:206

    Alignment length:193
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190
           TSAB_THEMA     1 MNVLALDTSQRIRIGLRKGEDLFEISYTGEKKHAEILPVVVKKLLDELDLKVKDLDVVGVGIGPGGLTGLRVGIATVVGLVSPYDIPVAPLNSFEMTAKSCPADGVVLVARRARKGYHYCAVYLKDKGLNPLKEPSVVSDEELEEITKEFSPKIVLKDDLLISPAVLVEESERLFREKKTIHYYEIEPLYLQK 193
               SCOP domains d2a6aa1 A:1-103 Hypothetical protein TM0874                                                            d2a6aa2 A:104-193 Hypothetical protein TM0874                                              SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeee....eeeeeee..eeeeeeee.hhhhhhhhhhhhhhhhhhhh.hhhhh.eeeee....hhhhhhhhhhhhhhhhhhhh..eeeehhhhhhhhh....eeeeeeee....eeeeeeeee....eeeeeeeeeehhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhh....hhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a6a A   1 mNVLALDTSQRIRIGLRKGEDLFEISYTGEKKHAEILPVVVKKLLDELDLKVKDLDVVGVGIGPGGLTGLRVGIATVVGLVSPYDIPVAPLNSFEmTAKSCPADGVVLVARRARKGYHYCAVYLKDKGLNPLKEPSVVSDEELEEITKEFSPKIVLKDDLLISPAVLVEESERLFREKKTIHYYEIEPLYLQK 193
                            |       10        20        30        40        50        60        70        80        90     | 100       110       120       130       140       150       160       170       180       190
                            |                                                                                             96-MSE
                            1-MSE


Chain B from PDB  Type:PROTEIN  Length:188
 aligned with TSAB_THEMA | Q9WZX7 from UniProtKB/Swiss-Prot  Length:206

    Alignment length:188
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179
           TSAB_THEMA     - -MNVLALDTSQRIRIGLRKGEDLFEISYTGEKKHAEILPVVVKKLLDELDLKVKDLDVVGVGIGPGGLTGLRVGIATVVGLVSPYDIPVAPLNSFEMTAKSCPADGVVLVARRARKGYHYCAVYLKDKGLNPLKEPSVVSDEELEEITKEFSPKIVLKDDLLISPAVLVEESERLFREKKTIHYYEIE 187
               SCOP domains d2a6ab1 B:0-103 Hypothetical protein TM0874                                                             d2a6ab2 B:104-187 Hypothetical protein TM0874                                        SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee....eeeeeee..eeeeeeee.hhhhhhhhhhhhhhhhhhhh.hhhhh.eeeee....hhhhhhhhhhhhhhhhh.....eeeehhhhhhhhh....eeeeeeeeee..eeeeeeeee...eeeeeeeeeeehhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhh...hhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 2a6a B   0 HmNVLALDTSQRIRIGLRKGEDLFEISYTGEKKHAEILPVVVKKLLDELDLKVKDLDVVGVGIGPGGLTGLRVGIATVVGLVSPYDIPVAPLNSFEmTAKSCPADGVVLVARRARKGYHYCAVYLKDKGLNPLKEPSVVSDEELEEITKEFSPKIVLKDDLLISPAVLVEESERLFREKKTIHYYEIE 187
                             |       9        19        29        39        49        59        69        79        89      | 99       109       119       129       139       149       159       169       179
                             1-MSE                                                                                         96-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 4)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 2A6A)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 2A6A)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (TSAB_THEMA | Q9WZX7)
biological process
    GO:0008033    tRNA processing    The process in which a pre-tRNA molecule is converted to a mature tRNA, ready for addition of an aminoacyl group.
    GO:0002949    tRNA threonylcarbamoyladenosine modification    The attachment of a carbonyl group and a threonine to the amino group of the adenine residue immediately 3' of the anticodon, in tRNAs that decode ANN codons (where N is any base).
cellular component
    GO:0000408    EKC/KEOPS complex    A protein complex involved in t6A tRNA modification; originally proposed to be involved in transcription as well as promoting telomere uncapping and telomere elongation. For example, in Saccharomyces cerevisiae the complex contains Bud32p, Kae1p, Gon7p, Cgi121p, and Pcc1p.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    UNL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 2a6a)

  Cis Peptide Bonds
    Gly A:63 - Pro A:64   [ RasMol ]
    Gly B:63 - Pro B:64   [ RasMol ]
    Lys A:127 - Gly A:128   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  2a6a
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TSAB_THEMA | Q9WZX7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TSAB_THEMA | Q9WZX7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 2A6A)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 2A6A)
